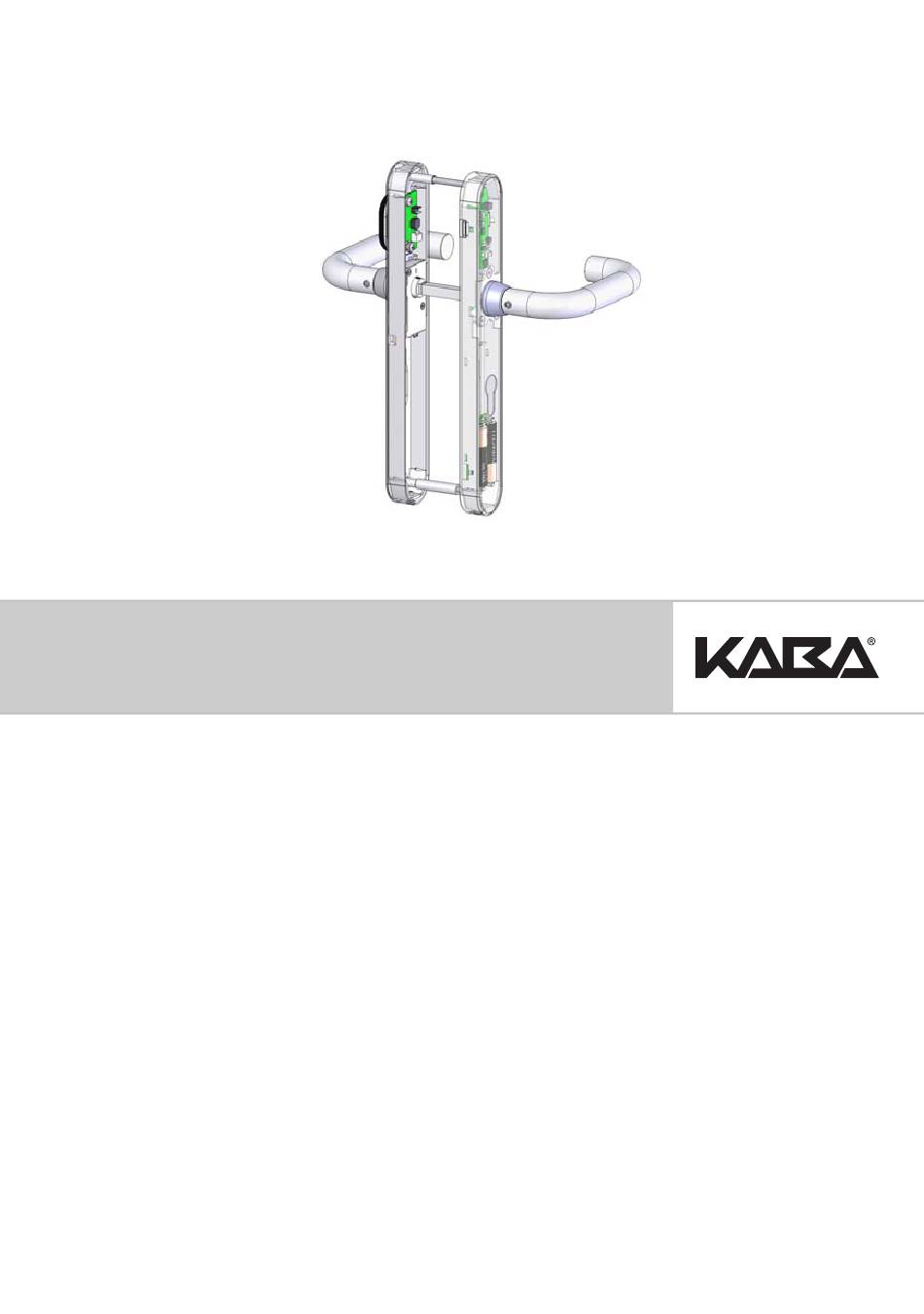

- Page 1 Kaba c-lever Installation instructions Doc no.: k2evo702en-2012-05...
- Page 2 EX 16 6SS England Tel. +44 870 000 5292 www.kaba.co.uk Kaba® is a registered trademark of Kaba AG. This documentation may not be reproduced in any way or otherwise used without the written consent of Kaba GmbH. Copyright by Kaba GmbH...
-
Page 3: Table Of Contents
Kaba c-lever assembly ........ - Page 4 Possible faults ..........27 Kaba c-lever...
-
Page 5: Please Read First
Please read first Validity These instructions describe installation, maintenance and troubleshooting tips for the Kaba c-lever and are valid for the 2621 MID, 2622 MID, 2623 MID, 2624 MID, 2621 LEA, 2622 LEA, 2623 LEA and 2624 LEA variants. Target group These instructions are intended for specialist staff involved in the assembly, installation, set-up, servicing and maintenance of this product. -
Page 6: Hazards To Personnel
Definition of terms In order to make it easier to read these instructions, the Kaba c-lever is shortened to actuator, the 1460 programming device is shortened to programmer and the Kaba evolo Manager software is shortened to KEM. -
Page 7: Safety And The Environment
Safety and the environment Safety and the environment Proper use The Kaba c-lever may only be used for its intended purpose, i.e. opening and closing doors. Other uses are not permitted. Safety guidelines for this product 2.2.1 ESD protective measures ATTENTION Danger of damage to electronic components from electrostatic discharge. -
Page 8: Disposal Of Packaging
Disposal of Waste Electrical and Electronic Equipment [Verordnung über Entsorgung von Elektro- und Elektronik-Altgeräten] (VREG/WEEE) at a local collection point for waste electronic equipment. Conformity This actuator fulfils the requirements of the R&TTE Directive 1999/5/EC and the EMC Directive 89/336//EEC. k2evo702en-2012-05 Kaba c-lever... -
Page 9: Product Description
- Kaba 1460 Programmer - Kaba media - Kaba evolo Manager software - Kaba s-module (Mifare) for external power supply (12-24 V AC/DC, > 300mA) Preparatory measures 3.3.1 Door requirements The door thickness must be between 39 mm and 100 mm. An extension kit is required if a door is thicker than 63mm. -
Page 10: Locking Cylinder Requirements
Product description Installation instructions 3.3.3 Locking cylinder requirements Cylinder standoff dimensions to be observed The Kaba c-lever is available with cylinder holes for 17mm Europrofile and 22mm round profile cylinders. Furniture without cylinder holes can also be employed when using single cylinders. -
Page 11: Technical Specifications
Standards Fire protection According to EN1634-1 EN179 According to test certificate: 0432 - BPR - 0061 (Kaba) 0432 - BPR - 0003 (BKS) 0432 - BPR - 0005 (Dorma) ES1 protection class ES1 according to DIN18257, grade 2 according to... -
Page 12: Kaba C-Lever Assembly
Product description Installation instructions Kaba c-lever assembly Outer furniture with antenna Inside shield Coupling unit Fixing screw for spindle Spindle Internal furniture with e-module M5 x 50mm fixing screws (two) Battery protection foil Battery circuit board Type AA lithium batteries (two) -
Page 13: Dimensions
Installation instructions Product description Dimensions Scale drawing for slim version Scale drawing for wide version Kaba c-lever k2evo702en-2012-05... -
Page 14: Installation
Installation instructions Installation Tools required • Drill jig or drilling template for the Kaba c-lever • C-clamp - recommended when working with drill jig. • Power drill with 9mm and 13mm drill bits • Various slotted and Philips head screwdrivers ATTENTION A lock that is already in place can be damaged. -
Page 15: Drilling The Fastening Holes With The Drilling Template
7. Drill the lower and middle fastening holes using a 9mm drill bit. 8. After drilling, clean the mortise and refit the lock. To prevent the bore holes breaking out, it is advisable to mark and drill the holes from both sides! Kaba c-lever k2evo702en-2012-05... -
Page 16: Fitting The Coupling Unit
3. Secure the spindle (5) from above with a threaded pin (4). The threaded pin (4) must always point upwards! 4. Attach the coupling unit cable to the sleeve (18). k2evo702en-2012-05 Kaba c-lever... -
Page 17: Installing The Furniture
(19) on the lower threaded sleeve. 3. Fit the outside shield (1). After fitting the external plate on the door, pull on the spindle to relieve pressure on the coupling unit. Kaba c-lever k2evo702en-2012-05... - Page 18 1. Insert the batteries (10) into the battery circuit board (9) the right way round. Ensure correct battery polarity! 2. Slip the battery protection foil (8) between the batteries. Only use lithium batteries on doors in outside environments. k2evo702en-2012-05 Kaba c-lever...
- Page 19 3. Locking cylinder (16) Align and tighten with the forend locking stud. With the c-lever wide plate version (54mm), a spacer is fitted between the internal furniture and inside shield to provide improved plate support. Special installation for particular...
-
Page 20: Operation
2 x short after card, goes out of the user media, 2 beeps with B structure with a further 15 upon successful after a further 15 seconds programming master B secs, initialisation confirms the reset of all master media. k2evo702en-2012-05 Kaba c-lever... -
Page 21: Maintenance And Troubleshooting
Maintenance The Kaba c-lever requires no mechanical or electronic maintenance! ATTENTION Opening the coupling unit absolves Kaba of any liability under the guarantee! 6.1.1 Replacing the battery - Replace alkaline batteries every year - Replace lithium batteries after a maximum of 2 years Risk of explosion Lithium batteries can explode or burst explosively. - Page 22 5. Refit the inside shield. ATTENTION As old batteries can leak, it is advisable to check the condition of the batteries at regular intervals. Kaba cannot provide compensation for any consequential damage caused by faulty batteries (batteries cannot be guaranteed). k2evo702en-2012-05...
-
Page 23: Replacing The Antenna
Danger of damage to electronic components from electrostatic discharge. Printed circuit boards can be damaged by electrostatic discharge. Direct contact is the usual cause, but indirect contact can also result in damage. Always wear a suitable ESD earthing strap when installing and repairing equipment. Kaba c-lever k2evo702en-2012-05... -
Page 24: Setting The Clock
To be able to open the door mechanically in an emergency, a lock with a key operated latch must be used or fitted! Unlocking from the inside 1. With a panic lock, the Kaba c-lever can always be unlocked by operating the handle. The relevant locking function is otherwise ensured by moving the inner handle. -
Page 25: Emergency Opening Using Battery Emergency Device
3. Open the door using the key-operated latch. 6.3.2 Emergency opening using battery emergency device Unlocking from the inside 1. With a panic lock, the Kaba c-lever can always be unlocked by operating the handle. The relevant locking function is otherwise ensured by moving the inner handle. -
Page 26: Ini Reset
1. Hold the authorised programming master in front of the antenna. 2. An acoustic double signal follows after 10 seconds. 3. Another acoustic double signal follows after a further 15 seconds and the LED goes out. This confirms successful initialisation. k2evo702en-2012-05 Kaba c-lever... -
Page 27: Troubleshooting
Set clock close at programmed Incorrect programming Replace coupling unit time Door cannot be opened 8 x short 8 x red System test not Check and/or change with programmed completed correctly cable connections and medium coupling unit Kaba c-lever k2evo702en-2012-05... - Page 28 Maintenance and troubleshooting Installation instructions k2evo702en-2012-05 Kaba c-lever...
