Kaba mechatronic cylinder surface

Operating Manual

Round profile

k1evo821 - 201606

Need help?

Do you have a question about the 1547-K5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kaba 1547-K5

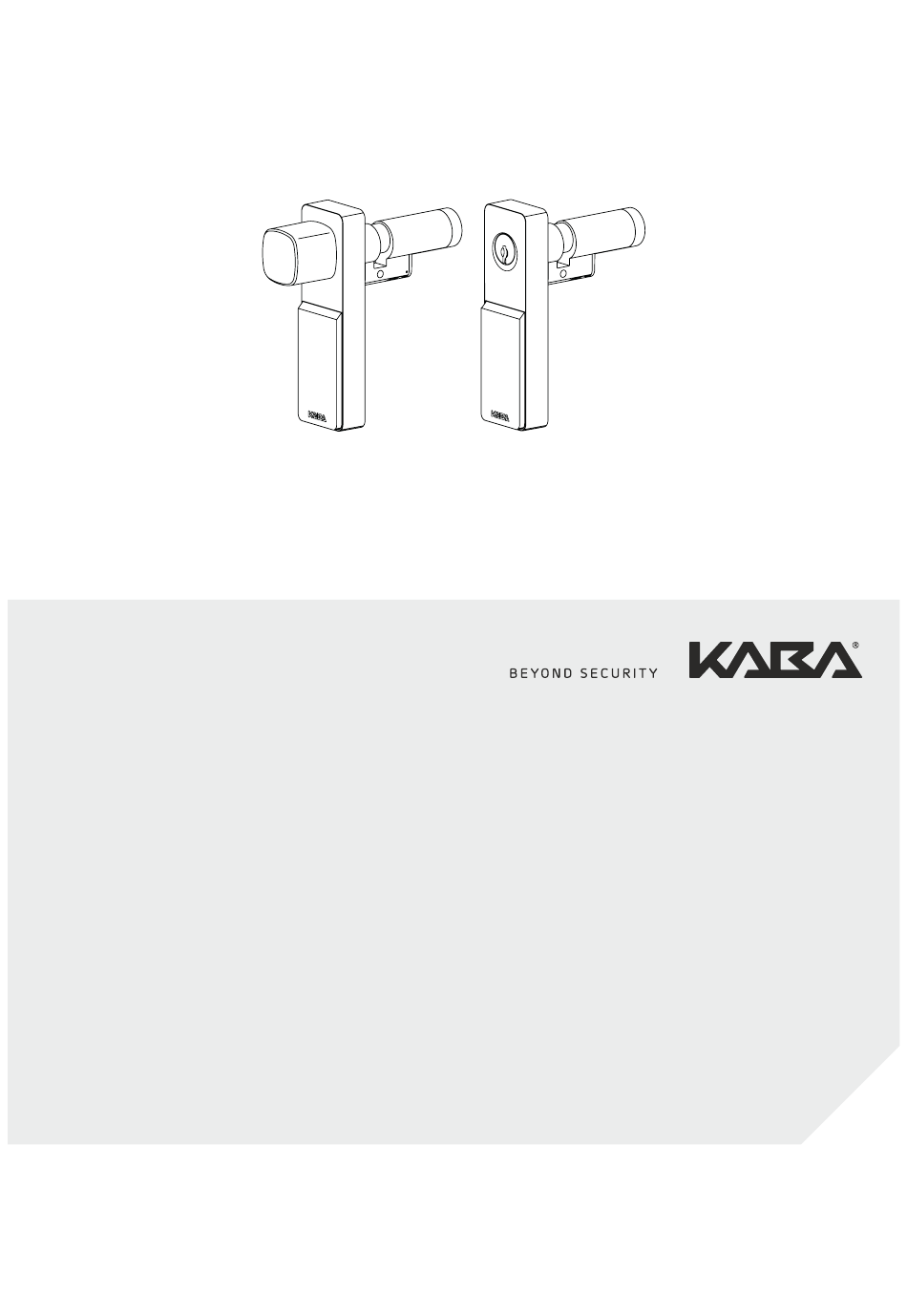

Page 1 Kaba mechatronic cylinder surface Operating Manual Round profile k1evo821 - 201606...
Page 2 This document must not be reproduced in any way or otherwise further used without the written consent of Kaba AG. All product names are trademarks of the respective companies. Copyright 2016 Kaba AG. All rights reserved. k1evo821 - 201606...
Page 3 4.2.4 Fitting the cylinder in the mortise lock.................... 20 4.2.5 Fitting the retaining plate, housing and cover.................. 21 4.2.6 Inserting the rotary knob........................... 22 Variant with wireless module.......................... 23 4.3.1 Fitting the wireless module ........................ 23 Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 4 Configuration and traceback .......................... 39 Reset (INI reset)................................ 40 8.4.1 Reset with master media ........................... 40 8.4.2 Reset with programmer 1460 ........................ 40 8.4.3 Reset using tweezers........................... 40 Opening if battery becomes discharged ...................... 41 Troubleshooting........................... 42 Error analysis ................................. 42 Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 5 The following documents are available from the sales partners: • Kaba programmer 1460 and Kaba programmer 1364 operating manual • User manual for programming and signals of the Kaba evolo components • Kaba evolo system description • Wireless planning guideline •...
Page 6 Symbols Symbols with the following meanings are used for hazards (depending on hazard source.) General hazard Hazard from electric shock Risk of explosion Risk to electronic components from electrostatic discharge Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 7 When used externally, the cylinder must be protected against sustained rainfall using a weather guard. When used in fire protection doors, escape routes or rescue routes, the locally applic- able guidelines and building regulations must be observed. Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 8 Do not open, drill through or squash lithium batteries. • Do not burn lithium batteries or expose them to high temperatures. • Do not short circuit lithium batteries. • Do not recharge lithium batteries. Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 9 The lock can only be actuated if the user key (Kaba smart key) is authorised electron- ically. Access authorization and operation condition are signalled acoustically.
Page 10 1 forend screw, pozi type • 1 battery, CR2 lithium type • 1 quick guide Accessories (optional) • Relevant system software and programming tools • Wireless module (optional) • Adapter plates Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 11 0% – 95% rH, non-con- densing Climate Not suitable for heavily corrosive atmospheres (chlorine, ammonia). Standards Durability >100,000 cycles Cycles Battery life at 20°C approx. 40,000 cycles Depending on the config- uration Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 12 Product description Operating Manual 3.4.1 Dimensions Double cylinder version LB=B+(≥16) 4 mm 37.6 19.5 Thumbturn knob version LB=B+(≥16) 4 mm 19.5 37.6 47.5 Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 13 This device is in compliance with the provisions of Directive 2011/65/ EC of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 14 2. Press the multitool against the fitting. ð The locking spring will release. 3. Remove the Thumbturn knob. 4.1.5 Dismantling the housing 1. Push both catches upwards using the multitool. ð The catches will be released. Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 15 Loosen the screw from the retaining plate. 4 mm NOTICE Avoid damaging the flat ribbon cable. Remove the flat ribbon cable so that it cannot be pinched, shorn or damaged due to improper use. Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 16 Note: The antenna (3) must be at least 7.5 mm from the external fitting (2). The cylinder must protrude by at least 16 mm on the inner side. 4. Screw in the forend screw. Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 17 Tighten the screw using a maximum of 4 Nm. 4 mm Insert the flat ribbon cable into the sleeve so that the strip conductors on the flat ribbon cable are visible. Close the lock. Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 18 4.1.10 Tightening the 'small' inside knob ü Allen key, 2 mm hex available 1. Insert the inside knob on the cylinder axis. 2. Tighten the screw using the hexagonal key. 2 mm Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 19 3. Remove the battery. 4. Undo both screws. Note: Only undo the screws as far as necessary for the housing to be removed. ð Both screws remain in the housing. 5. Remove the housing. Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 20 Note: The antenna (3) must be at least 7.5 mm from the external fitting (2). The cylinder must protrude by at least 16 mm on the inner side. 4. Screw in the forend screw. Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 21 Tighten the screw using a maximum of 4 Nm. 4 mm Insert the flat ribbon cable into the sleeve so that the strip conductors on the flat ribbon cable are visible. Close the lock. Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 22 1. Align the rotary knob with the notch as shown. 2. Insert the rotary knob on the cylinder axis. ð The rotary knob locks in place. 3. Check the rotary knob is sitting securely by pulling on it. Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 23 ð The wireless module snaps in place at the side. 4.3.2 Removing the wireless module 1. Remove the battery. 2. Push the side walls away from one another as shown. ð Both snap locks release the wireless module. Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 24 Requirements for screws at position B • 1 x screw Ø ≤ 3.3 mm (not included in the scope of delivery) • Screw head diameter: ≤ 6 mm • Screw head height: ≤ 2.5 mm Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 25 Manual programming using master media or the programmer 1460 is described in the document Programming Kaba evolo components. The process for setting up the wireless function is described in the handbook for the relevant system software.
Page 26 (Delete lost User key in the KEM system software in the whitelist (add CardLink to the blacklist) or delete all User key with the corresponding master and then re-program all User key). Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 27 Operating Manual Programming A/B and B structures A/B- structure Master A B- structure Master B User media Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 28 Note: If no master medium is held up within 20 seconds, pro- gramming mode ends automat- ically and one long acoustic sig- nal sounds. Table 1: Programming user media with B masters Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 29 Note: If no master medium is held up within 20 seconds, pro- gramming mode ends automat- ically and one long acoustic sig- nal sounds. Table 2: Deleting individual user media Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 30 Note: If no master medium is held up within 20 seconds, pro- gramming mode ends automat- ically and one long acoustic sig- nal sounds. Table 3: Deleting individual B masters Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 31 » All B masters under the A mas- 1, 2 1 x long ter will be deleted. 1 x short 10 s Table 5: Deleting all B masters Key: Firmware version 42xx For Mechatronic cylinder Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 32 Master A Beep A master approx 15 s insert into the cylinder., the INI reset will be carried out after 15 s. 15 s Table 7: INI reset with master media for CardLink Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 33 1364. The firmware (FW) is updated together with the programmer 1460. A detailed description of programming can be found in the separate operating manual for the programmer 1460 and programmer 1364. Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 34 If an attempt is made to gain access with unauthorised user Beep Beep media, an acoustic¹ signal briefly sounds four times. Beep Key: If the function has been activated using the programmer 1460 or the system software. Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 35 Only disinfection agents that are explicitly formulated for cleaning delicate metal surfaces and plastics may be used. The use of unsuitable cleaning agents or methods can damage the components' surface. 1. Use a soft, damp cloth to clean the surface. Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 36 ð The acoustic signal denotes the access authorisation. ð The lock can be actuated. 3. Insert an unauthorised user key into the cylinder. ð An acoustic signal sounds 4 x briefly. ð The lock cannot be actuated. Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 37 » 1 x short acoustic signal. Guide in the top of the cover. Push both catches upwards using your finger. Push the cover against the housing. » The cover locks in place. Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 38 7. Insert the flat ribbon cable into the sleeve so that the strip conductors on the flat ribbon cable are visible. 8. Close the lock. 9. Secure Fitting the retaining plate, housing and cover [} 4.1.8]. 10. Secure [} 4.1.9] the rotary knob. Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
Page 39 (e.g. adjusting the clock time). A programmer can read the traceback and transmit it to the system software for eval- uation. Further steps are described in the documents Programmer 1460 and Programmer 1364. Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 40 Loss of data With an INI reset, all previously saved settings and data on the E-module are deleted. NOTICE Before components are returned to Kaba for servicing, always carry out a reset on the components. 8.4.1 Reset with master media See Chapter INI reset with master media for whitelist and CardLink™.
Page 41 5. Open the door using the user key. 6. Replace the battery (or batteries) immediately. ð The locking module closes automatically after the battery (or batteries) is (are) inserted. 7. Check the clock time and adjust if required. Kaba mechatronic cylinder surface k1evo821 - 201606 Round profile...
Page 42 – Faulty Key – Not the correct technology Master Key cannot be pro- – E-module already programmed – Carry out INI reset for e-module grammed short Key: The actuator subsequently opens Round profile k1evo821 - 201606 Kaba mechatronic cylinder surface...
