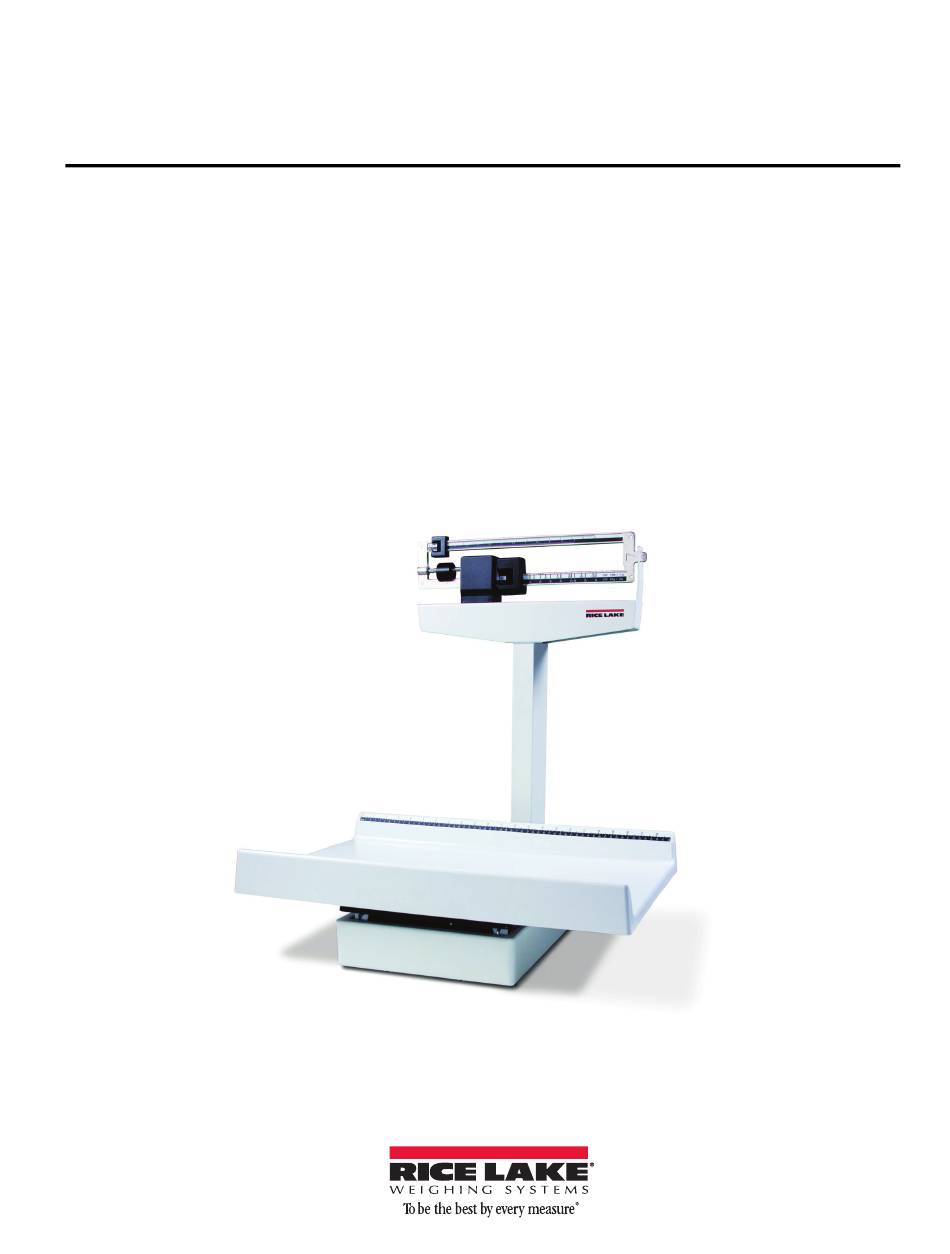

- Page 1 Rice Lake Mechanical Baby Scal RL-MIS and RL-MIS-20 Operation Instructions 132019 - Rev A...
-
Page 3: Table Of Contents
Zero Adjustment........................... 6 Weighing a Baby .......................... 6 Troubleshooting ........................... 7 Specifications ..........................7 © Rice Lake Weighing Systems. All rights reserved. Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company July 2013... - Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars.
-
Page 5: Introduction
Introduction The Rice Lake Mechanical Baby Scale provides precise weighing of babies and toddlers. The scale comes in two configurations. Those configurations include: • RL-MIS (Lb-oz & Kg) with measuring tape in inches and centimeters • RL-MIS-20 (Kg only) with measuring tape in centimeters The scale is durable, having a sturdy enameled steel body and a wipe down, molded plastic weighing tray with measuring ruler. -
Page 6: Installation Instructions
Molded plastic weighing tray assembly Remove all components from the shipping box and lay out in a convenient place. Pillar Installation Prior to assembly, you’ll need the following tools to finish assembling the Rice Lake Mechanical Baby Scale. • Phillips head screwdriver •... - Page 7 3. Insert the pillar into the scale base assembly ensuring that the RLWS logo located on the weigh beam faces the scale base. Pillar Scale base Figure 2-2. Attach the Pillar to the Scale Base 4. Using a phillips head screwdriver, screw in the eight bolts and washers to secure the pillar to scale base. Figure 2-3.
-
Page 8: Steelyard Rod Connection
Steelyard Rod Connection The steelyard rod is located inside the scale pillar. Once the pillar is attached to the scale base, the steelyard rod must be attached to the bottom of the scale. Lay the scale pillar on a table so that the scale platform hangs over the edge of the table and allows you to access the bottom of the scale. -
Page 9: Weigh Platter Installation
Weigh Platter Installation The weighing platter comes separate from the scale base and must be attached for proper operation. To attach the weigh platter to the scale base, use the following instructions. 1. Position the weigh platter on top of the scale platform with the inch/cm marks located next to the pillar as shown in Figure 3-2. -
Page 10: Zero Adjustment
Zero Adjustment To ensure accurate weighments, a zero adjustment should be done to the scale upon arrival and setup. To perform a zero adjustment, perform the following steps. 1. Ensure the scale is sitting upright on a level surface. 2. Make sure that the poise weights are pushed all the way to the left hand side (at zero) making sure that the large poise is firmly seated in the notch and the small poise is firmly against the shoulder of the beam. -
Page 11: Troubleshooting
This can be caused by the poise weights being set to a higher weight than the person’s actual weight. Reset the weights to a lower weight. Also check to see that the steelyard rod is properly connected and aligned. Table 6-1. Troubleshooting Guide Specifications RL-MIS RL-MIS-20 Maximum Capacity 135 Lb (62 Kg) 70 Kg Graduation 1.0 Oz (20 G) - Page 12 Email • U.S. sales and product information at prodinfo@ricelake.com • International (non-U.S.) sales and product information at intlsales@ricelake.com Mailing Address Rice Lake Weighing Systems 230 West Coleman Street Rice Lake, WI 54868 USA Mechanical Baby Scale Installation and Operation Instructions...
- Page 13 Mechanical Baby Scale Limited Warranty Rice Lake Weighing Systems warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for two (2) years.
- Page 14 Mechanical Baby Scale Installation and Operation Instructions...
