8. Quick Start: Commissioning, Software
Mount the sensor according to the installation instructions.
Install the software.
Connect the sensor to the PC via the optional available SCR3000A-x Ethernet
cable.
Connect the sensor to display or monitoring units.
Switch on the power supply.
The connectors for Ethernet and the multifunction port are fitted with a screw connec-
tor.
Loosen the screws before you remove the connector from the socket.
Connect the shield of the power supply cable to the PE protective earth conduc-
tor of the main power supply. Close unused connection plugs with the provided
protective caps. Switch on the power supply (24 VDC).
i
Only connect the sensor to the peripheral equipment, if it is disconnected from
the power supply, i.e. only when the operating voltage is switched off. The sen-
sor needs a warm-up time of typically 20 minutes for high precision measure-
ments.
Please wait until the scanCONTROL device is recognized by the PC.
This may take a few seconds.
Now you can operate the scanCONTROL measurement system with the scanCON-
TROL software packages.
i
Operating a scanCONTROL sensor via Ethernet may require a modification of
the IP settings of the PC/sensor or a modification of the firewall settings, see
Chap. 5.2.5 of instruction manual.
You will find the software online on
the product website of the sensor or
in the download area: https://www.
micro-epsilon.com/2D_3D/laser-scan-
ner/Software/downloads/

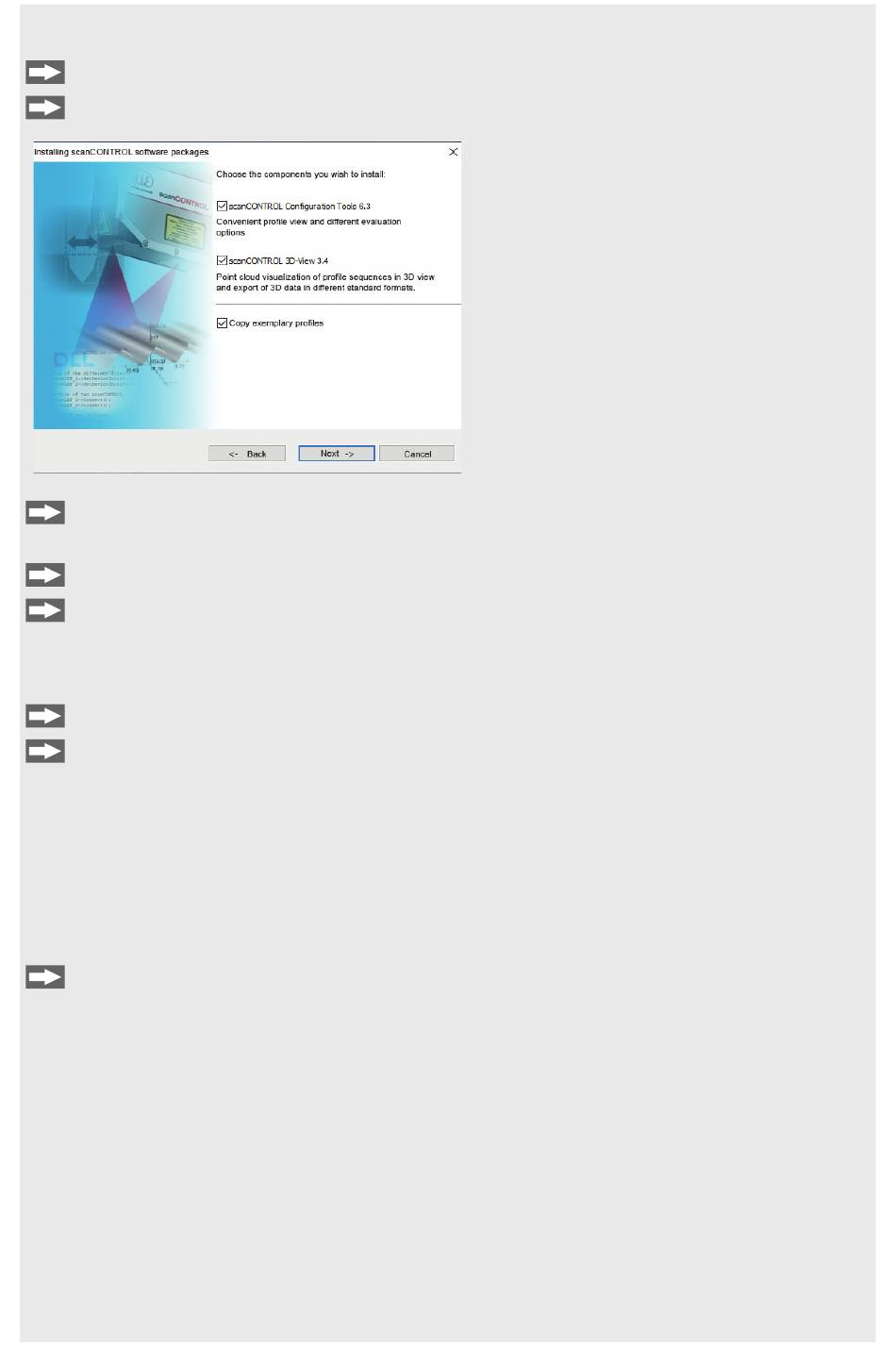

Follow the dialog through the installa-
tion process.
A. Reading of installation help
B. Installation of software
C. Further information in the online
documentation
