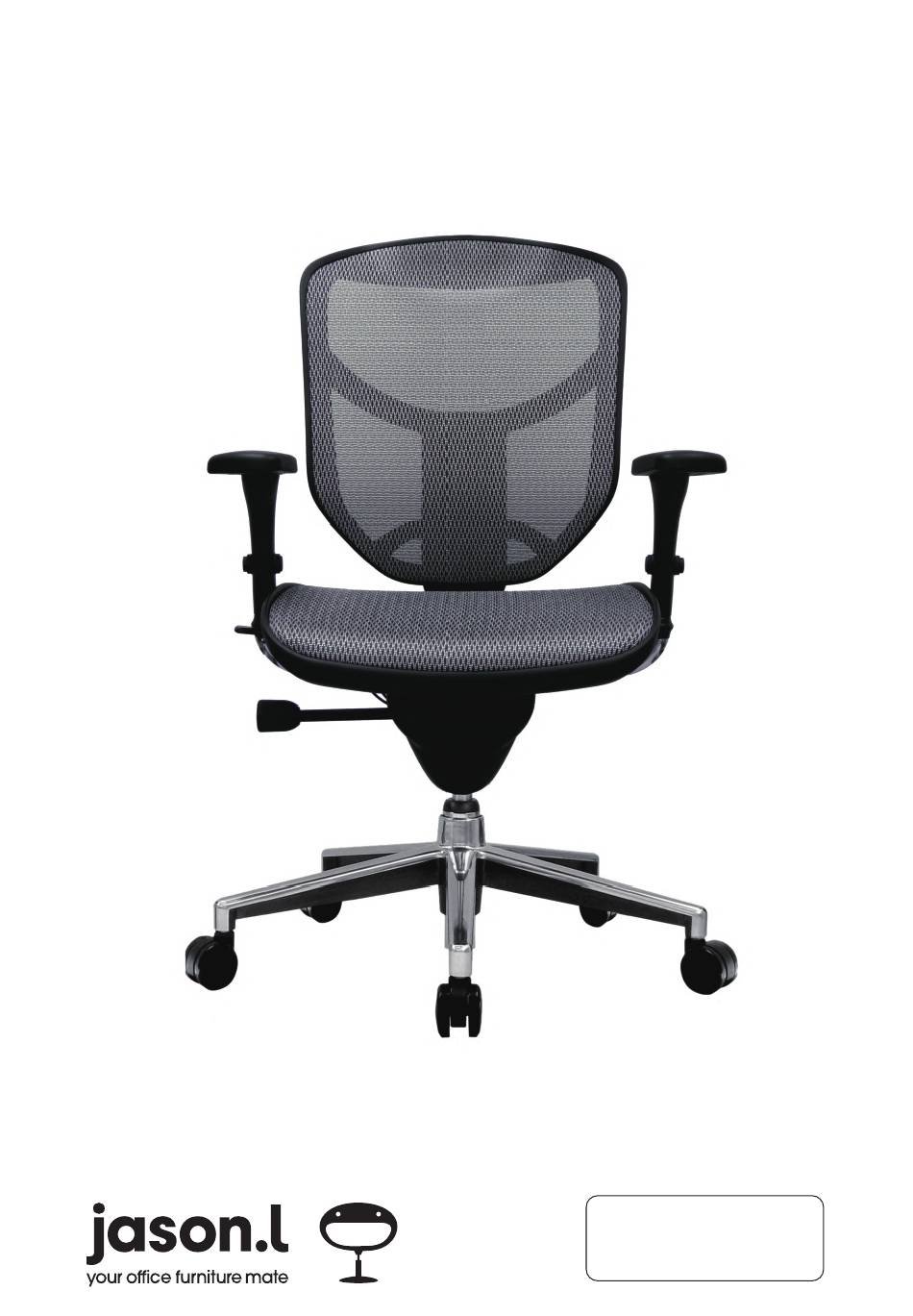

- Page 1 Smile & enjoy chair instruction www.jasonl.com.au Need help! Call us on 1300 527 665 1 of 13...
-
Page 2: Parts List
Smile & enjoy chair instruction PARTS LIST Caster x5 Armrest x2 Base x1 Seat cushion x1 Gast lift x1 Back cushion x1 Bolts & Washers Allen wrench 1/4*5/8’’ mm for armrest 1/4*1’’ mm for armrest M8 x 17mm for backrest www.jasonl.com.au Need help! Call us on... -
Page 3: Product Assembly Instruction
Smile & enjoy chair instruction PRODUCT ASSEMBLY INSTRUCTION STEP 1 STEP 2 STEP 3 STEP 4 www.jasonl.com.au Need help! Call us on 1300 527 665 3 of 13... -
Page 4: Function Controls
Smile & enjoy chair instruction FUNCTION CONTROLS Armrest height adjustment button Single rod control lever for seat slide, seat height and B Backrest tilt tension adjustment handle www.jasonl.com.au Need help! Call us on 1300 527 665 4 of 13... - Page 5 Smile & enjoy chair instruction FUNCTION CONTROLS Backrest tilt angle and tilt tension adjustment Arm pad angle adjustment Arm pad forward and backward adjustment Armrest height adjustment Seat height and depth adjustment www.jasonl.com.au Need help! Call us on 1300 527 665 5 of 13...
- Page 6 Smile & enjoy chair instruction B1 BACKREST TILT ANGLE ADJUSTMENT Pull the single rod control lever completely backward and lean against back until a desired angle is achieved, and then return the lever to the original middle position to lock at an ideal angle.
- Page 7 Smile & enjoy chair instruction B2 BACKREST TENSION ADJUSTMENT Swivelling clockwise oe anti-clockwise the Backrest esible tilt tension adjust button, one can enhance or reduce the tilt tension. The synchro mechanism is ergonomically designed to enhance comfort and reduce strain. The back-to-seat adjustment / tilt is 3:1 ratio.
- Page 8 Smile & enjoy chair instruction B3 BACKREST HEIGHT ADJUSTMENT Sitting on the chair, holding and pushing up the Backrest height adjust mechanism, one could adjust the backrest up or down, the backrest would be returned back to the lowest when pushed to the top.
- Page 9 Smile & enjoy chair instruction C1 ARMREST HEIGHT ADJUSTMENT Press the two-side armrest height adjustment buttons to raise or lower the armrest. There are 8 positions with 3. 15’’ range. Recommended armrest position: Allow arms to rest comfortably on the armrest at a 90°...
- Page 10 Smile & enjoy chair instruction C2 ARM PAD ANGLE ADJUSTMENT Arm pad angle adjutment: A range of 15° can be achieved by swiveling the arm pads inwards. The best angle could be reached when the arms can rest naturally on the arm pads while working.
- Page 11 Smile & enjoy chair instruction C4 ARM PAD FORWARD AND BACKWARD ADJUSTMENT Forward and backward adjustment: push the arm pads forward or backward to a desired position. The range for ir is about 2’’ . www.jasonl.com.au Need help! Call us on 1300 527 665 11 of 13...
- Page 12 Smile & enjoy chair instruction D1 SEAT HEIGHT ADJUSTMENT Pull up the single rod control lever and hold it while raising or lowering the seat to change the seat height. When the lever is released, the seat height is locked. Since an incorrect seat height contributes to back’s fatigue, it is recommended that the...
- Page 13 Smile & enjoy chair instruction D2 SEAT DEPTH ADJUSTMENT Push the single rod control lever forward to adjust the seat depth (The approximate range is 1.97’’). Then the pull is released, the position will be xed. Ideal depth is achieved when the upper legs are on the seat, the lumbar area is in touch with the backrest of the chair,...
