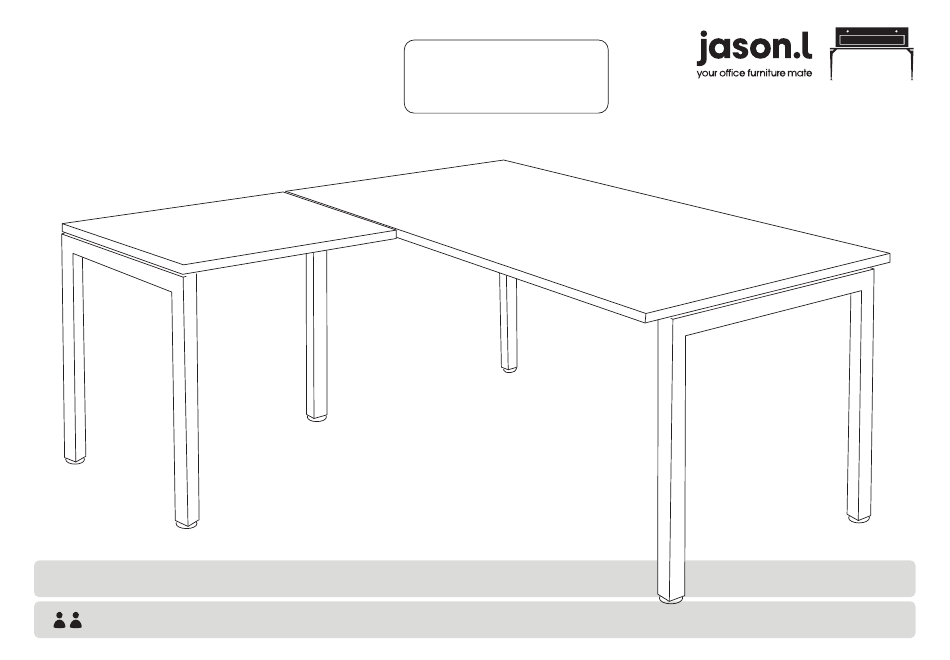

- Page 1 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! L-Shaped Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation Page 1 of 8...
- Page 2 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! L-Shaped Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm COMPONENTS Table top x1 Table top Return x1 Legs Quadro Square x2 Legs Quadro Square Return x1 Beam x1 Beam Return x1 Plastic bracket x6 Joiner plates x2...
- Page 3 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! L-Shaped Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 01 STEP 02 Using Allen Key provided, attach 2 plastic brackets (G) per legs (C & D) Using Allen Key provided, attach M8x20MM Socket head (J)- (as per picture above) using M6x20MM (K) Socket head screw screw socket half way into leg for three legs (C &...
- Page 4 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! L-Shaped Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 03 Adjust extendable beam (E) to desired length using markers and secure beam at that length using screws provided 2000 1900 1800...
- Page 5 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! L-Shaped Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 04 TOP VIEW STEP 05 Attach beam (E) to legs (C) using nut insert in legs. Frame looks like this. Using Allen Key, attach beam (E) with Socket (I) See point attached Page 5 of 8...
- Page 6 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! L-Shaped Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 06 Now attach the return beam (F) to return leg (D) using nut insert in legs. See point attached. Then, connect the hook of the return beam to the beam of the main structure.
- Page 7 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! L-Shaped Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 07 Attach Connector Plates (H) to Return Top (B) by tightening Screws (M) Page 7 of 8...
- Page 8 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! L-Shaped Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 08 nut insert nut insert nut insert nut insert TABLE TOP Place table top (A) ontop of frame. Using nut inserts in the desk, use M6x30mm socket (L) and attach desktop to BOTTOM VIEW the frame.
