ASSEMBLY INSTRUCTIONS

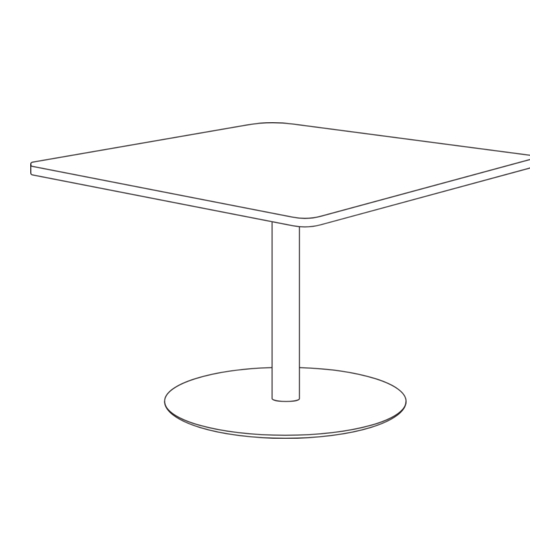

Sapphire
Meeting Table
Size: 1100 x 1100 mm
Tools Required: Power screwdriver. We strongly recommend using an impact drill gun together with thread locking all screws.
Note: Please ignore any pre-drilled holes or nut inserts that maybe present in your top(s). They will not match your particular
table/desk base and woods screws will be required to be screwed directly into the underside of the top.
Note: It is important to fully tighten all bolts and screws before attaching the top(s) so that the frame is su ciently rigid.
Failure to do this may a ect stability once the tops are attached.
www.jasonl.com.au
Need help!
Call us on
1300 527 665
Page 01
Advertisement
Table of Contents
Related Manuals for Jason.L Sapphire Meeting Table
Summary of Contents for Jason.L Sapphire Meeting Table
- Page 1 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Need help! Sapphire Call us on 1300 527 665 Meeting Table Size: 1100 x 1100 mm Tools Required: Power screwdriver. We strongly recommend using an impact drill gun together with thread locking all screws. Note: Please ignore any pre-drilled holes or nut inserts that maybe present in your top(s). They will not match your particular table/desk base and woods screws will be required to be screwed directly into the underside of the top.
- Page 2 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Need help! Sapphire Call us on 1300 527 665 Meeting Table Size: 1100 x 1100 mm A * 1 B * 1 STEP 1 STEP 2 C * 1 D * 3 (M8*30mm) E * 3 (M8*30mm) F * 1 G * 8 woodscrews Page 02...
- Page 3 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Need help! Sapphire Call us on 1300 527 665 Meeting Table Size: 1100 x 1100 mm STEP 3 STEP 4 Adding the Top Screw the table top through the square top plate using woodscrews (G*8 wood screws) through the following holes.
