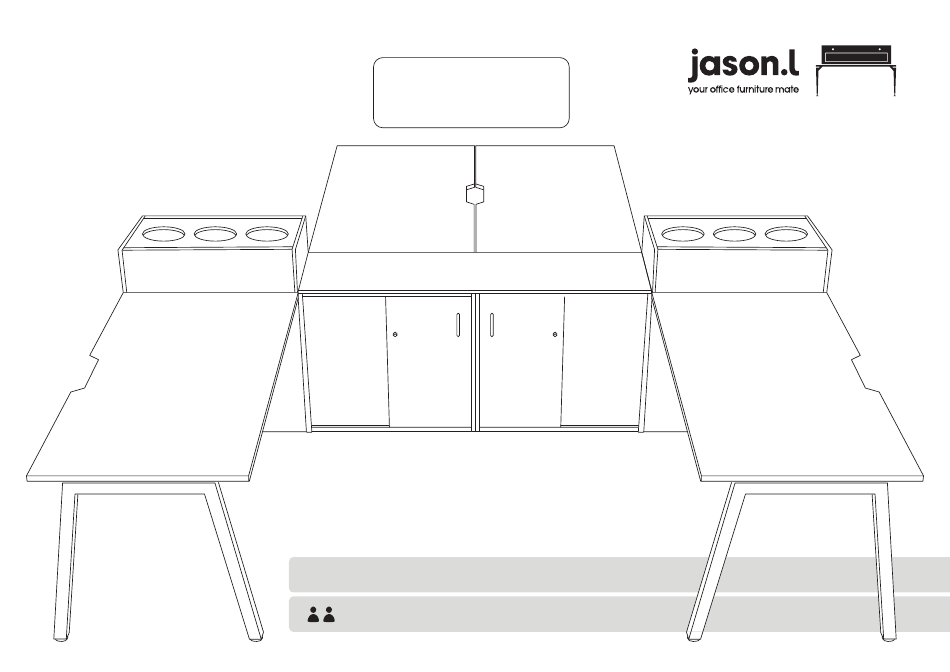

- Page 1 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation Page 1 of 16...
- Page 2 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 The first step is to assemble the four desks. The necessary components for each of them are as follow: COMPONENTS Table top x1 Legs Quadro A x2 Beam x1...
- Page 3 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 STEP 01 STEP 02 Using Allen Key provided, attach 2 plastic brackets per leg (D) Using Allen Key provided, attach M8x20MM Socket head (F)- (as per picture above) using M6x20MM (G) Socket head screw...
- Page 4 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 STEP 03 Adjust extendable beam (C) to desired length using markers and secure beam at that length using screws provided 2000 1900 1800 1700 1600 1500 1400 1300...
- Page 5 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 STEP 04 TOP VIEW STEP 05 Attach beam (C) to legs (B) using nut insert in legs. Frame looks like this. Using Allen Key, attach beam (C) with Socket (E)
- Page 6 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 STEP 06 TABLE TOP BOTTOM VIEW nut insert nut insert Place desktop ontop of frame - with cutout at the back of the desk. Nut inserts in top will align with plastic joiner brackets using M6x30MM (H) sockets attached top to frame.
- Page 7 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 Hardware: Minifix Cam Minifix Steel Bolt Rubber Wood Dowel 14 pcs 19 pcs 14 pcs Door Panel Rail Guide Push Lock Stripe Handle 4 sets (already installed) 1 sets...
- Page 8 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 Exploded view Page 8 of 16...
- Page 9 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 Back panel Side panels Minifix Steel Bolt Rubber Wood Dowel Page 9 of 16...
- Page 10 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 Door Rail Base Panel Minifix Steel Bolt Top Rail Rubber Wood Dowel Page 10 of 16...
- Page 11 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 Adjustable Leveller N2880 Chipboard Leveller N2880 Cap Screw 4 x 32mm DECO-CAP-18X15 5-pcs STEP 01 Lay back panel (1) on ground. Add one side panel (2) and base panel (3) STEP 02 Add top rail (4) &...
- Page 12 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 PUSH STEP 04 STEP 05 Assembly MFC sliding doors For the two end storages, assemble Top Panel (800mm) at top of carcass. Now two of them are already complete.
- Page 13 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 STEP 06 For the remaining two storages, position them side by side, facing the same side. And proceed to assemble single top (1600mm) over two modules: Tighten Minifix...
-
Page 14: Base Panel
ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 Components: Base panel Back panel Qty: 1 pc Qty: 1 pc Once the four storages are fully assembled, proceed now with planter box assembly process, using the detailed components for each of them:... - Page 15 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 Step 1. Step 2. Assemble component follow Insert collar stud sequence number into boring hole Complete assembly Page 15 of 16...
- Page 16 ASSEMBLY INSTRUCTIONS Spine Need help! Call us on 1300 527 665 Bring the parts closer together, and facing in the right direction. When finished, the workstation should look like this, and the assembly process is complete. Page 16 of 16...
