Summary of Contents for NatComm PA2

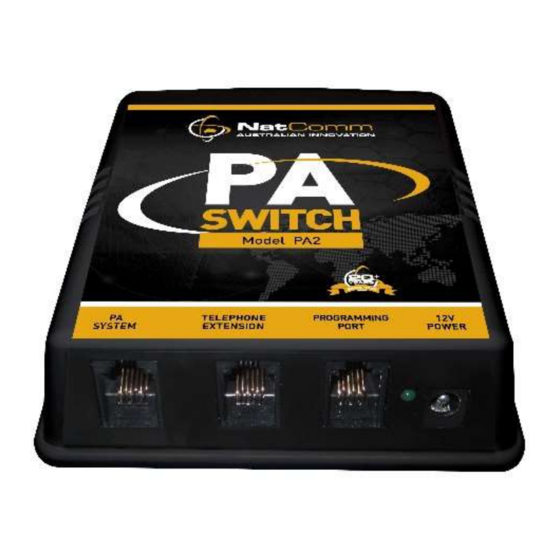

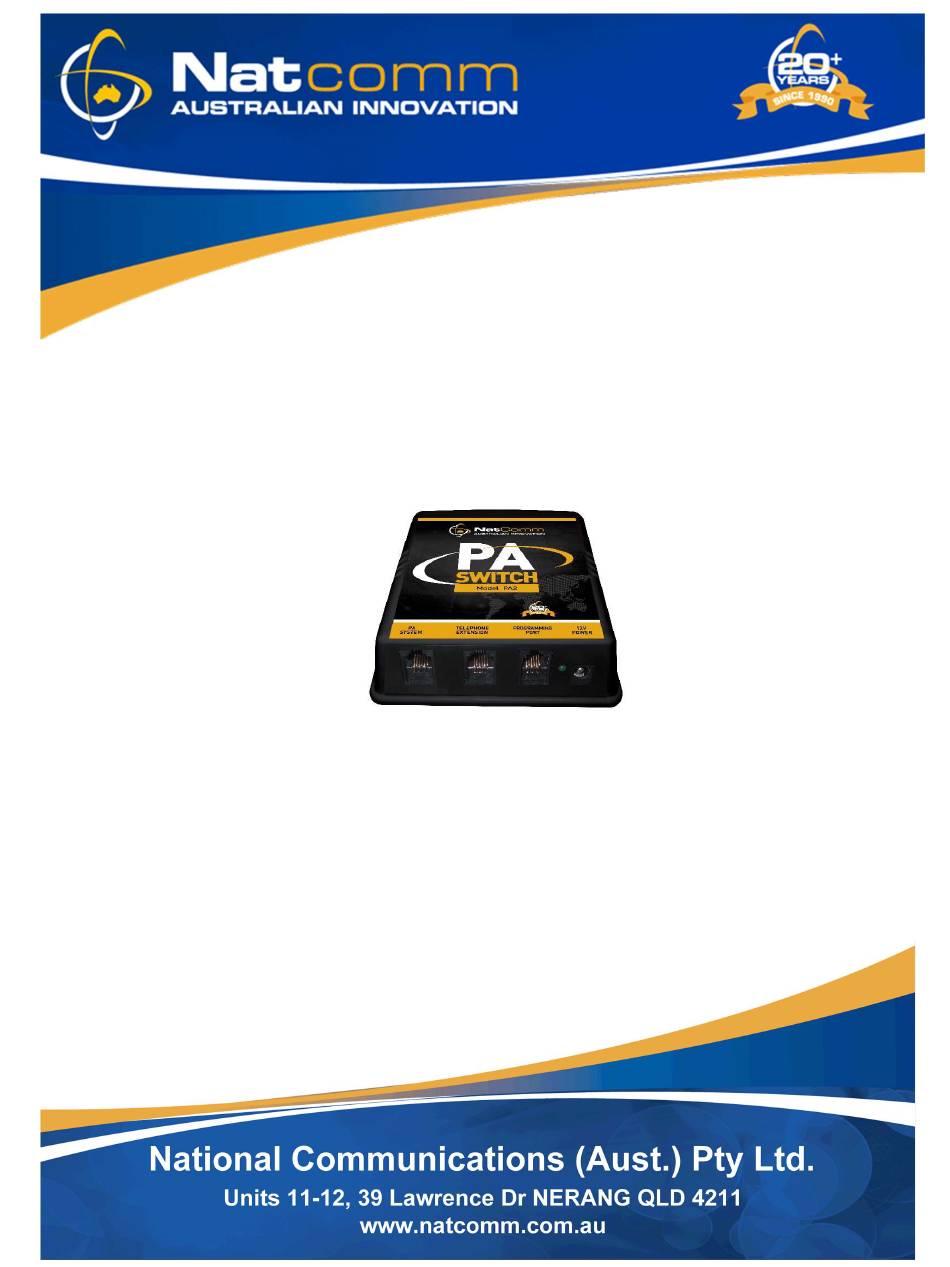

- Page 1 PA 2 PAGING SWITCH USER GUIDE For Technical Assistance Please Ph: 07 5596 5128 or Email : info@natcomm.com.au...
-
Page 2: Packing List
PACKING LIST Your Model PA2 Paging Switch is supplied as a complete kit, ready for quick and easy installation. Description PA2 Paging Switch 12V Power Adaptor Telephone Line Cord, fitted with a male plug RCA to PA2 Connection cable (includes integrated Isolation Transformer) -
Page 3: Operation
OPERATION Our Model PA2 Paging Switch is designed to connect to an Analog extension of a conventional PBX telephone system, or an FXS, FXO or ATA port of an IP telephone system. It can also be connected direct to an analog PSTN telephone line, for special applications such as telephone exchange based PBX solutions. -
Page 4: Installation
RJ to RJ telephone cable. 3. Locate the supplied RCA to PA2 Connection cable and connect the SYSTEM port of the RCA to PA2 Connection cable to the PA SYSTEM port of the PA2 Switch, Using the supplied RJ to RJ telephone line cable. - Page 5 Natcomm Page 5...
-
Page 6: Electromagnetic Interference
Paging call. This process is fully automatic. When PA2 is installed on a PBX system, the Hang Up tone generated may be outside of the cadence and frequency normally used in the AUSTRALIA for Hang Up tones. - Page 7 PA2 is pre-programmed to automatically HANG UP the paging call after the detection of Two AUSTRALIAN Specification Hang Up tones. PA2 is calibrated to look for AUSTRALIAN specification Hang Up tones (see page 6). You can change the detection parameters or disable this facility (refer pages 9-11).
- Page 8 The SYSTEM port of the Paging Amplifier connection cable has a modular (RJ11 6 pin) connector to connect to the PA SYSTEM Port of PA2 Switch, using the supplied RJ11 to RJ11 cable. The SOURCE port of the Paging Amplifier connection cable has a modular (RJ 4 pin) connector which should connect to the supplied Audio Cable with the RCA Audio plug.
-
Page 9: Programming Options
PROGRAMMING OPTIONS PA2 Switch provides for FOUR separate User Programmable settings. In most cases you will not need to program PA2, as the default settings are likely to be suitable for typical sites. THE NUMBER OF RINGS BEFORE PA2 ANSWERS... -
Page 10: Programming Procedure
PROGRAMMING PROCEDURE Should you need to program PA2, please follow the procedure below : TURN OFF POWER TO YOUR PA2 UNIT DISCONNECT THE LIU FROM PA2 SWITCH PA2 will not program with the LIU connected. CONNECT A STANDARD ANALOG TELEPHONE... -
Page 11: Number Of Rings To Answer
C. HANG UP TONE DETECTION To DISABLE HANG UP TONE Detection; press #400 To DELAY HANG UP TONE Detection; press #4xx where xx = number of seconds and can be 01-99 (for example, press #415 for 15 seconds). Natcomm Page 11... -
Page 12: Specifications
User. Damage caused to this device or attached equipment by lightning strikes or over voltage surge is not covered under this warranty. THE CASE IS SEALED AT THE FACTORY. OPENING THE CASE WILL VOID THE WARRANTY. Page 12 Natcomm...
