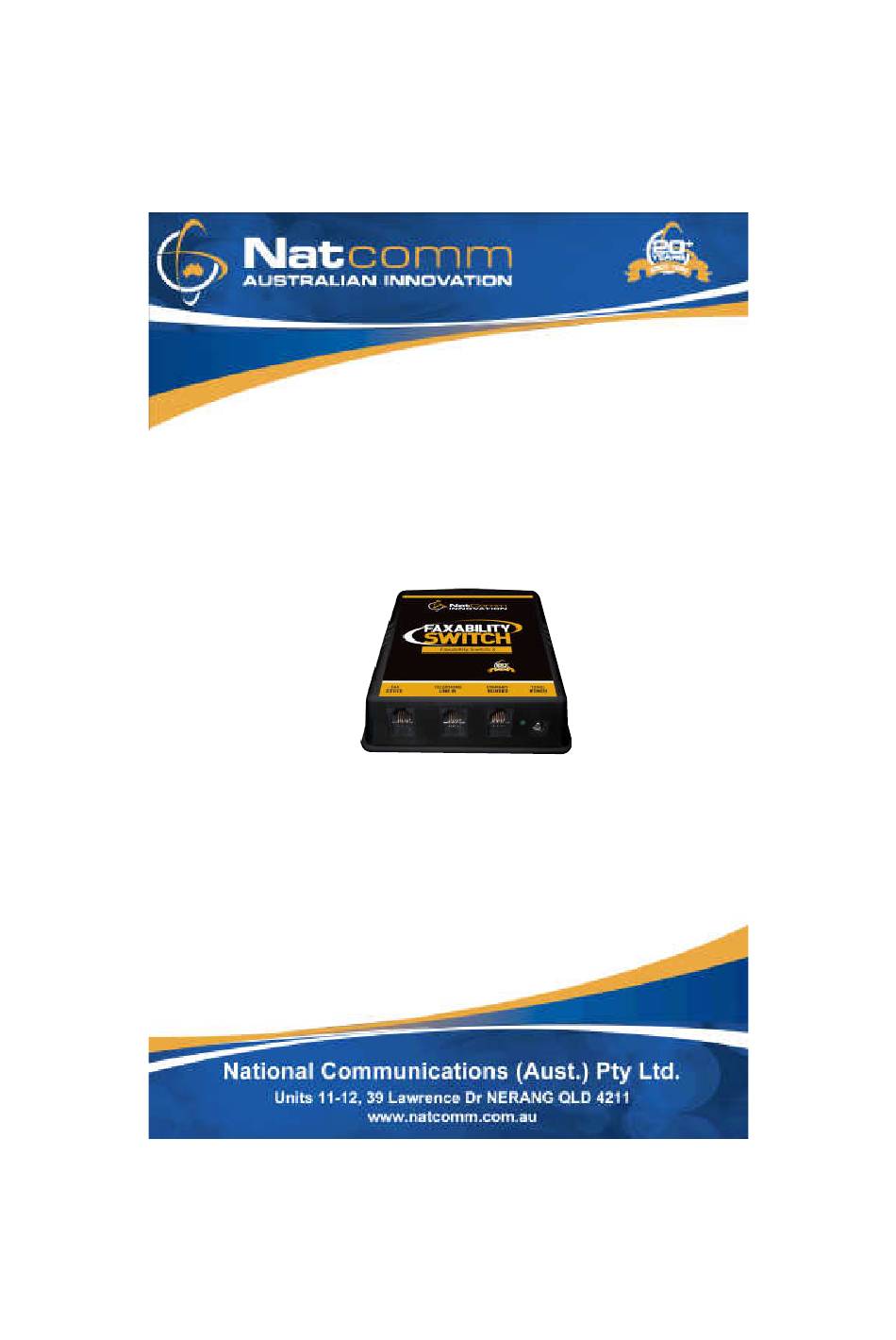

Faxability Switch 2 USER GUIDE For direct connection to our Australian Factory Please Phone: 0800 NATCOMM or 0800 628 2666 From 11 AM to 7 PM Normal NZ Time From 12 PM to 8 PM Daylight Savings Time... - Page 2 Page 2 National Communications...
-
Page 3: Product Description
PRODUCT DESCRIPTION Faxability Switch 2 has been specifically designed to allow ANY existing Fax or Fax/Modem device to receive Fax calls automatically when using the Telecom Faxability service. Faxability Switch 2 is TRANSPARENT in operation, which means that it will not affect the normal use of your telephone line in any way and will work with all other telephone devices that may be fitted to your line. -
Page 4: Installation Procedure
RJ connection on your device). 3. CONNECT the modular end of this cable to the LINE IN port of Faxability Switch 2. Leave the other end of this cable (with the male Telecom plug) connected to your telephone line socket. -
Page 5: Operating Procedure
PORT of your device will not ring whenever a Facsimile Transmission is being received. Your extension telephones (telephones in other rooms) which are not connected to Faxability Switch 2 will ring once only, before the incoming FAX Call is connected. If you wish to receive Fax transmissions without your ‘extension telephones’... -
Page 6: Answering Machine
MACHINE must be set to answer on 2 or more rings at all times. WHEN USING THE ANSWERING MACHINE IN YOUR FAX DEVICE Your Faxability Switch 2 can divert all incoming calls to your Fax Device after 8 UNANSWERED rings on your main phone number. - Page 7 SAME NUMBER FAX RECEPTION Faxability Switch 2 will also allow you to redirect incoming Fax calls sent to your normal number, to your Fax machine or Fax device. If you have been sharing your normal number with your Fax Machine in the past, then you may occasionally receive Fax Calls on your main number .
- Page 8 SAME NUMBER FAX RECEPTION continued WHEN OFFICE IS UNATTENDED Faxability Switch 2 can divert all incoming calls to your Fax Device after 8 UNANSWERED rings on your main phone number. Your Fax Device will then answer this call after the additional number of...
- Page 9 DIP SWITCH SETTINGS Four Micro Dip Switches are located on the underside of the Line Sharer. If you wish to set Faxability Switch 2 to operate with the CALLER ID service please set : Dip Switch 4 to the ON position.
- Page 10 However, should your Fax Device NOT DIAL out when connected to Faxability Switch 2, then you should set Dip Switch 2 to the ON position. When Dip Switch 2 is set to the ON position, Faxability Switch 2 will leave your Fax Device connected to your telephone line when your line is not in use.
- Page 11 However, should your Telephone NOT DIAL out when connected to Faxability Switch 2, then you should set Dip Switch 4 to the ON position. When Dip Switch 4 is set to the ON position, Faxability Switch 2 will leave your Telephones connected to your telephone line when your line is not in use.
-
Page 12: Trouble Shooting
A small number of Fax Devices may not ANSWER the Ring that is generated by Faxability Switch 2. Should this happen, you will notice that Faxability Switch 2 will ANSWER an Incoming Fax call after 1 ring, but your Fax Device will not connect to the Fax call. -
Page 13: Dip Switch Settings
DIP SWITCH SETTINGS Four Micro Dip Switches are located on the underside of the Line Sharer. The position of each switch is important as they individually vary the operation of this unit. Please ensure that you understand the significance of each switch, as described elsewhere in this User Guide, before altering their position. - Page 14 OPERATION WITH ADSL Faxability Switch 2 will not interfere with your ADSL service and your ADSL service will not affect your Faxability Switch 2 device. However, you MUST fit an ADSL FILTER between the telephone wall socket and the Telephone Line input of Faxability Switch 1 , so that your Fax Device can operate on a line with ADSL.
- Page 15 NOTES National Communications Page 15...
-
Page 16: Specifications
SPECIFICATIONS Dimensions (all in mm) 106 (W) x 106 (D) x 43 (H) Weight 200g Power Supply 230VAC to 12VAC/500mA Must use a 12VAC supply. Power Consumption Idle - 0.5 Watts Voice Call - 0.75 Watts Ringer Equivalence 0.3 REN Telephone Connectors RJ 11 6 pin (2 centre) Power Connector...
