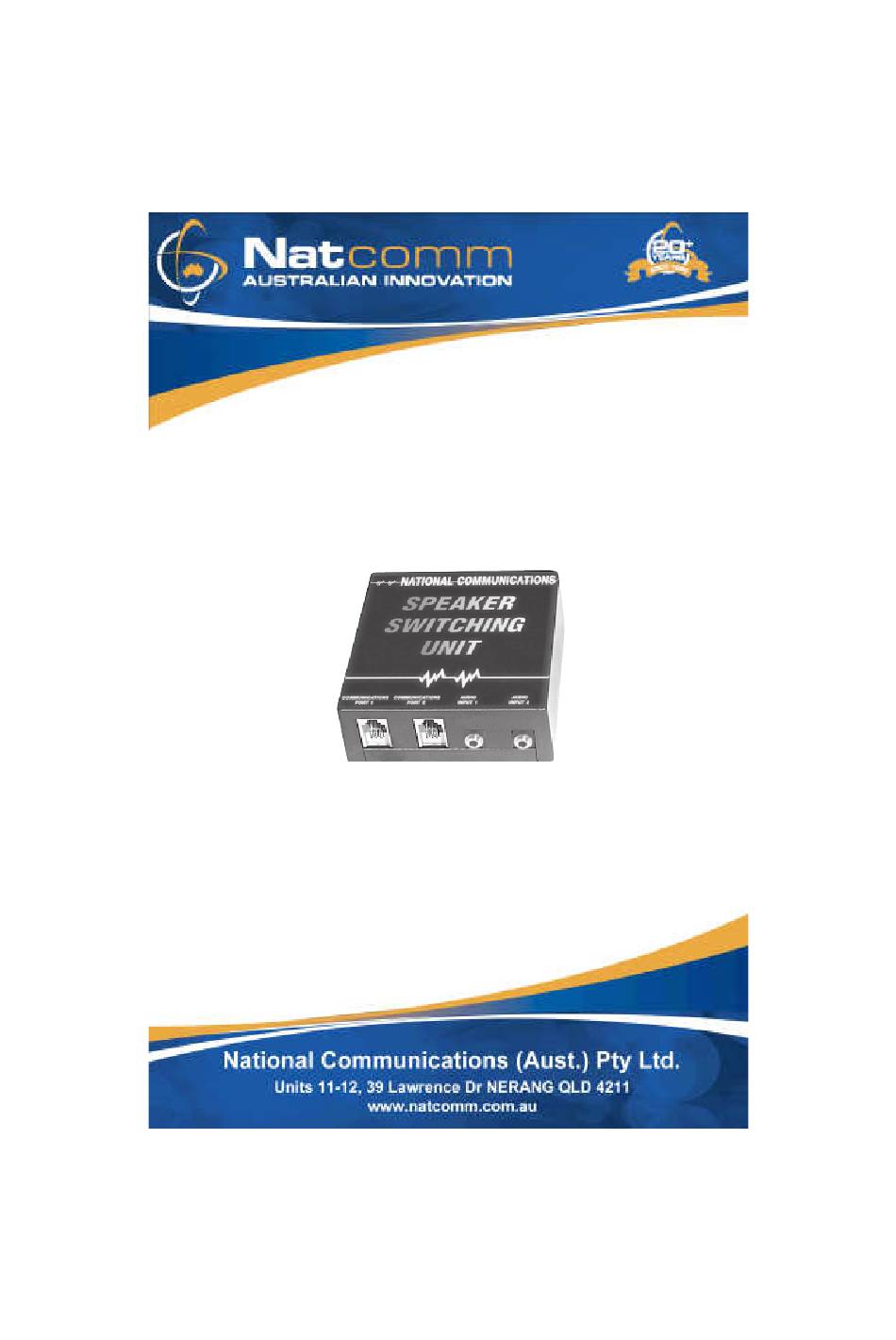

- Page 1 Speaker Switching Unit User Guide For Technical Assistance Please Phone: (07) 5596 5128...
-
Page 2: Product Description
PRODUCT DESCRIPTION The SPEAKER SWITCHING UNIT (SSU) accessory, is designed to operate with the MULTIPLE INPUT UNIT (MIU) and the TALKING DISPLAY UNIT (TDU). This configuration will allow up to 12 separate (4 or 8 ohm) speakers, in conjunction with up to 12 separate sensors to be connected to the one Talking Display Unit (TDU). - Page 3 It does not matter which of the identical communications ports are used for input or output. A single 6 wire telephone cable is supplied with all TDU accessories. There is no need for any other external connections. The SPEAKER SWITCHING UNIT (SSU) accessory is available in 3 separate configurations : SSU-4...
- Page 4 INSTALLATION PROCEDURE 1) Using a 6 wire telephone cable, connect Communications Port 1 of the SPEAKER SWITCHING UNIT (SSU) to the Sensor Input port of the TALKING DISPLAY UNIT (TDU). 2) Using another 6 wire telephone cable, connect Communications Port 2 of the SPEAKER SWITCHING UNIT (SSU) to the Communications Port of the MULTIPLE INPUT UNIT (MIU).
- Page 5 100m from the SSU if low resistance wiring is used. 5) Connect the male DB25 connector (above) to the female DB25 connector fitted to the SPEAKER SWITCHING UNIT (SSU). 6) Using the 3.5 mm to 3.5 mm Audio cable that is supplied with the SSU, connect the AUDIO output from the TDU into the AUDIO INPUT 1 port of the SSU.
- Page 6 DB25 PIN OUT DIAGRAM DB25 PIN OUT TABLE Page 6 National Communications...
- Page 7 NOTES National Communications Page 7...
-
Page 8: Specifications
SPECIFICATIONS Dimensions (all in mm) 106 (W) x 106 (D) x 43 (H) Weight 220g Audio Input Port 1 3.5mm Mono Audio Plug Audio Input Port 2 3.5mm Mono Audio Plug Communications Port 1 RJ 11 6 pin Communications Port 2 RJ 11 6 pin Multiple Speaker Output Port DB25 Female...
