Summary of Contents for NatComm PA-SIP

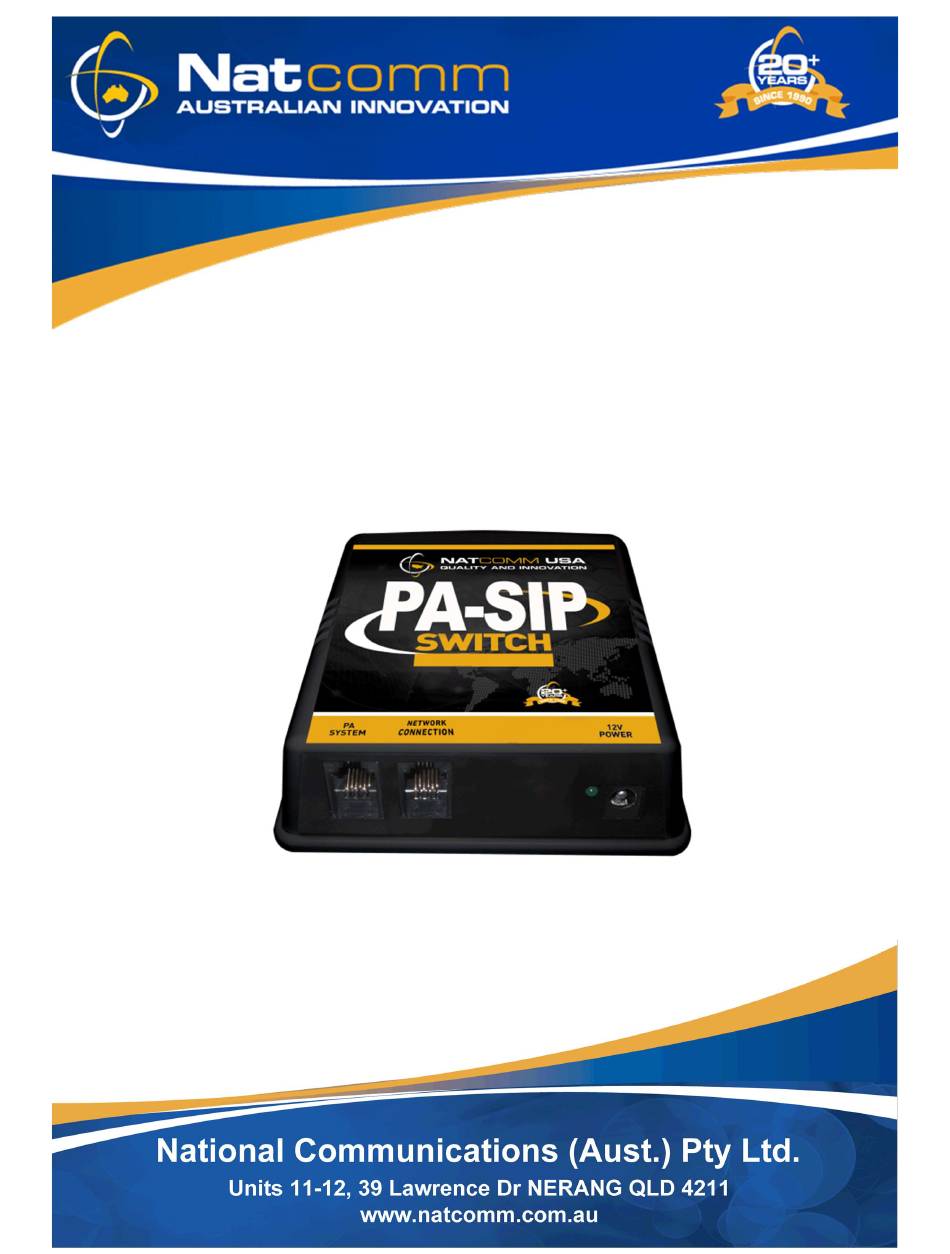

- Page 1 PA-SIP PAGING SWITCH For Technical Assistance Please Ph: 07 5596 5128...
-
Page 2: Packing List
PACKING LIST PA-SIP Paging Switch is supplied as a complete kit, ready for quick and easy installation by a technician or an end user with some IT experience. Description PA-SIP Paging Switch 12VDC Power Adaptor CAT5 Network Cable (RJ45 to RJ45) RCA to PA-SIP Connection Cable Natcomm_IP_Controller.exe... -
Page 3: Led Operation
0-9, or after a fixed period of time. The maximum call time is set in programming mode. In very rare cases, PA-SIP may not be able to detect Hang Up tones due to EMI interference from other equipment located close to it. -
Page 4: Installation Overview
INSTALLATION OVERVIEW IP Network Connection PA-SIP can be connected to ANY Point on a Local Area or Wide Area Network such as: Any Internal Network Point of a LAN Direct to a Network Switch Direct to a Network Modem used for LAN or WAN... - Page 5 Set PA_SIP Extension Number: a. Click ‘Phone 1’ from the left hand menu Enter: b. Extension number for PA-SIP c. Caller ID number (if required) d. Username & Password (if used) e. Different Port Number (if not using default 5060) f.
- Page 6 Set SIP Server Address: a. Click ‘SIP’ from the left hand menu Enter: b. SIP Server IP Settings c. When finished you MUST click Save d. If you are not making any other changes You MUST click Reload Page 6 Natcomm...
- Page 7 Set Static IP (if required): Click ‘Settings’ from the left hand menu Select ‘Specify fixed internet configuration’ Change Static IP Settings When finished you MUST click Save e. If you are not making any other changes you You MUST click Reload Page 7 Natcomm...
- Page 8 Adjust the PA volume to suit with the Amplifier Volume control. Note: You only have 30 seconds to do this before PA-SIP hangs up. 4. Hang Up: If PA-SIP does not terminate the paging call soon after you have hung up, then your Telephone System is not outputting US...
- Page 9 Page 9 Natcomm...
- Page 10 0-9, or after a fixed period of time. The maximum call time is set in programming mode. In very rare cases, PA-SIP may not be able to detect Hang Up tones due to EMI interference from other equipment located close to it.
-
Page 11: Programming Procedure
This will take you into program mode To Change: 1. Maximum Duration Time of a Paging Call You can set a fixed CALL TIME in seconds at which time PA-SIP will HANG UP if the Paging Call is not already terminated. Press:... -
Page 12: Specifications
Damage caused to this device or attached equipment by a lightning strike or over voltage surge is not covered under this warranty. THE CASE IS SEALED AT THE FACTORYOPENING THE CASE WILL VOID THE WARRANTY Page 12 Natcomm...
