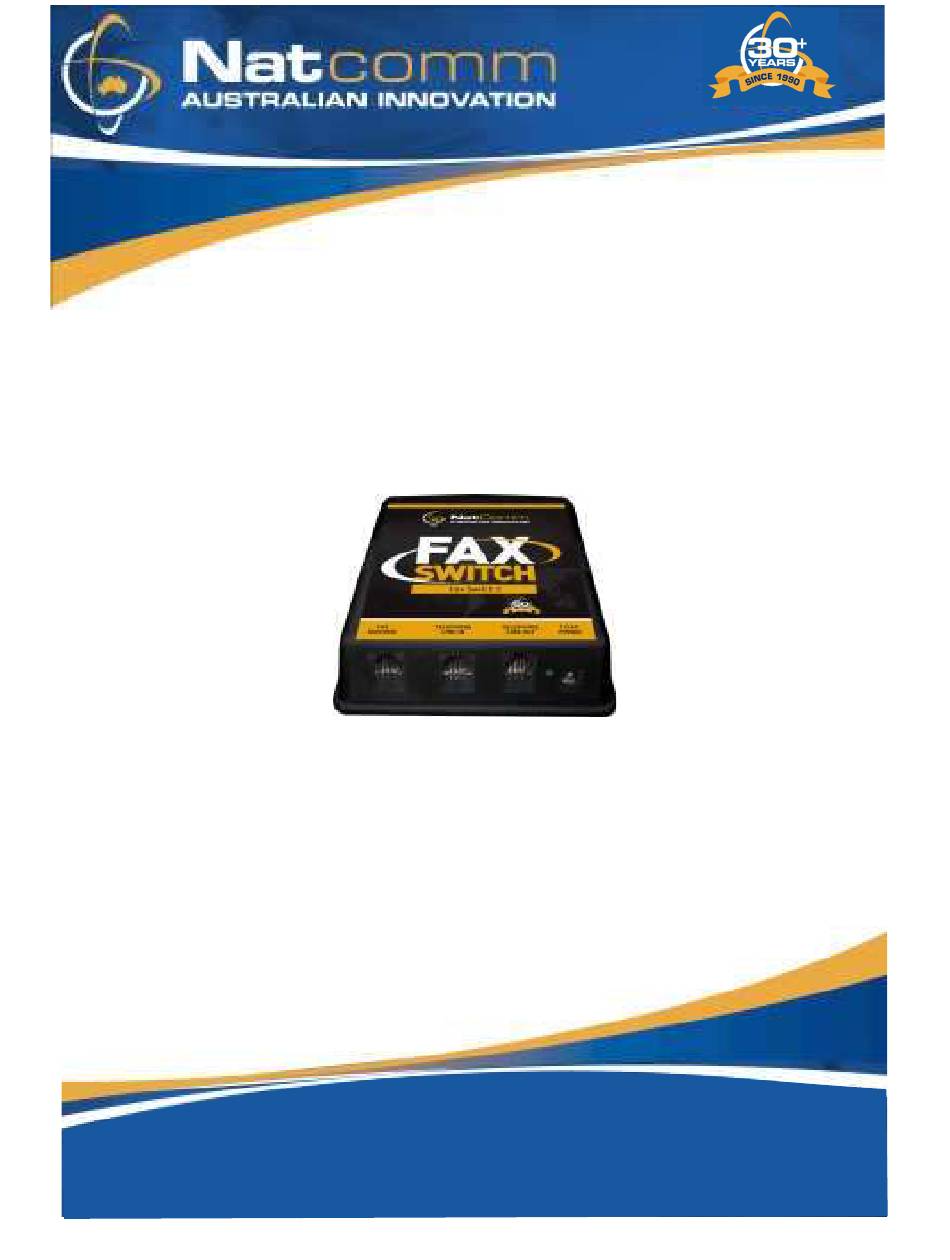

- Page 1 FAXSWITCH 2 USER GUIDE For Technical Assistance Please Phone: (07) 5596 5128 National Communications (Aust.) Pty. Ltd. Units 11, 39 Lawrence Dr NERANG QLD 4211 www.natcomm.com.au...
-
Page 2: Product Description
If you intend to use the Voice Priority Faxswitch Method, or you use a Cordless Phone with 1 or more handsets, then you will be able to simply connect FAXSWITCH 2 to ANY telephone socket on your line. It will take you just a few minutes. -
Page 3: Two Operating Modes
. VOICE PRIORITY FAXSWITCH OPERATION This mode is TRANSPARENT in operation, which means that FaxSwitch 2 will not ANSWER the call. It operates with your telephone line in a unique manner and will not affect the operation of any of the other telephone devices that may be fitted to your line. -
Page 4: Operating Procedure
This method is based on the traditional Faxswitch method, where this unit will automatically answer ALL incoming calls FIRST after 2 rings. It will then briefly “listen” to this call for Fax Calling Tones (CNG Tones). FaxSwitch 2 If CNG tones are detected, will RING your attached Fax Device and connect the incoming Fax Call to it. - Page 5 OPERATING PROCEDURE For Voice Priority Faxswitch method FaxSwitch 2 In this mode, is set to VOICE PRIORITY operation and is TRANSPARENT so that your voice callers will not detect its presence. It will also work with all other telephone devices fitted to your line. If you...
- Page 6 OPERATION WHEN OFFICE IS UNATTENDED OPERATION WITH AN ANSWERING MACHINE FaxSwitch 2 will always allow your separate answering machine, connected to any telephone socket, to answer your calls when your site is FaxSwitch 2 unattended. Once the call has been answered,...
- Page 7 (with the large Telstra format male plug) should be connected to your telephone line socket. Use the supplied Modular-Modular line cord to connect the FAX DEVICE FaxSwitch 2 to the FAX MACHINE port of . If the Fax Machine has more than 1 port, use the LINE port.
- Page 8 Natcomm Page 8...
- Page 9 When you use telephones on more than 1 telephone socket Please refer to the diagram on page 10 INSTALLATION MUST BE CARRIED OUT BY A QUALIFIED TECHNICIAN FaxSwitch 2 The LINE IN port of must be wired direct to the incoming telephone line at your MASTER TELEPHONE SOCKET.
- Page 10 Natcomm Page 10...
- Page 11 2. REMOVE the telephone line cord fitted to your FAX DEVICE (unplug it from the modular connection on the telephone). 3. Using the cable you have just removed, CONNECT the modular end of FaxSwitch 2 this cable to the LINE IN port of . CONNECT the other end into your telephone line socket.
- Page 12 Natcomm Page 12...
- Page 13 For connection to a PBX Multi-Line System FaxSwitch 2 can be fitted to one specific line of a PBX type system, (usually the last choice line) which uses conventional PSTN telephone lines Once fitted, the system will operate exactly as described previously, for operation on the selected line.
- Page 14 Natcomm Page 14...
- Page 15 CNG Fax Tones. Further information on the C10245E ADSL filter can be viewed at : www.c10.com.au You can purchase this model from your Dealer, any TELSTRA shop, or on line at : www.natcomm.com.au for $35.00 incl GST. Page 15 Natcomm...
- Page 16 If you plan to use CallerID (CLI) on your telephone line, then you will need to set Dip Switch 3 to the ON position. See page 17 for details of Dip Switch settings. FaxSwitch 2 This is because , in its default configuration, does NOT ALLOW the first ring of an incoming call to pass through to the telephones connected to the TELEPHONE LINE OUT port.
-
Page 17: Dip Switch Options
DIP SWITCH OPTIONS FaxSwitch 2 is a sophisticated Line Sharing device which is designed to provide you with the ultimate in flexibility, in order to meet a wide range of customer applications. Four Dip Switches are located on the underside of the device, which allow... - Page 18 Device from the telephone line and only connect your Fax Device to the telephone line when you are sending or receiving a Fax Transmission. By doing so, FaxSwitch 2 can ENSURE that your Fax Device will NEVER INTERFERE with an incoming or outgoing telephone call.
- Page 19 For this reason, it is best to leave Dip Switch 4 set to the OFF position unless your Telephones will not Dial Out. Alternatively, you can set FaxSwitch 2 can to operate in the Voice Priority operating Mode (set Dip Switch 1 = ON), which will also overcome Telephone Dial Out problems.
-
Page 20: Specifications
User. Damage caused to this device or attached equipment by lightning strikes or over voltage surge is not covered under this warranty. THE CASE IS SEALED AT THE FACTORY OPENING THE CASE WILL VOID THE WARRANTY Natcomm Page 20...
