Summary of Contents for NatComm PA2

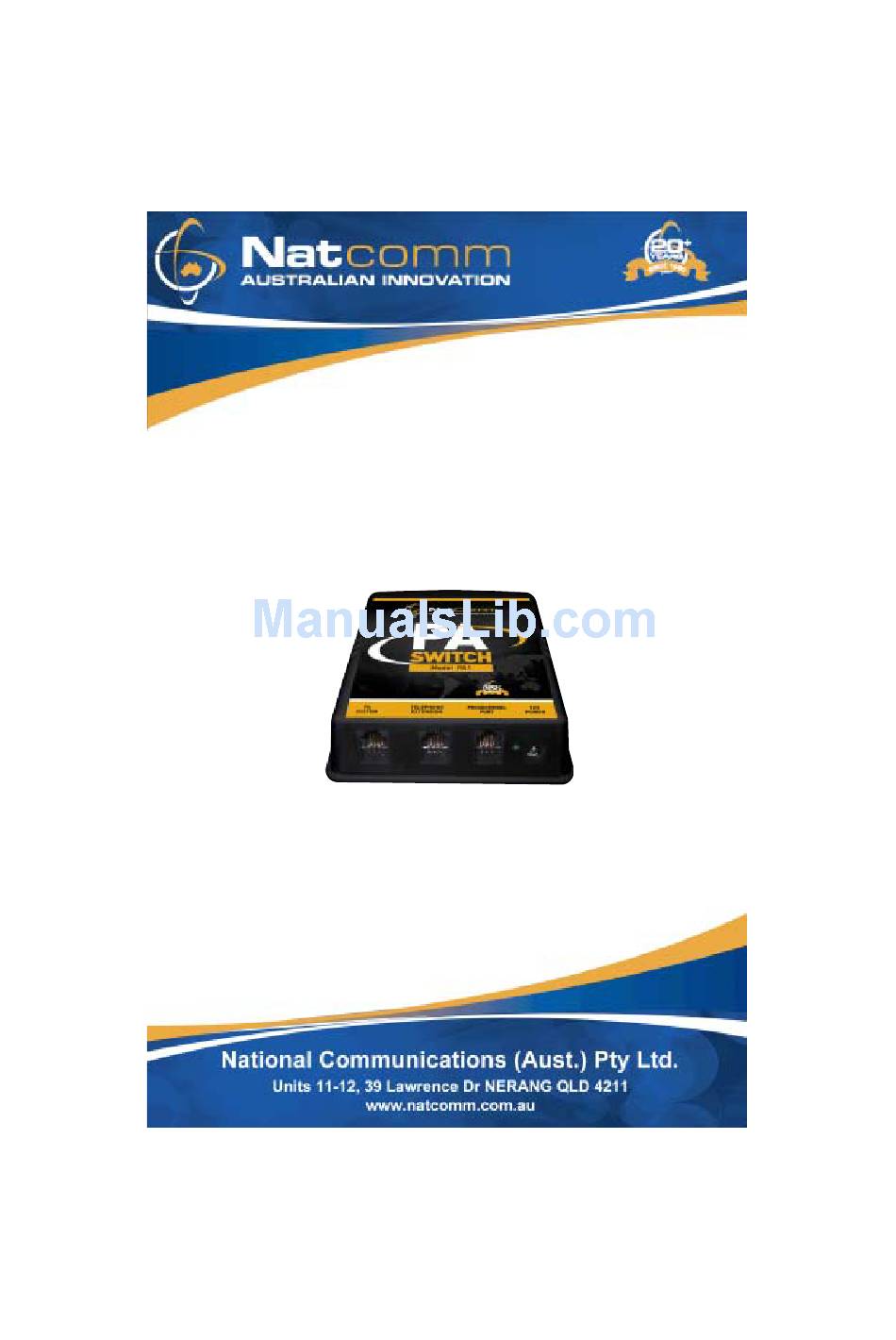

- Page 1 PAGING SWITCH For Technical Assistance Please Phone: (07) 5596 5128...
-
Page 2: Packing List
PACKING LIST Your Model PA2 Paging Switch is supplied as a complete kit, ready for quick and easy installation by the user. Description PA2 Paging Switch 12V Power Adaptor Telephone Line Cord, fitted with a male plug ACMA approved Line Isolation Unit... -
Page 3: Operation
Hang Up tones when a call is terminated, then you should change it to do If your PABX telephone system cannot output Australian Specification Hang Up tones, then PA2 can terminate a call after any one of the following conditions takes place : 1) By pressing any TOUCH TONE digit after the announcement. -
Page 4: Installation
3. Locate the supplied Line Isolation Unit (LIU) and connect the SYSTEM port of the LIU to the PA SYSTEM port of the PA2 Switch, using the supplied RJ to RJ telephone line cable. 4. Connect the SOURCE end of your LIU to the Line In or Auxiliary Input of the Amplifier, using the appropriate supplied Audio cable. - Page 5 National Communications Page 5...
- Page 6 Australia for Hang Up tones. In this situation, PA2 may not hang up until the Maximum Paging Call Time has elapsed (see section 4, page 7), or after a period of silence (see section 3, page 7).
- Page 7 4. AFTER A FIXED PERIOD OF TIME PA2 will automatically terminate a paging call after a programmable length of time. The default connection time for PA2 is : 30 seconds. This is a handy back up in case any of the above methods fails to take place.
- Page 8 The SYSTEM port of the LIU has a modular (RJ11 6 pin) connector which must connect to the PA SYSTEM Port of PA2 Switch, using the supplied RJ11 to RJ11 cable. The SOURCE port of the LIU has a modular (RJ 4 pin) connector which should connect to the Public Address device, using one of the supplied Audio Cables.
-
Page 9: Programming Options
PA2 Switch provides for FOUR separate User Programmable settings (as detailed below), should they be needed. In most cases you will not need to program PA2, as the default settings are likely to be suitable for typical sites. THE NUMBER OF RINGS BEFORE PA2 ANSWERS... -
Page 10: Programming Procedure
PROGRAMMING PROCEDURE In most cases you will not need to program PA2, as the default settings are likely to be suitable for typical sites. Should you need to program PA2, please follow the procedure below : TURN OFF POWER TO YOUR PA2 UNIT DISCONNECT THE LIU FROM PA2 SWITCH PA2 will not program with the LIU connected. - Page 11 To SET SILENCE Detection; press #5xx where xx = number of seconds and can be 01-99 this is the total time in seconds that must be detected before PA2 will Hang Up. (for example, press #515 for 15 seconds) National Communications...
-
Page 12: Specifications
SPECIFICATIONS Dimensions (all in mm) 106 (W) x 106 (D) x 43 (H) Weight 225g Power Supply 240VAC to 12VAC/500mA Power Consumption When Idle - 0.5 Watts During Call - 0.75 Watts Ringer Equivalence 0.3 REN Line Connectors RJ 11 - 6 pin (2 centre) LIU Connector RJ 11 - 6 pin (2 centre) Power Connector...
