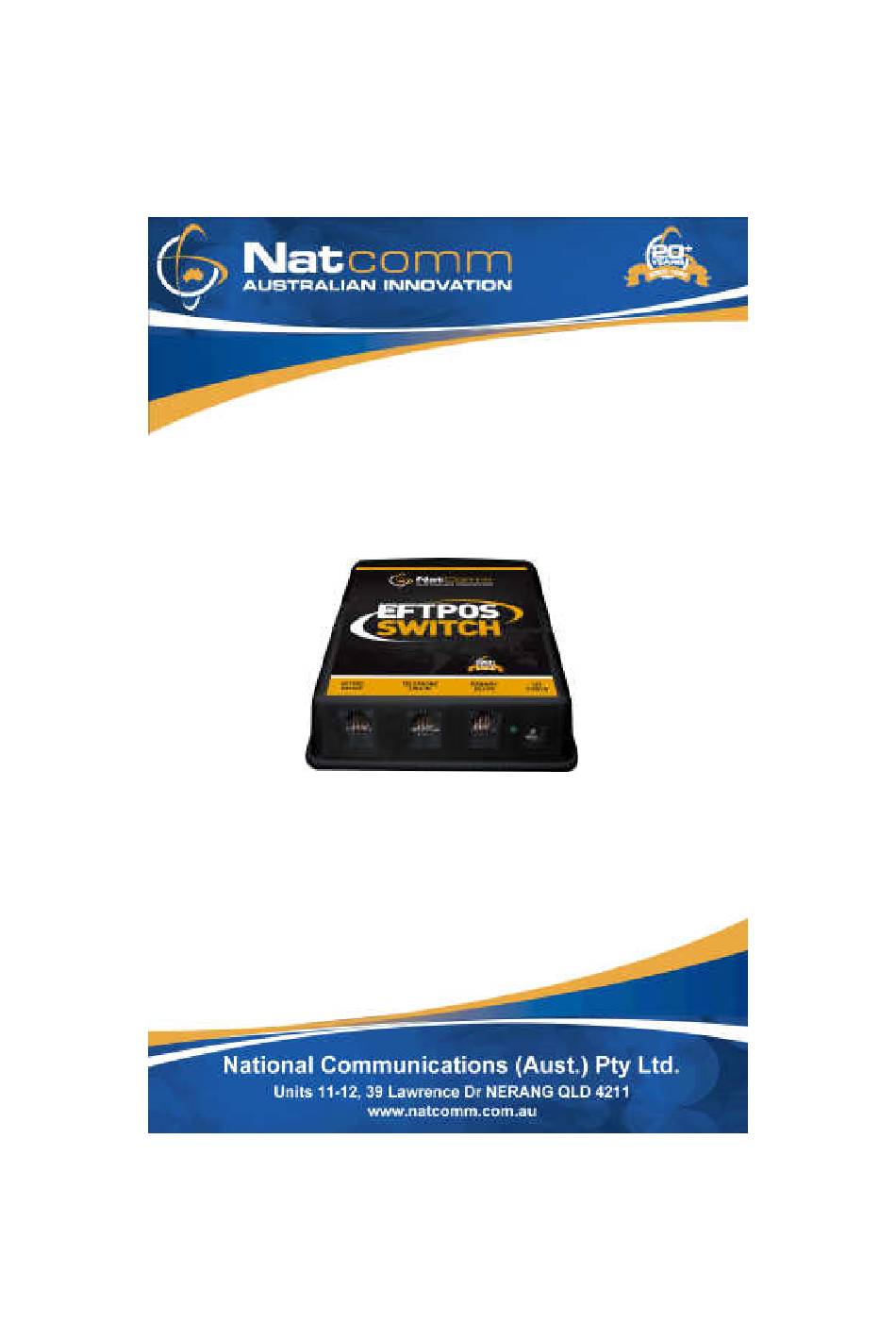

- Page 1 EFT-POS SWITCH USER GUIDE For Technical Assistance Please Phone: (07) 5596 5128...
-
Page 2: Table Of Contents
PACKING LIST Before commencing installation, please check that you have the following items: Description Quantity EFT-POS Line Sharer 12VAC Power Supply RJ11 to RJ11 Telephone Cables TABLE OF CONTENTS Description Page Installation Instructions Page Installation Diagram Page PABX Operation Page... -
Page 3: Description
An EXCLUSION FACILITY is provided to ensure that the other attached telephone device(s) connected to EFT-POS switch cannot interfere or ‘Barge-In’ on the EFTPOS transaction. If the telephone line is already in use when the EFTPOS device attempts to initiate a transaction, it will be blocked from the line and will not be allowed access to the line until the line is free. - Page 4 INSTALLATION 1. UNPLUG all equipment from the telephone socket to be used. 2. REMOVE the telephone line cords that are fitted to the TELEPHONE DEVICE which need to be connected to your EFTPOS SWITCH (ie unplug the telephone cables connected to your device where the new style modular plug connects to your device).
-
Page 5: Installation Diagram
INSTALLATION DIAGRAM National Communications Page 5... -
Page 6: Pabx Operation
PABX OPERATION EFTPOS SWITCH can also be used with ANY PABX, Commander or other Multi Line Telephone System. See Installation Diagram on page 7. This is done by connecting the Telephone Line port of the EFTPOS Switch direct to an incoming telephone line, prior to the system controller. The EFTPOS SWITCH port is then connected to the EFTPOS device. -
Page 7: Pabx Installation
PABX INSTALLATION Power Adaptor Supplied Eftpos Device Incoming Telephone Lines Telephone System Controller Telephone Handsets National Communications Page 7... -
Page 8: Specifications
SPECIFICATIONS Dimensions (all in mm) 106 (W) x 106 (D) x 43 (H) Weight 225g Power Supply 12VAC/500mA Power Consumption Idle - 0.5 Watts Power Consumption Call - 0.75 Watts Ringer Equivalence 0.3 REN Connectors RJ 11 - 6 pin (2 centre) 2.5mm barrel connector ACMA COMPLIANCE Supplier Number N782...
