Summary of Contents for NatComm PA1

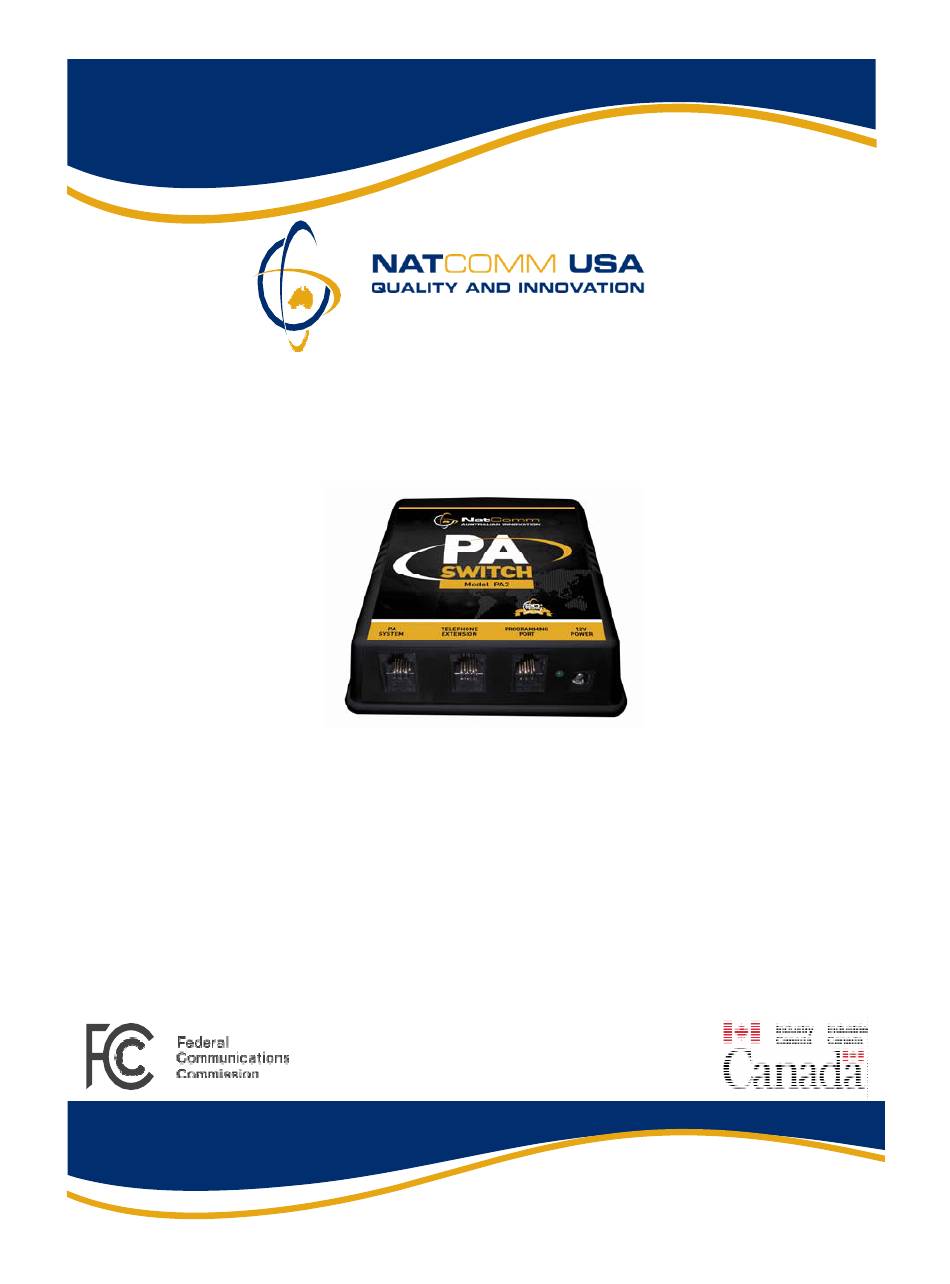

- Page 1 PAGING SWITCH For Technical Assistance call the Manufacturers direct ph 0800 530 8645 8AM - 5PM West Coast Pacific Time NATCOMM USA LLC Responsible Supplier Code :NC...
-
Page 2: Packing List
PACKING LIST Your Model PA1 Paging Switch is supplied as a complete kit, ready for quick and easy installation by the user. Description PA1 Paging Switch 12V Power Adaptor Telephone Line Cord RCA to PA1 Connection cable (includes integrated Isolation Transformer) -
Page 3: Operation
If a DTMF digit is not pressed, PA1 will hang up after the set Maximum Call time, which is set by default to be 30 seconds. The default maximum call time can be set from 1 to 99 seconds, minutes or hours (see P 9). -
Page 4: Installation
Press any DTMF digit and Hang Up. If a DTMF digit is not pressed, PA1 will hang up after the set Maximum Call time, which is set by default to be 30 seconds. The default maximum call time can be set from 1 to 99 seconds, minutes or hours (see P 9). -
Page 5: Installation Diagram
INSTALLATION DIAGRAM Natcomm Page 5... - Page 6 AFTER A FIXED PERIOD OF TIME PA1 will automatically terminate a paging call after a programmable length of time. The default connection time for PA1 is : 30 seconds. This is a handy back up in case any of the above methods fails to take place.
- Page 7 The SYSTEM port of the Paging Amplifier connection cable has a modular (RJ11 6 pin) connector to connect to the PA SYSTEM Port of PA1 Switch, using the supplied RJ11 to RJ11 cable. The SOURCE port of the Paging Amplifier connection cable has a modular (RJ 4 pin) connector which should connect to the supplied Audio Cables with the RCA Audio plug.
-
Page 8: Programming Options
PA1 Switch provides for TWO separate User Programmable settings (as detailed below), should they be needed. In most cases you will not need to program PA1, as the default settings are likely to be suitable for typical sites. THE NUMBER OF RINGS BEFORE PA1 ANSWERS... -
Page 9: Programming Procedure
DISCONNECT THE LIU FROM PA1 SWITCH PA1 will not program with the LIU connected. CONNECT A STANDARD ANALOGUE TELEPHONE (or a telephone buttinski) to the Programming port of PA1 TURN ON POWER TO YOUR PA1 UNIT PA1 WILL OUTPUT 3 SHORT ‘BEEPS’... - Page 10 Consult the dealer or an experienced technician for help. Call NATCOMM ph 800 530 8645 The Power adaptor supplied with the Door Station Controller that powers this product complies with UL (USA) and cUL (Canada) specifications. Page 10...
- Page 11 NOTES Natcomm Page 11...
-
Page 12: Specifications
Damage caused to this device or attached equipment,by lightning strikes or over voltage surge is not covered under this warranty. CASE SEALED AT FACTORY OPENING THE CASE VOIDS THE WARRANTY Page 12 Natcomm...
