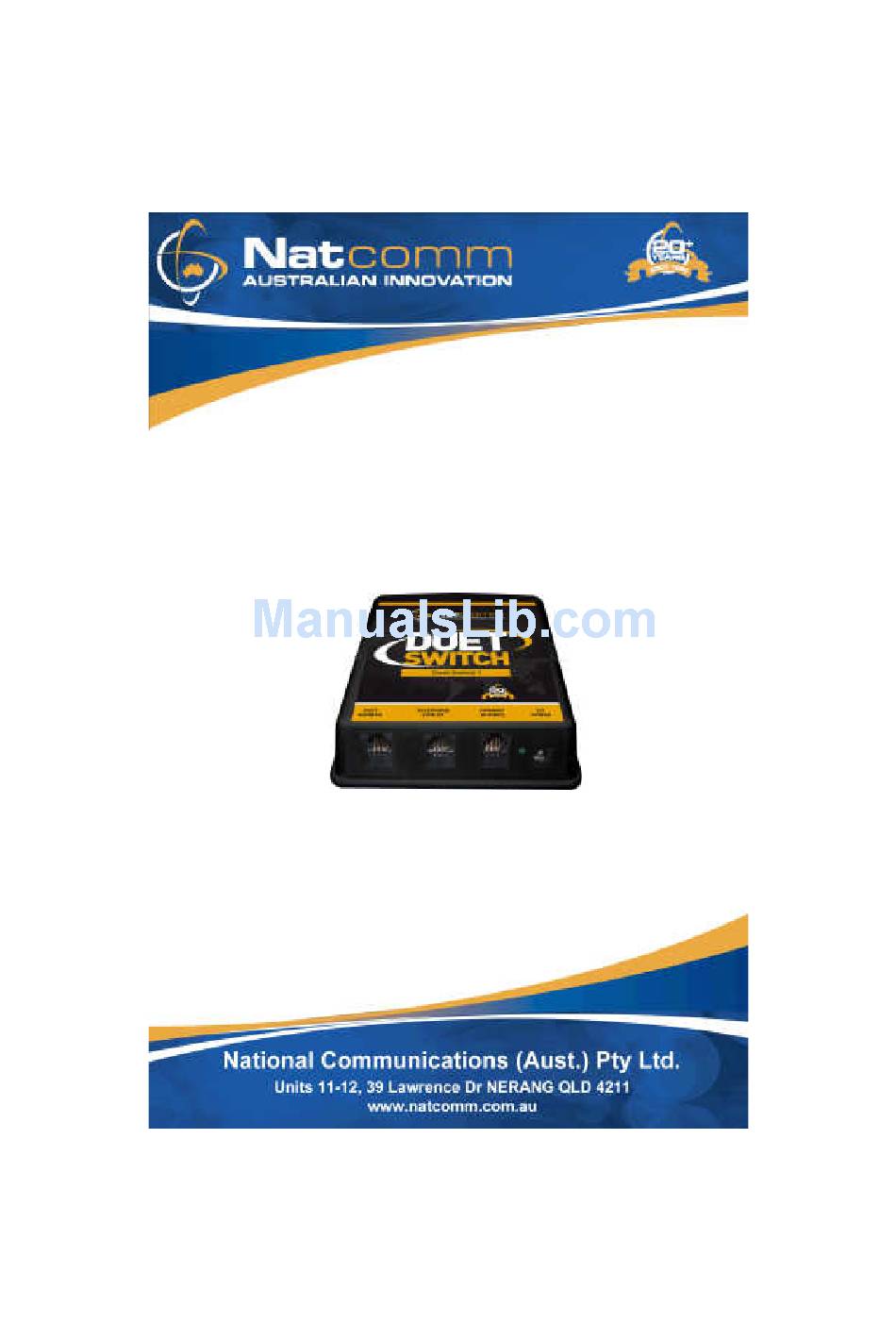

  • Page 1 DUET SWITCH 1 USER GUIDE For Technical Assistance Please Phone: (07) 5596 5128...
  • Page 2 Page 2 National Communications...

  • Page 3: Product Description

    If your Fax Device does not answer the incoming call, your Fax device is NOT suitable for use with DUET SWITCH 1. In this situation, you will need to use our DUET SWITCH 2 device, as described on page 11.

  • Page 4: Installation Procedure

    INSTALLATION PROCEDURE 1. Unplug all equipment from the telephone socket to be used. 2. REMOVE the telephone line cord fitted to your FAX DEVICE (unplug it from the new style modular connection on your device). 3. CONNECT the modular end of this cable to the LINE IN port of DUET SWITCH.

  • Page 5: Operating Procedure

    This new DISTINCTIVE RING pattern will be detected by your DUET SWITCH 1 device at the completion of the first ring. DUET SWITCH 1 will then allow the incoming Fax call to connect your FAX DEVICE, so that it can answer the incoming Fax call.
  • Page 6 If it is to be fitted to a separate telephone socket, then the ANSWERING MACHINE must be set to answer on more rings than your Fax Device. DUET SWITCH 1 will ensure that your FAX DEVICE does not ever answer incoming voice calls.

  • Page 7: Calling Line Identification

    DIP SWITCH SETTINGS Four Micro Dip Switches are located on the underside of the Line Sharer. If you wish to set DUET SWITCH 1 to operate with the Calling Line Identification (CLI) service, please set : Dip Switch 4 to the ON position.
  • Page 8 1, then you should set Dip Switch 2 to the ON position. When Dip Switch 2 is set to the ON position, DUET SWITCH 1 will leave your Fax Device connected to your telephone line when your line is not in use.
  • Page 9 SWITCH 1, then you should set Dip Switch 4 to the ON position. When Dip Switch 4 is set to the ON position, DUET SWITCH 1 will leave your Telephones connected to your telephone line when your line is not in use.

  • Page 10: Dip Switch Settings

    DIP SWITCH SETTINGS Four Micro Dip Switches are located on the underside of the Line Sharer. Switches 1 and 3 are not used on this device. Switches 2 and 4 are used to vary the operation of this device. Please ensure that you understand the significance of each switch, as described elsewhere in this User Guide, before altering their position.
  • Page 11 * You will not encounter any situations where your TELEPHONE or FAX DEVICE will NOT DIAL OUT (which with DUET SWITCH 1 requires Sw 2 or 4 to be set to ON) as DUET SWITCH 2 has a new High Voltage Line Level facility.

  • Page 12: Specifications

    SPECIFICATIONS Dimensions (all in mm) 106 (W) x 106 (D) x 43 (H) Weight 200g Power Supply 230VAC to 12VAC/500mA Power Consumption Idle - 0.5 Watts Voice Call - 0.75 Watts Ringer Equivalence 0.3 REN Telephone Connectors RJ 11 6 pin (2 centre) Power Connector 2.5mm barrel connector ACMA COMPLIANCE...
