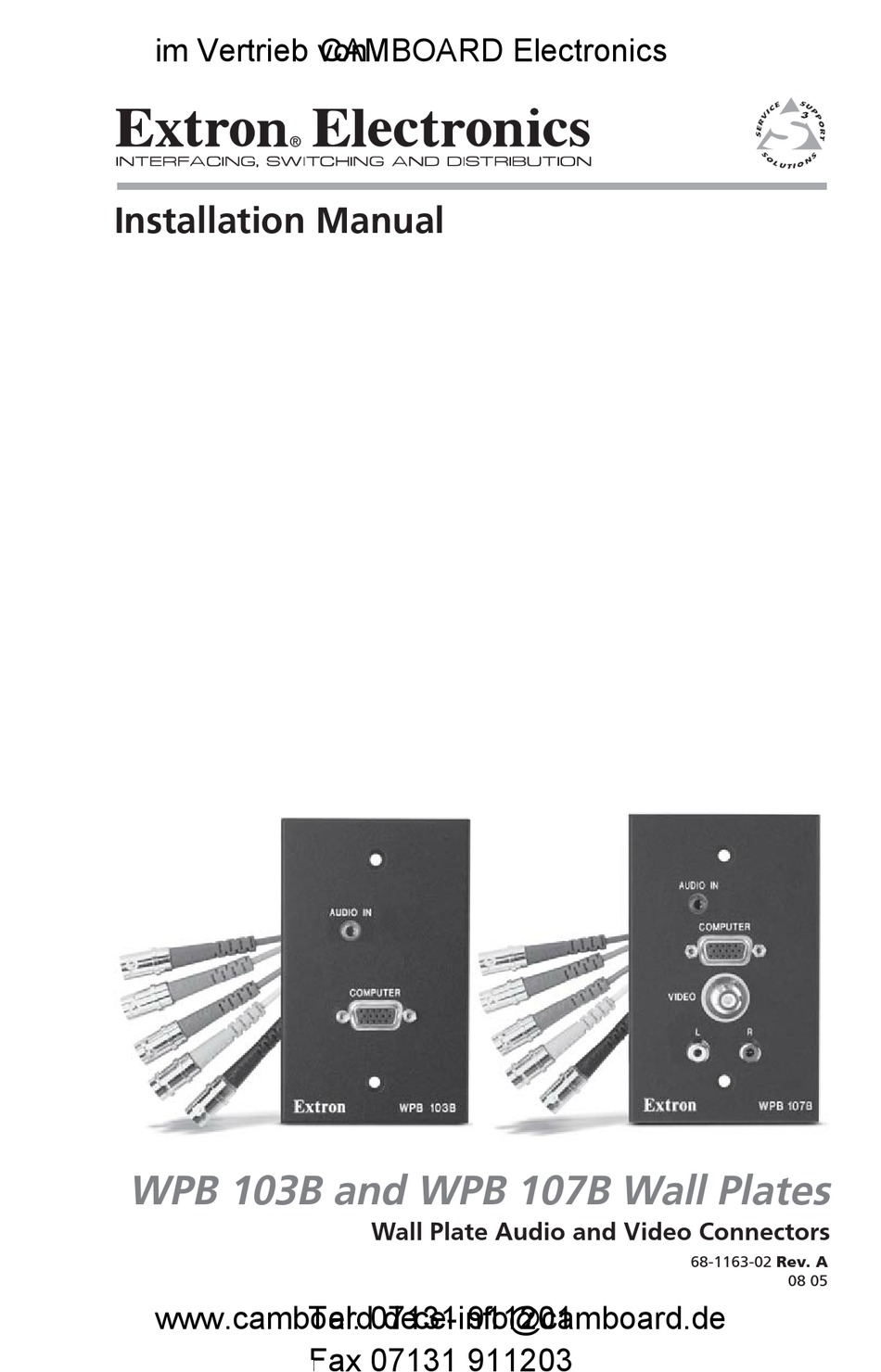

- Page 1 Vertrieb von CAMBOARD Electronics Installation Manual WPB 103B and WPB 107B Wall Plates Wall Plate Audio and Video Connectors 68-1163-02 Rev. A 08 05 www.camboard.de Tel. 07131 911201 ce-info@camboard.de Fax 07131 911203...
- Page 2 im Vertrieb von CAMBOARD Electronics Precautions Safety Instructions • English Warning This symbol is intended to alert the user of important Power sources • This equipment should be operated only from the power source indicated on the product. This equipment is intended to be used with a main operating and maintenance (servicing) instructions power system with a grounded (neutral) conductor.
-
Page 3: Installation

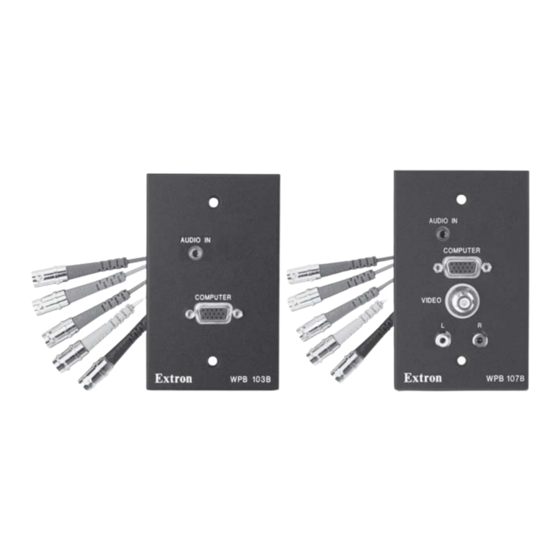

Vertrieb von CAMBOARD Electronics Installation The Extron WPB 103B and WPB 107B wall plates are wall or furniture mountable accessories that provide a convenient way to make pass-through connections from audio and video source devices. They use pass-through connectors as well as active audio buffering without signal processing. - Page 4 Points” on page 4) and test the wall plate. Make any output device cabling adjustments before final installation into the wall box or furniture as the cables will be inaccessible afterwards. www.camboard.de Tel. 07131 911201 ce-info@camboard.de WPB 103B and WPB 107B Wall Plates • Installation Fax 07131 911203...
-
Page 5: Rear Panel Connectors
Vertrieb von CAMBOARD Electronics Rear Panel Connectors WPB 103B and WPB 107B rear views are shown. WPB 103B WPB 107B Mounting screw holes (all models) — Two screws fasten the wall plate onto the electrical wall box, mud ring, or furniture. - Page 6 Vertrieb von CAMBOARD Electronics Installation, cont’d Front Panel Connection Points The front panel connectors for the WPB 103B and WPB 107B are shown below. AUDIO IN AUDIO IN COMPUTER COMPUTER VIDEO WPB 107B WPB 103B Mounting screws — These two screws fasten the wall plate onto the electrical wall box, mud rings, or furniture.
-
Page 7: Final Installation
If attaching the wall box to metal studs or furniture, use four #8 or #10 self-tapping sheet metal screws or machine bolts with matching nuts. www.camboard.de Tel. 07131 911201 ce-info@camboard.de WPB 103B and WPB 107B Wall Plates • Installation Fax 07131 911203... -
Page 8: Specifications
Vibration ........ISTA 1A in carton (International Safe Transit Association) Listings .......... UL, CUL Warranty ........3 years parts and labor Specifications are subject to change without notice. www.camboard.de Tel. 07131 911201 ce-info@camboard.de WPB 103B and WPB 107B Wall Plates • Specifications Fax 07131 911203... - Page 9 AUDIO IN 4.50" (11.43 cm) COMPUTER WPB 103B WP 107B dimensions 2.79" (7.09 cm) AUDIO IN COMPUTER 4.50" (11.43 cm) VIDEO WPB 107B www.camboard.de Tel. 07131 911201 ce-info@camboard.de WPB 103B and WPB 107B Wall Plates • Dimensions Fax 07131 911203...
- Page 10 (4.93 cm) 4.50" To install (11.43 cm) 1-gang WPB directly into furniture or SURFACE CUT-OUT wall, cut along AREA FOR this line. FURNITURE MOUNT www.camboard.de Tel. 07131 911201 ce-info@camboard.de WPB 103B and WPB 107B Wall Plates • Templates Fax 07131 911203...
-
Page 11: Fcc Class A Notice
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage. - Page 12 PM Industrial Building 16 Ichibancho The Netherlands Singapore 368363 Chiyoda-ku, Tokyo 102-0082 Japan 714.491.1500 +31.33.453.4040 +65.6383.4400 +81.3.3511.7655 www.extron.com Fax 714.491.1517 Fax +31.33.453.4050 Fax +65.6383.4664 Fax +81.3.3511.7656 www.camboard.de Tel. 07131 911201 ce-info@camboard.de © 2005 Extron Electronics. All rights reserved. Fax 07131 911203...
