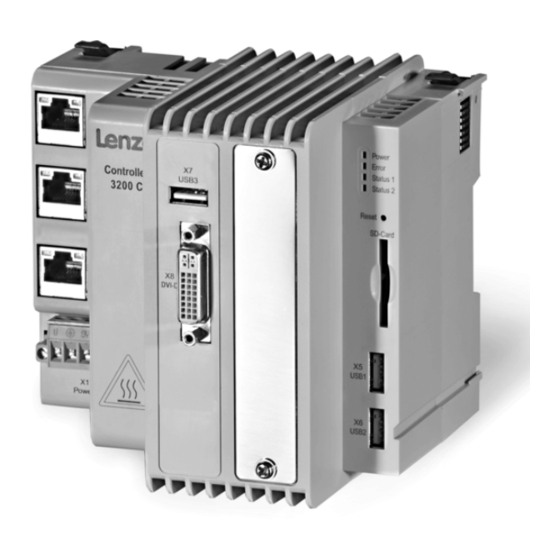

Summary of Contents for Lenze 3200 C Series

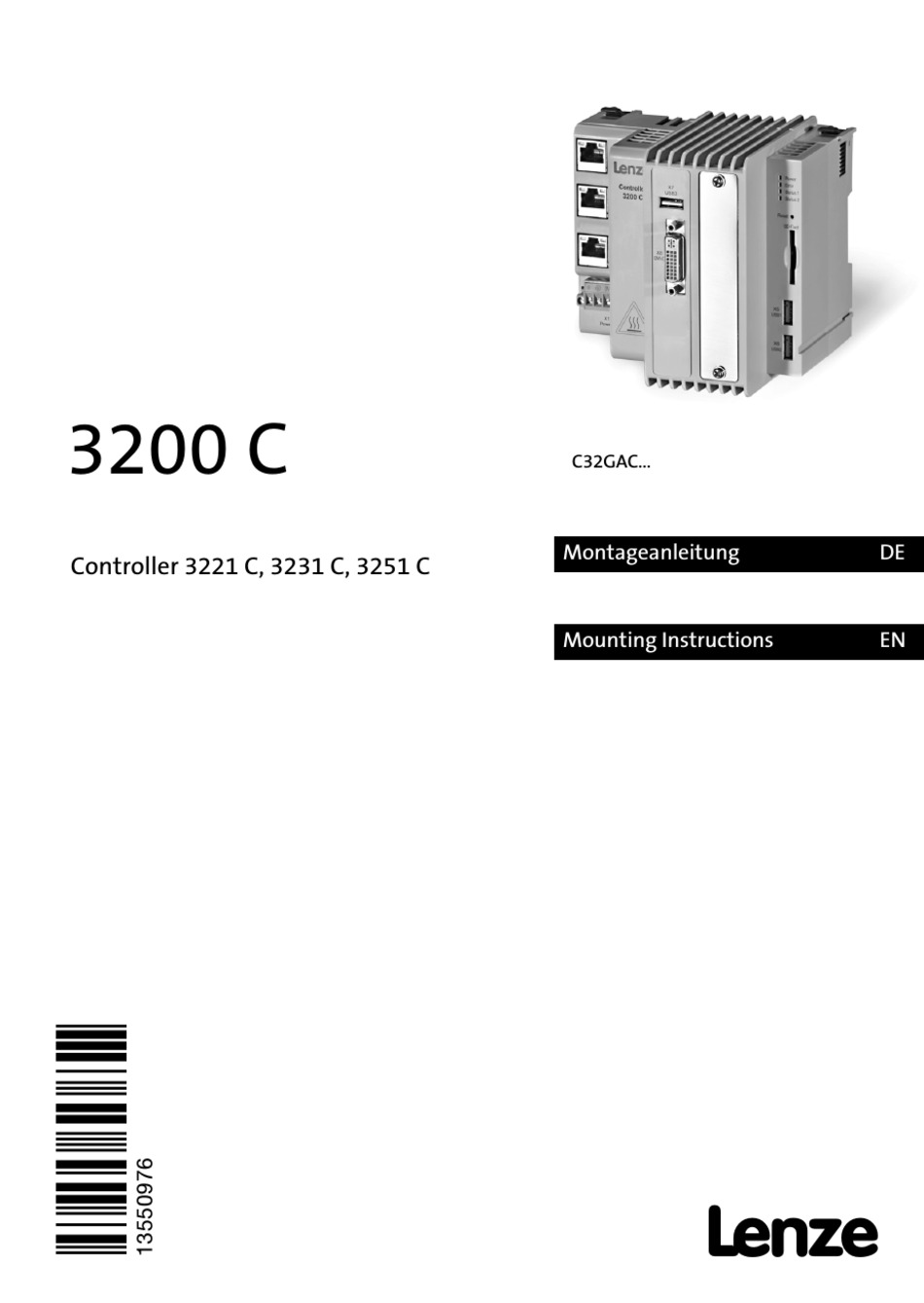

- Page 1 3200 C C32GAC... Montageanleitung Controller 3221 C, 3231 C, 3251 C Mounting Instructions Instructions de montage Instrucciones para el montaje Istruzioni per il montaggio...
- Page 2 Open Source Hinweis Lenze Software kann Software−Bestandteile enthalten, die als Freie Software oder als Open Source lizensiert sind. Die Lizenzbedingungen der in diesem Produkt verwendeten Open Source Software−Komponenten stehen Ihnen auf der im Produkt enthaltenen SD−Karte im Verzeichnis "Licenses"...
- Page 3 Spannungsschwankungen und −spitzen ab. ƒ Bei einigen Controller−Typen befinden sich auf der Rückseite zwei GapPad−Streifen für die thermische Anbindung an die Hutschiene (Lenze−Bestellnummer: EPCZMEG). – GapPad−Streifen ersetzen, wenn sie beschädigt sind. – GapPad−Streifen ersetzen, wenn sie keinen Kontakt zur Hutschiene mehr haben.
- Page 4 Open source notice Lenze Software may contain software elements that are licensed as free software or open source. The licensing terms and conditions of the open source software components used in this product can be found in the "License" directory on the SD card included in the pro- duct.
- Page 5 ƒ Some controller types have two GapPad strips on the rear side for thermal connection to the DIN rail (Lenze order number: EPCZMEG). – Replace defective GapPad strips.
- Page 6 USB 2.0; e. g. for USB stick (Backup) Touch screen connection Cable strap lead−through (lashing point for Interface for MC cards strain relief LAN cable) Status notifications (4 LEDs); see controller reference manual or »PLC Designer« help Lenze ¯ MA_3200_C ¯ 8.0...
- Page 7 Mounting the controller 32xxC_004 I/O−System 1000 montieren Mounting the I/O system 1000 3200 C 3200 C 3200 C I/O System 1000 EPM-S701 EDKPM-SXXX I/O System 1000 32xxC_008 Immer die Abdeckkappe aufstecken! Always attach the cover Lenze ¯ MA_3200_C ¯ 8.0...
- Page 8 Demontage Dismounting 32xxC_007 Abmessungen Dimensions . 3 6 “ ) “ ) . 1 4 32xxC_001 32xxC_003 Lenze ¯ MA_3200_C ¯ 8.0...
- Page 9 If the PE conductor is not included in the supply cable, the PE potential must be applied at an earthing point near the mounting place. Max. Stromaufnahme Max. current consumpt. 3221 C 3231 C 3251 C Mit I/O−System 1000 With I/O system 1000 Ohne I/O−System 1000 Without I/O system 1000 Lenze ¯ MA_3200_C ¯ 8.0...
- Page 10 Fieldbus interfaces / Optional filedbus module (MC−Card) Use only together with appropriate cable connectors, provided with screws ƒ for securement and secure connector to avoid loosening. Lenze ¯ MA_3200_C ¯ 8.0...
- Page 11 Interfaces bus de terrain / module bus de terrain en option (carte MC) A utiliser exclusivement en combinaison avec des connecteurs de câble ƒ appropriés dotés de vis de fixation ; veiller à ce que le connecteur ne se desserre pas. Lenze ¯ MA_3200_C ¯ 8.0...
- Page 12 © 03/2018 | MA_3200_C | .X*m | 8.0 | TD29 Lenze Automation GmbH Postfach 10 13 52, 31763 Hameln Hans−Lenze−Str. 1, 31855 Aerzen GERMANY HR Hannover B 205381 Ü +49 5154 82−0 Ø +49 5154 82−2800 Ù lenze@lenze.com Ú www.lenze.com Û...
