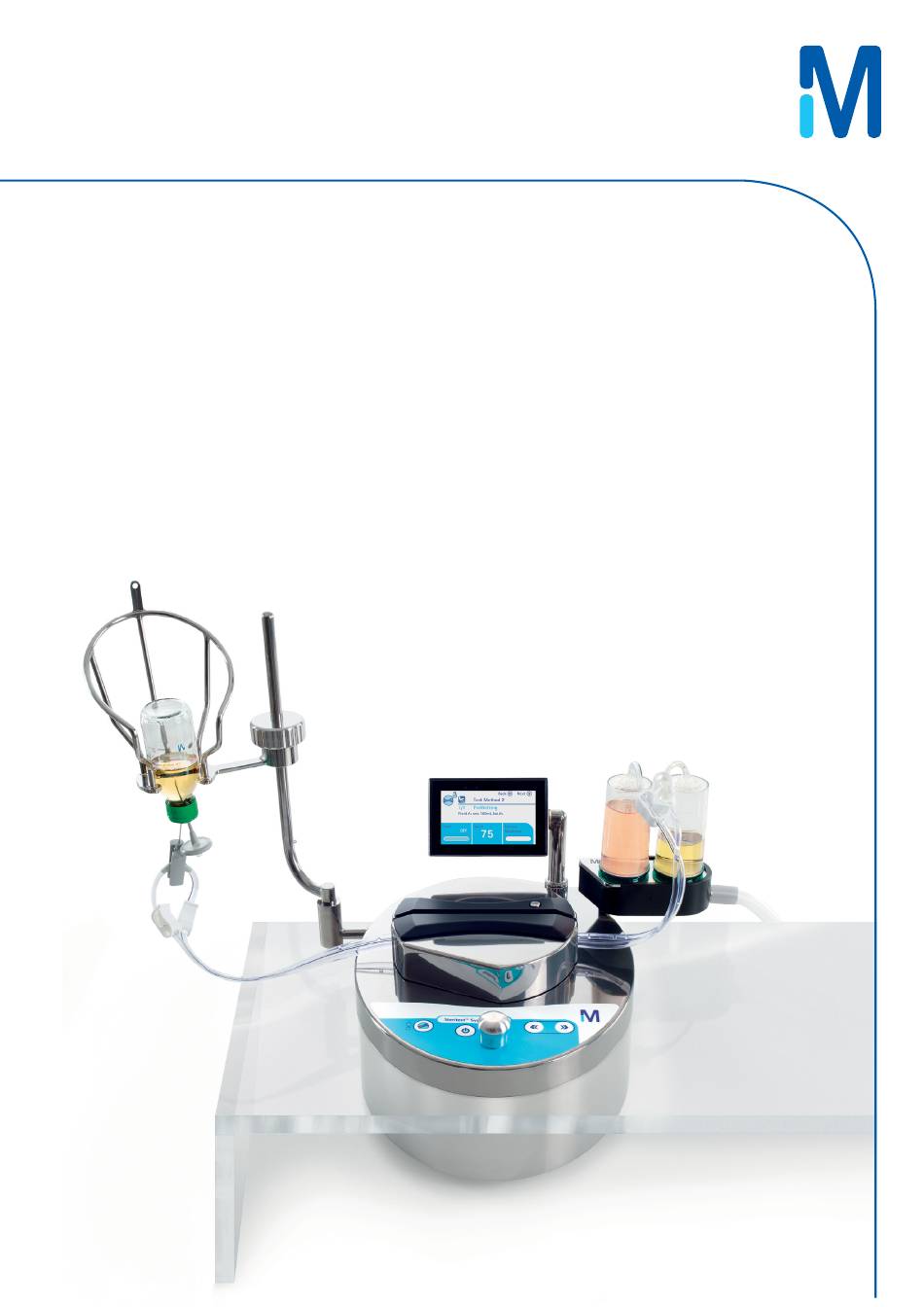

- Page 1 Steritest Symbio FLEX Pump ™ Installation Guide...
- Page 2 This manual is believed to be complete and accurate at the time of publication. In no event shall Millipore SAS be liable for incidental or consequential damages in connection with or arising from the use of this manual.
- Page 3 Contents Introduction ......................................4 System overview ...................................4 Additional Features ..................................4 About this Manual ..................................5 Operator and Equipment Safety ..............................5 Specifications and Operating Requirements ..........................7 Overview of the FLEX Pump Assembly ............................10 Components of the Steritest Symbio FLEX Pump ......................10 ™...
- Page 4 Introduction System overview The Steritest Symbio peristaltic pumps are used for sterility testing and are available in three ™ versions: LFH, ISL, and FLEX. Combined with optional accessories, the pumps provide a wide range of installation possibilities for integration in all testing environments (laminar flow hood, biosafety cabinet, clean room, and isolator), including existing isolators without table rework.
- Page 5 A tray that carries up to 5 Steritest canisters and an optional rack to hold up to 4 carrying ™ trays NOTE Go to www.millipore.com/steritest-symbio to check the latest version of the Steritest ™ Symbio Pumps User Guide and get information about Steritest Symbio Pump optional ™...
- Page 6 Do not expose the pump or the communication hub to liquid. If this happens, immediately switch off and disconnect the pump from the power outlet, and then decontaminate the pump and communication hub surfaces. For cleaning instructions, see the Steritest Symbio Pump User Guide.
- Page 7 Specifications and Operating Requirements Parameter Value/Range Width 326 mm (12.8 in.) Dimensions and Depth 355 mm (14.0 in.) weight: Height 301 mm (11.8 in.) as received Weight 17.9 kg (39.5 lb) without accessories Pump head height 197 mm (7.8 in.) Rotation speed up to 240 rpm Performance...
- Page 8 Bottle holder Bottle holder support rod 316L Stainless steel Bottle holder basket 316L Stainless steel Bottle holder fastening system Polyphenylsulfone (PPSU) screw clip Communication hub Housing 316L Stainless steel with epoxy paint Feet Nylon and ethylene vinyl acetate (EVA) Nickel-plated brass and polybutylene USB port terephthalate (PBT) Fuse holder...
- Page 9 Millipore SAS certifies that the Steritest™ Symbio Pump is designed and manufactured in application of: • The following European Council directives: Electromagnetic compatibility 2014/30/EU Low voltage directive 2014/35/EU Restriction of the use of certain Hazardous Substances in electrical equipment (RoHS) 2011/65/EU •...
- Page 10 Overview of the FLEX Pump Assembly Components of the Steritest Symbio FLEX Pump ™ The Steritest Symbio FLEX pump assembly consists of: ™ • The pump, including: • A control panel on the front • An adjustable color display at the back •...
- Page 11 Communication hub ― front view: T 6.3A L 250V On/off switch Fuse slot Overfill system USB port port Footswitch port Ethernet port Syringe support port Communication hub ― rear view: Pump connection cable Fuse slot T 3.15A L 250V Power inlet...
- Page 12 Steritest Symbio FLEX Pump Configurations ™ NOTE Dimensions are in millimeters. The Steritest Symbio FLEX Pump can be used in multiple configurations: ™ In an Isolator: Low Integration Configuration on Round or Oval Cutouts...
- Page 14 In an Isolator: High Integration Configuration on Round or Oval Cutouts To install the pump in an isolator in high integration configuration, a special integration kit (sold separately) is required (see Installing the Pump in an Isolator: High Integration Configuration). There are two integration kits, one for a round cutout and one for an oval cutout.
- Page 16 In an Isolator or a Vertical Laminar Flow Environment on Feet The Steritest Symbio FLEX pump can be used on feet in an isolator, or in a vertical laminar flow ™ environment. To install the pump on feet, some optional accessories may be necessary (see Installing the Pump in an Isolator: On feet Installing the Pump in a Laminar Flow Hood: On...
- Page 17 NOTE The standard feet that are delivered with the pump are 12.5 mm (0.49 in.) high. The special feet that must be installed on the pump for use in an isolator are 20 mm (0.79 in.) high.
- Page 18 The cutout details and the recommended position of the drain in relation to the cutout are indicated in the following drawing. NOTE The e-drawing file (.dxf) for this cutout is available at www.millipore.com/steritest-symbio. The Steritest Symbio FLEX pump is compatible with the cutout for the Steritest Integral ™...
- Page 19 To ensure good flow of the liquid to the drain, the isolator table should be equipped with an elbow piece (oriented to the drain tray) to which the drain tubing can be connected. The height of the elbow piece should not exceed 50 mm to ensure that the drain tray is higher than this elbow piece.
- Page 20 The following drawing shows the size of the pump upper part (the part that is on the top of the isolator table), with its accessories, in relation to the cutout. 363 mm 267 mm Sketch of the pump upper part footprint The following drawing shows the size of the pump bottom part (the part that is under the isolator table), with the drain position recommendation, in relation to the cutout.
- Page 21 The cutout details and the recommended position of the drain in relation to the cutout are indicated in the following drawing. NOTE The e-drawing file (.dxf) for this cutout is available at www.millipore.com/steritest-symbio. The Steritest Symbio FLEX pump is compatible with the cutout for the Steritest Integral ™...
- Page 22 To ensure good flow of the liquid to the drain, the isolator table should be equipped with an elbow piece (oriented to the drain tray) to which the drain tubing can be connected. The height of the elbow piece should not exceed 50 mm to ensure that the drain tray is higher than this elbow piece.
- Page 23 The position of the cutout on the isolator table must be defined according to the dimensions and contents of the isolator in order to avoid any interference and improve ergonomics. The following drawing shows the size of the pump, with its accessories, in relation to the cutout.
- Page 24 To ensure good working ergonomics, it is recommended that the center of the cutout be positioned between 290 and 315 mm from the isolator wall. Isolator front wall...
- Page 25 Symbio Pumps Isolator Installation Checklist (PF17360) to document ™ the proper execution of the installation steps and test cycles. (Download the checklist at www.millipore.com/steritest-symbio ) Deliver this document to the end user of the pump. Tools Required The following tools are required for the installation of the pump: •...
- Page 26 Symbio FLEX Pump is delivered in two boxes that are strapped together. ™ STERITEST SYMBIO LFH FOR 2 MEDIA TEST Cat Nb: SYMBLFH01 Lot Nb: SAMPLE LFH1 Millipore S.A.S 67120 Molsheim - Made in France The larger box contains: • The Steritest Symbio FLEX Pump ™ • The communication hub •...
- Page 27 To unpack the boxes: Using the carrying handles on the larger box, place the package on a flat, stable, and horizontal surface. Cut the plastic straps to separate the two boxes. Put the smaller box aside. Open the larger box. Retrieve the pump Certificate of Quality and the safety instructions.
- Page 28 Steritest Symbio Software User Guide are available at ™ www.millipore.com/steritest-symbio. Verifying that the Pump Functions Properly Before installing the pump, verify that it is functioning properly. Place the pump on its side and connect the communication hub pump connection cord to the pump power inlet.
- Page 29 Simultaneously press and hold the pump on/off and the open/close buttons. The welcome screen displays: After a few seconds, the following screen displays: When the autotest is complete, the following screen displays. A symbol in a check box indicates that an accessory or data source is connected to the communication hub.
- Page 30 Press the button. The installation menu displays. Press the control knob to select Out of the box. The Out of the box screen displays. Press the control knob to begin the test cycle. Only one cycle will be performed.
- Page 31 After pump head closes, the pump starts automatically, and 1 test cycle is performed. When the Test Cycle completes with no error, the following screen displays. Switch off the communication hub by pressing the on/off switch (position O). The Shutdown screen displays. Disconnect the communication hub pump connection cord from the pump power inlet.
- Page 32 Installing the Pump Four installation configurations are possible: • In an isolator: low integration configuration on a round or oval cutout • In an isolator: high integration configuration on a round or oval cutout • In an isolator: on feet •...
- Page 33 Locate the 8 screws that secure the pump bottom plate to the pump housing. Pump housing Use a T20 star screwdriver to remove the 8 screws.
- Page 34 NOTE The cable that connects the pump power inlet to the electronic board is attached to the pump bottom plate. It must be disconnected in order to remove the pump bottom plate. Gently lift the pump bottom plate off the pump (1), disconnect the cable (2), and completely remove the bottom plate (3).
- Page 35 Electronic board simplified view: Rotor motor reducer driver view: 9 11a Disconnect the 3-pin connector (11a) and the 6-pin connector (11b) from the rotor motor reducer driver. Disconnect cables 3 and 4 from the main electronic board (see Electronic board simplified view).
- Page 36 Locate the cable holder fixed to the pump housing at the right of the electronic board. Gently pull this cable holder and release cables 3 and 4. Locate the 3 screws on the rotor motor reducer block that secure the block to the pump. Screws Use a #3 hex key to unscrew and remove the 3 screws and washers.
- Page 37 NOTE To facilitate the installation in the isolator, do not modify the position of the rotor motor reducer belt. Locate the cable holder attached to the pump housing. Gently pull this cable holder and release the cables. Disconnect cables 1, 2, and 8 from the main electronic board. Locate the 4 screws on the stator motor reducer block that secure it to the pump (see previous drawing).
- Page 38 Remove the stator motor reducer block from the pump. Stator motor reducer block NOTE To facilitate the installation in the isolator, do not modify the position of the stator motor reducer belt. Disconnect cables 5, 6, 9, and 10 from the main electronic board (see Electronic board simplified view).
- Page 39 Locate the 2 screws that secure the electronic board to the pump housing. Use a T20 star screwdriver to unscrew the 2 screws and then remove the electronic board from the pump housing.
- Page 40 NOTE The electronic board remains attached to the pump upper part. Be careful not to damage it. The electronic board is electrostatic sensitive. Observe precautions for handling. Locate the 2 screws that secure the rotor motor reducer driver to the pump housing. Use a T20 star screwdriver to unscrew the 2 screws and then remove the rotor motor reducer driver from the pump housing.
- Page 41 Locate the 11 screws on the pump housing that secure it to the pump upper part. Use a #5 hex key to unscrew and remove the 11 screws and washers. Lock washer Washer Remove the pump housing. Pump housing...
- Page 42 Remove the flat seal located on the upper part of the pump. Flat seal Retrieve the flat seal delivered in the accessories package. Ensure that the flat seal is not damaged. If it is damaged, replace it with a new one (see Accessories and Replacement Parts).
- Page 43 Installing the Pump in the Isolator The Steritest Symbio FLEX pump is compatible with standard round cutout (formerly used for ™ the Steritest Integral Pump and the Steritest Equinox Isolator TQNXISL01 pump) and oval ™ ™ cutout (formely used for the Steritest Equinox Isofit pump).
- Page 44 Center the pump by placing the two threaded stems in the dedicated holes of the cutout. Place the pump housing under the isolator table. To center the pump housing, make sure the two threaded stems go through the corresponding pump housing holes, as shown in the following drawings.
- Page 45 Remove the 2 threaded stems. Place the rotor motor reducer driver in its housing. Use a T20 star screwdriver to install the two screws that secure it to the pump housing.
- Page 46 Place the electronic board in its housing. Use a T20 star screwdriver to install the two screws that secure it to the pump housing. Use a #5 hex key to install the 3 other pump housing screws, each with a washer, as shown in the following drawings.
- Page 47 Installing Using the Oval Cutout This procedure applies when the Steritest Symbio FLEX pump replaces a Steritest Equinox ™ ™ Isofit pump. Insert the two threaded stems delivered with the pump (in the accessories package) into the two M8 holes indicated in the following drawing: Turn the pump upper part right side up and place it above the isolator cutout.
- Page 48 Place the pump housing under the isolator table. To center the pump housing, make sure the two threaded stems go through the corresponding pump housing holes, as shown in the following drawings: While holding the pump housing in place, use a #5 hex key to install the 2 pump housing screws, with 2 washers each, as shown in the following drawing: Remove the 2 threaded stems.
- Page 49 Use a #5 hex key to install the 7 additional pump housing screws, with 2 washers each, as shown in the following drawing: NOTE In this configuration, 2 screws remain unused at the end of the installation. Perform a tightness test of the isolator before proceeding. If this test fails, ensure that all the 9 screws on the pump housing are properly installed.
- Page 50 Place the electronic board in its housing. Use a T20 star screwdriver to install the two screws that secure it to the pump housing. Continue to the next section, Reassembling the Pump Components.
- Page 51 Reassembling the Pump Components NOTE This procedure applies for both round and oval cutouts. Connect cable 6 to the electronic board. SOFI05 This ribbon cable is permanently attached to the pump upper part. It goes to the right of the stator motor reducer block, goes through the cable holder located at the right of the electronic board, and is connected to the electronic board.
- Page 52 Bring the stator motor reducer block under the pump housing and connect cable 8 to the electronic board. This cable comes from the stator motor reducer block. It goes to the right of this motor reducer block, goes through the cable holder located at the right of the electronic board, then goes behind the electronic board, and is finally connected to the electronic board.
- Page 53 Place the stator motor reducer block in its housing by aligning the coupling pieces located on the stator motor reducer block and at the bottom of the pump upper part. NOTE Do not turn the coupling piece located at the bottom of the pump upper part. If the position of the stator motor reducer belt has not been modified during the disassembly step, the alignment should be okay.
- Page 54 Use a #3 hex key to install the 4 screws and washers and the cable holder to secure the stator motor reducer block to the bottom of the pump upper part.
- Page 55 Connect cable 1 to the electronic board. This cable is permanently attached to the pump upper part. It loops in the cable holder attached to one of the stator motor reducer screws, and is connected to the electronic board.
- Page 56 Connect cable 2 to the electronic board. This cable comes from the stator motor reducer block. It loops in the cable holder attached to one of the stator motor reducer screws, and is connected to the electronic board.
- Page 57 Connect cable 5 to the electronic board. This cable is permanently attached to the pump upper part. It double loops in the cable holder attached to one of the stator motor reducer screws, and is connected to the electronic board.
- Page 58 Place the rotor motor reducer block in its housing by aligning the coupling pieces located on the rotor motor reducer block and at the bottom of the pump upper part. NOTE Do not turn the coupling piece located at the bottom of the pump upper part. If the position of the rotor motor reducer belt has not been modified during the disassembly step, the alignment should be okay.
- Page 59 Use a #3 hex key to install the 3 screws and washers to secure the rotor motor reducer block to the bottom of the pump upper part.
- Page 60 Connect cable 9 to the electronic board. This cable links the rotor motor reducer driver to the electronic board. From the motor reducer driver (2-pin connector), the cable goes behind this rotor motor reducer driver, then to the left of the rotor motor reducer block, then through the cable holder attached to one of the stator motor reducer screws, and is connected to the electronic board.
- Page 61 Connect cable 10 to the electronic board. This cable links the rotor motor reducer driver to the electronic board. From the motor reducer driver (18-pin connector), the cable goes behind this rotor motor reducer driver, then to the left of the rotor motor reducer block, then through the cable holder attached to one of the stator motor reducer screws, and is connected to the electronic board.
- Page 62 Connect the 3-pin connector (11a) and the 6-pin connector (11b) to their bases on the motor reducer driver. Cable 11 comes from the rotor motor reducer block, goes to the left of this motor reducer block, then goes behind the rotor motor reducer driver to which it is finally connected. Câble 11...
- Page 63 Connect cable 3 to the main electronic board. This cable is permanently attached to the pump upper part. It goes to the right of the stator motor reducer block, then through the cable holder located at the right of the electronic board, and is connected to the electronic board.
- Page 64 Connect cable 4 to the main electronic board. This cable comes from the rotor motor reducer block, goes to the right of the stator motor reducer block, then through the cable holder located at the right of the electronic board, and is connected to the electronic board.
- Page 65 Ensure that no cable passes near the belts of the two motor reducer blocks or under the two motor reducer blocks. Position the pump bottom plate underneath the pump housing. Connect the power connector cable to the power connector located on the pump bottom plate, and then place the bottom plate under the pump housing.
- Page 66 Connect the communication hub pump connection cord to the pump power inlet. Connect the communication hub to power source using the power cord delivered with the pump. NOTE The communication hub can be installed under the isolator using the optional communication hub holder for isolator (see Installing the Communication Hub Under the Isolator: Low...
- Page 67 After a few seconds, the following screen displays: When the autotest is complete, the following screen displays. A symbol in a check box indicates that an accessory or data source is connected to the communication hub. Press the button. The installation menu displays.
- Page 68 Turn the control knob to select After Installation in Isolator. Press the control knob. The After Installation in Isolator screen displays. Press the control knob to begin the test cycles. Three cycles will be performed.
- Page 69 After the pump head closes, the pump starts automatically, and 3 test cycles are performed. When all 3 test cycles complete with no error, the following screen displays. Switch off the communication hub by pressing the on/off switch (position O). The Shutdown screen displays.
- Page 70 Installing the Communication Hub Under the Isolator: Low Integration Use the optional communication hub holder for isolators to install the communication hub under the isolator table (see Accessories and Replacement Parts). Multiple configurations are possible. Installing the Communication Hub on the Side, High Version Installing to the Left of the Pump Use the small screws and washers to attach the holder to the bottom of the communication hub.
- Page 71 Installing to the Right of the Pump Use the small screws and washers to attach the holder to the bottom of the communication hub. Row 1 Row 2 Row 3 NOTE To install the communication hub in alignment with the pump housing (the default position), use the holes in row 2.
- Page 72 Installing the Communication Hub on the Side, Low Version Installing to the Left of the Pump Use the small screws and washers to attach the holder to the bottom of the communication hub. Row 3 Row 2 Row 1 NOTE To install the communication hub in alignment with the pump housing(the default position), use the holes in row 2.
- Page 73 Installing to the Right of the Pump Use the small screws and washers to attach the holder to the bottom of the communication hub. Row 3 Row 2 Row 1 NOTE To install the communication hub in alignment with the pump housing (the default position), use the holes in row 2.
- Page 74 Installing the Communication Hub below the Pump Housing Use the small screws and washers to attach the holder to the bottom of the communication hub. Row 3 Row 2 Row 1 NOTE To install the communication hub in alignment with the isolator (the default position), use the holes in row 2.
- Page 75 Installing the Pump in an Isolator: High Integration Configuration NOTE This procedure applies to isolator tables that are up to 7 mm thick. For thicker isolator tables, an adaptation kit is required. Contact our sales representative for more information. Disassembling the Pump Verify that the pump functions properly, and verify that the pump head is in its closed position (see Verifying that the Pump Functions...
- Page 76 Use a T20 star screwdriver to remove the 8 screws. NOTE The cable that connects the pump power inlet to the electronic board is attached to the pump bottom plate. It must be disconnected in order to remove the pump bottom plate. Gently lift the pump bottom plate off the pump (1), disconnect the cable (2), and completely remove the bottom plate (3).
- Page 77 Installing the Pump in the Isolator The Steritest Symbio FLEX pump is compatible with standard round cutout (formerly used for ™ the Steritest Integral Pump and the Steritest Equinox Isolator TQNXISL01 pump) and oval ™ ™ cutout (formerly used for the Steritest Equinox Isofit pump).
- Page 78 Use a T20 star screwdriver to remove these 6 screws. Locate the 6 screws that secure the lower adapter ring to upper adapter ring Use a #5 hex key to remove these 6 screws...
- Page 79 Remove the adhesive protector from the flat seal and place it at the top of the pump housing as shown in the following drawing. NOTE The seal delivered with the pump (in the accessories package) can also be used. Place the upper adapter ring on the top of the pump housing. Upper adapter ring seal...
- Page 80 Use a #6 hex key to install the 10 screws that attach the upper adapter ring to the pump housing. NOTE Ensure that all the screws are fully tightened to ensure tightness of the pump. Insert the two threaded stems into the two M8 holes indicated in the following drawing. NOTE The threaded stems are delivered with the pump in the accessories package.
- Page 81 Turn the pump right side up and place it above the isolator cutout. Center the pump by placing the two threaded stems in the dedicated holes of the cutout.
- Page 82 Place the lower ring below the isolator table as shown on the following drawing: Lower adapter ring Use a #5 hex key to install 4 of the 6 screws that attach the lower adapter ring to the isolator table.
- Page 83 Remove the two threaded stems. Use a #5 hex key to install 2 remaining screws that attach the lower adapter ring to the isolator table. Retrieve the original pump bottom plate that was delivered with the pump.
- Page 84 Hold the power connector and use the special wrench delivered with the integration kit to unscrew the power connector nut. Remove the power connector nut. Remove the power connector with its O-ring from the bottom plate.
- Page 85 Insert the power connector with its O-ring through the hole on the bottom plate that was delivered with the integration kit. NOTE Maintain the orientation of the connector as shown in the following drawings. Place the power connector nut on the power connector. Hold the power connector and use the special wrench to fasten the power connector nut.
- Page 86 Position the bottom plate that was delivered with the integration kit underneath the pump housing. NOTE Maintain the orientation of the bottom plate as shown in the following drawings. Connect the power connector cable to the power connector located on the bottom plate, and then place the bottom plate under the pump housing.
- Page 87 Connect the communication hub pump connection cord to the pump power inlet. Connect the communication hub to power source using the power cord delivered with the pump. NOTE The communication hub can be installed under the isolator using the optional communication hub holder for isolator (See Installing the Communication Hub under the Isolator: High...
- Page 88 • A special drain tray support for high integration Remove the adhesive protector from the flat seal and place it at the top of the pump housing as shown in the following drawing (the seal delivered with the pump can also be used).
- Page 89 Turn the pump right side up and place it above the isolator cutout. Center the pump by placing the two threaded stems in the dedicated holes of the cutout. Place the adapter ring below the isolator table as shown on the following drawing: Adapter ring Ajout couronne inferieure...
- Page 90 Use a #5 hex key to install 8 of the 10 screws that attach the adapter ring to the pump through the isolator table. Remove the two threaded stems.
- Page 91 Use a #5 hex key to install 2 remaining screws that attach the adapter ring to the isolator table. Position the pump bottom plate underneath the pump housing. Connect the power connector cable to the power connector located on the bottom plate, and then place the bottom plate under the pump housing.
- Page 92 Use a T20 star screwdriver to install the 8 screws that attach the bottom plate to the adapter ring. Connect the communication hub pump connection cord to the pump power inlet. Connect the communication hub to power source using the power cord delivered with the pump.
- Page 93 Tests After Installation Simultaneously press and hold the pump on/off and the open/close buttons. The screen displays the range of Steritest devices. This is followed by the welcome ™ screen: After a few seconds, the following screen displays: When the autotest is complete, the following screen displays. A symbol in a check box indicates that an accessory or data source is connected to the communication hub.
- Page 94 Press the button. The installation menu displays. Turn the control knob to select After Installation in Isolator. Press the control knob. The After Installation in Isolator screen displays.
- Page 95 Press the control knob to begin the test cycles. Three cycles will be performed. After the pump head closes, the pump starts automatically and 3 test cycles are performed. When the test cycles complete with no error, the following screen displays.
- Page 96 Switch off the communication hub by pressing the on/off switch (position O). The Shutdown screen displays. Disconnect the communication hub pump connection cord from the pump power inlet. Replace the drain tray support delivered with the pump (in the accessories package) with the one contained in the integration kit.
- Page 97 NOTE To install the communication hub in alignment with the pump housing (the default position), use the holes in row 2. To install the hub toward the front of the isolator, use the holes in row 1. To install the hub toward the rear of the isolator, use the holes in row 3.
- Page 98 NOTE To install the communication hub in alignment with the pump housing (the default position), use the holes in row 2. To install the hub toward the front of the isolator, use the holes in row 1. To install the hub toward the rear of the isolator, use the holes in row 3.
- Page 99 NOTE To install the communication hub in alignment with the isolator (the default position), use the holes in row 2. To install the hub toward the front of the isolator, use the holes in row 1. To install the hub toward the rear of the isolator, use the holes in row 3. Connect the end of the communication hub pump connection cord to the pump power inlet.
- Page 100 Turn the pump up side down and place it on the top wedging system. Use a T20 star screwdriver to remove the screws that attach the standard feet to the pump bottom plate.
- Page 101 Use a #13 wrench to fasten the special feet for use in isolator to pump bottom plate. Turn the pump right side up and place it in the isolator. NOTE Use the optional carrying handles to facilitate handling of the pump (see Using the Optional Carrying Handles).
- Page 102 The communication hub is not intended to be placed in the isolator. Connect the pump to the communication hub using the Steritest Symbio connection cable extension with ™ Tri-Clover clamp (see Accessories and Replacement Parts). ® NOTE To fix the communication hub to one of isolator feet, use the optional communication hub holder for hoods (see Accessories and Replacement Parts.)
- Page 103 Using the Optional Carrying Handles The carrying handles are an optional accessory (see Accessories and Replacement Parts). Use them to facilitate pump handling when the pump is installed in a vertical laminar flow environment on feet or in an isolator on feet. Ensure that the pump head is in its closed position.
- Page 104 Turn the pump right side up and place it in its working environment. Installing the Pump in a Vertical Laminar Flow Environment: on Feet Verify that the pump functions properly, and verify that the pump head is in its closed position (see Tests After Installation).
- Page 105 Switch on the communication hub by pressing the on/off switch (position l ). Main on/off switch T 6.3A L 250V...
- Page 106 Accessories and Replacement Parts Quantity Description Catalog Number per pack Steritest™ Symbio Pump Steritest™ Symbio FLEX Pump Kit, 2 media SYMBFLE01WW** Steritest™ Symbio Pump Services Steritest™ Symbio pumps validation protocol (A4 format) SYMBA4VP1 Steritest™ Symbio pumps validation protocol US (letter format) SYMBLTVP1 NOTE: Contact our sales representative or Technical Service for more information about our application support, validation services, maintenance, and repair services.
- Page 107 SIMCABLE8 Power cord for Italy SIMCABLE9 Power cord for Brazil SIMCABLE11 Steritest™ Symbio flat seal for FLEX pump SYMBFSF01 Software (Available at www.millipore.com/steritest-software) Steritest™ Symbio Software ― ― Consumables Visit our website or contact Steritest™ devices, culture media and rinsing fluids ―...
- Page 108 Electric and Electronic Equipment (WEEE), the presence of this logo on the product indicates that it should not be disposed of in the normal waste stream but collected separately. Go to www.millipore.com/weee for details on how to ensure proper treatment of the product in different countries.
- Page 109 (before and after installation) described in this installation guide. Use the Steritest Symbio Pumps Isolator Installation Checklist (PF17360) to document ™ the proper execution of the installation steps and test cycles. (Download the checklist at www.millipore.com/steritest-symbio ) Deliver this document to the end user of the pump.
- Page 110 For more information: In the U.S., call 1-800-MILLIPORE (1-800-645-5476), or visit www.millipore.com/techservice Millipore, the M mark, Steridilutor, and Sterisolutest are registered trademarks of Merck KGaA, Darmstadt, Germany. Steritest is a trademark of Merck KGaA, Darmstadt, Germany. All trademarks of third parties are the property of their respective owners.
