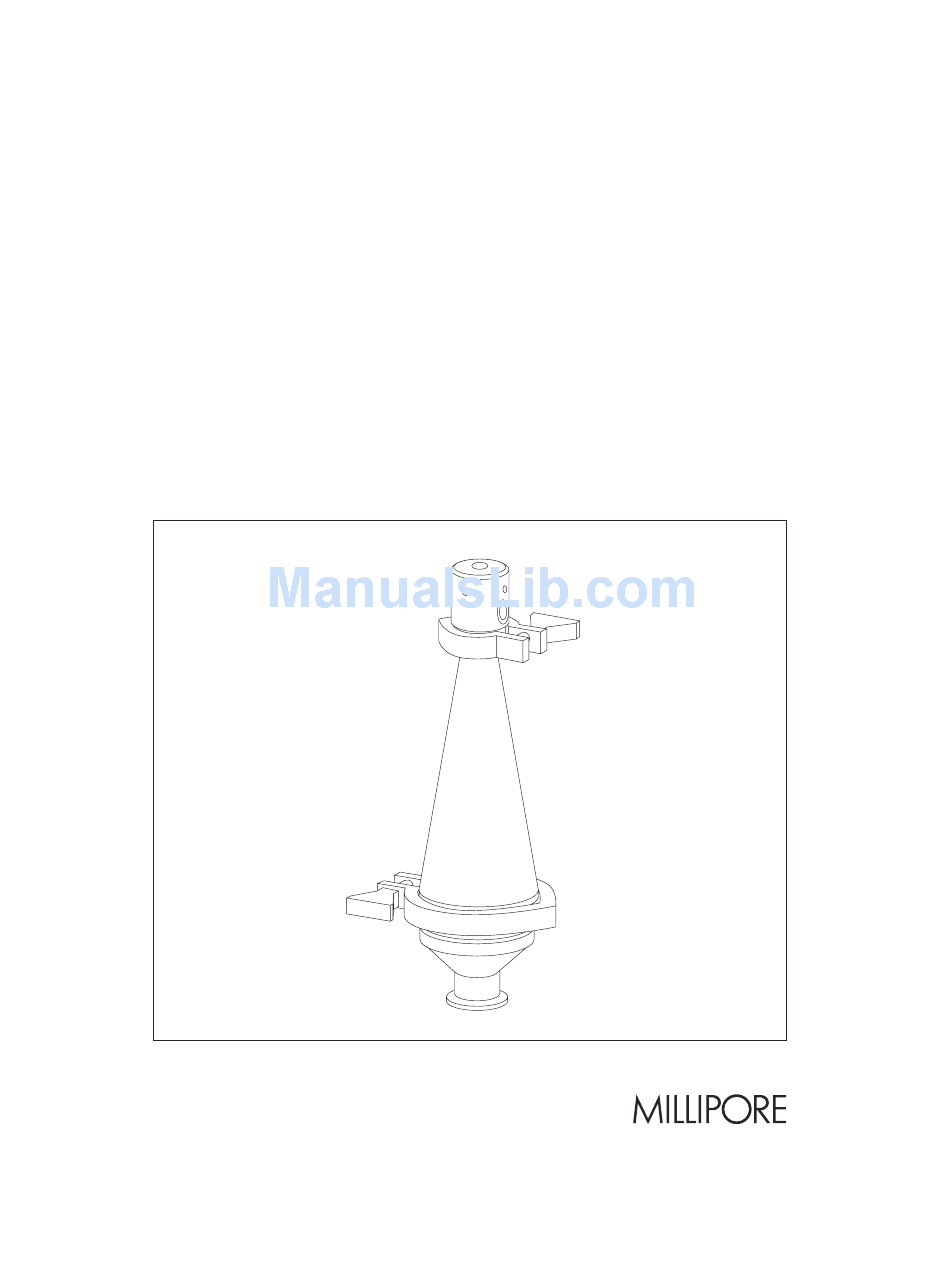

M Air T
®
Compressed Gas and Air
Sampling Kit
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M Air T and is the answer not in the manual?

Questions and answers

Summary of Contents for Millipore M Air T

  • Page 1 M Air T ® Compressed Gas and Air Sampling Kit User Guide...
  • Page 2 Printed in U.S.A. Millipore and M Air T are registered trademarks of Millipore Corporation. Tri-Clover is a registered trademark of Alfa Laval, Inc. P36483, Rev. –, 10/02...
  • Page 3 Introduction The new M Air T ® Compressed Gas and Air Sampling Kit is designed especially to monitor the microbiological quality of compressed gas and air used in the pharmaceutical and food & beverage industries. Connected to the M Air T Isolator Pump ATBPUMP01, the new...
  • Page 4: Component Diagram

    Autoclave all parts at 121 °C for 20 minutes before any compressed gas or air sampling. Use only with the M Air T Isolator Pump. Use only M Air T cassettes with this unit. Do not use for microbiological monitoring of compressed O Do not sample gas or air at pressures above the specified limit of 5 bar (73 psi).
  • Page 5 M Air T Sampling Kit User Guide Assembling the M Air T Compressed Gas and Air Sampling Kit 1. With the 1.5-inch TC clamp, connect the valve to the cone adapter. 2. With the 4-inch TC clamp, connect the cone adapter to the...
  • Page 6 Installing the M Air T Cassette The M Air T cassette, in its gamma-irradiated double-sleeve packaging, has been qualified and validated to monitor up to 1000 liters of com- pressed gas or air. 1. Grasp the wings of the cassette and place it on the sampling head.
  • Page 7 3. Place the sieve, cone adapter and pressure reducer on the cassette and lock it into position. 4. As described in detail in the M Air T Isolator Pump User Guide, connect the assembly to the pump, using the components supplied with the pump: a.
  • Page 8 Installing the M Air T Cassette, continued 5. Connect the compressed gas sampling port to the inlet connection of the pressure reducer. 6. Open the sampling valve and adjust the valve indicator to between 5 and 6 mm, to achieve an inlet gas flow rate between 140 and 180 liters/minute.
  • Page 9: Specifications

    8. Remove the cassette by grasping the “wings” and lifting it off the sampling head. 9. Label the cassette. NOTE: Incubate the cassette upside down. Specifications Dimensions (M Air T Compressed Air/Gas Sampling Kit): Total height: 310 mm (12.2 in.) Total width: 170 mm × 130 mm (6.7 in.
  • Page 10: Product Ordering Information

    Product Ordering Information This section lists the catalogue numbers for the M Air T Compressed Gas and Air Sampling Kit. See the Technical Assistance section for information about contacting Millipore. You can also buy Millipore products on-line at www.millipore.com/purecommerce.
  • Page 11: Technical Assistance

    In the event of a breach of the foregoing warranty, Millipore’s sole obligation shall be to repair or replace, at its option, the applicable product or part thereof, provided the customer notifies Millipore promptly of any such breach.
  • Page 12 P36483, Rev. –, 10/02...
