Step 1: Position the unit

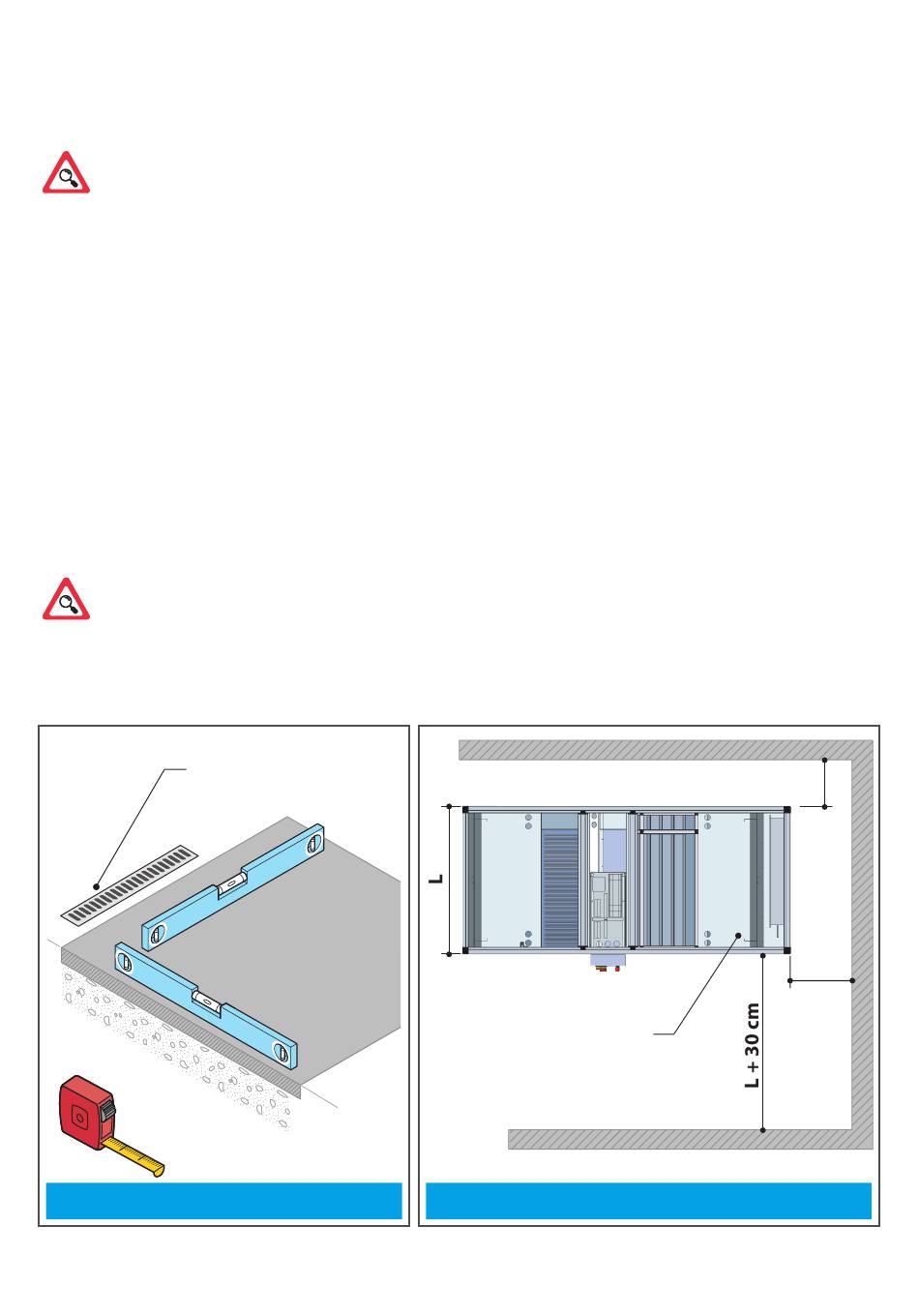

Check that a suitable base has been prepared (fig. 4) for the support and installation of the machine. It
must be stable, perfectly flat, made of reinforced concrete and have the capacity to support the weight
of the machine.
For the size of the base and the weight to be supported, refer to the schematic delivered when
the machine was ordered.
The installation site must also include (fig. 4):
• Suitable drainage to convey and drain the water in case of accidental breakage of pipes that carry
the fluids to the machine.
• An electrical system compliant with current regulations and with specifications that meet the needs
of the machine;
• A water/gas connection (in the case of connection to coils supplied by water or gas).
• A drain pipe with drain siphon connected to the sewerage system.
• an aeraulic system (ducts for the air to be conveyed to the environments).
Position the unit above the base. Make sure that the area chosen for the placement has sufficient space
to allow for subsequent installation and maintenance all around the unit (including replacement of any
internal components, for example the removal of heat exchange coils, filters, etc.) (fig. 5 indicates the
minimum distances to be maintained). It is advisable to check the extraction side of the components
before installing the machine.
Warning! The machines were designed to operate in technological spaces or outdoors. They
CANNOT operate in environments with explosives, where there is a high presence of dust, high
humidity or high temperatures unless specific modifications are requested during production.
Drainage
4
Preparations
Single unit
5
Minimum distances
80 cm
80 cm
