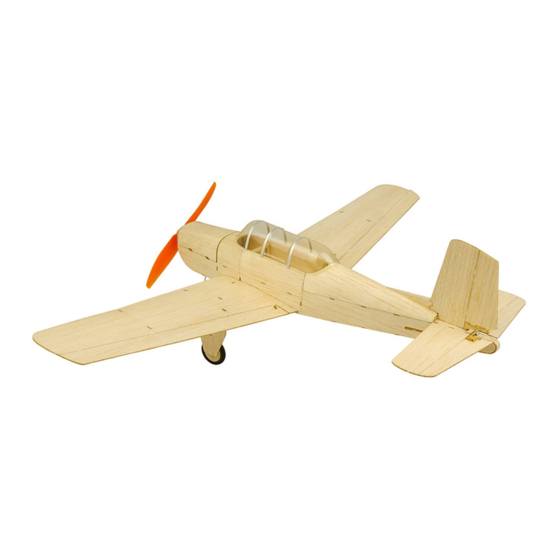

Summary of Contents for MinimumRC T-34 Mentor

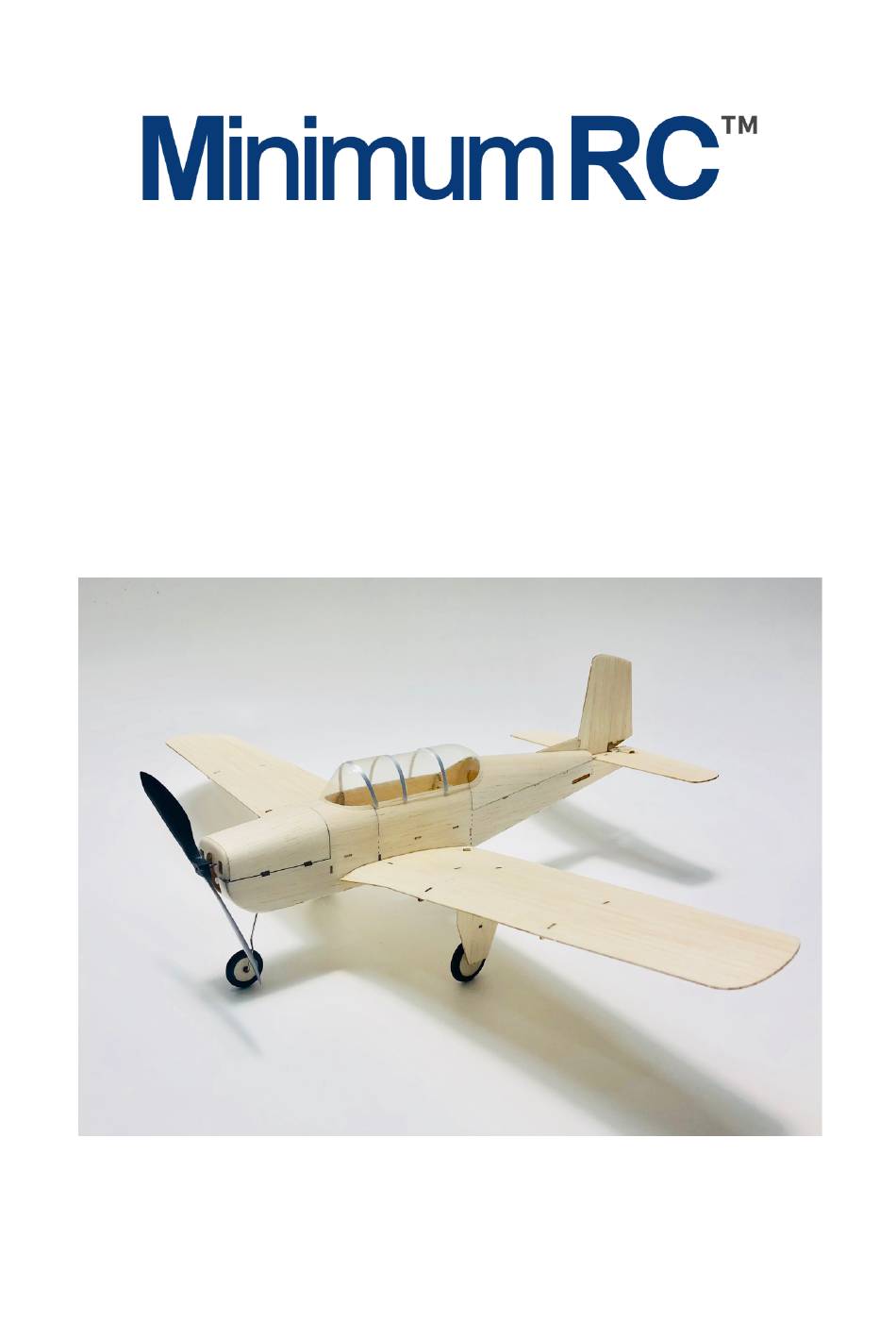

- Page 1 T-34 Mentor Assembly Instructions...
- Page 3 4. Front landing gear base.
- Page 5 8.Cut off the extra parts.
- Page 6 10. Use a ruler to push the crease along the dotted line. Attention: There are differences between the left and right panels of the fuselage, the rear end of the right panel has a grooving reserved slot.
- Page 12 22. When the balsa is too difficult to bend, wipe the outer surface with a wet cloth.
- Page 17 31. Install the hatch (not gluing it). 32.Sand the fuselage.
- Page 18 34. Make a hinge with tape.
- Page 20 37． 38. Make a hinge with tape.
- Page 21 39. The rudder control horn must be installed on the side of the corresponding fuselage slot.
- Page 25 47.Use heat shrinkable tube to hold the wheels.
- Page 26 50.Install the magnets.
- Page 28 Connect the pushrod clips & pushrods with heat shrinkable tube and fix them with glue.
- Page 29 Installation of the pushrods. Connect the pushrod clips & pushrods with heat shrinkable tube and fix them with glue.
- Page 30 Installation of the pushrods.
- Page 34 ·The amount of elevator, rudder and aileron is 5 mm for each side. Please adjust the rudder surface to the level before flight test. Explore the ultimate possibility of airplane kits MinimumRC.COM...
