RC SERIES ENGINEERING GUIDE

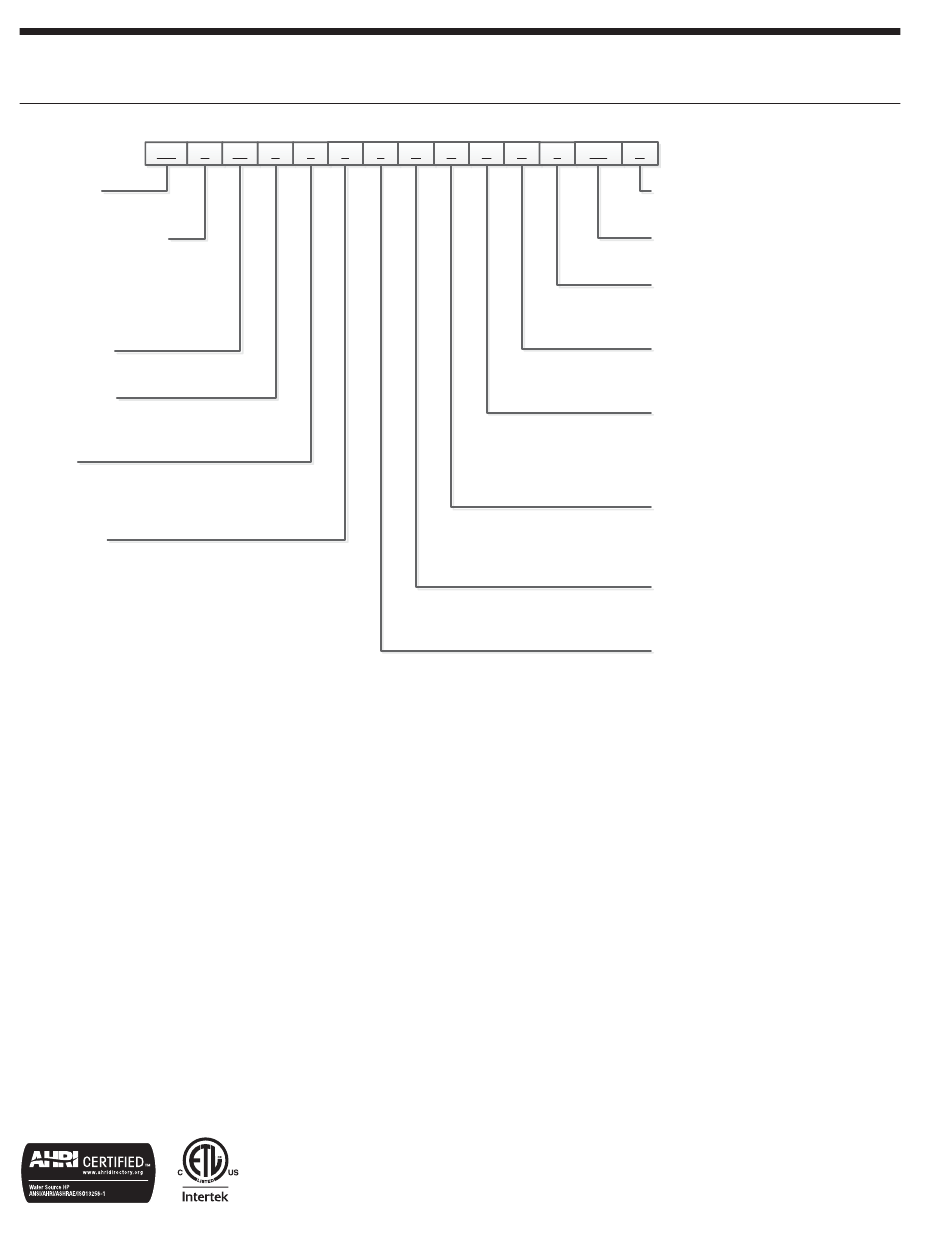

Model Nomenclature

1-2
RC
Model Type
RC – RC Series
Cabinet Configuration
C – Chassis Only
W – Chassis with Cabinet
S – Chassis with Slope Top
E – Chassis with Extended
Slope Top
Unit Capacity
09, 12, 15, 18
Piping Option
L – Left
R – Right
Voltage
0 – 208-230/60/1
2 – 265-277/60/1
9 – 115/60/1 (09 & 12 Only)
Unit Control
1 – CCM
2 – Versatec Microprocessor
4 – FX10 Std. without Communication
5 – FX10 with Open N2 Comm Card
6 – FX10 with Lonworks Comm Card
7 – FX10 with BacNet Comm Card
Note: Chassis only available with left piping option
FX10 option is only available with remote wall-mounted thermostat control.
3 4-5 6 7 8 9
S 09 L 0 1 1
All RC Series product is Safety listed under UL1995 thru ETL and performance listed with AHRI in
accordance with standard 13256-1.
10 11 12 13 14 15-16
C N N B 5
4
17
SS C
Vintage
C – ECM Blower & Aluminum Air Coil
Non-Standard Options
SS – Standard
Air Coil Option
TM
5 – AlumiSeal
, Extended Range
8 – No Coating, Standard Range
Sound Kit
A – None
B – Blanket
Auxiliary Electric Heat
N – None
B – 1.0kW (09-12)
C – 2.0kW (09-12)
D – 3.0kW (15-18)
Motorized Outdoor Air Damper
(Field Installed)
N – None
M – Motorized Damper
Coax Option
C – Copper
N – CuproNickel
Thermostat Control
1 – Unit Mounted Thermostat
2 – Remote Wall-Mount Thermostat
