Dexter Laundry DDAD T-30 2 Series Troubleshooting, Fault Codes, And Schematics

30 pound stacked commercial dryer
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

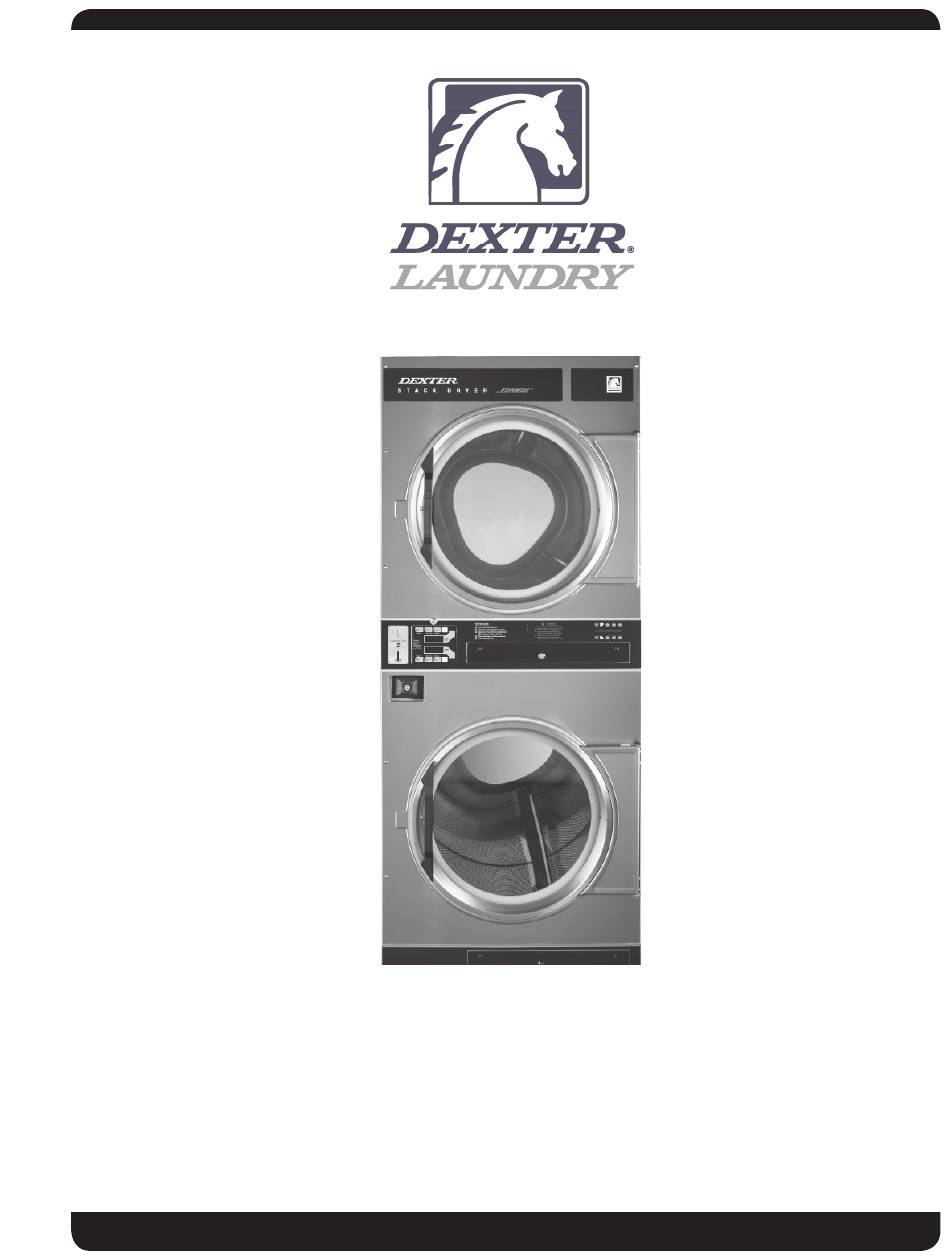

DDAD T-30X2 Models
30 Pound Stacked Commercial Dryer
Troubleshooting, Fault codes, And Schematics
8533-061-001 11/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDAD T-30 2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dexter Laundry DDAD T-30 2 Series

Summary of Contents for Dexter Laundry DDAD T-30 2 Series

  • Page 1 DDAD T-30X2 Models 30 Pound Stacked Commercial Dryer Troubleshooting, Fault codes, And Schematics 8533-061-001 11/13...

  • Page 2: Troubleshooting

    Trouble Shooting Electronic Control Diagnostic Lights The electronic control has 6 diagnostic lights to aid in service of the dryer. Each pocket has indicator lights for the motor circuit, door switch circuit, and the heat circuit. When the electronic control is carefully unlocked and moved forward these lights are visible on the circuit board.

  • Page 3: Trouble Shooting Fault Codes

    Trouble Shooting Fault Codes Shorted sensor or shorted sensor wire harness F2 Open sensor or sensor wire harness disconnected F3 Possible grounding problem. Try powering down and repowering and then push programming button to start dryer. Try resetting with Palm Pilot (extra utilities fi le). If no success. Try removing battery and reinstall battery.
  • Page 4 Symptom Probable Cause Suggested Remedy Tumbler turns but Glass fuse Check small glass control fuse in back of dryer. Replace no spark at burner if failed. Temperature Sensor The temperature sensor should have between 30,000 ohms and 60,000 ohms resistance at room temperature if okay.
  • Page 5 Symptom Probable Cause Suggested Remedy Tumbler turns, Gas supply Make sure gas supply is working. ignition sparks, no fl ame Gas pressure Make manometer check of gas pressure. Adjust if necessary. Spark Electrode Sensor Check for damage to electrode or mounting. Replace if necessary.
  • Page 6 Symptom Probable Cause Suggested Remedy Erratic display Initial Start-up If erratic on initial start-up, leave power on for approximately one hour and check machine operation again. Grounding Machine must be grounded by separate conductor back to neutral bar in breaker box. Program Check program and make corrections if necessary.
  • Page 7 Wiring Schematic for DDAD Dryer Part # 8533-061-001 11/13...
  • Page 8 Wiring Diagram for DDAD Dryer Part # 8533-061-001 11/13...
