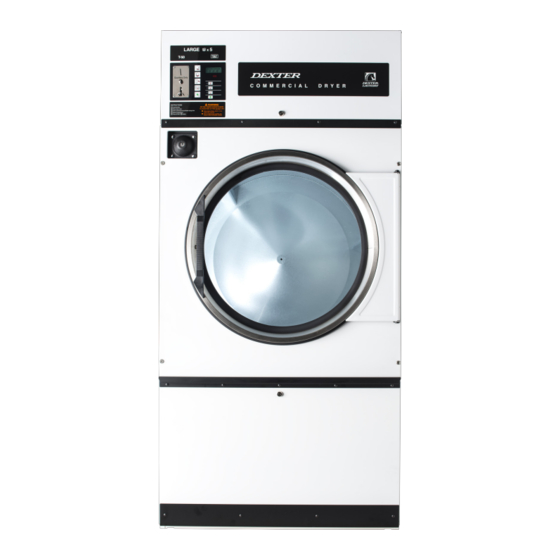

Dexter Laundry T 30 express Series Troubleshooting, Fault Codes, And Schematics
Commerical vended dryer
Hide thumbs
Also See for T 30 express Series:
- Operators manual installation & operation instructions (187 pages) ,
- Operator's manual (80 pages) ,
- Original instructions manual (31 pages)
Subscribe to Our Youtube Channel
Related Manuals for Dexter Laundry T 30 express Series
Summary of Contents for Dexter Laundry T 30 express Series

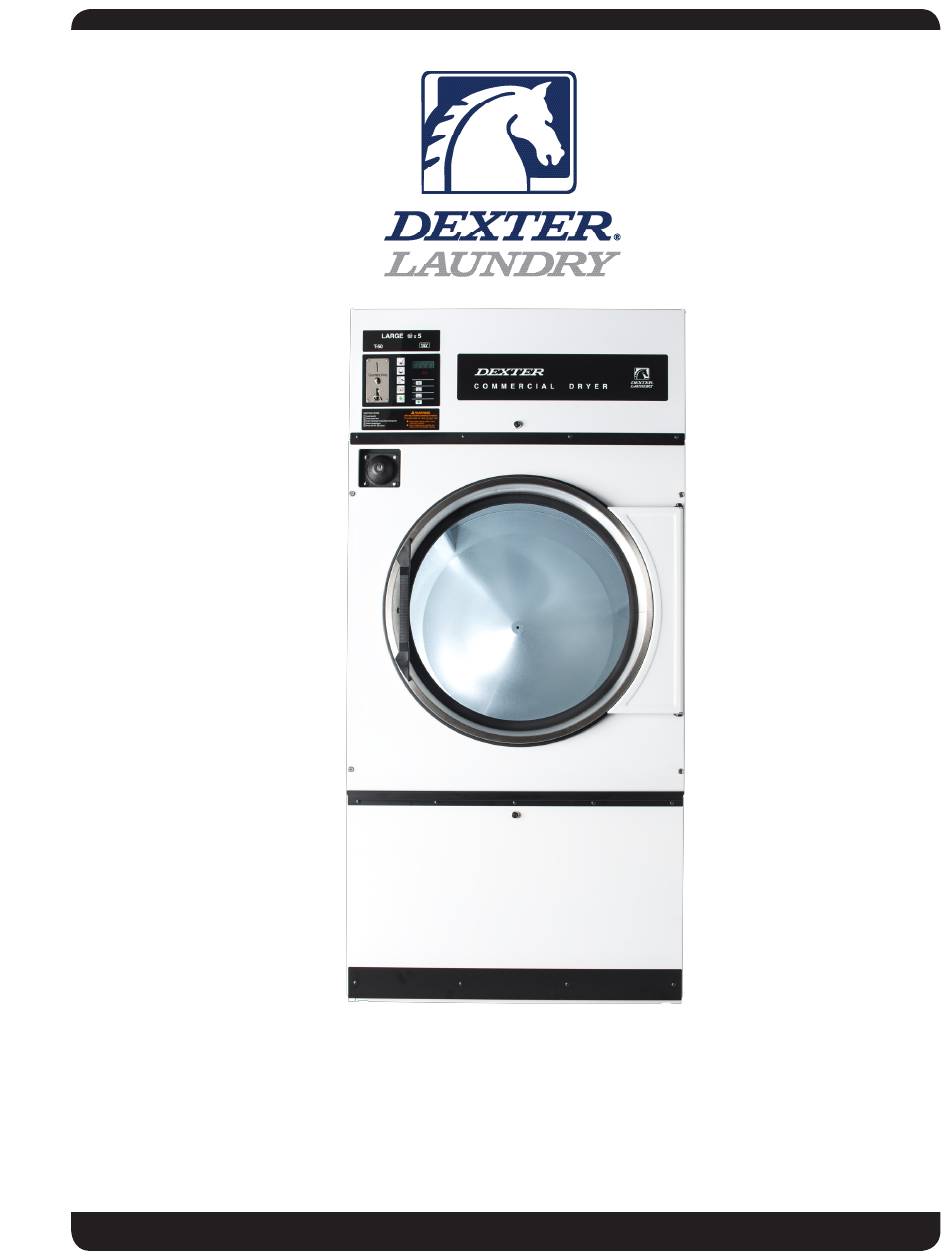

- Page 1 Dexter Commerical Vended Dryer Troubleshooting, Fault Codes, And Schematics Part # 8533-076-001 11/13 Starting serial number...
-
Page 2: Dryer Trouble Shooting
Dryer Trouble Shooting Symptom Probable Cause Suggested Remedy Tumbler does not turn Drive belts Check both drive belts. Replace if failed. Tumbler does not turn Check capacitor and motor. Replace if failed Door switch Check door switch contacts and adjustment. Adjust or replace door switch. - Page 3 Dryer Trouble Shooting Symptom Probable Cause Suggested Remedy Tumbler turns, ignition Gas supply Make sure gas supply is working. sparks, no flame Gas pressure Make manometer check of gas pressure. Adjust if necessary. Spark Electrode Sensor Check for damage to electrode or mounting. Replace if necessary.
- Page 4 Dryer Error Codes Symptom Probable Cause Suggested Remedy TEMP SENSOR Shorted Temperature The dryer control shall not start until SHORT Sensor or wire. the detected short circuit is removed. Regardless of condition of short circuit, Error Code will be displayed until programming button is pressed to return machine to idle mode.
- Page 5 Wiring Diagram for 60hz Dryer -10 Part # 8533-076-001 11/13...
- Page 6 Wiring Schematic for 60hz Dryer -10 Part # 8533-076-001 11/13...
- Page 7 Wiring Schematic for 50hz Dryer -39 Part # 8533-076-001 11/13...
- Page 8 Wiring Schematic for 50hz Dryer -39 Part # 8533-076-001 11/13...
