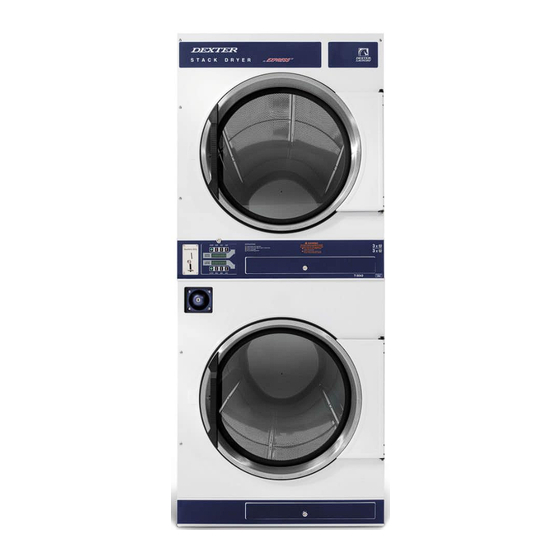

COMMERCIAL DRYERS
MODELS T-30X2 AND T-50X2 VENDED
X-SERIES CONTROL, NATURAL GAS/LP HEATED
The dryer must not be stored or installed where it will be exposed to water and/or weather.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death or property damage.
– Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
– Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
Post the following "For Your Safety" caution in a
prominent location:
FOR YOUR SAFETY
Do not store or use gasoline or other flammable
vapors or liquids in the vicinity of this or any other
appliance.
It is important that you read this Manual and retain it for
future reference. For service or replacement parts,
contact the distributor in your area or the manufacturer.
THIS MACHINE IS FOR DRYING ONLY FABRICS CLEANED IN WATER.
To avoid possibility of fire, including spontaneous combustion, do not dry oiled floor mops, items containing foam
rubber or similarly textured rubberlike materials or any material on which you have used a cleaning solvent or which
contains flammable liquids or solids (such as petrol, kerosene, waxes, etc.) Fabric softeners, or similar products,
should be used per the fabric softener instructions. Remove all objects from pockets such as lighters and matches.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less
than 3 years should be kept away unless continuously supervised.
8514-307-001 REV PR page 1
OPERATOR'S MANUAL
INSTALLATION & OPERATION INSTRUCTIONS
FOR YOUR SAFETY
Dexter Laundry, Inc.
2211 W. Grimes
Fairfield, Iowa 52556
AVERTISSEMENT. Assurez-vous de bien suivre
les instructions données dans cette notice pour
réduire au minimum le risque d'incendie ou
d'explosion ou pour éviter tout dommage matérial,
toute blessure ou la mort.
– Ne pas entreposer ni utiliser d'essence ni d'autres vapeurs
ou liquides inflammables à proximité de cet appareil ou de tout
autre appareil.
– QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareils.
• Ne touchez à aucun interrupteur. Ne pas vous server des
téléphones se trouvant dans le bâtiment.
• Évacuez la pièce, le bâtiment ou la zone.
• Appelez immédiatement votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incendies.
– L'installation et l'entretien doivent être assurés par un
installateur ou un service d'entretien qualifié ou par le
fournisseur de gaz.
POUR VOTRE SÉCURITÉ
Ne pas enteposer ni utiliser d'essence ni d'autres
vapeurs ou liquides inflammables à proximité
de cet appareil ou de tout autre appareil.
You, the purchaser, must post in a prominent location
instructions to be followed in the event the user smells
gas. Consult your local gas supplier for procedure to
be followed if the odor of gas is present.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dexter Laundry X Series

  • Page 1 Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised. Dexter Laundry, Inc. 2211 W. Grimes Fairfield, Iowa 52556...
  • Page 2: Table Of Contents

    Table of Contents WARNINGS ABOUT USE AND OPERATION ............3 SPECIFICATIONS ....................5 DIMENSIONS ..................... 9 T-30X2 DRYER DIMENSIONS - FRONT VIEW ..........9 T-30X2 DRYER DIMENSIONS - SIDE VIEW ........... 10 T-30X2 DRYER DIMENSIONS - REAR VIEW ..........11 T-50X2 DRYER DIMENSIONS- FRONT VIEW ..........
  • Page 3: Warnings About Use And Operation

    1 WARNINGS ABOUT USE AND OPERATION DO NOT MODIFY THIS APPLIANCE. KEEP SHIELDS, GUARDS, AND COVERS IN PLACE. These safety devices are provided to protect everyone from injury. WARNING: Do not stop dryer before end of cycle time unless all items are quickly removed and spread out to dissipate heat.
  • Page 4 IF IT IS UNAVOIDABLE THAT FABRICS THAT CONTAIN VEGETABLE OR COOKING OIL OR HAVE BEEN CONTAMINATED BY HAIR CARE PRODUCTS BE PLACED IN A TUMBLE DRYER THEY SHOULD FIRST BE WASHED IN HOT WATER WITH EXTRA DETERGENT - THIS WILL REDUCE, BUT NOT ELIMINATE, THE HAZARD. Means that care is required to avoid causing a fire by igniting flammable material.
  • Page 5: Specifications

    2 SPECIFICATIONS 30 lb. Commercial Stack Dryer: T-30X2 - DC30X2N_-15ET_X (60 Hz), DC30X2N_-39AT_X (50 Hz) Cabinet Height 76 1/4” 1937 mm. (Assumes minimum leveling leg adjustment) Cabinet Width 31 1/2” 800 mm. Cabinet Depth 49 1/2” 1257 mm. Floor to Bottom of Door- Bottom Dryer 7 5/8”...
  • Page 6 SPECIFICATIONS 30 lb. Commercial Stack Dryer: T-30X2 Reversing Tumbler DC30X2N_-11ET_R (60 Hz), DC30X2N_-39AT_R (50 Hz) Cabinet Height 76 1/4” 1937 mm. (Assumes minimum leveling leg adjustment) Cabinet Width 31 1/2” 800 mm. Cabinet Depth 49 1/2” 1257 mm. Floor to Bottom of Door- Bottom Dryer 7 5/8”...
  • Page 7 SPECIFICATIONS 50 lb. Commercial Stack Dryer: T-50X2 – DC50X2N_-15ET_X (60 Hz), DC50X2N_-49AT_X (50 Hz) Cabinet Height 79 1/4” 2012 mm. (Assumes minimum leveling leg adjustment) Cabinet Width 34 1/2” 876 mm. Cabinet Depth 54 3/4” 1391 mm. Floor to Bottom of Door- Bottom Dryer 7”...
  • Page 8 SPECIFICATIONS 50 lb. Commercial Stack Dryer: T-50x2 Reversing Tumbler DC50X2N_-11ET_R (60 Hz), DC50X2N_-49AT_R (50 Hz) Cabinet Height 79 1/4” 2012 mm. (Assumes minimum leveling leg adjustment) Cabinet Width 34 1/2” 876 mm. Cabinet Depth 54 3/4” 1391 mm. Floor to Bottom of Door- Bottom Dryer 7”...
  • Page 9: Dimensions

    3 DIMENSIONS 3.1 T-30X2 DRYER DIMENSIONS - FRONT VIEW 8514-307-001 REV PR page 9...
  • Page 10: T-30X2 Dryer Dimensions - Side View

    3.2 T-30X2 DRYER DIMENSIONS - SIDE VIEW 8514-307-001 REV PR page 10...
  • Page 11: T-30X2 Dryer Dimensions - Rear View

    3.3 T-30X2 DRYER DIMENSIONS - REAR VIEW 8514-307-001 REV PR page 11...
  • Page 12: T-50X2 Dryer Dimensions- Front View

    3.4 T-50X2 DRYER DIMENSIONS- FRONT VIEW 8514-307-001 REV PR page 12...
  • Page 13: T-50X2 Dryer Dimensions - Side View

    3.5 T-50X2 DRYER DIMENSIONS - SIDE VIEW 8514-307-001 REV PR page 13...
  • Page 14: T-50X2 Dryer Dimensions - Rear View

    3.6 T-50X2 DRYER DIMENSIONS - REAR VIEW 8514-307-001 REV PR page 14...
  • Page 15: Installation Instructions

    4 INSTALLATION INSTRUCTIONS 4.1 UNCRATING AND PLACING DRYER Tools Required: 3/4" (19 mm) hex socket & ratchet driver, wood block 4" (100 mm) or 5" (125 mm) thick, a knife and a groove joint pliers, which will open to 1 3/8" (35 mm). 1.
  • Page 16: Make-Up Air

    4.2.3 MAKE-UP AIR: Adequate make-up air must be supplied to replace air exhausted by dryers on all types of installations. Refer to specifications for the minimum amount of make-up air opening to outside for each dryer. This is a net requirement of effective area.
  • Page 17: Gas Requirements

    suppressors for your new equipment. These devices may be placed at the power supply panel for the complete installation and don’t require an individual device for each machine. These surge protectors help to protect equipment from large spikes and also from small ongoing spikes in the power that occur on a day to day basis.
  • Page 18: Exhaust Installation

    CAUTION: The dryer must be disconnected from the gas supply piping system during any pressure testing of that system. Do not expose the dryer’s gas control valve to testing pressure. 4.2.6 EXHAUST INSTALLATION: Exhausting of the dryer(s) should be planned and constructed so that no air restrictions occur. Any restriction due to pipe size or type of installation can cause slow drying time, excessive heat, and lint in the room.
  • Page 19: Dryer Ignition (Solid State Ignition)

    4.2.7 DRYER IGNITION (SOLID STATE IGNITION): The solid-state ignition system lights the main burner gas by spark. The gas is ignited and burns only when the gas- relay (in the electronic controller) calls for heat. The procedure for first-time starting of a dryer is as follows. i.First review and comply with the "Warnings About Use and Operation"...
  • Page 20: Description Of Dryer Control

    6 DESCRIPTION OF DRYER CONTROL Both dryers are operated by the controller at the left midpoint of the dryer. The controller is a display UI with separate sections for the upper and lower pockets. When vend has been applied, the control will prompt the user to press the “PRESS HERE TO START OR CHANGE OPTIONS”...
  • Page 21: Programming The Dryer Control

    -Cool-down time (owner programmable) is always part of the cycle time to prevent damage from heat and is purchased by the customer. For example, if the cool-down time is 2 minutes, then the last 2 minutes of the cycle will have no heat. 8 PROGRAMMING THE DRYER CONTROL The dryer control can be programmed to prompt the user for alternate vend prices, change dryer cycle times, temperatures, and many other options.
  • Page 22: System Info

    The table below shows the top-level menu. Choosing an option from the top-level menu will then display the next level of options (the sub menu). System Info. General Profiles Usage Error Logs Factory Reset SYSTEM INFO.: The System Info. Menu displays important technical information for the control. No changes can be made on this screen.
  • Page 23 b. The individual digits of the Passcode can be set by typing with the virtual number pad. Once all four correct digits are entered, the screen will advance to the Manual Programming menu. 5. “End of Cycle Sounds” – If the user programs the End of Cycle Sounds to “Off”, the control will not sound the enunciator at the end of a drying cycle.
  • Page 24 a. “Base Vend”: The Base Price field is the price of the cycle without factoring in any additional pricing included in the cycle for both pockets. Upper and Lower dryer pockets can be priced separately. The factory default is 0.25. b.
  • Page 25 4. “Options”: This option allows the user to set temperature and more cycle settings for the drying cycle. a. “Default Temperature”: The Default Temperature field allows the user to choose which general temperature setting (“LOW”, “MEDIUM”, or “LOW”) or “NO_HEAT” the control will default to at the beginning of each cycle if the customer does not make a choice.
  • Page 26 e. “Right Input”: The right input amount shows the accumulation of coin pulses that were sent to the control over the right coin input. Note that this is a count of coin pulses, not an accumulated report of vend value. “Display Message”: If the user programs the Display Message to “On”, the display will show a screen that indicates the coin box has been removed.
  • Page 27: Error Logs

    Stack: Lower Cycle Hours 0000 through 9999 Set Lower Cycle Hours ERROR LOGS: The last three hundred occurring error codes will be stored in the control with a time and date stamp. The purpose of this option is only to observe the history of these code occurrences (no changes can be made). Factory resets on the control do not clear the error code logs.
  • Page 28 POWER LOSS Condition This error occurs when the Main Control Board detects a total loss of 24VAC power (usually accompanied by loss of power to the complete machine). Action When detected, the control turns off the motor and all other outputs. There is no delay in the action once the criteria are met.
  • Page 29 Condition This error occurs when the control detects incorrect drive address combinations from the Upper and Lower pockets drives. This error only applies for stack dryers. Action When the controls doesn’t detect the correct drive address combinations, the control turns off the motor and all other outputs. There is no delay in the action once the criteria are met.
  • Page 30 Action When detected, the control turns off the motor and all other outputs. There is no delay in the action once the criteria are met. The machine control checks for this condition when power is cycled. Exit The machine will not start, and the Error Code will continue to be displayed until the condition is no longer present.
  • Page 31: Drive Overload

    Action When detected, the control turns off the motor and all other outputs. There is no delay in the action once the criteria are met. Exit The machine will not start, and the Error Code will continue to be displayed until the condition is no longer present.
  • Page 32: Servicing And Troubleshooting

    Exit The machine will not start, and the Error Code will continue to be displayed until the condition is no longer present. Once the condition is removed, the machine still will not start, and the Error Code will continue to be displayed until power is cycled to the machine, or the control is Reset to return it to Idle Mode.
  • Page 33 assistance. Symptom Probable Cause Suggested Remedy Tumbler Does not turn Control Check that Control Display shows time available for drying. If not, deposit money as needed. Loading Door Check that Loading Door is completely closed. Lint Compartment Door Check that Lint Compartment Door is completely closed.
  • Page 34: Preventive Maintenance Instructions

    For service and parts information, contact your local Dexter agent. To find your local Dexter agent, use the Distributor Locator at the website shown below. If a Dexter agent is not available, contact Dexter Laundry, Inc. directly as listed below:...
  • Page 35: Instructions - Convert A Dual Voltage Stack Dryer

    12 Instructions - Convert a Dual Voltage Stack Dryer From 120V to 208-240V (No Neutral Required, Only for -15 Models) 1. Remove incoming power from the dryer. Use a known working voltmeter to check power. 2. Remove the cover of the control box assembly from the dryer using a 5/16” wrench. 3.
  • Page 36 8. Move the black/brown wire from the 120V tap on the transformer found in the bottom of control box to the required voltage tap based on actual supply voltage measurement. See figure below. CONTROL TRANSFORMER CONNECTIONS AS VIEWED FROM SIDE OF TRANSFORMER BLACK/BROWN WIRE CHOOSE THIS TERMINAL FOR 220V TO 250V BLACK/BROWN WIRE...
