AT91SAM7A2-EK Evaluation Board User Guide
Setting Up the AT91SAM7A2-EK
In order to set up the AT91SAM7A2-EK Evaluation Board, the following elements are
required:
! the AT91SAM7A2-EK Evaluation Board itself
! a DC power supply capable of supplying 7V to 12V @ 400 mA (not supplied)
The AT91SAM7A2-EK Evaluation Board is shipped in protective anti-static packaging.
The board must not be subjected to high electrostatic potentials. A grounding strap or
similar protective device should be worn when handling the board. Avoid touching the
component pins or any other metallic element.

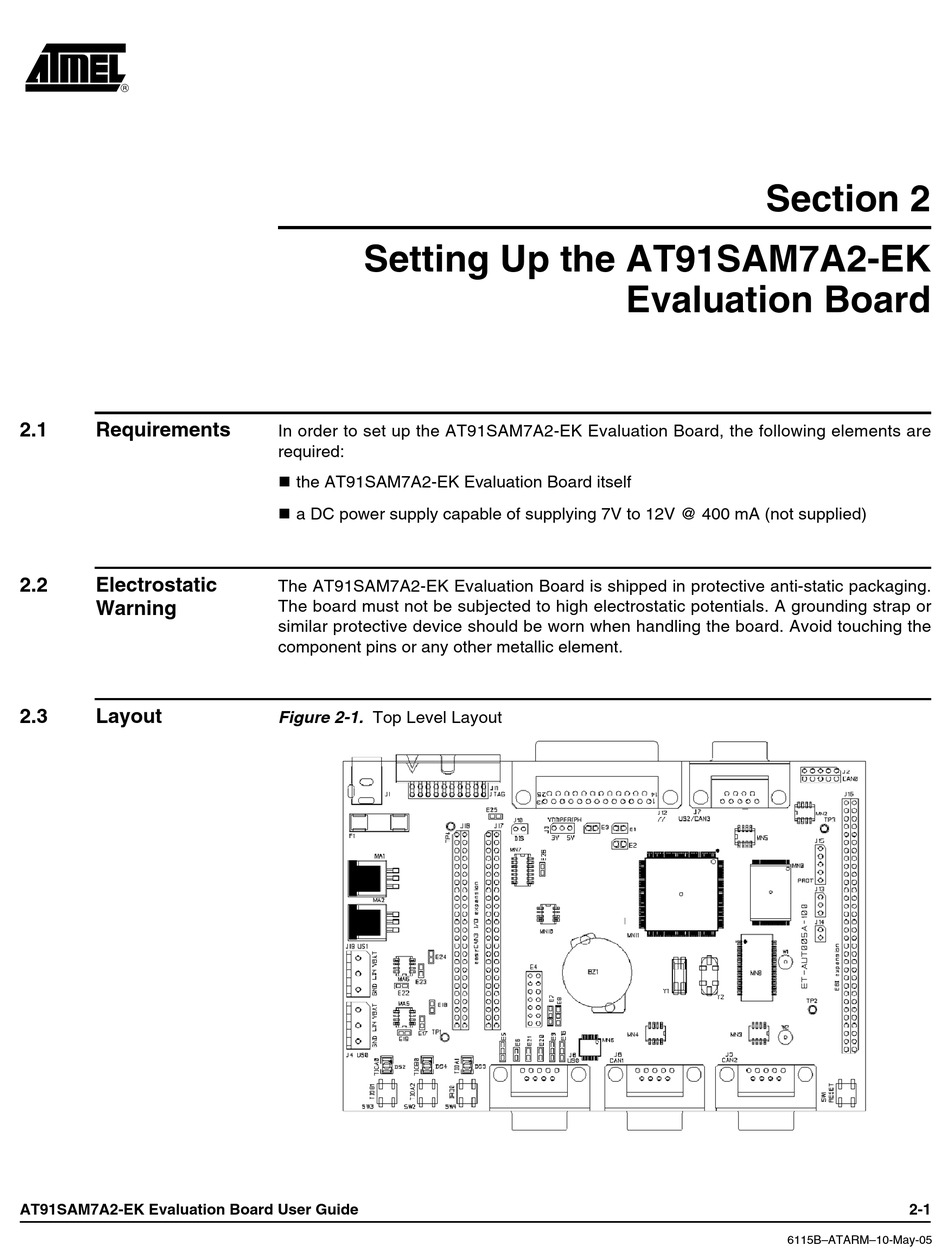

Figure 2-1. Top Level Layout
Section 2
Evaluation Board
6115B–ATARM–10-May-05
2-1
