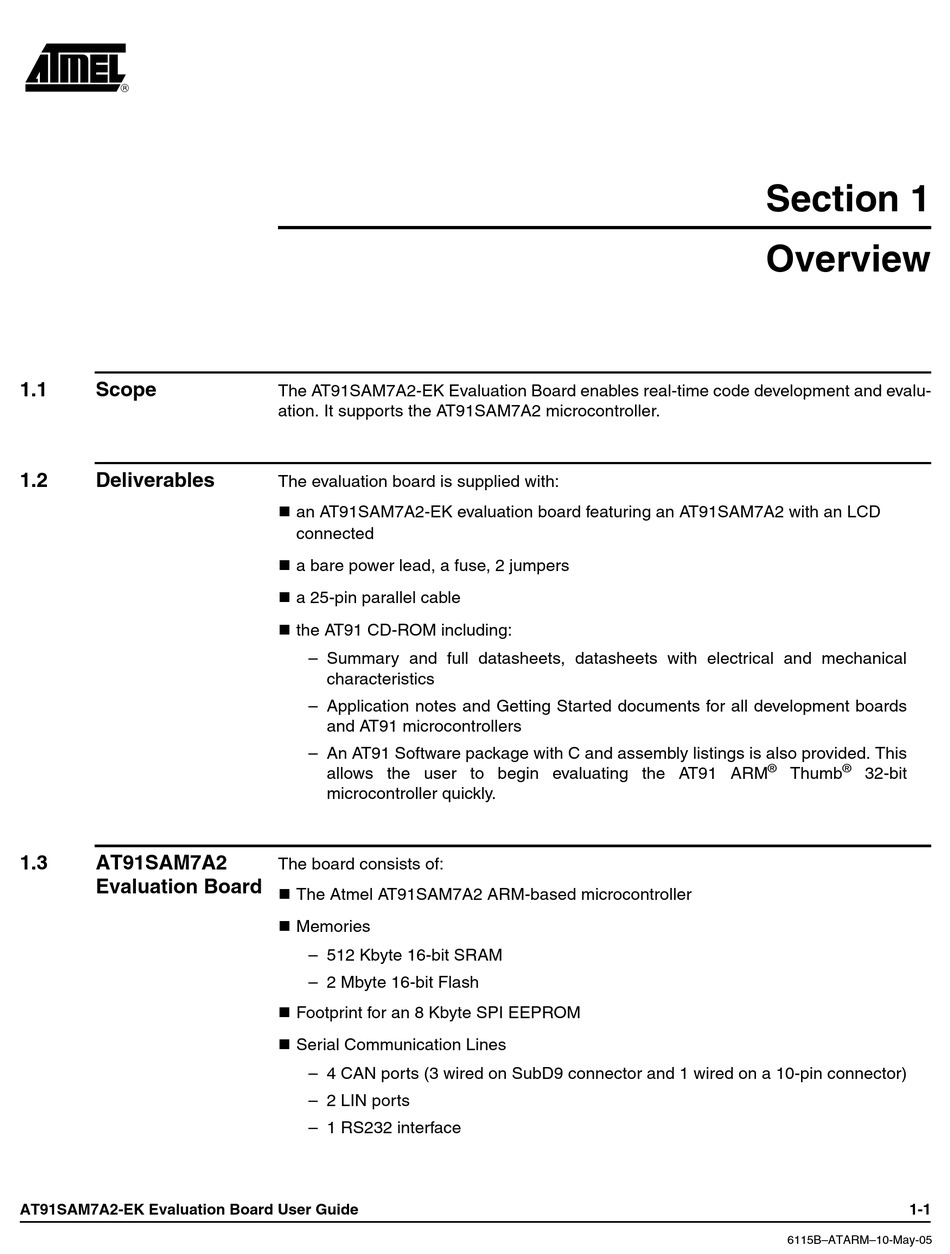

AT91SAM7A2-EK Evaluation Board User Guide
The AT91SAM7A2-EK Evaluation Board enables real-time code development and evalu-
ation. It supports the AT91SAM7A2 microcontroller.
The evaluation board is supplied with:
! an AT91SAM7A2-EK evaluation board featuring an AT91SAM7A2 with an LCD
connected
! a bare power lead, a fuse, 2 jumpers
! a 25-pin parallel cable
! the AT91 CD-ROM including:
– Summary and full datasheets, datasheets with electrical and mechanical
characteristics
– Application notes and Getting Started documents for all development boards
and AT91 microcontrollers
– An AT91 Software package with C and assembly listings is also provided. This
allows the user to begin evaluating the AT91 ARM
microcontroller quickly.
The board consists of:
! The Atmel AT91SAM7A2 ARM-based microcontroller
! Memories
– 512 Kbyte 16-bit SRAM
– 2 Mbyte 16-bit Flash
! Footprint for an 8 Kbyte SPI EEPROM
! Serial Communication Lines
– 4 CAN ports (3 wired on SubD9 connector and 1 wired on a 10-pin connector)
– 2 LIN ports
– 1 RS232 interface
