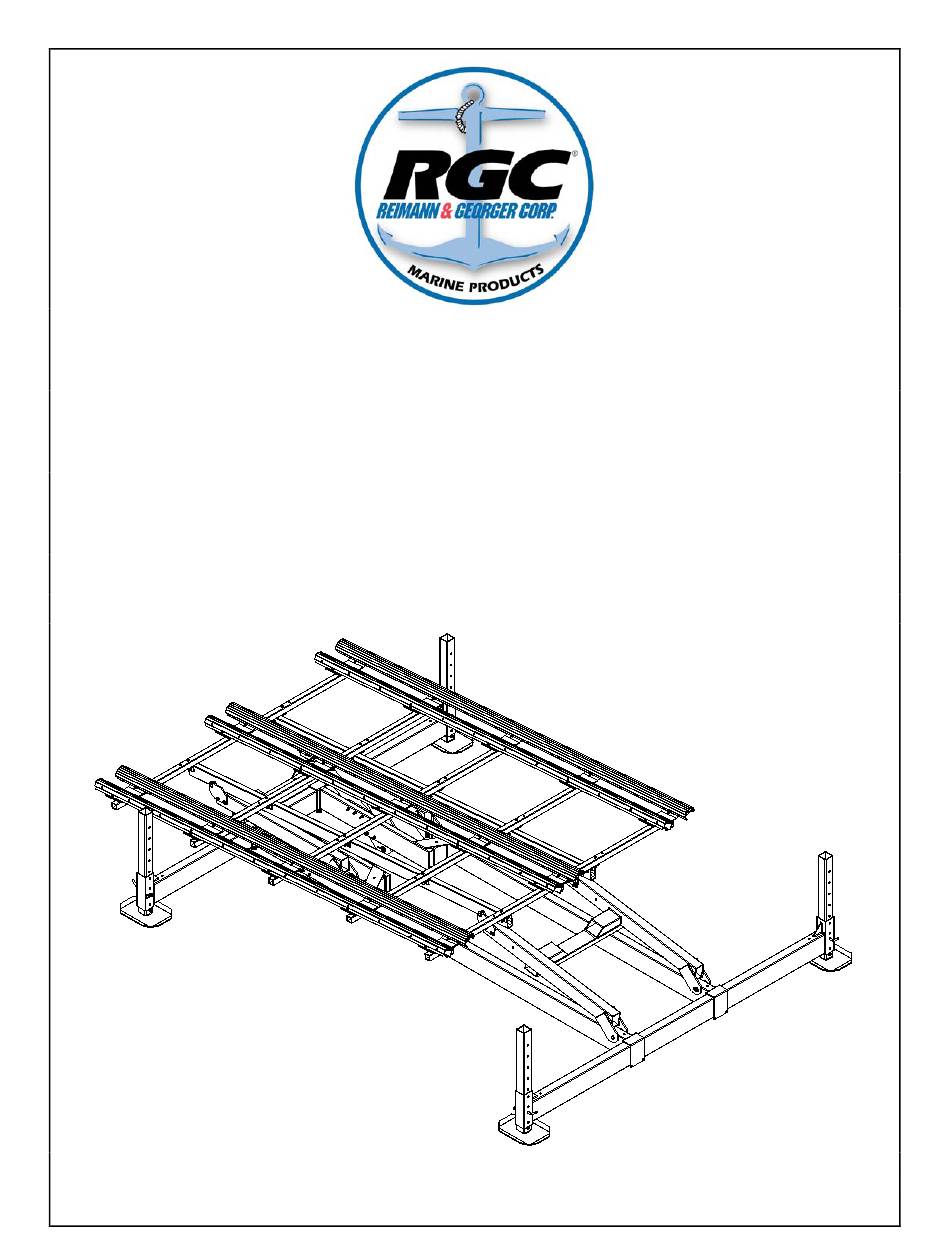

- Page 1 HL5-7K AL/VINYL BUNK TRITOON LIFT INSTRUCTIONS (Applies to P/N 4107057) REIMANN & GEORGER CORPORATION MARINE PRODUCTS BUFFALO, NY P/N 6114133 04/11/18...
-
Page 2: Table Of Contents
HL5-7K (48” Lift) Drilling Liftarms (Views A & B) ..............4 2-1B HL5-7K (60” Lift) Drilling Extension Tubes ................. 5 2-2B HL5-7K (60” Lift) Drilling Extension Tube (Views A & B) ............5 2-3A HL5-7K (48” Lift) Mount Liftarm Pivot Plates ................6 2-3B HL5-7K (60”... -
Page 3: Safety
MANUAL AND YOUR HYDRAULIC LIFT MANUAL. FAILURE TO DO THIS CAN LEAD TO EQUIPMENT MISUSE WITH RESULTING DAMAGE AND/OR SERIOUS PERSONAL INJURY. CONTACT YOUR RGC MARINE DEALER IF YOU HAVE ANY QUESTIONS. Do not install this kit without first replacing any damaged or defective parts. - Page 4 Before allowing anyone to operate the lift, be sure they fully understand the proper operating procedure. Do not operate the lift under the influence of drugs, alcohol, or medication. 10. Keep people and pets clear during operation of the lift. 11.
-
Page 5: Installation And Setup
2-1A & 2-2A. Drill 17/32” holes through front & rear liftarms. HL5-7K 60” lift only: Refer to Figure 2-1B & 2-2B. Layout the holes shown in figures 2-1B & 2-2B for HL5-7K-60” lift. Drill 17/32” holes in front and rear extension tubes on the 60” lifts. -
Page 6: Hl5-7K (48" Lift) Drilling Liftarms
Figure 2-1A. HL-5-7K (48” Lift) Drilling liftarms. Figure 2-2A. HL-5-7K (48” Lift) Drilling liftarms. -
Page 7: 2-1B Hl5-7K (60" Lift) Drilling Extension Tubes
Figure 2-1B. HL-5-7K (60” Lift) Drilling Liftarm Extension Tubes. Figure 2-2B. HL-5-7K (60” Lift) Drilling Liftarm Extension Tubes. -
Page 8: 2-3A Hl5-7K (48" Lift) Mount Liftarm Pivot Plates
Figure 2-3A. HL-5-7K (48” Lift only) Mount Liftarm Pivot Plates. Figure 2-3B. HL-5-7K (60” Lift only) Mount Liftarm Pivot Plates. -
Page 9: Hl5-7K Tritoon Main Support Tube
2.4 HL5-7K TRITOON SUPPORT TUBE MOUNTING Figure 2-4A. HL5-7K (48” LIFT only) Main Support Tube Mounting Figure 2-4B. HL5-7K (60” LIFT only) Main Support Tube Mounting... -
Page 10: Hl5-7K Tritoon Cross Support
2.5 HL5-7K TRITOON CROSS TUBE SUPPORTS Figure 2-5A. HL5-7K (48” Lift) Tritoon Cross Support Tubes Figure 2-5B. HL5-7K (60” Lift) Tritoon Cross Support Tubes... -
Page 11: Hl5-7K Tritoon Bunk Supports
2.6 HL5-7K (48” & 60” Lift) TRITOON ALUMINUM VINYL BUNK SUPPORT CRADLES Figure 2-6. HL5-7K (48”& 60” Lift) Tritoon Bunk Support Cradles... -
Page 12: Hl5-7K Tritoon Aluminum/Vinyl Bunks Mounting
2.7 HL5-7K (48” & 60” Lift) TRITOON ALUMINUM VINYL BUNKS Figure 2-7. HL5-7K (48”& 60” Lift) Tritoon Aluminum Vinyl Bunks... -
Page 13: Parts Lists
HL4-7K AL/VIN P&T TOON BUNK ASSY 4113710 HL PONTOON CROSS SUPT TUBE 100” 4113518 HL6K PONTOON MAIN SUPT TUBE WLDMNT 4107272 HL5-7K AL/VIN TRIT BUNK 48” COP consists of: 3606921 2-HOLE PLATE 3” 4113722 HL PONT MTG PLT 6 X 14 4107937 HL A/V BUNK WASHER 1-3/4 OD X 1/8”... - Page 14 HL4-7K AL/VIN P&T TOON BUNK ASSY 4113710 HL PONTOON CROSS SUPT TUBE 100” 4113518 HL6K PONTOON MAIN SUPT TUBE WLDMNT 4107??? HL5-7K AL/VIN TRIT BUNK 60” COP consists of: 3606921 2-HOLE PLATE 3” 4113722 HL PONT MTG PLT 6 X 14 4107937 HL A/V BUNK WASHER 1-3/4 OD X 1/8”...
- Page 15 Reimann & Georger Corporation Marine Products This product is warranted by RGC Marine Products to the original purchaser to be free from defects in material and workmanship under normal use for a period of two years from the date of purchase.
