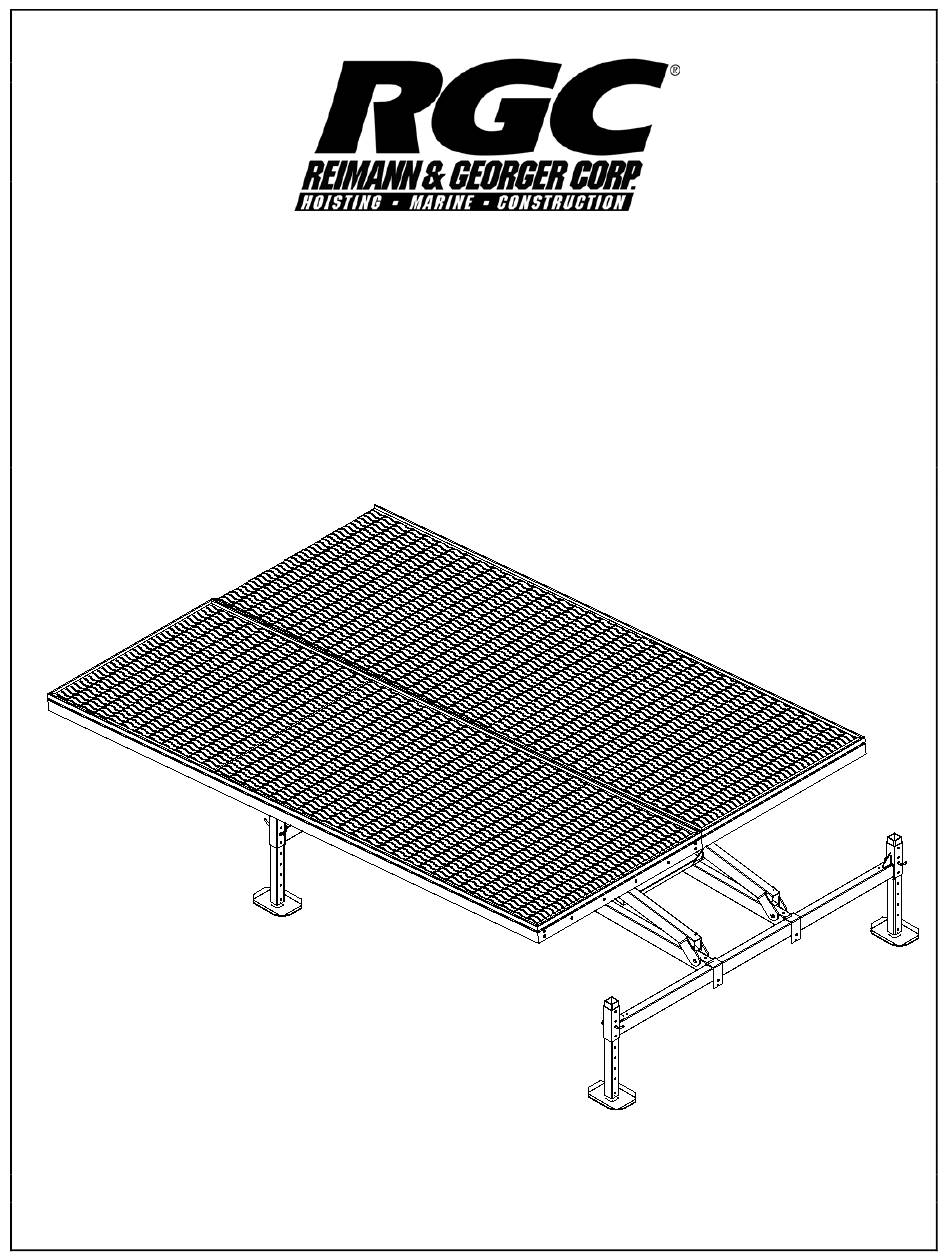

- Page 1 HL5-7K PLATFORM LIFT INSTRUCTIONS REIMANN & GEORGER CORPORATION MARINE PRODUCTS BUFFALO, NY P/N 6114205 10/16/14...
-
Page 2: Table Of Contents
HL5-7K (48” Lift) Drilling Liftarms (Views A & B) ..............4 2-1B HL5-7K (60” Lift) Drilling Extension Tubes ................. 5 2-2B HL5-7K (60” Lift) Drilling Extension Tube (Views A & B) ............5 2-3A HL5-7K (48” Lift) Mount Liftarm Pivot Plates ................6 2-3B HL5-7K (60”... -
Page 3: Safety
MANUAL AND YOUR HYDRAULIC LIFT MANUAL. FAILURE TO DO THIS CAN LEAD TO EQUIPMENT MISUSE WITH RESULTING DAMAGE AND/OR SERIOUS PERSONAL INJURY. CONTACT YOUR RGC MARINE DEALER IF YOU HAVE ANY QUESTIONS. Do not install this kit without first replacing any damaged or defective parts. - Page 4 Do not operate the lift under the influence of drugs, alcohol, or medication. Keep people and pets clear during operation of the lift. 10. Keep fingers and clothing clear of all moving parts. 11. Never allow people in the boat any time it is suspended above the water on the platform. WARNING: DO NOT STAND OR WALK ON THE PLATFORM WHILE IT IS IN ANY RAISED POSITION.
-
Page 5: Installation And Setup
2-1A & 2-2A. Drill 17/32” holes through front & rear liftarms. HL5-7K 60” lift only: Refer to Figure 2-1B & 2-2B. Layout the holes shown in figures 2-1B & 2-2B for HL5-7K-60” lift. Drill 17/32” holes in front and rear extension tubes on the 60” lifts. -
Page 6: Hl5-7K (48" Lift) Drilling Liftarms
Figure 2-2A. HL-5-7K (48” Lift) Drilling liftarms. Figure 2-1B. HL-5-7K (60” Lift) Drilling Liftarm Extension Tubes. -
Page 7: 2-1B Hl5-7K (60" Lift) Drilling Extension Tubes
Figure 2-2B. HL-5-7K (60” Lift) Drilling Liftarm Extension Tubes. -
Page 8: Hl5-7K (48" Lift) Mount Liftarm Pivot Plates
Figure 2-3A. HL-5-7K (48” Lift) Mount Liftarm Pivot Plates. Figure 2-3B. HL-5-7K (60” Lift) Mount Liftarm Pivot Plates. -
Page 9: Hl5-7K Platform Main Support Tube
2.4 HL5-7K PONTOON SUPPORT TUBE MOUNTING Figure 2-4A. HL5-7K (48” LIFT) Main Support Tube Mounting... -
Page 10: Hl5-7K Platform Assembly
Figure 2-4B. HL5-7K (60” LIFT) Main Support Tube Mounting... -
Page 11: Hl5-7K (48" Lift) Platform Assembly
2.5 HL5-7K PLATFORM ASSEMBLY Figure 2-5. HL5-7K WITH 12’ X 18’ Platform Assembly... - Page 12 5896406 WASHER FLAT SAE 3/8” SS 5897018 NUT HEX NYLOCK ½-13 SS/WAX 5896417 WASHER FLAT SAE ¾” SS (4) supplied with lift. 4113--- HL5-7K-60” PLATFORM LIFT 12’ W x 18’ L Reference Part Number Quantity Description 4113--- HL4K PLATFORM 6’ X 18’...
-
Page 13: Parts Lists
4113--- HL5-7K-48 PLATFORM LIFT X’ W x X’ L Reference Part Number Quantity Description 4113400 HL PLATFORM X’ x X’ 4113704 HL PLATFORM MAIN SUPT TUBE X” 4107937 HL A/V BUNK WASHER 1-3/4 OD X 1/8” 5894108 PIN,COTTER 5/32 X 1-3/4 SS (4) supplied with HL lift. - Page 14 Reimann & Georger Corporation Marine Products This product is warranted by RGC Marine Products to the original purchaser to be free from defects in material and workmanship under normal use for a period of two years from the date of purchase.
