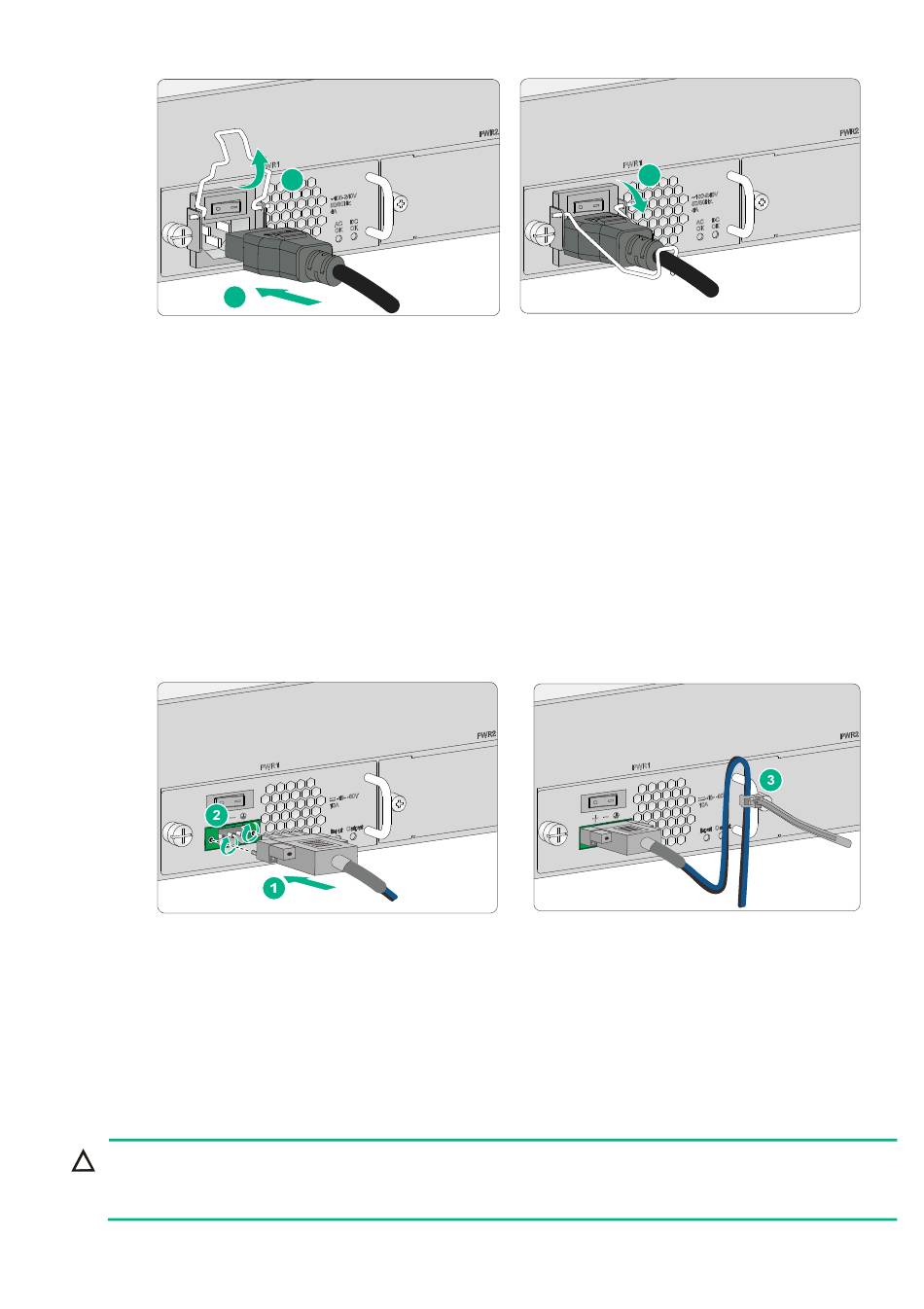

Figure 5 Connecting the AC power cord to the power supply
2.
Connect the other end of the AC power cord into an AC power source, and turn on the circuit
breaker for the power cord.
3.
Turn on the power switch. If the AC OK LED is on, the power cord is connected correctly. If the
AC OK LED is off, the connection might be wrong. Verify the installation and resolve the issue.
Connecting the DC power cord
1.
As shown in
the power supply. Then fasten the screws on the connector.
The connector of the DC power cord and the DC-input receptacle are designed to prevent
disorientation. If you cannot insert the connector smoothly into the receptacle, the orientation
might be wrong. Remove the connector, reorient it, and connect it again.
2.
Use a releasable cable tie to secure the power cord to the handle of the power supply.
Figure 6 Connecting the DC power cord
3.
Connect the other end of the DC power cord to a DC power source.
4.
Turn on the power switch on the power supply. If the Input LED is on, the power cord is
connected correctly. If the Input LED is off, the connection might be wrong. Verify the
installation and resolve the issue.
Removing the power supply
CAUTION:
To avoid bodily injury and device damage, strictly follow the procedure in
power supply.
1
2
Figure
6, insert the connector of the DC power cord into the DC-input receptacle on
5
3
Figure 7
to remove the
