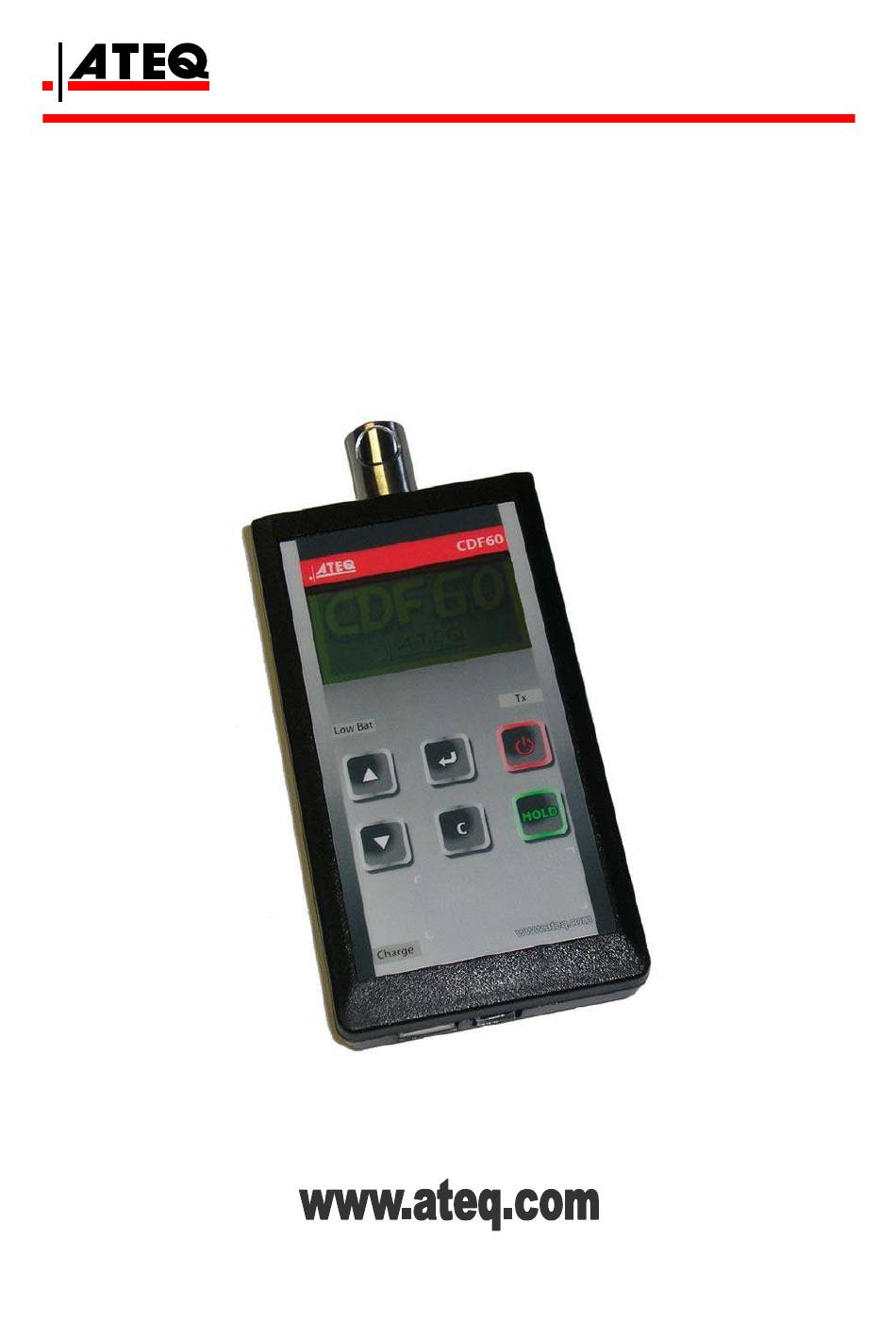

- Page 1 USER MANUAL ATEQ CDF60 Version 1.0 Reference: UM-23900B-U...
- Page 3 REVISION OF THE CDF60 USER MANUAL Edition/ Date Reference Chapters updated Revision (week/year) First edition UM-23900A-U 35/2007 -----...
- Page 5 • do not open the instrument when it is powered up, • avoid water spillage near of the instrument, • ATEQ is at your disposal for any further information concerning the use of the instrument under maximum safety conditions. We would like to bring to your attention that ATEQ will not be held responsible for any accident connected to the improper use of the instrument, to the work bench or to the lack of compliance with safety rules.
- Page 7 ATEQ is attached to the COFRAC and delivers a certificate following a calibration. TRAINING COURSES In the framework of partnership with our customers, ATEQ offers two types of training in order to optimise the usage and knowledge of our instruments. They are aimed at different levels of technician: •...
- Page 9 PREFACE Dear Customer, You have just purchased an ATEQ instrument, we thank you for the trust you have placed on our brand. This instrument has been designed to ensure a long and unparalleled life expectancy, and we are convinced that it will give you complete satisfaction during many long years of operation.
-
Page 11: Table Of Contents
2.1. Flow measurement ranges......................4 2.2. Atmospheric pressure and temperature indicators ..............4 Chapter 1 INTRUMENT INSTALLATION 1. PRESENTATION OF THE ATEQ CDF60 ...................5 2. ATEQ CDF60 INSTALLATION......................6 2.1. Supply connector 24 V DC......................6 2.2. USB connector ..........................6 2.3. RS232 connector .........................6 2.4. - Page 12 1. ERROR MESSAGES .........................29 Chapter 7 PC INSTALLATION 1. PROGRAM AND DRIVERS INSTALLATION ...................27 1.1. USB connection..........................27 1.2. RS232 connection........................31 1.3. RS232 cable diagram.........................31 Appendix ATEQ CDF60 1. TECHNICALS CHARACTERISTICS....................37 2. PERSONNAL NOTES ........................38 Index UM-23900B-U User manual ATEQ CDF60 Page 2/40...
-
Page 13: Preamble
The ATEQ Leak/flow calibrator is a flow meter destined for checking leak instruments and in particular those of ATEQ. It measures a loss of charge using a pressure sensor placed on a calibrated flow tube. It can also be used for checking a leak flow or a calibrated jet. -
Page 14: Measurements Characteristics
It is however advised to make an auto-zero before a measurement. Recommendation of use: according to some use's conditions, the instrument can put to two hours of time of heating before complete stabilization. UM-23900B-U User manual ATEQ CDF60 Page 4/40... -

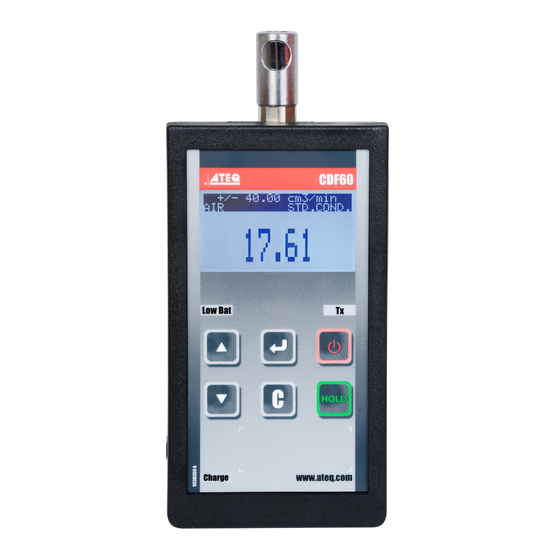

Page 15: Chapter 1 Intrument Installation
USB and RS232 connectors The ATEQ CDF60 is according a portable case. The instrument has a pneumatic quick connector (Staublï kind) for the connection to the flow to be measured. The instrument has three electrics connectors: 1 connector for the battery charge, the instrument run with lithium-ion batteries under 12 V DC voltage and it supplies with a specific supply transformer to charge the batteries. -
Page 16: Ateq Cdf60 Installation
Allows the connection to a printer with a RS232 connection. RJ45 type connector. For further information see chapter 7, paragraph 1.2 "RS232 connection". 2.4. P NEUMATIC CONNECTOR FIRST INPUT Allows the connection to the flow to be measured (quick connector "Staublï" RBE03 female type). UM-23900B-U User manual ATEQ CDF60 Page 6/40... -
Page 17: Chapter 2 User Interfaces
(more than 3 seconds). 1.2. "C " ANCEL FUNCTION Cancel he edition or the modification of the parameters. Return to the previous menu. 1.3. “HOLD” FUNCTION To freeze or unfreeze the measurement display. UM-23900B-U User manual ATEQ CDF60 Page 7/40... -
Page 18: Enter" Key
Scroll up or increase numeric values. Swing from the single "Flow" or extended "Flow /temperature / Atmospheric pressure" displays. Scroll down or decrease numeric values. Swing from the single "Flow" or extended "Flow /temperature / Atmospheric pressure" displays. UM-23900B-U User manual ATEQ CDF60 Page 8/40... -
Page 19: Others Items
LOW BAT recharged before further use. Charge light: this light is glowing red while the battery is being CHARGE charged. When charging is finished, the light turns off. Not used. UM-23900B-U User manual ATEQ CDF60 Page 9/40... - Page 20 Chapter 2 – User Interfaces UM-23900B-U User manual ATEQ CDF60 Page 10/40...
-
Page 21: Chapter 3 Start Up Adjust And Measures
START UP ADJUST AND MEASURES 1. STARTING THE ATEQ CDF60 The CDF60 can run with the power supply or with the internal battery. Check the pneumatics and electrics connections before the start up of the CDF60. Switches on the instrument. -
Page 22: Measures Display
Note: the data sending on the RS232 frame is different according to the display mode selected, in simple mode, only the current flow is sent, in extended mode, the three measures are sent. UM-23900B-U User manual ATEQ CDF60 Page 12/40... -
Page 23: Parameters Adjust
+ / - 4 0 . 0 0 c m 3 / m i n To return to the measurement mode, press A I R S T D . C O N D . FLOW 09.36 CANCEL TEMP. : 25.8°C ATM.P : 1010.5 hPa UM-23900B-U User manual ATEQ CDF60 Page 13/40... -
Page 24: Flow Unit
+ /- 2 40 0 cm 3 / h To return to the measurement mode, press AI R S TD. CO ND . FLOW 0936 CANCEL TEMP. : 25.8°C ATM.P : 1010.5 hPa UM-23900B-U User manual ATEQ CDF60 Page 14/40... -
Page 25: Standard Conditions (Std Cond)
20° C and 1013.2 hPa. To return to the measurement mode, press twice +/- 40.00 cm3/min STD.COND. CANCEL . The measurements values FLOW 09.36 TEMP. : 25.8°C displayed are corrected following standards ATM.P : 1010.5 hPa conditions. UM-23900B-U User manual ATEQ CDF60 Page 15/40... -
Page 26: Gas
ATEQ company. >AIR Validate with the ENTER key. HELIUM NITROGEN +/- 40.00 cm3/min To return to the measurement mode, press STD.COND. FLOW 09.36 CANCEL TEMP. : 25.8°C ATM.P : 1010.5 hPa UM-23900B-U User manual ATEQ CDF60 Page 16/40... -
Page 27: Temperature Unit
STD.COND. : YES Validate with the ENTER key. GAZ : AIR >TEMP.UNIT.: KELVIN +/- 40.00 cm3/min To return to the measurement mode, press STD.COND. FLOW 09.36 CANCEL TEMP. : 25.8°C ATM.P : 1010.5 hPa UM-23900B-U User manual ATEQ CDF60 Page 17/40... -
Page 28: Back Light
Validate with the ENTER key. >BACK LIGHT: 050 % AUTO OFF: 07 min +/- 40.00 cm3/min To return to the measurement mode, press STD.COND. FLOW 09.36 CANCEL TEMP. : 25.8°C ATM.P : 1010.5 hPa UM-23900B-U User manual ATEQ CDF60 Page 18/40... -
Page 29: Automatic Power Off (Auto Off)
GAZ : AIR TEMP.UNIT.: CELSIUS (inferior to 1 minute) then appears " DISABLE " >AUTO OFF: DISABLE Validate with the ENTER key. The instrument will be power on continuously. UM-23900B-U User manual ATEQ CDF60 Page 19/40... -
Page 30: Rs232
BITS COUNT : 8 PARITY : NONE with the ENTER key. +/- 40.00 cm3/min To return to the measurement mode, press STD.COND. FLOW 09.36 CANCEL TEMP. : 25.8°C ATM.P : 1010.5 hPa UM-23900B-U User manual ATEQ CDF60 Page 20/40... -
Page 31: Chapter 4 Cdf60 Functions
> 19200 > 38400 > 57600 > Bits count > Parity > None > Even > Odd Handshake > No / Yes Simple menu, access by press < 1 second SPECIAL CYCLE > Auto-zero Print Sensor display UM-23900B-U User manual ATEQ CDF60 Page 21/40... -
Page 32: Specials Cycles
The instrument is doing its AUTO ZERO and return to the measurement mode when the special cycle is finished. AUTO ZERO Note: this cycle allows taking over an offset linked to the temperature, position, etc… UM-23900B-U User manual ATEQ CDF60 Page 22/40... -
Page 33: Measurements Print (Print)
+ / - 4 0 . 0 0 c m 3 / m i n A I R S T D . C O N D . FLOW : 15.26 cm3/min FLOW 15.26 TEMP. : 23.3°C TEMP. : 23.3oC ATM.P : 1004.9 hPa ATM.P : 1004.9 hPa UM-23900B-U User manual ATEQ CDF60 Page 23/40... -
Page 34: Sensors Display
+ / - 4 0 . 0 0 c m 3 / m i n To return to the measurement mode, press A I R S T D . C O N D . FLOW 15.26 CANCEL TEMP. : 23.3°C ATM.P : 1004.9 hPa UM-23900B-U User manual ATEQ CDF60 Page 24/40... -
Page 35: Chapter 5 Accessories, Security And Recycling
The instrument is not designed to work during the battery charge. 1.2. S OFT CASE The soft case is to put away the instrument when out of use. 1.3. USB WIRE To connect the instrument to a PC. UM-23900B-U User manual ATEQ CDF60 Page 25/40... -
Page 36: Test Tube
1.5. P ROTECTION COVER OPTION This cover in rubber material allows protect the CDF60 and absorb impacts (option). 1.6. H ARD CASE OPTION Hard case to put away the CDP60 instrument and its accessories. -
Page 37: Safety Informations
CAUTION: This unit contains an internal Lithium Ion battery, it is replaceable only by the competent ATEQ personnel. The battery can burst or explode, releasing hazardous chemicals. To reduce the risk of fire or burns, do not disassemble, crush, puncture, or dispose of the battery or the instrument in fire or water, do not short-circuit or connect the contacts with a metal object. -
Page 38: Recycling
This applies to your tool but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste. For further information, please contact ATEQ. UM-23900B-U User manual ATEQ CDF60 Page 28/40... -
Page 39: Chapter 6 Error Messages
Chapter 6 – Error messages Chapter 6 ERROR MESSAGES 1. ERROR MESSAGES The CDF60 can display the following error messages: The applied flow is too high. FLOW OUT OF RANGE Over Flow..Reduce the flow and press on the Press [C] to return... - Page 40 Chapter 6 – Error messages UM-23900B-U User manual ATEQ CDF60 Page 30/40...
-
Page 41: Chapter 7 Pc Installation
1) Start installation program: USB_VIRTUAL_232_XP.EXE, the opposite window appears. 2) Click on "Next >". 3) The "Serial emulation port" drivers will be installed, at the end, the opposite window appears. 4) Click on "Finish". UM-23900B-U User manual ATEQ CDF60 Page 31/40... - Page 42 5) Connect the USB wire on the USB port of your PC and on the CDF60 device. 6) Switch on the CDF60 device. 7) When the CDF60 device is detected, its installation begins. The opposite window appears select "No, not this time" and click on "Next >".
- Page 43 11) The drivers are installed. "ATEQ RS232 Emulation" communication port is created; this port will be used for each communication between the CDF60 device and the PC through an USB connector. Click on "Finish". UM-23900B-U User manual ATEQ CDF60 Page 33/40...
- Page 44 6) Click on "Finish". 7) Connect the USB cable on the PC USB port and on the CDF60 device. 8) Switch on the CDF60 device the drivers will automatically installed. 9) The message at the right bottom corner of screen "ATEQ...
-
Page 45: Rs232 Cable Diagram
1) To connect the CDF60 to the RS232 port (PC com1 or com2) it needs the RJ45 wire and the SubD adapter. 2) Adjust on the CDF60 and in the PC the same RS parameters on each side. For example: Baud rate: 19200. - Page 46 Chapter 7 – PC installation UM-23900B-U User manual ATEQ CDF60 Page 36/40...
-
Page 47: Appendix Ateq Cdf60
LCD 4 lines 60 mm x 32 mm Weight: About 470 g Temperatures: Use: + 0°C to + 50°C Stock: -10°C to + 70 °C * See the security and recycling instructions about this battery type. UM-23900B-U User manual ATEQ CDF60 Page 37/40... -
Page 48: Personnal Notes
________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ UM-23900B-U User manual ATEQ CDF60 Page 38/40... -
Page 49: Index
Temperature unit ........17 TX light ..........9 Gaz.............16 USB ............6 Hold ............7 USB frame ..........23 hold key ..........7 USB installation ........27 Uses ranges .........4 I key............7 Installation ..........6 Windows© Vista Installation ....30 Windows© XP Installation....27 UM-23900B-U User manual ATEQ CDF60 Page 39/40... - Page 50 Index UM-23900B-U User manual ATEQ CDF60 Page 40/40...
- Page 52 This document is the exclusive property of ATEQ. It may not be communicated, reproduced or used without prior consent.
