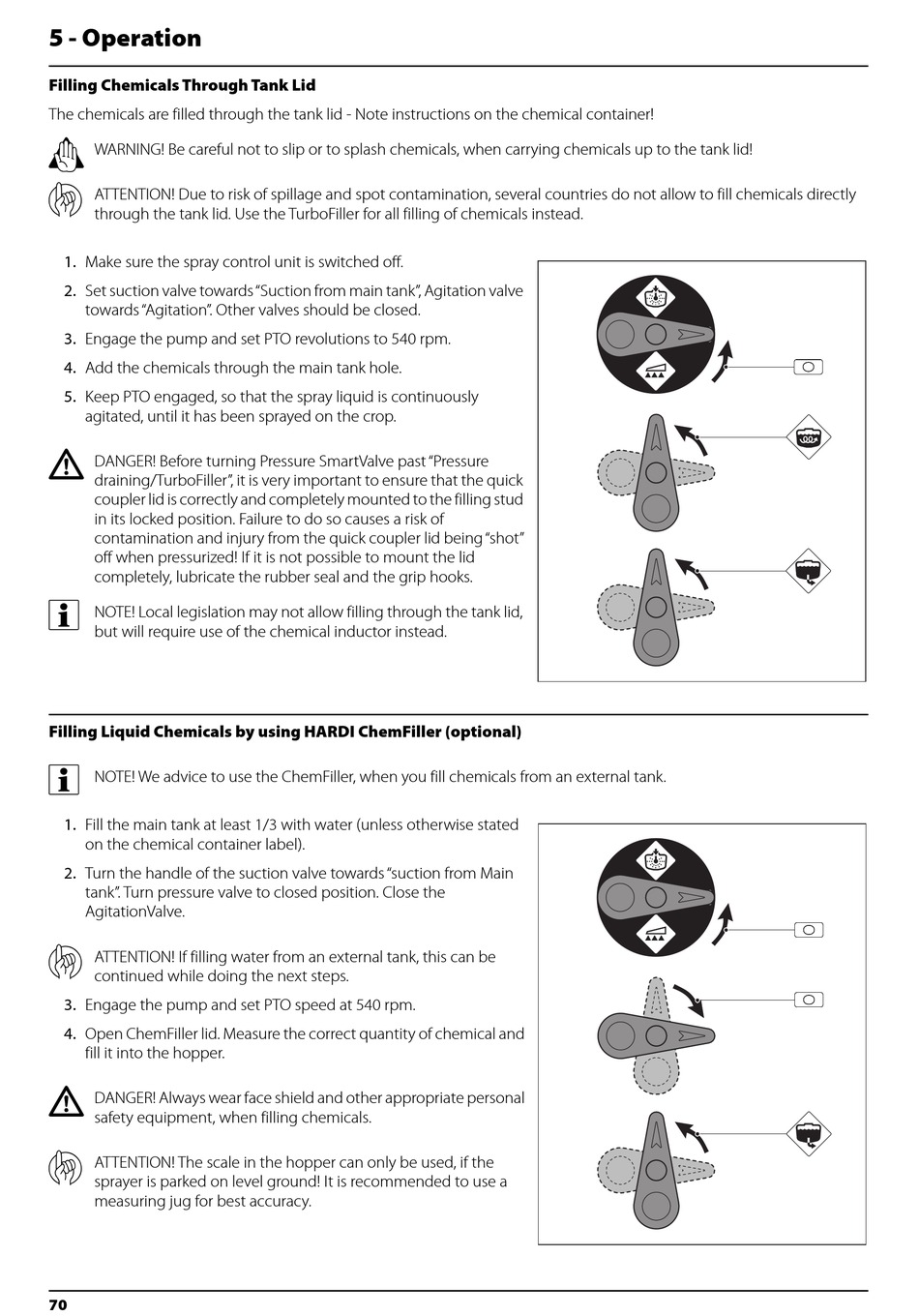

Filling Chemicals Through Tank Lid

The chemicals are filled through the tank lid - Note instructions on the chemical container!
±
WARNING! Be careful not to slip or to splash chemicals, when carrying chemicals up to the tank lid!
μ
ATTENTION! Due to risk of spillage and spot contamination, several countries do not allow to fill chemicals directly
through the tank lid. Use the TurboFiller for all filling of chemicals instead.
1. Make sure the spray control unit is switched off.
2. Set suction valve towards "Suction from main tank", Agitation valve
towards "Agitation". Other valves should be closed.
3. Engage the pump and set PTO revolutions to 540 rpm.
4. Add the chemicals through the main tank hole.
5. Keep PTO engaged, so that the spray liquid is continuously
agitated, until it has been sprayed on the crop.
€
DANGER! Before turning Pressure SmartValve past "Pressure
draining/TurboFiller", it is very important to ensure that the quick
coupler lid is correctly and completely mounted to the filling stud
in its locked position. Failure to do so causes a risk of
contamination and injury from the quick coupler lid being "shot"
off when pressurized! If it is not possible to mount the lid
completely, lubricate the rubber seal and the grip hooks.
÷
NOTE! Local legislation may not allow filling through the tank lid,
but will require use of the chemical inductor instead.

Filling Liquid Chemicals by using HARDI ChemFiller (optional)

÷
NOTE! We advice to use the ChemFiller, when you fill chemicals from an external tank.
1. Fill the main tank at least 1/3 with water (unless otherwise stated
on the chemical container label).
2. Turn the handle of the suction valve towards "suction from Main
tank". Turn pressure valve to closed position. Close the
AgitationValve.
μ
ATTENTION! If filling water from an external tank, this can be
continued while doing the next steps.
3. Engage the pump and set PTO speed at 540 rpm.
4. Open ChemFiller lid. Measure the correct quantity of chemical and
fill it into the hopper.
€
DANGER! Always wear face shield and other appropriate personal
safety equipment, when filling chemicals.
μ
ATTENTION! The scale in the hopper can only be used, if the
sprayer is parked on level ground! It is recommended to use a
measuring jug for best accuracy.
