VLC-51C
Dakota Digital VHX Clock Installation
For 1951-'52 Chevrolet Car

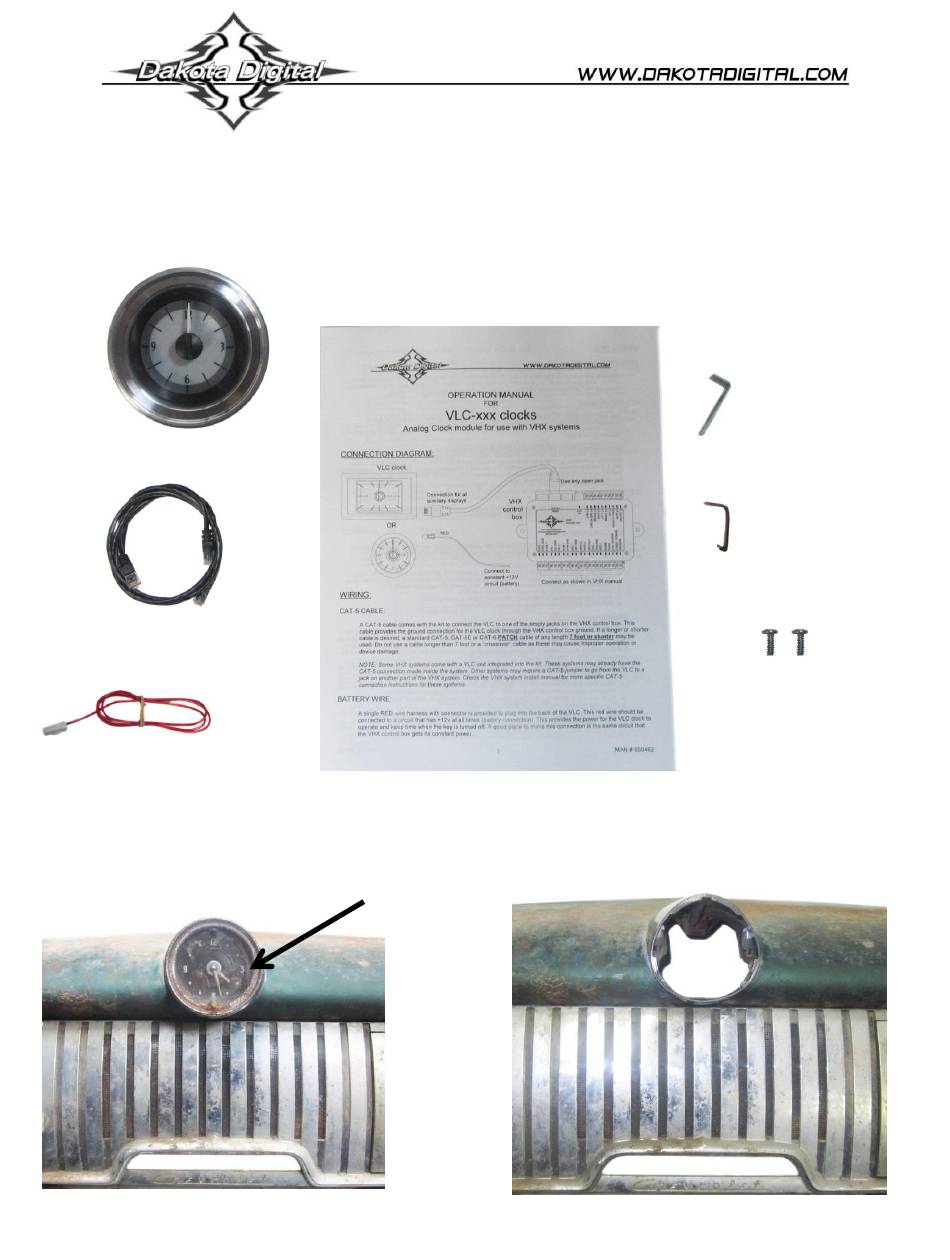

Your new VLC-51C kit includes:
Installation Manuals
Long L-Bracket

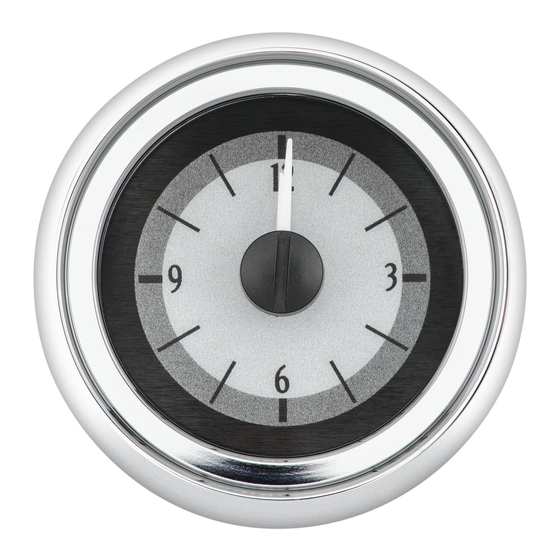

VLC Clock
Short L-Bracket
CAT5 Cable
(2X) 3/8" screws
Power Harness
Installation
1. Disconnect and remove the original clock.
Manual # 650526
Advertisement
Related Manuals for Dakota Digital VLC-51C
Summary of Contents for Dakota Digital VLC-51C
- Page 1 VLC-51C Dakota Digital VHX Clock Installation For 1951-‘52 Chevrolet Car Your new VLC-51C kit includes: Installation Manuals Long L-Bracket VLC Clock Short L-Bracket CAT5 Cable (2X) 3/8” screws Power Harness Installation 1. Disconnect and remove the original clock. Manual # 650526...
- Page 2 2. Underneath the dash; remove the three (3) nuts that hold the back plate and clock bezel to the dash. Retain these parts for reassembly. 3. Insert the VLC gauge into the clock bezel, making sure it is centered. Then, partially secure the gauge on the top side with the supplied long L-bracket and one of the supplied screws.
- Page 3 5. Connect the CAT5 cable and the power harness to the back of the clock. 6. Refer to the enclosed clock operating manual for these connections and clock setup. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
