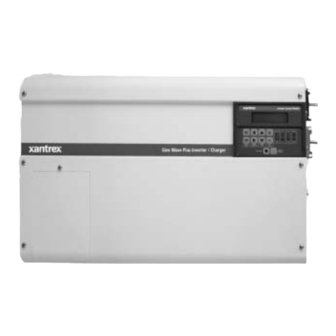

Page 1 Sine Wave Plus Inverter/Charger SW Plus 2524 SW Plus 2548 SW Plus 4024 SW Plus 4048 SW Plus 5548 Owner’s Manual...
Page 3 Sine Wave Plus Inverter/Charger Owner’s Manual...
Page 4 A b o u t X a n t r e x Xantrex Technology Inc. is a world-leading supplier of advanced power electronics and controls with products from 50 watt mobile units to one MW utility-scale systems for wind, solar, batteries, fuel cells, micro turbines, and backup power applications in both grid-connected and stand-alone systems.
Page 5: About This Manual
About This Manual Purpose The purpose of this procedures for installing, operating, maintaining, and troubleshooting the Sine Wave Plus Scope Manual information, procedures for installing the inverter, as well as information about operating and troubleshooting the unit. It does not provide details about particular brands of batteries.
Page 6 About this Guide Organization This guide is organized into nine chapters and nine appendices. Chapter 1, “Introduction” lists and describes the basic features and parts of the Sine Wave Plus Inverter/Charger. Chapter 2, “System Configuration” contains information to help you plan for a Sine Wave Plus installation in an off-grid, on-grid, or backup power application.
Page 7 About this Guide Appendix E, “Over-Charge Protection” supplies information about options for over-charge protection. Appendix F, “Multi-wire Branch Circuit Wiring” supplies information about Multi-wire Branch Circuit Wiring Precautions when using stand- alone 120 Vac inverters or generators. Reading this chapter will provide information regarding identifying and correcting the potential fire hazard that exists when using inverters in this situation.
Page 8: Related Information
Manufacturer’s instructions for battery installation and use • Manufacturer’s instructions for generator installation and use • NEC Guide for related electrical, grounding, and bonding information. • CEC Guide for related electrical, grounding, and bonding information. 976-0043-01-02 Xantrex Technology, Inc. as well as...
Page 9: Important Safety Instructions
Important Safety Instructions WARNING This chapter contains important safety and operating instructions as prescribed by UL and CSA standards for inverters used in residential applications. Read and keep this Installation Guide for future reference. 1. Before using the inverter, read all instructions and cautionary markings on the unit, the batteries, and all appropriate sections of this manual.
Page 10: Explosive Gas Precautions
Important Safety Instructions 9. Do not expose this unit to rain, snow, or liquids of any type. This product is designed for indoor use only. Damp environments will significantly shorten the life of this product and corrosion caused by dampness will not be covered by the product warranty. 10.
Page 11: Table Of Contents
Contents Important Safety Instructions Explosive gas precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - viii FCC Information to the User - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - viii 1 Introduction Basic Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1–2...
Page 12 Contents Generator start types - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–20 Additional/Optional Equipment Considerations - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–22 AC Conduit Box (ACCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–22 DC Conduit Box (DCCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–23...
Page 13 Hardware / Materials Required - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–3 Optional System Accessories - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–3 Battery Bank Preparation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–4 Unpacking and Inspecting the Inverter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–5...
Page 14 Contents 5 Navigation Navigating the Sine Wave Plus The Inverter Control Module (ICM) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–3 Inverter Control Module Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–3 The display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–3 The cursor - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–3...
Page 15 12E Max Charge Amps AC - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–22 12F Bulk Done Amps AC - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–23 12G EQ VDC Done Timer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–24 12H Max Bulk/EQ Timer h:m - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6–25...
Page 16 Contents 23G RY11 Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7–21 Generator Starting Scenarios - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7–23 Manual Generator Control - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7–23 Automatic Generator Control - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7–24...
Page 17 Charge Status (Yellow and Green) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -8–6 Operational Status Indication (Red and Yellow) - - - - - - - - - - - - - - - - - - - - - - -8–7 Error LED Reset - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -8–8 LED Summary - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -8–9 The User Menu Summary - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8–11...
Page 18 Contents 05B Transformer Overtemp - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8–25 05C Heatsink Overtemp - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8–26 05D Low Battery Voltage - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8–26 05E High Battery Voltage - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8–27...
Page 19 B Configuration Settings User Menu Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - B–2 Basic Setup Menu - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - B–5 Advanced Setup Menu - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -B–10 C Battery Information...
Page 20 Contents F Multi-wire Branch Circuit Wiring Multi-wire Branch Circuits - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - F–2 Identifying Multi-wire Branch Circuits - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - F–4 Correcting Multi-wire Branch Circuit Wiring - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - F–5 G Emergency Power Off Switches...
Page 21 Figures Figure 1-1 Sine Wave Plus Figure 1-2 The Front Side of the Figure 1-3 The AC side of the Figure 1-4 Certification Label - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1–5 Figure 1-5 The DC side of the Figure 1-6...
Page 22 Figures Figure 3-3 Dimensional Drawing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–9 Figure 3-4 Wall-Mounting Method using 2 x 4’s - - - - - - - - - - - - - - - - - - - - - - - - - 3–11 Figure 3-5...
Page 23 Inverter Output Waveform - - - - - - - - - - - - - - - - - - - - - A–7 Efficiency Curve for the SW Plus 2524 - - - - - - - - - - - - - A–9 Efficiency Curve for the SW Plus 2548 - - - - - - - - - - - - A–10...
Page 24 Figures Figure A-12 Time versus Current for the Sine Wave Plus 4048 - - - - - - - - - - - - - - - - A–15 Figure A-13 Time versus Current for the Sine Wave Plus 5548 - - - - - - - - - - - - - - - - A–15 Figure C-1 6-volt Battery Wiring - “Series”...
Page 25 Tables Table 2-1 Recommended Minimum Safety Ground Wire and DC Disconnect Sizes per NEC Table 2-2 Recommendced Battery Cable Size Versus Length - - - - - - - - - - - - - - - 2–14 Table 2-3 Battery Cable to Maximum Breaker/Fuse Size - - - - - - - - - - - - - - - - - - 2–15 Table 3-1 AC Disconnect and Wire Sizing- - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–27...
Page 26 Tables Table B-3 Basic Setup Default and User Settings for the Sine Wave Plus 4024 and 4048 Models - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - B–6 Table B-4 Basic Setup Default and User Settings for the Sine Wave Plus 5548 Model - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - B–8...
Page 27: Introduction
Introduction Chapter 1, “Introduction” lists and describes the basic features and parts of the Sine Wave Plus Inverter/Charger.
Page 28: Basic Features
Introduction Basic Features Congratulations on your purchase of a from Xantrex Technology, Inc. inverter/chargers on the market today, incorporating state-of-the-art technology, high reliability, and convenient control features. Specific features include: • FCC Part B compliant • 2.5 kW, 4.0 kW, or 5.5 kW continuous output of sine wave power for 120 Vac/60 Hz applications (depending on model) •...
Page 29: Front Panel
Figure 1-1 The Front Panel The front of the • the Inverter Control Module (ICM) Display • the AC Access Cover AC Access Cover Figure 1-2 The Front Side of the 976-0043-01-02 Sine Wave Plus Sine Wave Plus has the following features: Inverter Control Module Display Sine Wave Plus Basic Features...
Page 30: Ac Side
Introduction AC Side The AC side of the • The Remote Monitor Port for connecting a remote Inverter Control Module (ICM) or the Inverter Communications Adapter (ICA) • The Stacking Port for connecting two • The AUX Port for connecting the Auxiliary Load Module (ALM) •...
Page 31: Emergency Power Off (Epo) Option
Emergency Power Off (EPO) Option Sine Wave Plus through the use of the EPO Port. The EPO feature is designed to shut down the inverter from a remote location (or switch). Since the type of the switch will be dependent on the installation, EPO switches are not provided with the commonly available emergency shut off switches will work with the Wave Plus...
Page 32: Dc Side
Introduction DC Side The DC side of the • the positive (+) battery terminal • the negative (–) battery terminal • the battery temperature sensor port • the chassis ground lug Chassis Ground Figure 1-5 The DC side of the 1–6 Sine Wave Plus has the following features:...
Page 33: Battery Temperature Sensor (Bts)
Basic Features Battery Temperature Sensor (BTS) A BTS is provided with each Sine Wave Plus Inverter/Charger. This sensor can easily be installed in the system to ensure proper charging of the batteries based on temperature. Installing a BTS extends battery life by preventing overcharging in warm temperatures and undercharging in cold temperatures.
Page 34: Top
Introduction The top of the unit has the following features: • Circuit Breaker - This circuit breaker protects the unit’s internal wiring while the unit is inverter or charging. It is not used for the pass-through current. This is not a branch-circuit rated breaker. Separate output breakers are still required.
Page 35: System Configuration
System Configuration Chapter 2, “System Configuration” contains information to help you plan for a Sine Wave Plus installation in an off-grid, on-grid, or backup power application.
Page 36: Pre-Configuration Planning
System Configuration Pre-Configuration Planning Importance Pre-configuration planning is essential to ensure optimal performance for your system. This section outlines the components of a system and how you can plan for them. Types of Applications Sine Wave Plus Inverter/Charger applications: • OFF-GRID (stand-alone) applications where no utility power is available.
Page 37 Renewable energy systems (e.g., PV arrays, wind turbines etc.) “System Input Requirements” on page 2–4 Location What are the safe, physical environmental requirements for your installation: Mounting location for optimal performance and easy access of all components Ventilation and clearance requirements for all components Mounting method (wall or shelf) Additional items/materials required for mounting RFI or EMI considerations...
Page 38: System Output Requirements
System Configuration Generator Will a generator be used: Voltage Output Requirements (120 Vac only, 120/240 Vac, or 240 Vac only) Auto-Start or Manual-Start Important: the inverter to control the operation of the generator. “Generator Considerations” on page 2–19 Additional What additional equipment is needed: equipment Remote monitors, interface cables, stacking cables, DC charge controllers, auxiliary load controllers, T240 autotransformers etc.
Page 39: Location Considerations
Location Considerations Inverters contain sophisticated electronic components and should be located in a well-protected, dry environment away from sources of fluctuating or extreme temperatures and moisture. The better the environment, the longer the inverter will last. Consider installing your inverter in the same type of location in which you would store high quality electronic equipment of equal value.
Page 40: Mounting Considerations
System Configuration Fire Safety Sine Wave Plus outlined in UL 1741. As such, in the event of a failure, the is designed to fail safe. Be sure the specific mounting and ventilation requirements outlined in this Do not locate the inverter near readily flammable materials such as cloth, paper, straw, plastic etc.
Page 41: Grounding Considerations
Grounding Considerations Types Whether you are installing a new system or integrating new parts into an existing system, the four types of grounding to consider are: • DC system grounding • Inverter grounding • Chassis grounding • Bonding the grounding system Important: All installations must comply with national and local codes and ordinances.
Page 42: Inverter Grounding
System Configuration Inverter Grounding WARNING: Shock Hazard Attach the ground lead BEFORE attaching any AC or DC power connections. Requirement The inverter/charger should be connected to a grounded, permanent wiring system with the AC and DC grounds commonly bonded to each other and should be bonded to the grounding system at only one point in the system.
Page 43: Equipment Or Chassis Grounding
Equipment or Chassis Grounding WARNING: Shock Hazard Attach the ground lead BEFORE attaching AC or DC power connections. Equipment or chassis grounding connects the metallic chassis of the various enclosures together to have them at the same voltage potential, thus reducing the possibility for electric shock. It also provides a path for fault currents to flow through to blow fuses or trip circuit breakers.
Page 44: Bonding The Grounding System
System Configuration wire may be a better grounding electrode than the ground rods. Well casings and water pipes can also be used as grounding electrodes. Under no circumstance should a gas pipe or line be used. Important: Bonding the Grounding System Definition Bonding means connecting one of the current-carrying conductors (usually the AC neutral and DC negative) to the grounding system.
Page 45: Battery Considerations
Generator If the generator is the main source of power, (that is, no utility grid power) then the neutral and ground connections are bonded at the main AC distribution panel. Utility grid If the utility grid is the main source of power, then the bond should be at the utility AC distribution panel.
Page 46: Battery Bank Requirements
System Configuration More information Consult your battery vendor for additional information on battery enclosure requirements. Battery Bank Requirements Note: battery bank is 100 Ah. The recommended battery bank size is determined by the battery bank worksheet in Daily Load in Amp-hours” on page with batteries and should not be operated without them.
Page 47: Figure 2-1 Awg Wire Size Reference Chart
Important Follow the battery cable recommendations listed in this guide. It is recommendation absolutely imperative that you adhere to the battery cable size (wire gauge) and length recommendations provided in this section. If cables are used that are too long or of insufficient gauge (i.e., the diameter is too small), then inverter performance will be adversely affected.
Page 48: Table 2-2 Recommendced Battery Cable Size Versus Length
System Configuration and inverter amperage per NEC/CEC guidelines. It is recommended that the cable has battery acid resistant insulation and is rated for 90 °C (32 °F) or better. Be sure to check with any local regulatory agencies for additional requirements.
Page 49: Battery Requirements For Dual Inverter Systems
inverters to meet NEC/CEC compliance. Two amperage ratings are available: a DC250 (250 amps) and a DC175 (175 amps) in either single- or double-pole configurations for single or dual inverter installations. “DC Disconnect Boxes (DC175/DC250)” on page 2–24 additional information on the Xantrex DC175 and DC250. After selecting battery cables based on the distance from the battery bank to the inverter, add battery overcurrent protection in the battery cable line, based on...
Page 50 System Configuration Series stacked When inverters are “stacked” they must operate from a common battery bank. In other words, the DC negative of one inverter must be common with the second inverter and likewise for the DC positive. For example: If you have eight 6-volt batteries in a 24-volt configuration, they would be arranged in two rows of four batteries (see diagrams of various arrangements).
Page 51: Battery Temperature
disconnect switches. A sample of this warning label is provided in 2-2. These labels are not available or provided by Xantrex, but may be available from your local electrical warehouse. Figure 2-2 Sample Warning Sticker for Backfeed Conditions DC disconnects and The size of the bonding jumper must be the same gauge as that of the overcurrent devices primary battery cable in which the overcurrent device (DC disconnect) is...
Page 52: Wiring Considerations
System Configuration “Installing the Battery Temperature Sensor (BTS)” on page 3–18 instructions on installing the Battery Temperature Sensor. Wiring Considerations Important: grounding and bonding requirements specific to the intended system. All wiring and installation methods should conform to applicable electrical codes and building codes.
Page 53: Generator Considerations
Note: NEC/CEC code. Wire size for AC A minimum of #6 AWG THHN wire is recommended for all AC wiring connections (input and output). Wiring scenarios Determine all wire routes both to and from the inverter and which knockouts are best suited for connecting the AC conduits. Possible routing scenarios include the following.
Page 54: Types Of Generators
System Configuration Stable Voltage The generator should provide a stable voltage and frequency output for the inverter to synchronize with. AC wind turbines and small scale AC water turbines are not recommended for use as AC power sources as they may not be able to provide a stable voltage and frequency as loads and charger requirements change.
Page 55 Manual-start and electric-start generators typically do not have self- protection features to shut down the generator in the event of low oil pressure, over-heating, overcranking, etc., and, therefore, are not designed for unattended starting and operation. If using a manual-start or electric start generator, be sure that the generator is located where it can be easily accessed to be started.
Page 56: Additional/Optional Equipment Considerations
System Configuration “Generator Starting Scenarios” on page 7–23 specific instructions on setting the generator-start/stop conditions. Additional/Optional Equipment Considerations The following components are available for use with the Some of these items may be required depending upon the intended use of the inverter to make the installation code-compliant.
Page 57: Dc Conduit Box (Dccb)
Additional/Optional Equipment Considerations DC Conduit Box (DCCB) The DC Conduit Box (DCCB) connects to the DC side of the inverter and accepts DC conduit runs. Figure 2-4 DC Conduit Box Figure 2-5 Sine Wave Plus with AC and DC Conduit Boxes Installed 976-0043-01-02 2–23...
Page 58: Fuse Block
System Configuration Fuse Block The Xantrex fuse block (TFBxxx) protects the power system’s DC wiring should an overcurrent condition occur. The fuse block is placed between the battery’s ungrounded conductor (usually the positive cable) and the DC input terminal of the inverter. The fuse block includes a fast acting, current limiting class-T fuse providing extremely fast protection when a short circuit occurs.
Page 59: Battery Status Meter (Tm500A)
Battery Status Meter (TM500A) The TM500A features six data monitoring functions and three indicators including: • State-of-charge/amp-hour content (full or percent of capacity) • State-of-charge/voltage (real-time voltage level, historical high and low system voltage) • Amps (real-time amps, total charging amps, total load amps) •...
Page 60: Remote Monitors
System Configuration Remote Monitors Three options are available for remote control and monitoring. • Use a remote ICM, which is identical to the inverter control module display on the inverter, for distances of 25 or 50 feet (7.5 or 15 meters). •...
Page 61: Inverter Control Module (Icm)
Inverter Control Module (ICM) The remote ICM allows control, monitoring, and adjustment of all inverter settings from a location other than the ICM display on the front of the inverter. The remote ICM comes with cables in lengths of 25 feet (7.5 meters) or 50 feet (15 meters).
Page 62: Generator Start Module (Gsm)
System Configuration Generator Start Module (GSM) The GSM is an accessory that enables the inverter to start and stop generators equipped with auto-start features. Figure 2-11 Generator Start Module “Generator Considerations” on page generators and regarding generator types. Auxiliary Load Module (ALM) The ALM is an accessory that enables the inverter to start and stop auxiliary loads such as alarms, water pumps, or ventilation fans.
Page 63: Vac Application Requirements
240 Vac Application Requirements There are two options available for creating 240 Vac output using a 120 Vac inverter: • using an autotransformer to step-up or step-down the voltage, or • stacking two identical inverters. Autotransformer for 240 VAC Applications (T240) The T240 allows a single inverter to increase it’s output voltage from 120 volts to 240 volts or it will take 240 Vac from a generator and “step- down”...
Page 64: Renewable Energy Dc Input Sources
System Configuration Renewable Energy DC Input Sources Renewable energy (RE) sources (for example, photovoltaic (PV) arrays, wind turbines, DC micro-hydro generators) can be used with the inverter to provide power for all applications—off grid and on grid. However, in addition to the actual RE equipment being used, other items may be needed to ensure safety in the overall system, such as charge controllers, diversion load controllers, and/or PV ground fault protection.
Page 65: Figure 2-15 Xantrex C-Series Charge Controllers
Additional/Optional Equipment Considerations Figure 2-15 Xantrex C-Series Charge Controllers PVGFP The PV Ground Fault Protection (PVGFP) is designed to minimize the possibility of a fire resulting from ground faults in a PV array (in accordance with NEC/CEC for rooftop-mounted PV systems on dwellings).
Page 66: Off-Grid Applications
System Configuration Off-Grid Applications Sine Wave Plus support off-grid, stand-alone systems where no utility power is available. Sine Wave Plus • renewable energy systems (with or without generator backup), and • generator-only systems • inverter only systems (charger in the inverter/charger is not used, but batteries are maintained by an external DC charger).
Page 67: Figure 2-17 Off-Grid Application - Renewable Energy System Using A Single Inverter
NOTES: Always refer to your local electric codes for proper wiring instructions. For purposes of this illustration, the ground for the AC generator is run through the inverter. Separate grounding runs are shown in this illustration to demonstrate a single point ground. If using a PC to monitor the system, the Xantrex ICA is required.
Page 68: Dual-Inverter Configurations (240 Vac)
System Configuration Dual-Inverter Configurations (240 Vac) If 240 Vac power is required and the wattage required exceeds the wattage output of a single inverter, it may be necessary to add a second inverter. Two inverters can be “series” stacked to provide both 120 Vac and 240 Vac, 60 Hz, power to the AC loads.
Page 69: Figure 2-18 Off-Grid Application - Renewable Energy System Using Dual Inverters
NOTES: Always refer to your local electric codes for proper wiring instructions. For purposes of this illustration, the ground for the AC generator is run through the inverter. Separate grounding runs are shown in this illustration to demonstrate a single point ground. If using a PC to monitor the system, the Xantrex ICA is required.
Page 70: Generator-Only Systems
System Configuration Generator-Only Systems In these applications, an AC generator serves as the main AC source when batteries are insufficient to power the loads. Both an AC and a DC generator can provide a power source for the battery charger. With the aid of the Xantrex Generator Start Module (GSM), the turn on automatically most remote-starting generators, on demand.
Page 71: Figure 2-19 Off Grid Application - Generator-Only System Using A Single Inverter
NOTES: Always refer to your local electric codes for proper wiring instructions. For purposes of this illustration, the ground for the AC generator is run through the inverter. Separate grounding runs are shown in this illustration to demonstrate a single point ground. Figure 2-19 Off Grid Application - Generator-only System using a Single Inverter 976-0043-01-02 Off-Grid Applications...
Page 72: Dual-Inverter Configurations
System Configuration Dual-Inverter Configurations If 240 Vac power is required and the wattage required exceeds the wattage output of a single inverter, it may be necessary to add a second inverter. Two inverters can be “series” stacked to provide both 120 Vac and 240 Vac, 60 Hz, power to the AC loads.
Page 73: Figure 2-20 Off Grid Application - Generator-Only System Using Dual Inverters
NOTES: Always refer to your local electric codes for proper wiring instructions. For purposes of this illustration, the ground for the AC generator is run through the inverter. Separate grounding runs are shown in this illustration to demonstrate a single point ground. Figure 2-20 Off Grid Application –...
Page 74: On-Grid Applications
System Configuration On-Grid Applications Sine Wave Plus backup power in the event of a primary power source failure. It can use utility power to backup renewable energy systems. It can use renewable energy and/or a generator to backup utility grid power. It can be used as an energy management tool to optimize energy consumption.
Page 75: Figure 2-21 On-Grid Application - Backup System Using A Single Inverter
NOTES: Always refer to your local electric codes for proper wiring instructions. For purposes of this illustration, the ground for the AC generator is run through the inverter. Separate grounding runs are shown in this illustration to demonstrate a single point ground. If using a PC to monitor the system, the Xantrex ICA is required.
Page 76: Dual-Inverter Configurations (240 Vac)
System Configuration Dual-Inverter Configurations (240 Vac) If 240 Vac power is required and the wattage required exceeds the wattage output of a single inverter, it may be necessary to add a second inverter. Two inverters can be “series” stacked to provide both 120 Vac and 240 Vac, 60 Hz, power to the AC loads.
Page 77: Figure 2-22 On-Grid Application - Backup System Using Dual Inverters
NOTES: Always refer to your local electric codes for proper wiring instructions. For purposes of this illustration, the ground for the AC generator is run through the inverter. Separate grounding runs are shown in this illustration to demonstrate a single point ground. If using a PC to monitor the system, the Xantrex ICA is required.
Page 78: Energy Management
System Configuration Energy Management Sine Wave Plus utility power. Advanced features allow for peak load management and time-of-use billing. Utility management features also allow the Plus to use renewable energy sources on a first priority basis and only use utility power if renewable energy is insufficient or unavailable to power the loads.
Page 79: Time-Of-Use (Tou) Metering
Time-of-Use (TOU) Metering Utilities use TOU metering to determine utility charges during peak usage hours and to impose a surcharge. The inverter can be configured to overcome these peak charges by using a battery (or battery bank) to store energy during the inexpensive energy hours and consumes the battery energy during expensive energy hours.
Page 80: Ac Load Support
System Configuration When using the system for TOU metering, the system should be designed with a battery capacity large enough to support the load during the entire peak rate period without reaching the 11C Low Battery Cut Out VDC voltage. To further ensure the batteries are able to support the load, an additional source of power (solar, wind or hydroelectric) is recommended.
Page 81: Renewable Energy With Grid Backup (Bx Mode)
Utility Grid or AC Generator Figure 2-24 AC Support Mode Note: current limits of the inverter. Note: LEDs may be ON even though the batteries are draining. Use the 04 Meters Menu heading and 04C INV/CHR Amps AC menu item to view the actual amperage.
Page 82 2–48...
Page 83: Installation
Installation Chapter 3, “Installation” describes how to mount and install Sine Wave Plus Inverter/Charger and perform wiring and cabling procedures for various configurations.
Page 84: Pre-Installation
Installation Pre-Installation Before installing the markings located in this manual. Important: starting this installation. Important: Installations of this equipment should only be performed by skilled personnel such as qualified electricians and Certified Renewable Energy (RE) System Installers. For a list of Xantrex Certified RE dealers, please visit our website at www.XantrexREdealers.com.
Page 85: Hardware / Materials Required
Hardware / Materials Required The following materials may be required for completing this installation. 4' x 8' sheet of ¾" plywood for mounting 2 x 4 boards for mounting #10 and/or #12 wood screws (or ½" x 1¼" lag bolts) Conduits and appropriate fittings for wire runs (e.g., wire nuts) Electrical wire of appropriate size and length Battery cable lugs (depending on types of battery cables used)
Page 86: Battery Bank Preparation
Installation Remote monitors: ICM/25 (Inverter Control Module with 25 foot cable connection) ICM/50 (Inverter Control Module with 50 foot cable connection) ICA (Inverter Communications Adapter with 50 foot cable), for use with your computer. (Can be used with a modem on site. A modem is required for distances greater than 50 feet.) Other accessories which might be required: Generator Start Module (GSM)
Page 87: Unpacking And Inspecting The Inverter
3. Determine the correct size of battery cables to use. on page 2–14 cable sizing. 4. Determine the correct size of DC breaker/fuse to use. page 2–15 fuse sizing. 5. Color code the cables with tape or heat shrink tubing. The standard colors for DC cables are red for positive (+) and black for negative (–).
Page 88: Figure 3-1 Certification Label Location
Installation Save the original shipping carton and packing materials. If the inverter ever needs to be returned for service, it should be shipped in the original carton. This is also a good way to protect the inverter if it ever needs to be moved. Record the unit’s model number, serial number, and date-of-purchase in the appropriate locations provided on Product Information section at the back of this manual.
Page 89: Knockout Preparation
Important: label indicates the need to add overcurrent protection. It shall be installed at the battery as part of the installation in accordance with your local electrical code. Table 2-3, “Battery Cable to Maximum Breaker/Fuse Size” on page 2–15 specifies the type and rating of the overcurrent protection needed. 3/4 and 1”...
Page 90: Mounting
Installation Mounting WARNING: Personal Injury Hazard Do not attempt to mount this unit on the wall by yourself. Have additional help available to assist in lifting the unit during installation. Sine Wave Plus sure to use appropriate lifting techniques and have extra people available to assist in lifting the inverter into position while it is being secured.
Page 91: Figure 3-3 Dimensional Drawing
1" 1½" " (10 cm) (25 cm) (38 cm) 1½" (38 cm) 15 " (384 cm) 1" (25 cm) 2½" (64 cm) 4 (102 cm) 10½" (267 cm) Figure 3-3 Dimensional Drawing 976-0043-01-02 21" (533 cm) 16" (406 cm) Keyhole slots 6½"...
Page 92: Wall-Mounting
Installation Wall-Mounting Wallboard is not strong enough to support the weight of the inverter, so additional support must be added. This can be in the form of reinforcing 2 x 4’s or a half sheet (4 ft x 4 ft) of ¾-inch plywood. Wall Mounting The easiest method for securing the inverter to an existing wall is to place using 2 x 4’s...
Page 93: Figure 3-4 Wall-Mounting Method Using 2 X 4'S
Pre-Installation Wall studs 16 inches on center Ceiling 2 x 4 Set Inv erter OFF SRC H ON CHG mounting 14–3/8" supports Sine Wave Plus Inverter/Charger Keyhole Slots Mounting Holes (10) Wallboard Approx. 4–5 ft Floor Figure 3-4 Wall-Mounting Method using 2 x 4’s 976-0043-01-02 3–11...
Page 94 Installation Wall Mounting Alternatively, a half sheet (4 ft x 4 ft) of ¾-inch plywood can also be using Plywood used as a backing, with the inverter mounted directly to the plywood using ¼-inch diameter lag bolts and washers. The plywood must span three studs for adequate support.
Page 95: Figure 3-5 Wall Mounting Using Plywood
Ceiling Figure 3-5 Wall Mounting using Plywood 976-0043-01-02 Wall studs 16 inches on center S et In ve rte r OFF S RCH ON CHG Sine Wave Plus Inverter/Charger Mounting Keyhole Holes (10) Slots (4) Plywood Wallboard Floor Pre-Installation 3–13...
Page 96: Dc Wiring
Installation DC Wiring DC wiring includes the following (described in the following locations). Preparing the Battery bank - See page Preparing Grounding - See Connecting DC Input Sources - See Renewable Energy Configurations” on page Providing over-charge protection. a Charge Controller” on page E-2. Providing diversion loads if necessary.
Page 97: Grounding The Dc System
WARNING: Fire Hazard Undersized cables can overheat and melt creating a fire hazard when subjected to heavy (peak) loads. Always use a properly sized cable and length rated for the amperage of the inverter and batteries. Grounding the DC System WARNING: Shock Hazard Always attach ground leads before attaching AC or DC power connections.
Page 98: Figure 3-7 Dc Grounding Of A Single Inverter
Installation Single Inverter To ground a single inverter: 1. Connect the ground bond in the DC disconnect to the primary grounding electrode, in accordance with local and national electrical codes. 2. Connect the NEGATIVE (–) terminal of the battery bank to the ground bond inside the DC disconnect.
Page 99: Figure 3-8 Dc Grounding Of Dual Inverters
Dual Inverters To ground a dual-inverter configuration: 1. Connect the ground bond in the DC disconnect between the inverters and the batteries to the primary grounding electrode, in accordance with local and national electrical codes. 2. Connect the NEGATIVE (–) terminal of the battery bank to the ground bond inside the DC disconnect.
Page 100: Connecting Dc Input Sources - Renewable Energy Configurations
Installation Connecting DC Input Sources – Renewable Energy Configurations Renewable energy sources (e.g., PV arrays, wind turbines etc.) may require additional equipment such as charge controllers, diversion load controllers, PV Ground Fault Protection, and additional fuses and/or disconnects. Since every configuration is unique, specific installation instructions cannot be provided.
Page 101: Figure 3-9 Bts (Rj11) Port Location And Installation
DC Wiring BTS (RJ11) Port DC End of the Inverter Figure 3-9 BTS (RJ11) Port Location and Installation 976-0043-01-02 3–19...
Page 102: Connecting The Batteries To The Inverter
Installation Connecting the Batteries to the Inverter WARNING: Shock Hazard Before making any connections, verify that the DC disconnect device is switched OFF. DC terminal connections are located on the DC end of the inverter. Figure 3-10 Figure 3-10 DC Terminal Connections on the Inverter 3–20 shows the locations of the DC connectors.
Page 103: Figure 3-11 Battery Cable Connection
DC Wiring Figure 3-11 shows the proper method to attach the cables to the inverter. Battery Terminal Cable Lug Surface Star Copper Washer Compression Figure 3-11 Battery Cable Connection CAUTION: Damage to Equipment Do not put anything between the battery cable lug and the terminal surface. Overheating of the terminal may occur.
Page 104: Procedure For Single Inverter Systems
Installation Procedure for Single Inverter Systems Before starting this procedure, please review Connections on the Inverter” on page 3–20 Cable Connection” on page 3–21 details on attaching positive (+) and negative (–) cables to terminals on the inverter DC end. Ensure the unit is properly grounded before proceeding.
Page 105: Figure 3-13 Dc Connections To A Single Inverter
DC Wiring Figure 3-13 DC Connections to a Single Inverter 976-0043-01-02 3–23...
Page 106: Procedure For Dual-Inverter Systems
Installation Procedure for Dual-Inverter Systems Before starting this procedure, please review Connections on the Inverter” on page 3–20 Cable Connection” on page 3–21 details on attaching positive (+) and negative (–) cables to terminals on the inverter DC end. Ensure the unit is properly grounded before proceeding.
Page 107: Figure 3-14 Dc Connections To Dual Inverters
DC Wiring Figure 3-14 DC Connections to Dual Inverters 976-0043-01-02 3–25...
Page 108: Ac Wiring
Installation AC Wiring This section describes: • “Accessing the AC Terminal Block and Ground Bar” on page • “AC Wiring for Single Inverter Systems” on page Disregard installation sections and illustrations that do not apply to your configuration (for example, installing utility panels in Off-Grid applications or wiring for generators when no generator is used, etc.) Before wiring the input of the inverter, refer to Maximum AC wire sizes and disconnects devices.
Page 109: Table 3-1 Ac Disconnect And Wire Sizing
Table 3-1 AC Disconnect and Wire Sizing Full Pass-Through Capability 60 Amps WARNING: Fire Hazard There is risk of fire if 120 Vac only sources (such as inverters and generators) are wired incorrectly into 120/240 Vac distribution panels containing multi-wire branch circuits.
Page 110: Accessing The Ac Terminal Block And Ground Bar
Installation Accessing the AC Terminal Block and Ground Bar All AC wiring connects to the AC terminal block located on the left-hand side of the inverter beneath the AC access cover. To remove the AC access cover: 1. Remove the Phillips screw from above the access cover. Place the loose screw somewhere safe where it will not be lost.
Page 111: Figure 3-16 Ac Input/Output Wiring Terminals
AC Wiring AC Terminal Block AC Terminal Block Enlargement Figure 3-16 AC Input/Output Wiring Terminals 976-0043-01-02 3–29...
Page 112: Ac Wiring For Single Inverter Systems
Installation AC Wiring for Single Inverter Systems There are three major steps in the procedure for AC wiring of single-inverter systems. They are described in detail on the following pages: “Install AC Output Wiring to the Inverter AC Distribution Panel” on page “Install Generator Wiring to the Inverter”...
Page 113: Figure 3-17 Connecting The Gsm Communications Cable To The Figure 3-18 Ac Input And Output Wiring To A Single Inverter
WARNING: Shock Hazard Auto-start generators can start automatically at any time. Affix the warning label (supplied with the GSM) regarding auto-start generators on or near the main AC distribution panel and near the generator. This will remind the operator that AC power may still be supplied from the generator and additional steps may be required to make the panel and the generator safe.
Page 114 Installation Figure 3-18 AC Input and Output Wiring to a Single Inverter with an Auto-Start AC Generator 3–32 976-0043-01-02...
Page 115: Install Ac Output Wiring To The Inverter Ac Distribution Panel
Install AC Output Wiring to the Inverter AC Distribution Panel An inverter AC distribution panel (referred to here as the inverter panel) and AC conduit must be installed before AC output wiring is connected to the inverter. The inverter panel is a subpanel. Install the inverter AC distribution panel and conduit as follows: 1.
Page 116: Figure 3-19 Ac Output Wiring To The Inverter Ac Panel
Installation Make connections from the inverter to the inverter panel as follows: 1. Connect the GROUND (green or bare) wire: a) from the inverter AC GROUND bar b) to the inverter panel GROUND bar 2. Connect the NEUTRAL (white) wire: a) from the inverter NEUTRAL OUT terminal b) to the inverter panel NEUTRAL bus 3.
Page 117: Install Generator Wiring To The Inverter
Install Generator Wiring to the Inverter WARNING: Shock Hazard Before connecting any AC wiring, ensure that there is no DC energy accessible by the inverter by opening the DC disconnect switch. Generator Having a generator disconnect switch between the inverter and the Disconnect Switch generator is strongly recommended.
Page 118 Installation With Step-down The following instructions are illustrated in Wiring to a Single Inverter” on page Autotransformer and using a 120/ To install the AC wiring from the generator to the inverter: 240 Vac Generator 1. Connect GROUND (green or bare) wires: a) from the generator GROUND connector to the Step-down b) from the Step-down autotransformer GROUND connector to the c) from the generator disconnect switch GROUND connector to the...
Page 119: Figure 3-20 Generator Input Wiring To A Single Inverter
b) from the neutral in the generator disconnect to the inverter 3. Connect HOT (black) wires: a) from the generator GEN HOT OUT terminal to the circuit b) from the circuit breaker in the generator disconnect to the inverter 4. Torque all inverter terminal block connections to 25 inch-pounds. Sine Wave Plus Inverter/Charger AC TERMINAL...
Page 120: Install Utility Wiring To The Inverter Input (On-Grid Applications Only)
Installation Install Utility Wiring to the Inverter Input (On-Grid Applications only) CAUTION: Damage to Equipment The inverter’s AC output must never be wired to any AC source voltage such as a generator output or utility panel. This will cause severe damage to the inverter which is not covered under warranty.
Page 121: Optional Equipment
Figure 3-21 Utility Wiring to the Inverter Input Optional Equipment Stacking Dual Inverter Systems To power 120/240 Vac loads you can link or stack two identical inverters together in series by using the ISC-S cable. The ISC-S cable connects to the stacking ports on the AC end of the This cable is not provided with the inverter and must be purchased separately.
Page 122: Installing The Isc-S Cable
Installation Installing the ISC-S Cable CAUTION: Equipment Damage Damage can occur if the ISC-S cable is not properly installed. Do NOT use a standard computer cable in place of the ISC-S cable. To install the ISC-S cable on the inverters: 1.
Page 123: Remote Monitoring Options
Remote Monitoring Options Sine Wave Plus additional ICM or by using an ICA connected to a personal computer. The ICM operates identically to the ICM display on the front of the Plus. See the ICM Installation Guide for specific installation instructions for installing the remote ICM.
Page 124: Auxiliary Load Module (Alm)
Installation Auxiliary Load Module (ALM) The ALM can be used to signal loads to turn on and off based on battery voltage. The ALM has a DC voltage controlled relay (switch) that require Sine Wave Plus The DC voltage set points for energizing and de-energizing the relays are adjustable as are the time delays.
Page 125: Emergency Power Off (Epo)
Emergency Power Off (EPO) Sine Wave Plus allow a disconnect switch, using an RJ11-type jack, to function as an emergency shutoff switch. Many different switches are available for this purpose. Consult your local system designer or qualified technician for specific installation instructions. Appendix G, “Emergency Power Off Switches”...
Page 126 3–44...
Page 127: Functional Test
Functional Test Chapter 4, “Functional Test” explains how to conduct a functional test of the inverter.
Page 128: Basic Functional Test
Functional Test Basic Functional Test The following steps will complete a basic functional test of the Plus. If any test fails, please refer to assistance. Confirm all Connections Once the AC and DC wiring have been installed and connected, take a moment to go back over all connections and make sure they are secure and have been installed properly.
Page 129: Turning On The Inverter
Turning ON the Inverter WARNING Prior to turning on the inverter, ensure that all AC loads are disconnected from the output of the inverter. To turn on the inverter: 1. Ensure that the LCD display is as shown in Figure 4-1 Power Up Display 2.
Page 130: Ac Voltage Check
Functional Test AC Voltage Check To perform an AC voltage check: 1. With the inverter on (INVERT (yellow) LED on solid), verify with a handheld voltmeter the AC voltage from INV HOT to NEU OUT terminals of the inverter and ensure you get the correct AC voltage for your particular unit.
Page 131: Confirming Inverter Operation
Confirming Inverter Operation To confirm that the inverter is operating correctly: Disconnect the AC input power by turning the input AC power breaker off or unplugging the AC power cord. • • • This completes the functional test. If all tests pass, the inverter is ready for use.
Page 132 4–6...
Page 133: Navigation
Navigation Chapter 5, “Navigation” explains how to navigate through the Sine Wave Plus Inverter/Charger menus using the Control Module and the menu maps.
Page 134: Navigating The Sine Wave Plus
Navigation Navigating the Sine Wave Plus Sine Wave Plus (ICM) to access “User” and “Setup” menus. Navigating through the menus requires an understanding of the ICM and its features, what menus are required to do specific functions, and to set or change parameters. Check defaults The factory default settings may be adequate for most installations.
Page 135: The Inverter Control Module (Icm)
The Inverter Control Module (ICM) The ICM is located on the front panel of the display status information regarding the operation and performance of the unit. It is also used to access the “Basic Setup”, “Advanced Setup”, and “User Menus”. All settings (except for Time of Day) can be saved in non- volatile memory so they are not lost when DC power is removed from the inverter.
Page 136: Display Contrast
Navigation Display contrast To change the display contrast, use a small, flat-blade screwdriver in the slot provided to make the adjustment. Figure 5-2 ICM Display and Contrast Adjustment Push-buttons Eight push-buttons enable access to internal software to program user- specific parameters and to monitor the system. These push-buttons access the User Menu, Basic Setup Menu, and the Advanced Setup Menu.
Page 137: Menu Heading Buttons
Menu Heading Buttons The Menu Heading push-buttons are used to move either forward or backward through the Menu Heading selections. • Press the • Press the Figure 5-4 ICM Menu Heading Push-buttons Menu Item Buttons Below the Menu Headings are subdirectories called Menu Items. Menu Items contain the selectable parameters or set points.
Page 138: Set Point Buttons
Navigation Set Point Buttons The SET POINT buttons change the value of a parameter or select a mode from the displayed menu. • Press the SET POINT button (+) to move the cursor to the right or raise an adjustable value. •...
Page 139: Menu Map
Menu Map Introduction The menu system contains three main menu maps. Each Menu Map is made up of: • Menu Headings, • Menu Items, and • Set Points. A set point is selected when the cursor highlights the first letter, or number, of the selection.
Page 140 Navigation User Menu (01-07) The USER MENU allows access to the daily operational functioning of the unit. These Menu Headings do not set configuration parameters, but do provide system performance information. “The User Menu Summary” on page 8–11 default settings and display descriptions. “Accessing the User Menu”...
Page 141 Menu Map Figure 5-10 User Menu Map - Part 2 976-0043-01-02 5–9...
Page 142 Navigation Basic Setup Menu The BASIC SETUP MENU follows the User Menu in the menu architecture. This menu allows access to the settings required for system (10-14) configuration and modes of operation. Establishing these parameters upon initial power-up will be required. “Basic Setup Process”...
Page 143 Menu Map Figure 5-12 Basic Setup Menu Map Part 2 976-0043-01-02 5–11...
Page 144 Navigation Advanced Setup The ADVANCED SETUP MENU contains specialized configuration settings such as automatic generator starting details, auxiliary load usage, Menu (20-27) and energy management (grid usage) parameters. “Advanced Setup Summary” on page 7–2 default settings for this menu structure. “Accessing the Advanced Setup Menu”...
Page 145 Menu Map Figure 5-14 Advanced Setup Menu Map Part 2 976-0043-01-02 5–13...
Page 146: Figure 5-15 Complete User Menu Map
Navigation Figure 5-15 Complete User Menu Map 5–14 976-0043-01-02...
Page 147: Figure 5-16 Complete Basic Setup Menu Map
Menu Map Figure 5-16 Complete Basic Setup Menu Map 976-0043-01-02 5–15...
Page 148: Figure 5-17 Complete Advanced Setup Menu Map
Navigation Figure 5-17 Complete Advanced Setup Menu Map 5–16 976-0043-01-02...
Page 149: Basic Setup Programming
Basic Setup Programming Chapter 6, “Basic Setup Programming” explains how to program the Sine Wave Plus Inverter/Charger to operate under basic conditions.
Page 150: Basic Setup Summary
Basic Setup Programming Basic Setup Summary Check Defaults The following tables provides the default settings for the Basic Setup Menu for each model and the cross-reference pages for locating information on each menu item. • Table 6-1, “Basic Setup Menu Default Settings for the Sine Wave Plus 2524 and 2548 Models”...
Page 151: Table 6-2 Basic Setup Menu Default Settings For The Sine Wave Plus
Table 6-1 Basic Setup Menu Default Settings for the Sine Wave Plus 2524 and 2548 Models Basic Setup Menus 11C Low Battery Cut Out Vdc 11D LBCO Delay Minutes 11E Search Watts (SRCH) End Menu 11 12 Battery Charging Menu 12A Finish Stage 12B Bulk Volts DC 12C Float Volts DC...
Page 152: Table 6-3 Basic Setup Menu Default Settings For The Sine Wave Plus
Basic Setup Programming Table 6-1 Basic Setup Menu Default Settings for the Sine Wave Plus 2524 and 2548 Models Basic Setup Menus 14C Push GEN for factory defaults End Menu 14 END BASIC SETUP MENU Table 6-2 Basic Setup Menu Default Settings for the Sine Wave Plus 4024 and 4048 Models Basic Setup Menus 10 Time of Day Setup Menu 10A Set Hour...
Page 153 Table 6-2 Basic Setup Menu Default Settings for the Sine Wave Plus 4024 and 4048 Models Basic Setup Menus 12E Max Charge Amps AC 12F Bulk Done Amps AC 12G EQ Vdc Done Timer 12H Max Bulk/EQ Timer 12I Temp Comp End Menu 12 13 AC Inputs Menu 13A Grid (AC1) Amps AC...
Page 154: Table 6-3 Basic Setup Menu Default Settings For The Sine Wave Plus 5548 Model
Basic Setup Programming Table 6-3 Basic Setup Menu Default Settings for the Sine Wave Plus 5548 Model Basic Setup Menus 10 Time of Day Setup Menu 10A Set Hour 10B Set Minute 10C Set Second End Menu 10 11 Inverter Setup Menu 11A High Battery Cut Out Vdc 11B Low Battery Cut In Vdc 11C Low Battery Cut Out Vdc...
Page 155 Table 6-3 Basic Setup Menu Default Settings for the Sine Wave Plus 5548 Model Basic Setup Menus 13 AC Inputs Menu 13A Grid (AC1) Amps AC 13B Gen (AC2) Amps AC 13C Input Upper Limit Vac 13D Input Lower Limit Vac End Menu 13 14 Save/Restore Settings Menu 14A Push INV now to save...
Page 156: Before You Begin Programming
Basic Setup Programming Before You Begin Programming Some items must be pre-determined or confirmed before you start programming the inverter/charger for use. These items include the voltage levels to operate the inverter, charging parameters for the battery charger, and AC input amperage limits. DC Amps verses AC Amps Some of the settings in the Basic Setup Menu may require you to convert DC amps to AC amps.
Page 157: Basic Setup Process
Basic Setup Process The Basic Setup procedure is comprised of the following items: 1. Setting the Time of Day – This sets the internal clock for all the features requiring time functions. setting the Time of Day. 2. Selecting Inverter functions – This selects basic inverter operating functions.
Page 158: Accessing The Basic Setup Menu
Basic Setup Programming Accessing the Basic Setup Menu To access the Basic Setup Menu: 1. If you have not already done so, turn on the inverter. 2. Press the the END USER MENU is displayed. 3. Press and hold down the green GEN button. 4.
Page 159: Menu Item Descriptions
Menu Item Descriptions 10 Time of Day Setup Menu This menu allows for setting the time of day in hours, minutes, and 1 0 T i m e o f D a y seconds. The time is displayed in a 24-hour format (i.e., 00:00:00 to S e t u p M e n u 23:59:59 hours).
Page 160: Set Seconds
Basic Setup Programming 10C Set Seconds To set the second display: 1 0 C S e t S e c o n d s 1. Press the 2. When 10C Set Second is displayed, press the SET POINT buttons (+) or (–) to change the time displayed. The “seconds” section of the display will change in 1-second increments.
Page 161: Low Battery Cut Out Vdc
This voltage level is used to indicate that the batteries have a sufficient level of charge for the inverter to start using power from the battery bank. 11C Low Battery Cut Out VDC When the batteries discharge to the level set in 11C Low Battery Cut 1 1 C L o w B a t t e r y Out VDC, and are held at or below this level for the 11D LBCO Delay C u t O u t V D C...
Page 162: Search Watts
Basic Setup Programming 11E Search Watts This menu item sets the inverter’s search sensitivity. Any load that is 1 1 E S e a r c h W a t t s below this setting does not cause the inverter to produce an AC output S R C H voltage when running from batteries.
Page 163: Battery Charger Functions
The sensitivity control should be adjusted so that the smallest load being run can "wake" the inverter up and cause it to deliver power to the load. If loads change significantly, then re-tuning of the search sensitivity will be required. It may take several adjustments to tweak the sensitivity to just the right point.
Page 164: Multi-Stage Charging Process
Basic Setup Programming Important: for your specific installation. Take the time to review the default settings to make sure they are appropriate for your installation. If not, you will need to adjust the settings according to the battery manufacturer’s recommendations. The following information is provided to help you make the necessary calculations.
Page 165 Note: decrease to a level to initiate the finish stage of charging. To ensure the charger does not stay indefinitely in the bulk stage, set the adjustable timer menu item 12H Max Bulk/EQ Timer h:m to limit the time the batteries are bulk charged. This timing circuit is activated at the start of the Absorption stage and terminates bulk charging if the charge current does not decrease to the setting in menu item 12F Bulk Done Amps AC before the 12H Max Bulk/EQ Timer...
Page 166: Equalize Charging The Batteries
Basic Setup Programming Notes: • When in Silent Mode after entering the Float Charge, the charger remains in the Float Mode until the time set in 20F Must Float Time and the level set in 20E Float Done Amps have been reached. •...
Page 167: Battery Charging Menu
12 Battery Charging Menu CAUTION: Damage to DC Loads and Batteries DC loads should be disconnected from the batteries during equalization charging to protect DC loads from high battery voltages. Equalization was designed for use on standard, liquid electrolyte (lead acid) batteries.
Page 168: Bulk Volts Dc
Basic Setup Programming 12B Bulk Volts DC This is the voltage level at which the charger switches to the absorption 1 2 B B u l k stage. The charger will use up to the parameter set in 12E Max Charge V o l t s D C Amps AC until the parameter set in 12B Bulk Volts DC is reached.
Page 169: Table 6-4 Battery Voltages For Setting Charging Parameters
Table 6-4 Battery Voltages For Setting Charging Parameters BULK VOLTS 24-volt 48-volt Battery Type models models Sealed Gel 28.2 Vdc 56.4 Vdc Lead Acid 28.8 Vdc 57.6 Vdc Lead Acid Maintenance-Free 28.8 Vdc 57.6 Vdc RV/Marine Lead Calcium Battery Deep-cycle, 29.2 Vdc 58.4 Vdc Liquid Electrolyte...
Page 170: Max Charge Amps Ac
Basic Setup Programming 12E Max Charge Amps AC This is the maximum AC amperage the inverter will provide to the battery 1 2 E M a x C h a r g e charger to get the battery voltage up to the level set in one of the A m p s A C following menu items depending on which mode the battery charger is in as indicated by the LEDs on the inverter’s display:...
Page 171: Bulk Done Amps Ac
Table 6-7 Calculating the Maximum Charge Amps for a 48-volt, 350 amp-hour Battery Step 12F Bulk Done Amps AC This is the AC current threshold where the battery charger will transfer 1 2 F B u l k D o n e from Absorption Charging to Finish Charging.
Page 172: Table 6-8 Calculating The Bulk Done Amps For A 24-Volt, 700 Amp-Hour Battery - -
Basic Setup Programming Table 6-8 Calculating the Bulk Done Amps for a 24-volt, 700 amp-hour Battery Step Table 6-9 Calculating the Bulk Done Amps for a 48-volt, 350 amp-hour Battery Step 12G EQ VDC Done Timer This is the maximum time the batteries will be allowed to charge at the 1 2 G E Q V D C D o n e equalize voltage level set in 12D Equalize Volts DC.
Page 173: Max Bulk/Eq Timer H:m
12H Max Bulk/EQ Timer h:m This is the maximum time the charger is allowed to keep the batteries in 1 2 H M a x B u l k / E Q the Bulk or EQ Charge Stage. This timer starts when either the Equalize T i m e r h : m Charge starts or when the Bulk Charge starts.
Page 174: Ac Inputs Menu
Basic Setup Programming Temperature compensation calculations are derived from the following table: Table 6-10 Inverter Temperature Compensation Calculation using the BTS Battery Type Lead Acid NiCad Temperature compensation is based on battery type: 5 mv/cell for type batteries and 2 mv/cell for alkaline type batteries (NiCad or Acid NiFe).
Page 175: Grid (Ac1) Amps Ac
13A Grid (AC1) Amps AC This is the maximum amount of current that can be drawn from the grid 1 3 A G r i d ( A C 1 ) (AC1 input) by the loads and battery charger combined. This settings A m p s A C determines the amperage level at which point the inverter starts drawing power from the batteries to add to the utility power to meet the demand of...
Page 176: Input Upper Limit Vac
Basic Setup Programming 13C Input Upper Limit VAC This menu item sets the highest voltage at which the inverter is allowed to 1 3 C I n p u t U p p e r connect to either AC1 or AC2 inputs. When this voltage is reached the L i m i t V A C inverter disconnects from the grid or generator and provides power to the loads from the batteries as long as the inverter selection in menu...
Page 177: Save/Restore Settings Menu
14 Save/Restore Settings Menu This menu provides the means to: 1 4 S a v e / R e s t o r e S e t t i n g s M e n u • save user programmed settings, •...
Page 178: Push Gen For Factory Defaults
Basic Setup Programming 14C Push GEN for Factory Defaults This menu item provides the means to restore the factory default settings. 1 4 C P u s h G E N f o r To restore the factory default settings: f a c t o r y d e f a u l t s 1.
Page 179: Advanced Setup
Advanced Setup Chapter 7, “Advanced Setup” explains how to program the Sine Wave Plus Inverter/Charger to operate under special, advanced conditions, such as automatic generator starting, energy management and auxiliary load applications.
Page 180: Advanced Setup Summary
Advanced Setup Advanced Setup Summary Check Defaults The following model-specific tables provide the default settings for the Sine Wave Plus locating information on each menu item. • Table 7-1, “Advanced Setup Default Settings for the Sine Wave Plus 2524 and 2548 Models” on page 7–2 •...
Page 181: Table 7-2 Advanced Setup Default Settings For The
Table 7-1 Advanced Setup Default Settings for the Advanced Setup Menus 21C Grid Usage End h:m End Menu 21 22 Battery Xfer (BX) Menu 22A High Xfer (HBX) Vdc 22B Low Xfer (LBX) Vdc End Menu 22 23 ALM Relays Menu 23A RY9 VDC Energized 23B RY9 VDC DeEnergized 23C RY9 Delay at DeEngz.
Page 182: Table 7-3 Advanced Setup Default Settings For The
Advanced Setup Table 7-1 Advanced Setup Default Settings for the Advanced Setup Menus 25A RY7 Mode 25B Gen Warm-up Second/Minute 25C Pre Crank Seconds 25D Max Cranking Seconds 25E Post Crank Seconds End Menu 25 26 Gen Auto Run Setup Menu 26A Load Start Amps AC 26B Load Start Delay Min 26C Load Stop Delay Min...
Page 183 Table 7-2 Advanced Setup Default Settings for the Advanced Setup Menus 20 Silent Setup Menu 20A Refloat High Volts DC 20B Refloat Low Volts DC 20C Float Done Amps AC 20D Must Float Time Min End Menu 20 21 Grid AC1 Usage Menu 21A Grid Usage 21B Grid Usage Begin h:m 21C Grid Usage End h:m...
Page 184 Advanced Setup Table 7-2 Advanced Setup Default Settings for the Advanced Setup Menus 24B Gen Run Time Stop h:m 00:00 to 23:50 24C Quiet Time Begin h:m 24D Quiet Time End h:m 24E Gen Exercise Period Days 24F Gen Exercise Timer Min 00 to 255 24G Gen Cooldown Timer 24H RN2/Max Gen Run h:m End Menu 24...
Page 185 Table 7-2 Advanced Setup Default Settings for the Advanced Setup Menus 27A Push INV now to save Settings 27B Push GEN to restore settings 27C Push GEN for factory defaults End Menu 27 END ADVANCED SETUP MENU Table 7-3 Advanced Setup Default Settings for the Advanced Setup Menus 20 Silent Setup Menu 20A Refloat High Volts DC...
Page 186 Advanced Setup Table 7-3 Advanced Setup Default Settings for the Advanced Setup Menus 23 ALM Relays Menu 23A RY9 VDC Energized 23B RY9 VDC DeEnergized 23C RY9 Delay at DeEngz. Min 23D RY10 VDC Energized 23E RY10 VDC DeEnergized 23F RY10 Delay at DeEngz. Min 23G RY11 Mode End Menu 23 24 Generator Timers Menu...
Page 187 Table 7-3 Advanced Setup Default Settings for the Advanced Setup Menus 26A Load Start Amps AC 26B Load Start Delay Min 26C Load Stop Delay Min 26D 24 hr Start Volts DC 26E 2 hr Start Volts DC 26F 15 min Start Volts DC 26G Read LBCO 30 sec Start End Menu 26 27 Save/Restore Settings Menu...
Page 188: Before You Begin Advanced Programming
Advanced Setup Before You Begin Advanced Programming Sine Wave Plus programming. Advanced applications include: • SILENT SETUP - Sets the parameters for the Silent finish stage of battery charging. This feature is programmed in Menu Heading 20. programming this feature. •...
Page 189: Accessing The Advanced Setup Menu
Accessing the Advanced Setup Menu To access the Advanced Setup Menu from the User Menu: 1. Press the the END USER MENU is displayed. 2. Press and hold down the green GEN button. 3. While holding the green GEN button down, press the red INV button to move into the BEGIN BASIC SETUP MENU.
Page 190 Advanced Setup 5. From here you can, either: a) Press the b) Or proceed to Steps 6 and 7. 6. Press and hold down the green GEN button. 7. While holding the green GEN button down, press the red INV to move into the ADVANCDED SETUP MENU.
Page 191: Menu Item Descriptions
Menu Item Descriptions 20 Silent Setup Menu This menu is used only when SILENT is selected in menu 12A Finish 2 0 S i l e n t S e t u p Stage. When the Silent Modeis selected, the charger is turned OFF and M e n u does not supply any charging current to the batteries until certain conditions based on battery voltage are met.
Page 192 Advanced Setup Silent Mode will begin after the charge routine has finished the bulk/ absorption charge and if the Silent charge has been selected (from Menu Item 12A Finish Stage). After entering the Silent mode, there will be a minimum 60 second delay, then the inverter will monitor the battery voltage to determine if the voltage is at or above the 20A Refloat High Volts DC setting or if the voltage has fallen to or below the 20B Refloat Low Volts DC setting.
Page 193: Refloat High Volts Dc
Silent Mode terminates based on time 20D Must Float Time Min, then amps 20C Float Done Amps. Note: chemistry, as well as site specific environmental considerations, mean that you should consult your system designer or battery manufacturer for specific recommendations for appropriate battery voltage and current settings. An amp-hour meter (e.g., Xantrex TM500A) would be useful to verify your settings are correct to maintain a proper charge on the batteries.
Page 194: Must Float Time Min
Advanced Setup Table 7-4 Calculating the Float Done Amps for a 24-volt, 700 amp-hour Battery Step Table 7-5 Calculating the Float Done Amps for a 48-volt, 350 amp-hour Battery Step 20D Must Float Time Min This menu item sets the minimum amount of time after the 20A Refloat 2 0 D M u s t F l o a t High Volts DC and 20B Refloat Low Volts DC settings have been T i m e M i n...
Page 195: Grid Usage
21A Grid Usage This menu item allows you to select between the set points SB and BX as 2 1 A G r i d U s a g e described below. S B B X SB (Standby) - Utility Backup This set point is the first set point selection in the 21A Grid Usage menu.
Page 196: Grid Usage End H:m
Advanced Setup The clock is in a 24-hour format (00:00 to 23:59 hours). Guidelines for setting this menu item: • Ensure the current time is set correctly in menu 10 Time Of Day Setup Menu. • The timer function is deactivated if the 21C Grid Usage Begin h:m is the same as the 21D Grid Usage End h:m time.
Page 197: High Xfer (Hbx) Vdc
22A High Xfer (HBX) VDC This menu is used to set the voltage transfer point when the inverter turns 2 2 A H i g h X f e r back on and resumes powering the AC loads from the batteries. When this ( H B X ) V D C setting is reached, the inverter transfers from the AC1 input (grid) to the batteries to power the loads.
Page 198: Ry9 Vdc Energized
Advanced Setup RY11 RY11, when ERROR is selected, is used as an inverter error detection indicator device to display or sound an alarm when the inverter AC output is lost. If COOLDOWN is selected, this will allow both inverters to have a cooldown period when used in a series-stacked configuration.
Page 199: Ry10 Vdc Deenergized
23E RY10 Vdc DeEnergized This menu item sets the trip point where the relay de-energizes. When the 2 3 E R Y 1 0 V d c voltage, based on the 04B Battery Comp VDC display, drops to or below D e E n e r g i z e d this setting, the relay de-energizes and opens the contacts between the N.O.
Page 200: Figure 7-3 Relay 11 Wiring Example To Dual Inverters With Cooldown Selected
Advanced Setup Figure 7-3 Relay 11 Wiring Example to Dual Inverters with Cooldown selected 7–22 976-0043-01-02...
Page 201: Generator Starting Scenarios
Generator Starting Scenarios Important: Xantrex GSM. Sine Wave Plus backup generators, either manually or automatically. Automatic operation can be triggered based on time, AC current, battery voltage, or to exercising the generator. CAUTION: Damage to Generator Generators used with this feature must have automatic-start capabilities and be designed for stand-alone operation.
Page 202: Automatic Generator Control
Advanced Setup The generator will continue to run unless one of the following procedures is performed: 1. Manual Stop – Manually stop the generator by selecting OFF from the 02A Generator menu item. The generator will receive the stop command immediately if manually stopped. 2.
Page 203 Menu Item Descriptions If set point RN1 is selected in 25A RY7 Mode, the generator will automatically shut off once the BULK and ABSORPTION stages of the battery charging have completed or if the 24H RN2/Max Gen Run h:m has elapsed. If RN2 is selected in menu item 25A RY7 Mode, the generator will automatically shut off once the 24H RN2/Max Gen Run Time h:m period has elapsed.
Page 204: Generator Timers Menu
Advanced Setup Notes: The generator will be prevented from automatically starting when the inverter’s time of day is in the “quiet time” period–between 24C Quiet Time Begin h:m and 24D Quiet Time End h:m. At which time, it will only start if the 11C Set Low Battery Cut Out VDC or 26G Read LBCO 30 Sec Start setting for the LBCO delay period is reached.
Page 205: Gen Run Time Start H:m
24A Gen Run Time Start h:m This menu item sets the hour and minute for the generator to start. This 2 4 A G e n R u n T i m e will occur each day at the same time. The set points for this menu item S t a r t h : m change in 10-minute increments.
Page 206: Quiet Time End H:m
Advanced Setup 24D Quiet Time End h:m This menu item ends the quiet time, after which the generator can be 2 4 E Q u i e t T i m e started if required, if an auto-start condition exists. E n d h : m To completely disable the quiet-time feature, set the start and stop times to the same value.
Page 207: Rn2/Max Gen Run H:m
24H RN2/Max Gen Run h:m This menu item sets the limit on how long a generator can run when the 2 4 H R N 2 / M a x G e n RY7 Relay is programmed for RN2 under menu item 25A RY7 Mode. R u n h : m The set points for this menu item change in 10-minute increments.
Page 208: Ry7 Mode
Advanced Setup GEN START MODULE CONTROL GENERATOR Figure 7-5 Generator Control Mode (RN2) Guidelines for setting this menu item: • When using a DC generator as a charging source, none of the inverter's charge control features (bulk, absorption, float) will be available.
Page 209: Figure 7-6 Ry7'S Com And N.o. Contacts Close (Energize) To Run Generator
closed between contacts N.O. and COM. and requires the AC generator output to be monitored by the inverter’s AC2 input. RN2 This selection provides a run signal by holding the RY7 relay closed between contacts N.O. and COM. but does not require the generator output to be monitored by the AC2 terminal.
Page 210 Advanced Setup RY8 Relay (GS and RN1 only) The RY8 is energized (COM and N.O. contacts remain closed) only during the 25D Max Cranking Seconds. This is usually wired to the starter solenoid (relay) of the generator engine. The RY8 relay energizes after an initial 25C Set Pre Crank Seconds delay period or de-energizes once the inverter senses AC voltage above 80 Vac on its AC2 input terminal.
Page 211: Figure 7-7 Wiring Examples Of Honda™ And Onan™ Generators
GENERATOR START MODULE N.O. N.C. N.O. N.C. GENERATOR START MODULE N.O. N.C. N.O. N.C. Figure 7-7 Wiring examples of Honda™ and Onan™ Generators 976-0043-01-02 HONDA TYPE GENERATOR 5 AMP FUSE 5 AMP FUSE ONAN TYPE GENERATOR 5 AMP FUSE 5 AMP FUSE Menu Item Descriptions RUN/STOP SWITCH...
Page 212: Figure 7-8 Ry7 And Ry8 Timing Diagram
Advanced Setup The Generator auto-start sequence is initiated if: 1) The time set in 24D QUIET TIME END has been reached or passed. 2) If the battery voltage remains below the 11C LOW BATTERY CUT OUT VDC setting for the required period of time or if below the READ LBCO 30 SEC START VDC setting for 30 seconds.
Page 213: Figure 7-9 Ry7/Ry8 Sequence Of Events For Rn1 Or Rn2 Selection
1 ) M a n u a l t u r n O F F . 2 ) L o a d i s r e d u c e d . 3 ) C h a r g e r f i n i s h e s : a ) R N 1 f i n i s h e d b u l k a n d a b s o r p t i o n c h a r g e s o r r e a c h e s 2 4 H R N 2 M a x G e n R u n T i m e .
Page 214: Figure 7-10 Ry7/Ry8 Sequence Of Events For Gs Selection
Advanced Setup O F F G e n S t o p C o m m a n d 1 ) M a n u a l t u r n O F F . C o m m a n d 2 ) L o a d i s r e d u c e d .
Page 215: Gen Warm-Up Seconds/Minutes
25B Gen Warm-up Seconds/minutes This menu item sets the number of seconds or minutes the generator is 2 5 B G e n W a r m - u p allowed to warm up before the load is connected and the battery charger S e c o n d s / M i n u t e s started.
Page 216: Gen Auto Run Setup Menu
Advanced Setup 26 Gen Auto Run Setup Menu Menu Heading 26 Gen Auto Run Setup Menu provides the menu items 2 6 G e n A u t o R u n for setting the parameters for starting the generator based on AC current S e t u p M e n u and/or battery voltage.
Page 217: 15 Min Start Volts Dc
26F 15 Min Start Volts DC This menu item sets the battery’s DC voltage level which initiates 2 6 F 1 5 M i n S t a r t automatic generator starting whenever the voltage drops below this V o l t s D C setting continuously for 15 minutes.
Page 218: Push Gen To Restore Settings
Advanced Setup 27B Push GEN to Restore Settings This menu item provides the means to restore settings previously set and 2 7 B P u s h G E N t o saved on the inverter. R e s t o r e S e t t i n g s To restore settings previously programmed into the inverter: 1.
Page 219: Operation
Operation Chapter 8, “Operation” explains how to operate the Sine Wave Plus Inverter/Charger. It also explains how to read the LED indicators and User Menus to determine system status.
Page 220: Operating The Sine Wave Plus
Operation Operating the Sine Wave Plus User Menu Sine Wave Plus the operational functions of the inverter/charger. The User Menu contains Operational Menus (01-02) and Operational Status Menus (03-07) to assist the user to determine what the system is doing at any given time. Startup checks When you first power up the system, perform the following system checks.
Page 221: Operational Status Indicators
Operational Status Indicators Sine Wave Plus Menu Headings (2-7) to display system status. Use both of these features to assess operational status. LED Indicators Eight, colored status LEDs indicate the various operating conditions of the inverter. Unless otherwise indicated, the LEDs will be ON solid and not flashing or blinking.
Page 222: Inverter Operation Status (Yellow)
Operation Inverter Operation Status (Yellow) There are two yellow LEDs to indicate the following inverter operational modes. • GRID TIE LED - This feature is not available at this time. • INVERT LED Figure 8-2 Inverter Operation Status LEDs GRID TIE LED The Grid Tie feature is not enabled on these models.
Page 223: Ac Input Status (Green)
AC Input Status (Green) Status LEDs There are two green LEDs to indicate AC status conditions. • AC1 LED (grid) • AC2 LED (generator) Figure 8-3 AC Status LEDs AC1 (Grid) The AC1 LED indicates power has been applied to the inverter’s AC1 (grid) input terminals.
Page 224: Charge Status (Yellow And Green)
Operation Charge Status (Yellow and Green) Charging indicators There are two LEDs for battery charging indications. • Bulk Charge LED (yellow) • Float Charge LED (green) Figure 8-4 Charge Status LEDs Bulk Charge LED The BULK charge LED indicates if the inverter is in the Bulk or (Yellow) Absorption charge stage.
Page 225: Operational Status Indication (Red And Yellow)
Operational Status Indication (Red and Yellow) There are two LEDs for Error and Status Indications: • ERROR LED (red) • STATUS LED (yellow) Figure 8-5 Error and Status LEDs ERROR LED (Red) The ERROR LED indicates an operating error occurred or an error condition exists.
Page 226: Error Led Reset
Operation Error LED Reset Reset To reset the inverter after resolving an error condition, press the red INV button (INVERTER ON/OFF Menu) and select OFF and then ON with the SET POINT buttons. STATUS LED The STATUS LED illuminates to indicate various conditions of the (Yellow) inverter/charger.
Page 227: Led Summary
LED Summary Table 8-1 Table 8-1 LED Summary Table LED Name GRID TIE (yellow) INVERT Inverter is OFF. No power is available (yellow) from the batteries in case of a power failure. AC1 LED There is no AC (green) power present (less than 80 volts) on the AC1 input terminal.
Page 228 Operation Table 8-1 LED Summary Table LED Name ERROR LED No error has been (red) detected. STATUS No Status condition has been detected. (yellow) 8–10 An Inverter error condition has been detected. Use 05 Error Causes Menu to determine the cause of the error. This error LED will be on if either an inverter and/or a generator error condition has...
Page 229: The User Menu Summary
The User Menu Summary The User Menu provides all the controls and settings that may be required on a daily basis such as turning ON the inverter and/or generator, reading the AC and DC meters, checking the possible causes of an error, or adjusting the inverter’s real-time clock.
Page 230 Operation Table 8-2 User Menu User Menus Xantrex Tech Inc 5916 195th St NE Arlington, WA 98223 USA Ph 1-800-446-6180 www.xantrex.com Press reset for factory defaults End Menu 03 04 Meters Menu 04A Battery Actual VDC 04B Battery Comp VDC 04C Inv/Chr Amps AC 04D Input Amps AC 04E Load Amps AC...
Page 231 Table 8-2 User Menu User Menus 05F External err (stacked) 05G Input Relay Failure 05H Gen Failed to Start 05I Gen Stopped due to V/F End Menu 05 06 Status Menu 06A Bypass Mode Selected 06B CHR Selected (no backup) 06C Gen Signalled to Run 06D Gen in Cooldown 06E EQ Charge Selected...
Page 232: Accessing The User Menu
Operation Accessing the User Menu To directly access the 01A Inverter User Menu: Press the red INV button to go directly to 01A Inverter. Figure 8-6 Inverter ON/OFF Display To directly access the 02 Generator User Menu: Press the green GEN button to go directly to 02A Generator. Figure 8-7 Generator ON/OFF Display 8–14 976-0043-01-02...
Page 233: User Menu Description
User Menu Description 01 Inverter ON/OFF Menu The INVERTER ON/OFF Menu Heading accesses the startup and 0 1 I n v e r t e r shutdown function of the inverter. O N / O F F 01A Inverter The 01A Inverter menu item has four set points to select from for 0 1 A I n v e r t e r inverter operation: OFF, SRCH, ON, and CHR.
Page 234: Eq Charge Off On
Operation 01B EQ Charge OFF ON OFF When OFF is selected in the menu, the inverter is not set to 0 1 B E Q C h a r g e equalize the batteries. O F F O N ON This selection triggers the battery charger to initiate the equalization process.
Page 235: Bypass Mode
01D Bypass Mode The Bypass Modecloses the internal bypass relays and allows the AC 0 1 D B y p a s s M o d e connected to the selected input (AC1 or AC2) to pass directly through to A C 1 N O R M A C 2 the loads without being monitored for AC voltage or frequency quality.
Page 236: Generator
Operation 02A Generator The 02A Generator menu item provides three set points to choose from 0 2 A G e n e r a t o r for generator control. O F F A U T O O N OFF This set point disables the auto-start system or immediately turns OFF a generator (without cooldown) started by the inverter.
Page 237: Gen Start Load Amps
Menu items 02B through 02F will indicate “NO” unless the generator- start parameters are met as programmed in the Advanced Setup Menu (Menu items 24, 25, and 26). 02B Gen Start Load Amps A “YES” displayed in this menu item indicates the generator has or is 0 2 B G e n S t a r t about to start and run as the current has maintained the 26A Load Amp L o a d A m p s...
Page 238: Time Of Day Menu
P h 1 - 8 0 0 - 4 4 6 - 6 1 8 0 Service. It also displays the name of the website for Xantrex Technology w w w . x a n t r e x . c o m Inc.
Page 239: Press Reset For Factory Defaults
Press Reset for Factory Defaults In addition to providing information, this menu includes a reset function P R E S S R E S E T F O R that allows all system settings to be returned to their original default F A C T O R Y D E F A U L T S values.
Page 240: Meters Menu
Operation 04 Meters Menu The Meters Menu provides information about system performance. The 0 4 M e t e r s M e n u menus under this heading are read-only. This information includes the following menu items to assist the user in monitoring system performance: •...
Page 241: Battery Comp Vdc
04B Battery Comp Vdc This menu item display shows the battery voltage after it has been 0 4 B B a t t e r y compensated based on the battery temperature and the input current. C o m p V d c These two compensation values are used by the battery charger for its regulation settings and are only used when the inverter is charging.
Page 242: Grid (Ac1) Volts Ac
Operation 04G Grid (AC1) Volts AC This menu item displays the AC input voltage connected to the inverter's 0 4 G G r i d ( A C 1 ) AC1 terminals. This input voltage display may drift slightly before the V o l t s A C inverter has synchronized to the grid.
Page 243: Error Causes Menu
05 Error Causes Menu Detected inverter errors cause the red ERROR LED to illuminate. These 0 5 E r r o r C a u s e s menu items help determine the cause of error conditions. M e n u These menu items normally display “NO”...
Page 244: Heatsink Overtemp
Operation 05C Heatsink Overtemp If “yes” is visible in this display, the power transistors have exceeded their 0 5 C H e a t s i n k designed operating temperature and the inverter is shut off. O v e r t e m p Y E S When this error condition occurs, if the unit is operating as a battery charger, the inverter stops charging to prevent further overheating.
Page 245: High Battery Voltage
05E High Battery Voltage If “Yes” is displayed, the DC battery voltage has increased above the 0 5 E H i g h B a t t e r y value set in the 11A High Battery Cut Out VDC menu item. V o l t a g e Y E S This can be caused by a solar array or other charging source not being...
Page 246: Gen Failed To Start
Operation 05H Gen Failed to Start If “Yes” is displayed, the automatic generator-start system did not 0 5 H G e n F a i l e d t o successfully start the generator. S t a r t Y E S The system completes six start cycles and requires the generator to operate for a minimum of five minutes before the starting attempts counter is cleared.
Page 247: Bypass Mode Selected
06A Bypass Mode Selected If “Yes” is displayed, the Bypass Mode is selected for either the AC1 or 0 6 A B y p a s s M o d e AC2 input. S e l e c t e d Y E S When the inverter is setup to operate in the Bypass Mode it does not check the AC inputs for quality and will allow any anomalies appearing...
Page 248: Eq Charge Selected
Operation 06E EQ Charge Selected If “Yes” is displayed, the charger is set to run in the Equalize Charge 0 6 E E Q C h a r g e Mode. S e l e c t e d Y E S Be sure to monitor menu items 04I Battery Temp and 04K Read Bulk/ EQ Time when equalize charging the batteries.
Page 249: Ry8 (Gsm) Energized
07B RY8 (GSM) Energized If “Yes” is displayed, the inverter has sent out a command to energize the 0 7 B R Y 8 ( G S M ) relay (between the N.O. to COM connections) in the GSM. E n e r g i z e d Y E S This display can be used for troubleshooting purposes by helping to isolate the cause of a generator problem.
Page 250 8–32...
Page 251: Troubleshooting
Troubleshooting Chapter 9, “Troubleshooting” contains information and procedures for solving possible problems with the Sine Wave Plus.
Page 252: Inverter Troubleshooting
Troubleshooting Inverter Troubleshooting If the red ERROR LED illuminates on the control module, see Causes Menu” on page 8–25 then refer to the troubleshooting solutions below to resolve the situation. P r o b l e m P o s s i b l e c a u s e Unit will not come on (no DC voltage on the LEDs are on) and the...
Page 253 P r o b l e m P o s s i b l e c a u s e Low AC power output or Insufficient DC current Low surge power being provided to the INVERT LED is on. inverter to operate the AC AC inductive loads are loads.
Page 254: Battery Charger Troubleshooting
Troubleshooting Battery Charger Troubleshooting If the red ERROR LED illuminates on the ICM display, see Causes Menu” on page 8–25 Then use the solutions below to resolve the situation. P r o b l e m P o s s i b l e C a u s e AC1 LED is flashing, but Battery voltage is below will not start charging...
Page 255 P r o b l e m P o s s i b l e C a u s e Charger drops off before AC frequency at the AC full charging has finished input terminal may be (no ERROR comes on). out-of-tolerance (too high or low) or the AC voltage may be outside the 13C...
Page 256 Troubleshooting P r o b l e m P o s s i b l e C a u s e Batteries being charged If BTS is installed, it may above the Bulk/Float be in a cold area or have setting.
Page 257: Error Causes
Error Causes This table refers to 05 Error Causes Menu messages. Refer to these messages when the ERROR LED is on or flashing. M e s s a g e P r o b l e m 05A Over Current Excessive load on the AC output.
Page 258 Troubleshooting M e s s a g e P r o b l e m 05G Input Relay The AC transfer relay is Failure bad or an AC source was wired directly to the AC output. 05H Gen Failed To Indicates that six “auto Start generator start attempts”...
Page 259: Inverter Specifications
Inverter Specifications Appendix A, “Inverter Specifications” provides the electrical and environmental specifications of this inverter.
Page 260: Electrical Specifications
Inverter Specifications Electrical Specifications E l e c t r i c a l S p e c i f i c a t i o n s AC Input Voltage (nominal) AC Input Voltage Range AC Input Current AC1 Input Frequency Range AC2 Input Frequency Range Continuous Power (@ 25°C) Efficiency (Peak) in inverter mode...
Page 261 E l e c t r i c a l S p e c i f i c a t i o n s AC Input Voltage (nominal) AC Input Voltage Range AC Input Current AC1 Input Frequency Range AC2 Input Frequency Range Continuous Power (@ 25°C) Efficiency (Peak) in inverter mode Inverter Voltage (RMS)
Page 262: Mechanical Specifications
Inverter Specifications Mechanical Specifications M e c h a n i c a l S p e c i f i c a t i o n s Operating Temperature Range (will meet specified (may not meet specified tolerances) NON-OPERATING Enclosure Type Unit Weight Shipping Weight...
Page 263 M e c h a n i c a l S p e c i f i c a t i o n s S i n e W a v e P l u s Operating Temperature Range SPECIFIED 32 °F to 77 °F (will meet specified (0 °C to 25 °C)
Page 264: Theory Of Operation
Inverter Specifications Theory of Operation Sine Wave Plus a combination of three transformers, each with its own low frequency switches, coupled in series and driven by separate interconnected micro- controllers. In essence, it is three inverters linked together by their transformers.
Page 265 The inverter runs in two basic formats: as a stand-alone inverter (converting DC to AC), or as a parallel inverter (with its output synchronized to another AC source). In inverter mode, only 60 Hz waveforms are created. As the battery voltage rises, waveforms with progressively fewer steps are generated.
Page 266: Power Versus Efficiency
Inverter Specifications Power Versus Efficiency There are two primary losses that combine to create the efficiency curve of the the inverter at full output voltage while delivering no current. This is the no load or idle power. At low power levels, the idle power is the largest contributor to efficiency losses.
Page 267: Figure A-3 Power Versus Efficiency Curves For All Models
M easurements made using resistive load bank and Yokogawa WT 2030 Digit al Power M eter 100% Figure A-4 Sine Wave Plus Efficiency Curve for the SW Plus 2524 976-0043-01-02 SW Plus Efficiency Curves SW Plus 2548 SW Plus 2524...
Page 268: Figure A-5 Sine Wave Plus Efficiency Curve For The Sw Plus 2548
Inverter Specifications M easurements made using resistive load bank and Yokogawa WT 2030 Digital Power M et er 100% Figure A-5 Sine Wave Plus Efficiency Curve for the SW Plus 2548 M easurements made using resist ive load bank and Yokogawa PZ4000 Power Analyzer 100% Figure A-6 Sine Wave Plus...
Page 269: Figure A-7 Sine Wave Plus Efficiency Curve For The Sw Plus 4048
M easurement s made using resistive load bank and Yokogawa PZ4000 Power Analyzer 100% Figure A-7 Sine Wave Plus Efficiency Curve for the SW Plus 4048 M easurements made using resistive load bank and Yokogawa PZ4000 Power 100% Analyzer 1000 Figure A-8 Sine Wave Plus Efficiency Curve for the SW Plus 5548...
Page 270: Inverter Capacity Versus Temperature
Table A-1 Derating from continuous power (VA) at elevated ambient temperatures M o d e l SW Plus 2524 SW Plus 2548 SW Plus 4024 SW Plus 4048 SW Plus 5548 This table refers to output VA only.
Page 271: Time Versus Current
Time versus Current Time versus Current Loads presented to the inverter are seldom constant. Typically, large loads are operated for only short periods of time. In order to provide the maximum utility, Xantrex inverters are allowed to operate at power levels that exceed their continuous power ratings.
Page 272: Figure A-10 Time Versus Current For The Sine Wave Plus 2548
Inverter Specifications Figure A-10 Time versus Current for the Sine Wave Plus 2548 Figure A-11 Time versus Current for the Sine Wave Plus 4024 A–14 976-0043-01-02...
Page 273: Figure A-12 Time Versus Current For The Sine Wave Plus 4048
Time versus Current Figure A-12 Time versus Current for the Sine Wave Plus 4048 Figure A-13 Time versus Current for the Sine Wave Plus 5548 976-0043-01-02 A–15...
Page 274 A–16...
Page 275: B Configuration Settings
Configuration Settings Appendix B, “Configuration Settings” provides worksheets for programming your inverter/charger for user-specific parameters.
Page 276: User Menu Settings
Configuration Settings User Menu Settings Table B-1 available set points. This table also provides the default settings for each menu item as programmed in the factory. The last column “User Settings” is provided for you to write in the settings specific to your installation. Table B-1 User Menu Default and User Settings User Menus 01 Inverter ON/OFF Menu...
Page 277 Table B-1 User Menu Default and User Settings User Menus Ph 1-800-446-6180 www.xantrex.com Press reset for factory defaults 04 Meters Menu 04A Battery Actual VDC 04B Battery Comp VDC 04C Inv/Chr Amps AC 04D Input Amps AC 04E Load Amps AC 04F Inverter Volts AC 04G Grid (AC1) Volts AC 04H Gen (AC2) Volts AC...
Page 278 Configuration Settings Table B-1 User Menu Default and User Settings User Menus 06 Status Menu 06A Bypass Mode Selected 06B CHR Selected (No Backup) 06C Gen Signalled to Run 06D Gen in Cooldown 06E EQ Charge Selected 06F Battery Vdc < LBCO 06G Battery Vdc >...
Page 279: Basic Setup Menu
Basic Setup Menu Table B-2 with available set points. This table also provides the default settings for each menu item as programmed in the factory. The last column “User Settings” is provided for you to write in the settings specific to your installation.
Page 280: Table B-3 Basic Setup Default And User Settings For The Sine Wave Plus 4024 And 4048 Models
Configuration Settings Table B-2 Basic Setup Default and User Settings for the Sine Wave Plus 2524 and 2548 Models Basic Setup Menus 12I Temp Comp 13 AC Inputs Menu 13A Grid (AC1) Amps AC 13B Gen (AC2) Amps AC 13C Input Upper Limit Vac 13D Input Lower Limit Vac 14 Save/Restore Settings Menu 14A Push INV now to save...
Page 281 Table B-3 Basic Setup Default and User Settings for the Sine Wave Plus 4024 and 4048 Models Basic Setup Menus 12 Battery Charging Menu 12A Finish Stage 12B Bulk Volts DC 12C Float Volts DC 12D Equalize Volts DC 12E Max Charge Amps AC 12F Bulk Done Amps AC 12G EQ Vdc Done Timer 12H Max Bulk/EQ Timer...
Page 282: Table B-4 Basic Setup Default And User Settings For The Sine Wave Plus 5548 Model
Configuration Settings Table B-4 Basic Setup Default and User Settings for the Sine Wave Plus 5548 Model Basic Setup Menus 10 Time of Day Setup Menu 10A Set Hour 10B Set Minute 10C Set Second 11 Inverter Setup Menu 11A High Battery Cut Out Vdc 11B Low Battery Cut In Vdc 11C Low Battery Cut Out Vdc 11D LBCO Delay Minutes...
Page 283 Basic Setup Menu Table B-4 Basic Setup Default and User Settings for the Sine Wave Plus 5548 Model Sine Wave Plus 5548 Basic Setup Menus Range/Display Default User Settings 14A Push INV now to save Push INV now to Save Settings settings 14B Push GEN to restore settings Push GEN to restore settings...
Page 284: Advanced Setup Menu
Configuration Settings Advanced Setup Menu Table B-5 items, with available set points. This table also provides the default settings for each menu item as programmed in the factory. The last column “User Settings” is provided for you to write in the settings specific to your installation.
Page 285 Table B-5 Advanced Setup Default and User Settings for the Sine Wave Plus 2524 and 2548 Models Advanced Setup Menus 24 Generator Timers Menu 24A Gen Run Time Start h:m 24B Gen Run Time Stop h:m 24C Quiet Time Begin h:m 24D Quiet Time End h:m 24E Gen Exercise Period Days 24F Gen Exercise Timer Min...
Page 286 Configuration Settings Table B-5 Advanced Setup Default and User Settings for the Sine Wave Plus 2524 and 2548 Models Advanced Setup Menus 26G Read LBCO 30 sec Start 27 Save/Restore Setup Menu 27A Push INV now to save Settings 27B Push GEN to restore settings 27C Push GEN for Factory Defaults Table B-6 Advanced Setup Default and User Settings for the Sine Wave Plus 4024 and...
Page 287 Table B-6 Advanced Setup Default and User Settings for the Sine Wave Plus 4024 and 4048 Models Advanced Setup Menus 23A RY9 Vdc Energized 23B RY9 Vdc DeEnergized 23C RY9 Delay at DeEngz. Min 23D RY10 VDC Energized 23E RY10 VDC DeEnergized 23F RY10 Delay at DeEngz.
Page 288: Table B-6 Advanced Setup Default And User Settings For The Sine Wave Plus 4024 And 4048 Models
Configuration Settings Table B-6 Advanced Setup Default and User Settings for the Sine Wave Plus 4024 and 4048 Models Advanced Setup Menus 26D 24-hr Start Volts DC 26E 2-hr Start Volts DC 26F 15-min Start Volts DC 26G Read LBCO 30 sec Start 27 Save/Restore Setup Menu 27A Push INV now to save Settings...
Page 289 Table B-7 Advanced Setup Default and User Settings for the Sine Wave Plus 5548 Model Advanced Setup Menus 22B Low Xfer (LBX) Vdc 23 ALM Relays Menu 23A RY9 Vdc Energized 23B RY9 Vdc DeEnergized 23C RY9 Delay at DeEngz. Min 23D RY10 VDC Energized 23E RY10 VDC DeEnergized 23F RY10 Delay at DeEngz.
Page 290 Configuration Settings Table B-7 Advanced Setup Default and User Settings for the Sine Wave Plus 5548 Model Advanced Setup Menus 26B Load Start Delay Min 26C Load Stop Delay Min 26D 24-hr Start Volts DC 26E 2-hr Start Volts DC 26F 15-min Start Volts DC 26G Read LBCO 30 sec Start 27 Save/Restore Setup Menu...
Page 291: Battery Information
Battery Information Appendix C, “Battery Information” supplies general information about batteries such as battery types, battery bank sizing, battery configurations, and battery care. For detailed information, see your battery manufacturer or your system designer.
Page 292: Introduction
Battery Information Introduction Batteries Batteries are available in different sizes, amp-hour ratings, voltage, liquid or gel, vented or non-vented, chemistries, etc. They are also available for starting applications (such as an automobile starting battery) and deep discharge applications. Recommendations Consider the following recommendations for battery use. •...
Page 293: Sealed Batteries (Gel And Agm
Types of FLA Batteries Industrial (electric forklift) Sealed Batteries (Gel and AGM) Description Gel Cell and absorbed glass mat (AGM) batteries are sealed and do not require the addition of distilled water. Since these batteries are valve regulated, over-charging can cause irreversible damage. Attributes Attributes of sealed batteries are: Types of Sealed Batteries...
Page 294: Understanding Battery Capacity Ratings
Battery Information Other options Another option for 24 volt (only) alkaline battery banks is to use only 19 cells instead of 20. Fewer cells allow the battery charger to operate more closely to the settings used for lead-acid batteries. However, the battery voltage will drop to as low as 18 volts when discharging the batteries.
Page 295: Understanding Amp-Hour Requirements
Depth of discharge In general, the battery bank should be designed so the batteries do not discharge more than 60% of their capacity on a regular basis. Discharging up to 80% is acceptable on a limited basis, such as a prolonged utility outage.
Page 296: Calculating Amp Hours
Battery Information Time and power The length of time a load is operated will affect the power draw. In some cases, an appliance which draws a large wattage may not consume as many amp hours as a load drawing fewer watts but running for a longer period of time.
Page 297: Amp Hour Example Worksheet
Amp Hour Example Worksheet Complete the following steps to calculate the amp-hour requirements per day for your system. Use and own. To calculate amp-hour requirements: 1. Determine the loads the inverter will power and enter their wattage in the watts column. 2.
Page 298: Battery Bank Size Worksheet
Battery Information Battery bank size worksheet Calculation To calculate the battery bank size, use the average amp-hours per day that you calculated using Table C-2 loads. Table C-2 Determining Battery Bank Size Average amp hours per day Divided by inverter efficiency (90%) for Divided by battery efficiency (usually 0.75) Adjusted hours per day Divided by Depth of Discharge (usually 60%)
Page 299: Battery Configurations
Battery Configurations The battery bank must be wired to match the inverter’s DC input voltage specifications (24 or 48 Vdc). In addition, the batteries can be wired to provide additional run time. The various wiring configurations are: Series Wiring batteries in series increases the total bank output voltage. This voltage MUST match the DC requirements of the inverter or inverter and/ or battery damage may occur.
Page 300: Wiring Batteries In Parallel
Battery Information Figure C-2 12-volt Battery Wiring - “Series” Configuration Wiring Batteries in Parallel Effect Wiring the batteries in a parallel configuration increases the current of the battery string. The voltage of the battery bank remains the same as an individual battery.
Page 301: Wiring Batteries In Series-Parallel
Wiring Batteries in Series-Parallel Effect Wiring the batteries in a series-parallel configuration increases the current and voltage of the battery bank. “Series-parallel” wiring is more complicated and care should be taken when wiring these banks. Steps It is done in three steps; wiring the batteries in series, wiring them in parallel, then wiring the string to the inverter.
Page 302: Battery Connections For Stacked Inverters
Battery Information Connect to inverter To connect to the inverter: 1. Connect a cable from the positive terminal of the first battery string to the inverter’s positive DC terminal (via a fused device). 2. Connect the negative terminal of the last battery string to the negative terminal of inverter’s DC terminal.
Page 303: Battery Maintenance
Battery Maintenance Maintenance To get the best performance from an inverter system, the batteries must be strategy properly setup and maintained. This includes setting the proper voltages for Bulk and Float charging. See the “CAUTIONS” in the section on Equalization Charging that follows. In addition, the battery terminals should be inspected, cleaned, and re-torqued if necessary.
Page 304: Table C-4 Variances In Charging Voltage Based On Battery Temperature
Battery Information Table C-4 Variances in Charging Voltage based on Battery Temperature Temperature (around the BTS) Celsiu Temperature compensation is based on battery type—5 mv/cell for lead acid type batteries and 2 mv/cell for alkaline type batteries (NiCad or NiFe). The temperature compensation calculations are derived from Table Table C-5 Temperature Compensation Calculation Battery Type...
Page 305: Equalization Charging
Note: temperatures, the inverter with a BTS may not be able to properly recharge cold batteries due to maximum voltage limits of the inverter. Ensure the batteries are protected from extreme temperatures. Equalization Charging Purpose An equalize charge helps to remove sulfate buildup on the battery plates and balances the charge of individual cells.
Page 306: General Maintenance
Battery Information General Maintenance Water Levels Flooded lead acid batteries require periodic water refills in each battery cell. Only distilled water should be used in a battery, as tap or mineral water may contain contaminants which will upset the battery chemistry and may damage the battery.
Page 307: Table C-6 Battery State-Of-Charge
State of Charge The battery’s state-of-charge should be checked often and only when the battery at a state of rest (when the battery is not powering loads or actively being charged). First thing in the morning is usually the best time to check the state of charge.
Page 308 C–18...
Page 309 Generators Appendix D, “Generators” supplies information about generator starting. This information is provided for basic reference only. Because of the wide variety of generator circuits available, Xantrex cannot be held responsible for the accuracy of the information provided. Always refer to the manufacturer’s recommendation for specific operating instructions.
Page 310: Two-Wire Start Circuits
Generators Two-Wire Start Circuits Two-wire starting generators are the easiest to control and are highly recommended for this type of application. A contact closure starts the generator and opening the contacts stops the generator. These types of generators also provide their own cranking control circuit, possibly oil pressure and overtemp protection circuits, and are designed for unattended operation applications.
Page 311: Onan™ 3-Wire Type Generators
Onan™ 3-Wire Type Generators Most Onan 3-wire type generators use a three-position, momentary type switch to control their operation. To start the generator, the switch is held in the “START” position, energizing the ignition system and cranking the starter motor. Once the engine starts, the switch is released and returns to a center off position.
Page 312 D–4...
Page 313: E Over-Charge Protection
Over-Charge Protection Appendix E, “Over-Charge Protection” supplies information about options for over-charge protection. This information is provided for basic reference only. Because of the wide variety of over-charge protection available, Xantrex cannot be held responsible for the accuracy of the information provided.
Page 314: Overvoltage Protection Using A Charge Controller
Over-Charge Protection Overvoltage Protection using a Charge Controller When using a renewable energy source to charge the batteries, a charge controller prevents the batteries from exceeding a user-specified voltage level. This preserves and extends the life of the battery by preventing the damage caused by overcharging.
Page 315: Diversion Load Control
Diversion Load Control DC generator devices, such as wind turbines and hydro-electric generators, may be damaged by over-spinning if the DC loads are suddenly removed from them. This can happen if the DC disconnect should open (trip) or the batteries are fully charged and no other DC loads are connected in the system.
Page 316 E–4...
Page 317: F Multi-Wire Branch Circuit Wiring
Multi-wire Branch Circuit Wiring Appendix F, “Multi-wire Branch Circuit Wiring” information about Multi-wire Branch Circuit Wiring Precautions when using stand-alone 120 Vac inverters or generators. WARNING A possible fire hazard can exist if 120 Vac only sources (such as inverters and generators) are wired incorrectly into 120/240 Vac panels containing multi-wire branch circuits.
Page 318: Multi-Wire Branch Circuits
Multi-wire Branch Circuit Wiring Multi-wire Branch Circuits Problem A potential safety problem exists when installing stand-alone 120 Vac inverters into existing 120/240 Vac wired panels where multi-wire branch circuit wiring methods were used. Legacy situation Multi-wire branch circuits are wired differently from “home run” type wiring neutral-return path for each circuit connected to both phases of the AC grid.
Page 319: Figure F-2 Multi-Wire Branch Circuit Wiring And Current Flow
Load Center 240 Vac from Grid 15 A Neutral Breaker (Ganged) Ground Black - Hot (Current Flow 15 A) Single White - Neutral 120 Vac (Current Flow 0 A) Bare - Ground White - Neutral Splice Out-of-Phase current (Current Flow 15 A) subtract at this point (Current Flow 0 A) Figure F-2 Multi-wire Branch Circuit Wiring and Current Flow...
Page 320: Identifying Multi-Wire Branch Circuits
Multi-wire Branch Circuit Wiring Identifying Multi-wire Branch Circuits WARNING: Shock Hazard The next step involves opening the load center, exposing live circuits. This procedure should only be performed by qualified persons or electricians. Identifying Multi-wire branch circuits can be identified by removing the cover on the characteristic load center and inspecting the wiring.
Page 321: Correcting Multi-Wire Branch Circuit Wiring
Correcting Multi-wire Branch Circuit Wiring Acceptable options Correcting multi-wire branch circuit wiring is not easy. Two options which will correct multi wiring branch circuit wiring are: • Rewire existing multi-wire branch circuits to conventional “home run” wiring. This requires a qualified electrician (knowledgeable about multi-wire branch circuit wiring) and is expensive.
Page 322: Figure F-5 Using A Step-Down Autotransformer In Multi-Wire Branch Circuit Wiring
Multi-wire Branch Circuit Wiring 120 Vac Inverter or Generator T240 AutoTransformer HOT - L1 HOT - L2 White - Neutral Figure F-5 Using a Step-down Autotransformer in Multi-wire Branch Circuit Wiring F–6 Load Center Neutral 15 A Breaker (Ganged) Ground Black - Hot (Current Flow 15 A) Single White - Neutral...
Page 323: G Emergency Power Off Switches
Emergency Power Off Switches Appendix G, “Emergency Power Off Switches” supplies information about the requirements for installing an Emergency Power Off Switch.
Page 324: The Purpose Of An Epo Switch
Emergency Power Off Switches The Purpose of an EPO switch In the event an emergency situation, the first priority is to remove power from the house by removing the power meter. However, systems with battery backups can run in inverter mode (i.e., no utility power) for hours providing AC output to the household loads.
Page 325 The intent of this feature is to provide three options: • Inverter shutdown using an externally mounted switch as described in the 2002 NEC Article 230-70 (a) (no physical disconnect required), • Inverter shutdown and physical disconnect by using a 2-pole EPO switch, one set of contacts open the AC output breaker, the other set turn off the inverter (Physical shunt trip breaker required), or •...
Page 326: How To Use The Epo Port For An Epo Switch
Emergency Power Off Switches the building at a readily accessible location. The shunt trip switch, when installed should be between six (6) feet and six feet seven inches (6'7") above finish grade. A sign constructed of permanent materials with no less than 1½" high letters designating "Shunt Trip - Main Disconnect"...
Page 327: Glossary Of Terms
Glossary “Glossary” contains a glossary of technical terms used in this manual. The glossary also defines some common electrical terms. “Glossary” also defines abbreviations and acronyms associated with the Sine Wave Plus and this manual. Glossary of Terms A b s o r p t i o n C h a r g e A l t e r n a t i n g C u r r e n t ( A C )
Page 328 E l e c t r o l y t e F l o a t C h a r g e G r i d G r o u n d F a u l t P r o t e c t i o n ( G F P ) H e r t z ( H z ) H i g h B a t t e r y...
Page 329 L i n e L o s s L i n e t i e L o a d L o w B a t t e r y P r o t e c t i o n M a x i m u m P o w e r P o i n t T r a c k i n g ( M P P T )
Page 330 S e r i e s W i r i n g S i n e W a v e S u r g e C a p a c i t y T r a n s f e r S w i t c h V o l t s W a t t ( s )
Page 331: Abbreviations And Acronyms
Abbreviations and Acronyms A c r o n y m o r A b b r e v i a t i o n D e f i n i t i o n ACCB DCCB HBCI HBCO ISC-S LBCI LBCO 976-0043-01-02 Alternating Current...
Page 332 A c r o n y m o r A b b r e v i a t i o n D e f i n i t i o n PVGFP Xfer H–6 Liquid Crystal Display Light Emitting Diode National Electric Code Neutral Original Equipment Manufacturer...
Page 333: Warranty And Product Information
Warranty and Product Information Warranty What does this warranty cover? This Limited Warranty is provided by Xantrex Technology, Inc. ("Xantrex") and covers defects in workmanship and materials in your Charger. This warranty lasts for a Warranty Period of sale to you, the original end user customer.
Page 334 Direct returns may be performed according to the Xantrex Return Material Authorization Policy described in your product manual. For some products, Xantrex maintains a network of regional Authorized Service Centers. Call Xantrex or check our website to see if your product can be repaired at one of these facilities.
Page 335: Return Material Authorization Policy
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE TO THE EXTENT REQUIRED UNDER APPLICABLE LAW TO APPLY TO THE PRODUCT SHALL BE LIMITED IN DURATION TO THE PERIOD STIPULATED UNDER THIS LIMITED WARRANTY. IN NO EVENT WILL XANTREX BE LIABLE FOR ANY SPECIAL, DIRECT, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSSES, COSTS OR EXPENSES HOWEVER ARISING WHETHER IN CONTRACT OR TORT INCLUDING WITHOUT RESTRICTION ANY ECONOMIC LOSSES OF ANY KIND, ANY LOSS OR DAMAGE TO PROPERTY, ANY...
Page 336: Return Procedure
2. Include the following: • The RMA number supplied by Xantrex Technology, Inc. clearly marked on the outside of the box. • A return address where the unit can be shipped. Post office boxes are not acceptable.
Page 337: Information About Your System
Information About Your System As soon as you open your Sine Wave Plus Inverter/Charger information and be sure to keep your proof of purchase. Serial Number Purchased From Purchase Date If you need to contact Customer Service, please record the following details before calling. This information will help our representatives give you better service.
Page 338 I–6...
Page 339 N u m e r i c s D–3 3-to-2 Wire Converters 3–26 AC output requirements, determining 1–4 AC side feature 2–22 ACCB, purpose of Accessing the AC Terminal Block and Ground Bar 3–26 2–28 ALM, purpose of Automatic Generator Control Mode 7–25 Generator Exercising 7–23...
Page 340 Index Generator 7–25 Exercising Generator Start Module see GSM 2–20 generator start types generator, as only source of AC power 2–21 generator, starting requirements ground and neutral bonding guidelines ground rod 2–9 purpose 2–9 size 3–15 Grounding grounding electrode see ground rod 2–10 grounding system, definition 2–7...
Page 341 ii–vii–?? safety instructions I–5 serial number series stacking, operation requirements 2–15 stacking, considerations for 2–4 system input requirements 2–4 system output requirements T240 Autotransformer, purpose of telephone number for Customer Service 2–17 temperature, effect on batteries Theory of Operation A–7 Output Waveform D–2 Three-Wire Start Circuits...
Page 342 Index IX–4 976-0043-01-02...
Page 344 Xantrex Technology Inc. 8999 Nelson Way Burnaby, British Columbia Canada V5A 4B5 800 670 0707 Tel Toll Free in North America 360 925 5097 Tel direct 800 994 7828 Fax Toll Free in North America 360 925 5143 Fax direct customerservice@xantrex.com...

This manual is also suitable for:

Sw plus 2548 Sw plus 4024 Sw plus 5548 Sw plus 4048

Xantrex SW Plus 2524 Owner's Manual

Important Safety Instructions

Introduction

System Configuration

Installation

Functional Test

Navigation

Basic Setup Programming

Advanced Setup

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xantrex SW Plus 2524

Summary of Contents for Xantrex SW Plus 2524
