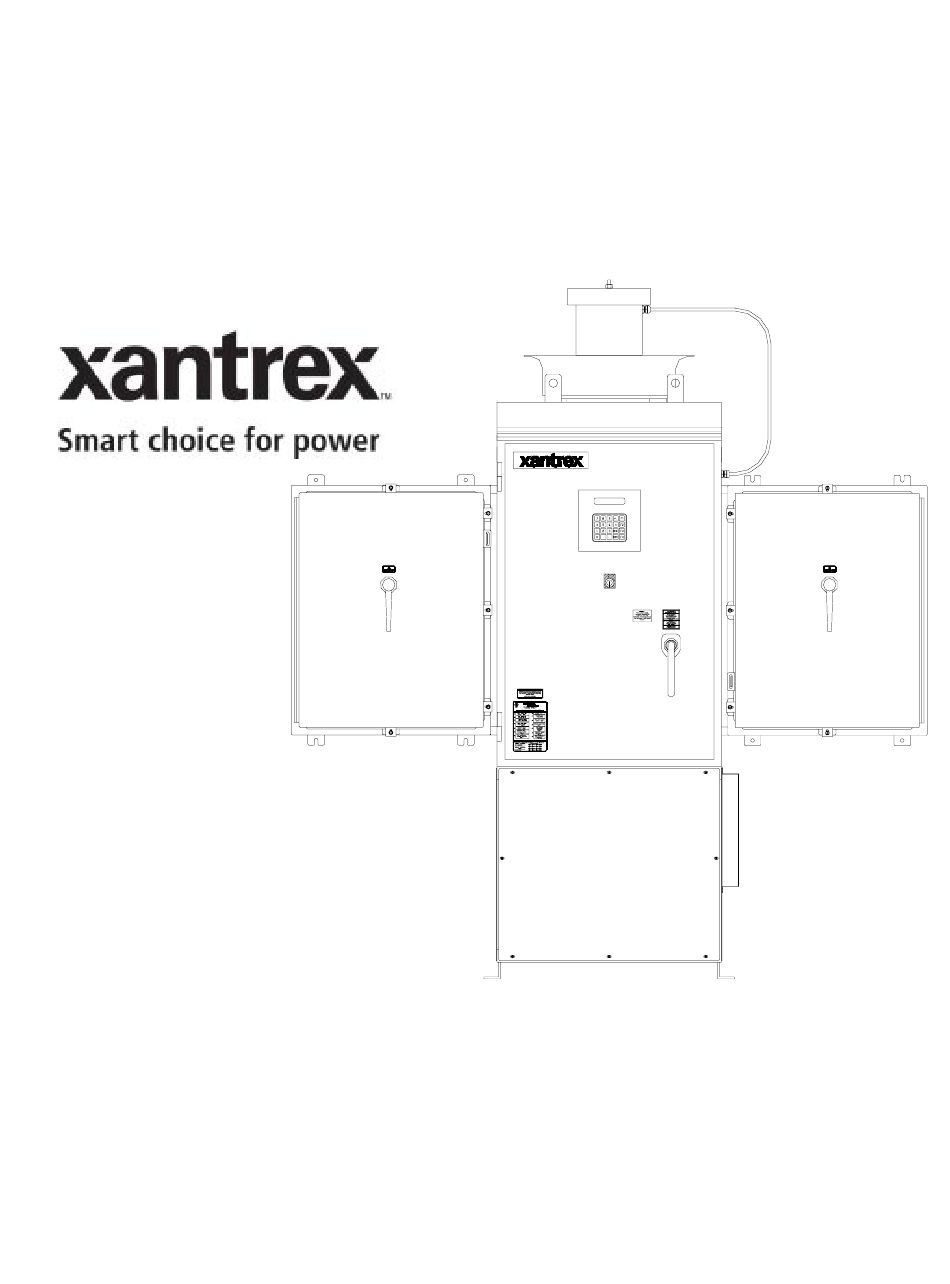

OPERATION and MAINTENANCE
MANUAL
for
MODEL PV-100208
100 kW Grid-Tied Photovoltaic Inverter
Document #151700
Revision B October 13, 2003
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS - THIS MANUAL CONTAINS IMPORTANT INSTRUCTIONS
FOR XANTREX TECHNOLOGY MODEL PV-100208 GRID TIED PHOTOVOLTAIC INVERTER
THAT SHALL BE FOLLOWED DURING INSTALLATION AND MAINTENANCE OF THE PV-
100208.
Xantrex Technology Inc.
161-G SOUTH VASCO ROAD
Livermore, CA 94550
(925) 245-5400
Copyright 2003, Xantrex Technology Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PV-100208 and is the answer not in the manual?

Questions and answers

Related Manuals for Xantrex PV-100208

Summary of Contents for Xantrex PV-100208

  • Page 1 Revision B October 13, 2003 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS - THIS MANUAL CONTAINS IMPORTANT INSTRUCTIONS FOR XANTREX TECHNOLOGY MODEL PV-100208 GRID TIED PHOTOVOLTAIC INVERTER THAT SHALL BE FOLLOWED DURING INSTALLATION AND MAINTENANCE OF THE PV- 100208. Xantrex Technology Inc.

  • Page 2: Table Of Contents

    Table of Contents Product Description Section 1 ..........Introduction ................1-1 Major Components ..............1-1 Control Components ............... 1-2 Interconnection Standards Compliance ........1-3 Specifications ................1-4 Equipment Symbol ..............1-4 Safety Section 2 ................Safety Features ................ 2-1 Isolation Procedure ..............2-2 Installation And Initial Turn-On Section 3 .......

  • Page 3: Product Description

    IPM (Intelligent Power Module), insulated gate bi-polar transistors (IGBT’s) and gate drive circuits to allow interface of a photovoltaic array with a utility grid. The PV-100208 consists of an inverter bridge, photovoltaic controller, and associated control electronics. The PV- 100208 control software provides for complete overall system control with a variety of protection and safety features.

  • Page 4: Control Components

    DC bus and the utility grid. Operator Interface The operator interface is located on the front door of the PV-100208 main enclosure. It consists of an On/Off switch and a keypad with liquid crystal display for control and monitoring purposes. All inter- face components are NEMA-3R rated.

  • Page 5: Interconnection Standards Compliance

    PCU also contains the necessary DC power supplies to support its operation. INTERCONNECTION STANDARDS COMPLIANCE The PV-100208 has been tested and listed by Underwriters Laboratories to be in compliance with UL1741 Static Inverters And Charge Controllers For Use In Photovoltaic Power Systems, as well as IEEE-929-2000 Recommended Practice For Utility Interface Of Photovoltaic (PV) Systems.

  • Page 6: Specifications

    The PV-100208 has been designed for photovoltaic power systems, which operate within the following specifications. Application of the PV-100208 in a manner inconsistent with these specifications may cause damage to the PV-100208 and other system components, and is a violation of the terms of the warranty.

  • Page 7: Safety

    PV-100208 and open the A/C contactor within the unit. The A/C contactor cannot be closed unless the switch is in the on position. The PV-100208 is prevented from being restarted until the on/off switch is turned back to the on position. Cycling the on/ off switch will reset the PV-100208 and attempt to clear any system fault.

  • Page 8: Isolation Procedure

    SECTION 2 SAFETY PV-100208 will remain faulted until the ground fault is remedied and cleared at the operator interface (see section 5, troubleshooting). Over/Under Voltage and Frequency The over/under frequency and voltage detection setpoints have been chosen to be in compliance with IEEE-929 and UL1741.

  • Page 9: Installation And Initial Turn-On

    If a WYE wound transformer is used to interface with the utility, it is not necessary to connect the neutral (X0) to ground. The PV-100208 is a balanced, three phase, current sourcing inverter, and only operates with the presence of a stable utility voltage.

  • Page 10: Torque And Wire Gauge Specifications

    / . s & r t u ) l a The following table shows acceptable wire gauges to be connected to the PV-100208 AC and DC inputs. Wire Gauge Table i t a e r i c s i ) n i &...
  • Page 11 Cable Entry Area Figure 3-2 Array Grounding NEC 690-41/42 requires the PV array to be earth grounded. The PV-100208 chassis is also bonded to the PV safety ground terminal block. Refer to the system schematic in the appendix for further wiring configuration.

  • Page 12: Interconnection Wiring

    National Electrical Code, ANSI/NFPA 70. The following wires for connecting the PV-100208 to external devices are not provided by Xantrex Technology: (See installation diagram on pages 3-5.) • Connect 3-Phase 208 VAC inverter output (AC Disconnect switch) to terminals of the 208 VAC inverter side of isolation transformer.
  • Page 13 SECTION 3 INSTALLATION AND INITIAL TURN-ON PV-100208 Photovoltaic Inverter DOCUMENT: 151700 Operation and Maintenance Manual Copyright 2003, Xantrex Technology Inc.

  • Page 14: Initial Turn On Procedure

    PV array string disconnect switch. It should also be positive. • Close the PV disconnect switch. • Carefully measure VDC between the DC contactor negative (-) terminal and the DC switch positive PV-100208 Photovoltaic Inverter DOCUMENT: 151700 Operation and Maintenance Manual Copyright 2003, Xantrex Technology Inc.
  • Page 15 Most likely, any faults seen at this point will be related to PV-100208 safety switches. To disable the door interlock switch with the main enclosure door opened, pull the switch shaft out. It will lock in its ‘maintenance’ position.
  • Page 16 • All PV-100208 operating parameters have been set at the factory, based upon prior experience with PV arrays. • It is recommended that the PV-100208 be watched during Wake-Up and Sleep Test. If the PV- 100208 cycles between operating and sleeping at either of these times, the condition setpoints are not set properly (refer to section 4 for detailed description of PV-100208 state transitions).

  • Page 17: Operation

    • Fault states are automatic from any state of operation. A fault will cause the PV-100208 to imme- diately stop processing all power. The fault condition will be reported to the operator interface. • The on/off switch, located on the front door of the PV-100208, must be switched to the on position for all operating states.

  • Page 18: Operation Features

    • The On/Off switch, located on the front door of the PV-100208, must be in the On position for all operating states except Matrix Test, in which case it must be in the Off position.

  • Page 19: Operator Interface

    DC Overvoltage Detection In the event of DC voltage greater than 600Vdc, the PV-100208 will execute an orderly shutdown and annunciate a fault to the operator interface. If DC voltage remains greater than 600Vdc, the PV-100208 may be irreparably damaged.
  • Page 20 The \/ key will scroll downward through the menu and the /\ key will scroll upward. Upon reaching the end of the menu, it will roll-over to the beginning. PV-100208 Photovoltaic Inverter DOCUMENT: 151700 Operation and Maintenance Manual Copyright 2003, Xantrex Technology Inc.

  • Page 21: Manual State Transitions

    Press <ENTER>. The LCD will prompt: ‘Press F4 to Confirm’. Press <F4> and the PV-100208 will transition to this goal state. If the goal state requested violates the conditions of the state machine, the PV-100208 will remain in the previous state of operation.

  • Page 22: Automatic State Transitions

    Power Tracking. If the PV power drops below the PV power stop setpoint (PV P Stop) the PV-100208 will start a PV sleep timer (PV T Stop). If the PV voltage and power remain below their respective setpoints for...

  • Page 23: Auto-Restart Feature

    A description of the fault will show on the first line of the operator interface LCD. The second line of the LCD will read ‘Clear Fault?’. To clear a fault press <ENTER>. The PV-100208 will transi- tion to Sleeping. If the fault does not clear, the fault condition has not been corrected. If the ‘Clear Fault?’...

  • Page 24: Troubleshooting

    SECTION 5 TROUBLESHOOTING GENERAL In the event of a fault, the PV-100208 will annunciate the condition at the operator interface. The PV- 100208 will execute an orderly shutdown and remain faulted until the fault is cleared (manually or automatically). In general, the operator should respond to any PV-100208 fault as follows: 1.
  • Page 25 This fault is self-clearing. Once the utility frequency has recovered within the acceptable operating range, the PV-100208 will automatically clear this fault and resume normal operation after 5 minutes. If the fault will not clear, verify the adjustable setpoint is below the actual utility frequency. If the fault is sustained, contact your Xantrex Technology distributor for assistance or service.
  • Page 26 The PCU was not able to service the interrupt for approximately 1 second. Attempt to clear the fault and restart the PV-100208 by pressing the black reset button on the lower left corner of the PCU. If the fault is sustained, replacement or service of the PCU will be necessary.
  • Page 27 Make sure the fiber optics for the device and matrix in question are properly connected to the driver board. Similarly, make sure the fiber is properly connected at the PCU. Clear the fault and restart the PV-100208. If the fault is sustained, contact your Xantrex Technology distributor for assistance or service.
  • Page 28 SECTION 5 TROUBLESHOOTING Clear the fault and restart the PCU. If the fault is sustained contact your Xantrex Technology distributor for assistance or service. 0828 – PV Over-Current Fault (S) Current through the PV CT has exceeded the allowable limit.

  • Page 29: Preventative Maintenance

    Call your Xantrex Technology distributor for factory replacements or specifications. Electrical Connections Inspect the condition of all wiring within the PV-100208. Inspect all wire crimps and connec- tions for damage caused from high temperature. Check for corrosion. Replace any damaged wires.

  • Page 30: Isolation Procedure

    5. Turn the on/off switch to the on position. After a 15 second initialization period and a 5 minute wake up period, the PV-100208 will automati- cally begin power tracking, given the PV voltage is greater than the PV start voltage setpoint.

  • Page 31: Appendix

    PV-100208 Photovoltaic Inverter DOCUMENT: 151700 Operation and Maintenance Manual Copyright 2003, Xantrex Technology Inc.
  • Page 32 C ° i l n a t l t l u r e t r e t PV-100208 Photovoltaic Inverter DOCUMENT: 151700 Operation and Maintenance Manual Copyright 2003, Xantrex Technology Inc.
  • Page 33 < < e l s e t i < < < < t n i e t i e l s PV-100208 Photovoltaic Inverter DOCUMENT: 151700 Operation and Maintenance Manual Copyright 2003, Xantrex Technology Inc.

  • Page 34: Warranty And Certifications

    Xantrex Inverter Warranty Registration Underwriters Laboratories Compliance Of Standard UL1741 DRAWINGS LIST 151667 : Schematic, System, Grid Tied PV Inverter, PV-100208 151701 : Envelope Drawing, Grid Tied Inverter, PV-100208 151702 : Enclosure, Main, Control Components, PV-100208 151703 : Enclosure, AC Interface, PV-100208...
  • Page 35 For wall-mounted products (generally, below 30 kW in rating), defective products must be returned to Xantrex or it Authorized Service Center in the original or equivalent packaging. The cost of transportation and insurance on items returned for service is at the Customer’s expense.
  • Page 41 Xantrex Technology Inc. PV-100208 Photovoltaic Inverter Major Parts List Assembly Description: Main Enclosure, Control Components, PV-100208 Xantrex Technology Assembly # 151702 Item # Reference Designator Xantrex Technology Part # Description Upper Enclosure 1-151572-01 Fab, Enclosure, Upper, 1 Bay, PV100208 1-151198-02...
  • Page 43 Xantrex Technology Inc. PV-100208 Photovoltaic Inverter Major Parts List Assembly Description: Enclosure, AC Interface, PV-100208 Xantrex Technology Assembly # 151703 Item # Reference Designator Xantrex Technology Part # Description 1-151575-01 Fab, Enclosure, AC Interface, PV100208 1-151665-01 Fab, Panel, Encl, AC, PV100208...
  • Page 45 Xantrex Technology Inc. PV-100208 Photovoltaic Inverter Major Parts List Assembly Description: Enclosure, DC Interface, PV-100208 Xantrex Technology Assembly # 151704 Item # Reference Designator Xantrex Technology Part # Description 1-151576-01 Encl, DC Inter, PV100208 1-151666-01 Fab, Panel, Encl, DC, PV100208...
