Dakota Digital VHX-68C-VET Instrument Installation

For 1968-77 corvette

Download this manual

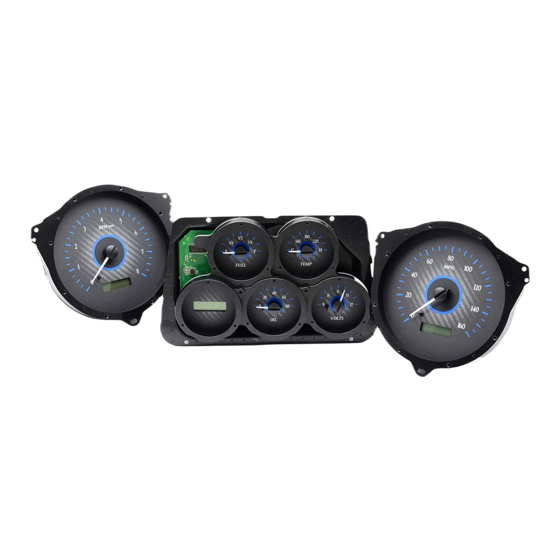

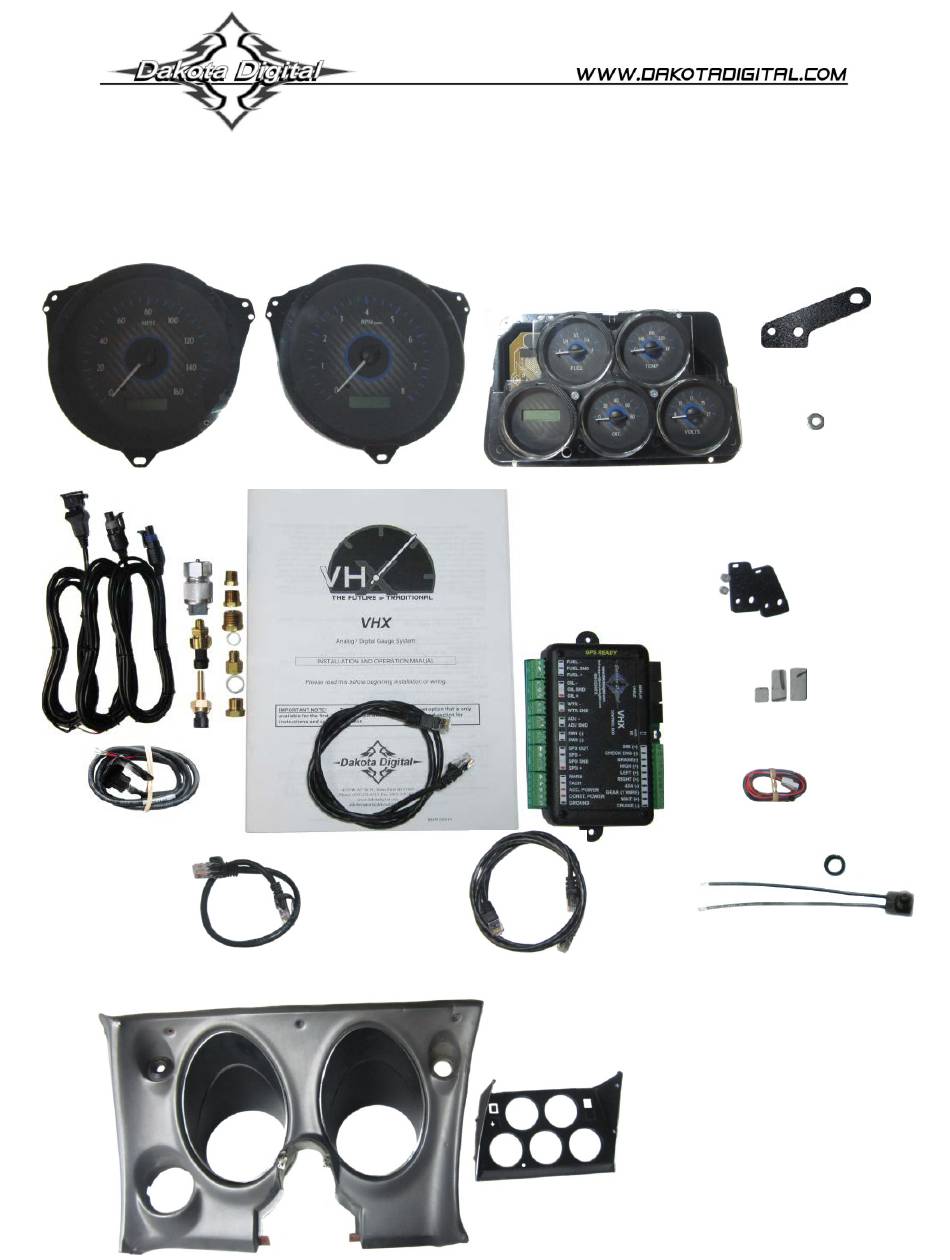

Your new VHX-68C-VET kit includes:

Universal Sender

Pack

Switch Assembly

Installation

1. Remove the stock gauge clusters from the dash and save all hardware for reassembly.

VHX-68C-VET

Dakota Digital VHX Instrument Installation

For 1968-'77 Corvette

VHX Displays

Installation Manuals

(1) 60" CAT5 Cable

(1) 36" CAT5 Cable

(1) 12" CAT5 Cable

Extended ABS Mounting

Bracket

(2) ABS Mounting Brackets

(2) Thumb Nuts

Control Box

(3) Block-Off Lenses

Clock Switch Harness

Clock Switch

Washer

Manual # 650429C

Page 1 VHX-68C-VET Dakota Digital VHX Instrument Installation For 1968-’77 Corvette Your new VHX-68C-VET kit includes: Extended ABS Mounting VHX Displays Bracket Washer Universal Sender Pack Installation Manuals (2) ABS Mounting Brackets (2) Thumb Nuts Control Box (3) Block-Off Lenses Clock Switch Harness...
Page 2 2. Remove the stock gauges, separator plate, and lenses from the bezels. For the main cluster, reattach the lens spacer to the bezel after removing the lens as shown (white arrows). The only items to be reused are the original front bezels and gauge mounting hardware. Now is a good time to clean or refinish the bezels.
Page 3 4. Once the VHX gauges are secured to the bezel; connect the 12” CAT5 cable to the Tachometer, and the other end to either port on the Speedometer, connecting the two halves. With the 36” CAT5 cable, connect one end to the open port on the Speedometer, and as the assembled cluster is installed into the dash, carefully route the other end of the cable to the control box mounting location.
Page 4 7. Attach the provided 60” CAT5 Cable and the 3-Pin Switch Harness to the back of the VHX display. Carefully route the other ends to the control box mounting location and refer to manual 650360 for switch wiring instructions. 8. The clusters are now ready to re-install into the vehicle using stock hardware. Refer to the main manual for wiring instructions to complete the VHX installation.
