Icom IC-R30 Service Manual page 7

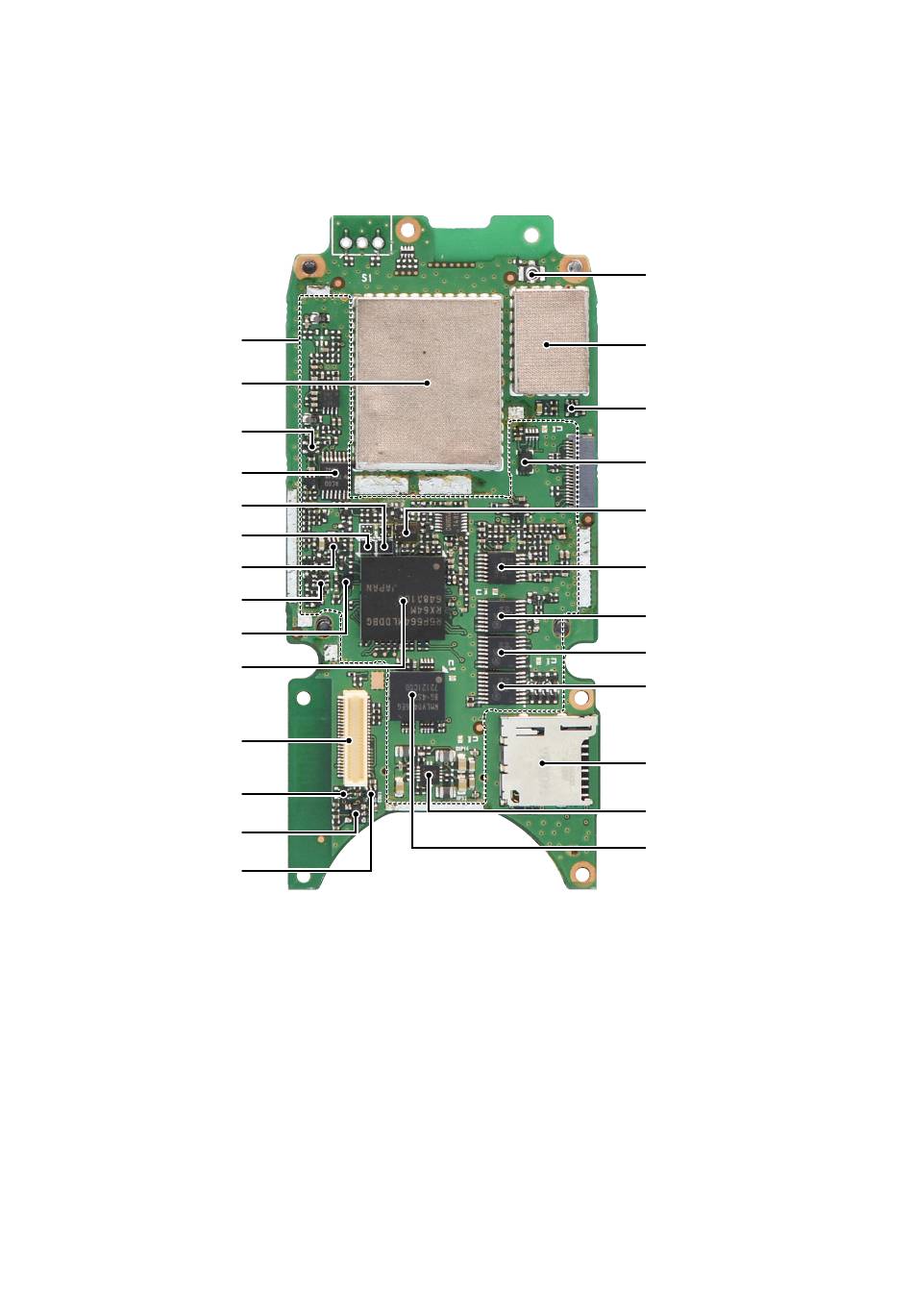

• LOGIC/-1 UNIT (BOTTOM VIEW)
SHIELD PLATE
DSP
(IC200)
Inside the shielded case.
+3 V REGULETOR
(IC205)
RESET
(IC1)
EEPROM
(IC5)
EEPROM
(IC6)
CLONE
(IC3)
BATTERY GAUGE
(IC12)
USB DET
(IC25)
CPU
(IC4)
J4
+3 V REGULETOR
(IC24)
+3 V REGULETOR
(IC14)
+3 V REGULETOR
(IC20)
2-2
J3
GPS RECEIVER MODULE
(IC16)
Inside the shielded case.
LEVEL CONVERTER
(IC15)
FLASH ROM
(IC202)
24 MHz SPRED SPECTRUM
OSCILLATOR
(X1)
LPF
(IC209)
I/O PORT
(IC17)
I/O PORT
(IC18)
I/O PORT
(IC19)
J2 [SD CARD SLOT]
DC-DC CONVERTER
(IC206)
SRAM
(IC9)
