SECTION 2

INSIDE VIEWS

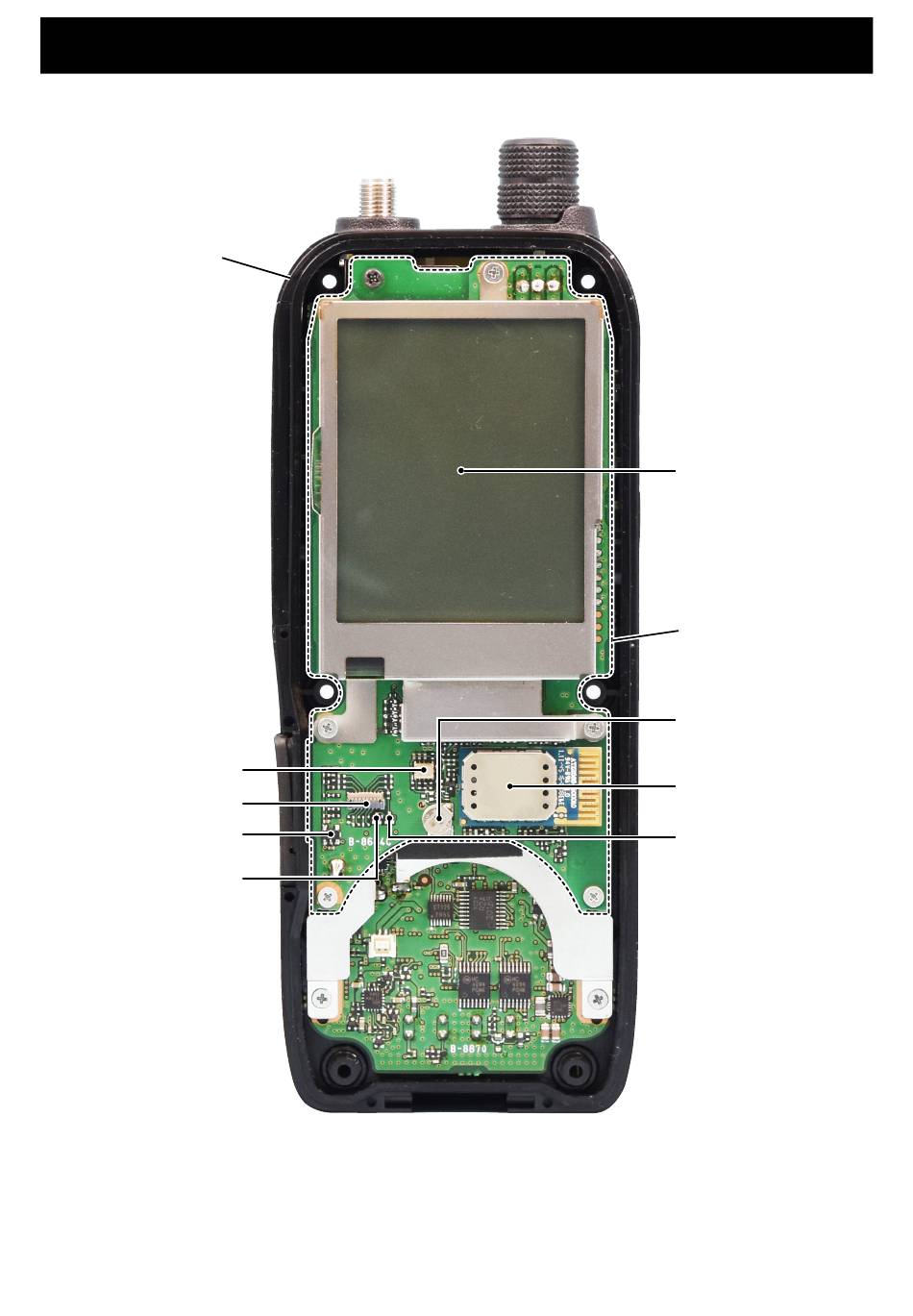

• LOGIC/-1 UNIT (TOP VIEW)
REAR PANEL
LCD
(DS4)
LOGIC/-1 UNIT
REALTIME CLOCK
BACKUP BATTERY
(BT1)
REALTIME CLOCK IC
(IC10)
BLUETOOTH MODULE
(IC21)
J6
+3 V REGULETOR
KEY BACKLIGHT SWITCH
(IC2)
(Q16)
KEY BACKLIGHT SWITCH
(Q15)
2-1
