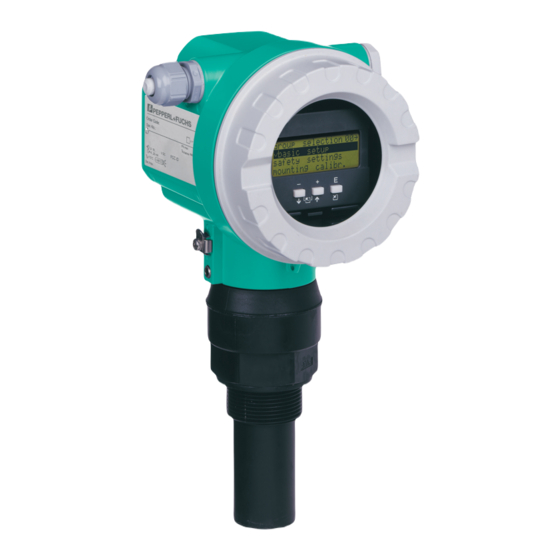

Ultrasonic level sensor luc-m with hart and 4 ma 20 ma
Hide thumbs Also See for HART LUC-M10:
Table of Contents

Advertisement

Quick Links

Download this manual
BA 237O/98/en/05.05
52027986
185564 05/05 00
Ultrasonic level sensor
LUC-M** with HART and 4 mA ... 20 mA
Operating instructions
LUC-M10
HART
HART
R R
FIELD COMMUNICATION PROTOCOL
C
LUC-M40
LUC-M30
LUC-M20
