Archive Management - Gima CARDIOPOCKET ECG User Manual

ENGLISH
66
Function introduction
Data and time settings.
Operating instructions
Select the wanted item, and click or to set.

13.8 Archive Management

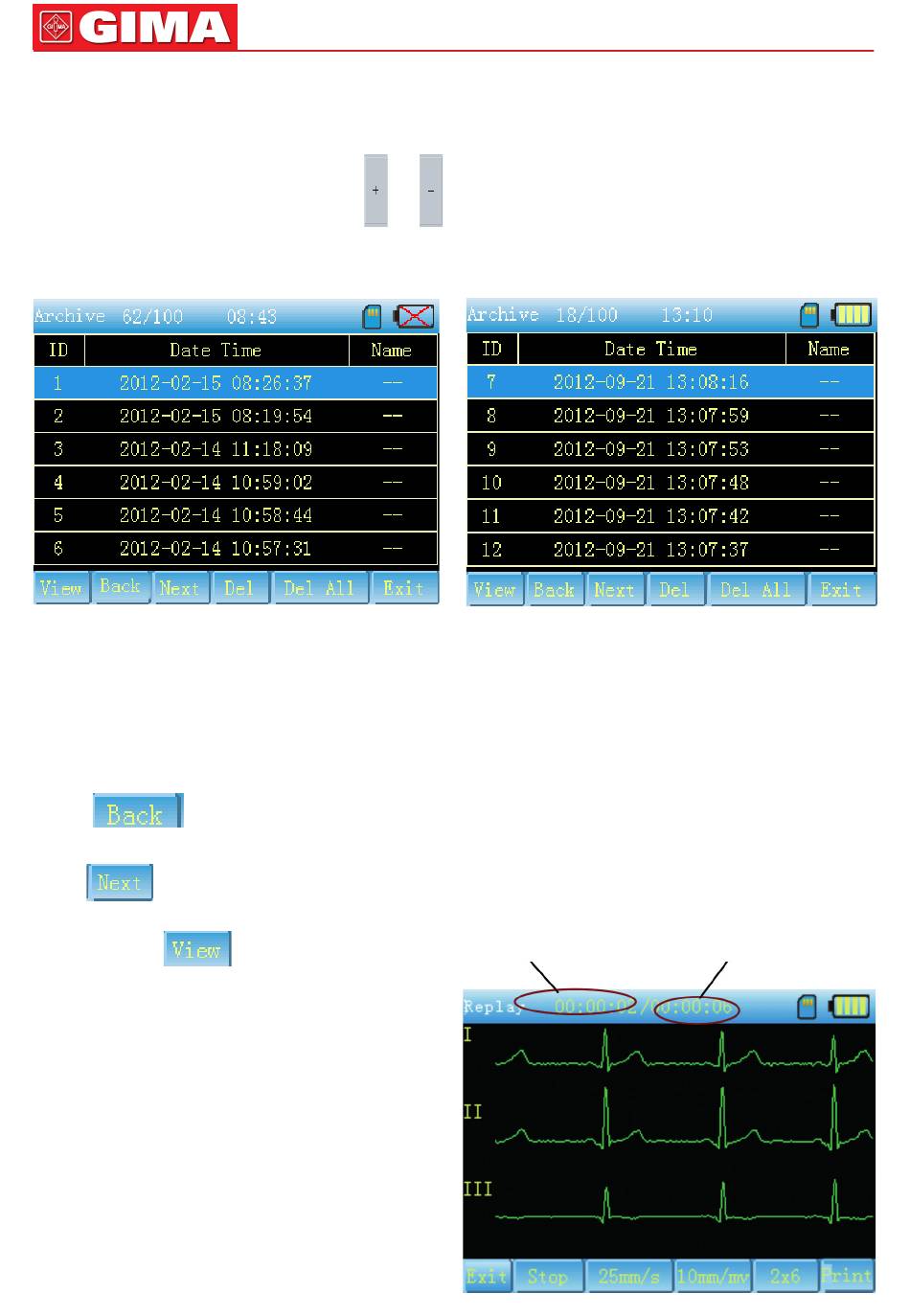

As Fig.13-8-1 and 13-8-2
Fig. 13-8-1 Fig. 13-8-2
Function introduction
Here you can look over all of the stored case, and can replay or delete them.
Operating instructions
Click the case directly or press [UP] [DOWN] to examine the case you want.
Gray shows the current page is the first, otherwise it can be clicked to turn
the page up.
Gray shows the current page is the last, otherwise it can be clicked to turn the
page down.
Current time of replay Case time length
Replay: click or press [Confirm]
on the panel to replay waves.
Its interface is as Fig.13-8-3.
Fig. 13-8-3
