Gima Sonoline C 29480 User Manual
  1. Manuals
  2. Brands
  3. Gima Manuals
  4. Medical Equipment
  5. Sonoline C 29480
  6. User manual

Gima Sonoline C 29480 User Manual

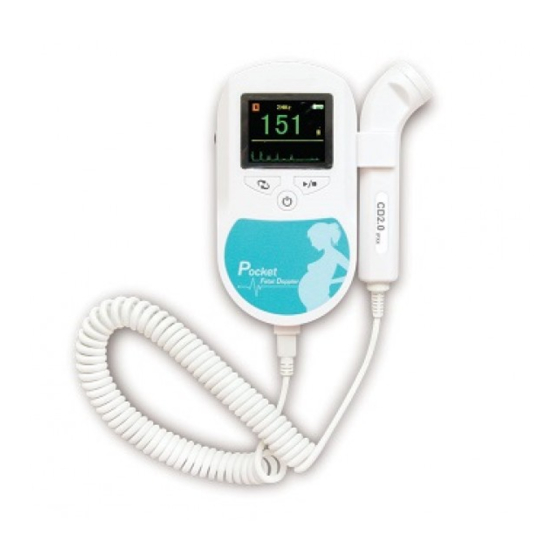

Colour screen pocket doppler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PROFESSIONAL MEDICAL PRODUCTS
DOPPLER PORTATILE CON SCHERMO A COLORI
COLOUR SCREEN POCKET DOPPLER
ÉCRAN PORTATIF COULEUR DOPPLER
PANTALLA DE COLOR PORTÁTIL DOPPLER
MONITOR A CORES DETECTOR DOPPLER
DE BOLSO
FARBBILDSCHIRM-TASCHENDOPPLER
Manuale d'uso - User manual - Manuel de l'utilisateur
Guía de uso - Guia para utilização
Gebrauchs- und instandhaltungsanleitung
ATTENZIONE: Gli operatori devono leggere
e capire completamente questo manuale
prima di utilizzare il prodotto.
ATTENTION: The operators must carefully read
and completely understand the present manual
before using the product.
AVIS: Les opérateurs doivent lire et bien
comprendre ce manuel avant d'utiliser le produit.
ATENCIÓN: Los operadores tienen que leer y entender
completamente este manual antes de utilizar el producto.
ATENÇÃO: Os operadores devem ler e entender
completamente este manual antes de usar o produto.
ACHTUNG: Diese Anleitung muss vor dem Einsatz des
Produkts aufmerksam gelesen und vollständig verstanden werden.
29480 / Sonoline C
CONTEC MEDICAL SYSTEMS CO., LTD
No.112 Qinhuang West Street, Economic & Technical
Development Zone, Qinhuangdao, Hebei Province,
PEOPLE'S REPUBLIC OF CHINA
Made in China (P.R.C.)
Shanghai International Holding Corp. GmbH (Europe)
Eiffestrasse 80, 20537 Hamburg, Germany
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
0123
