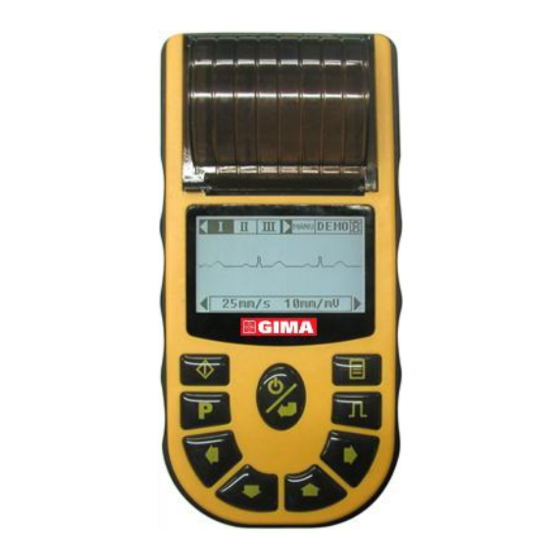

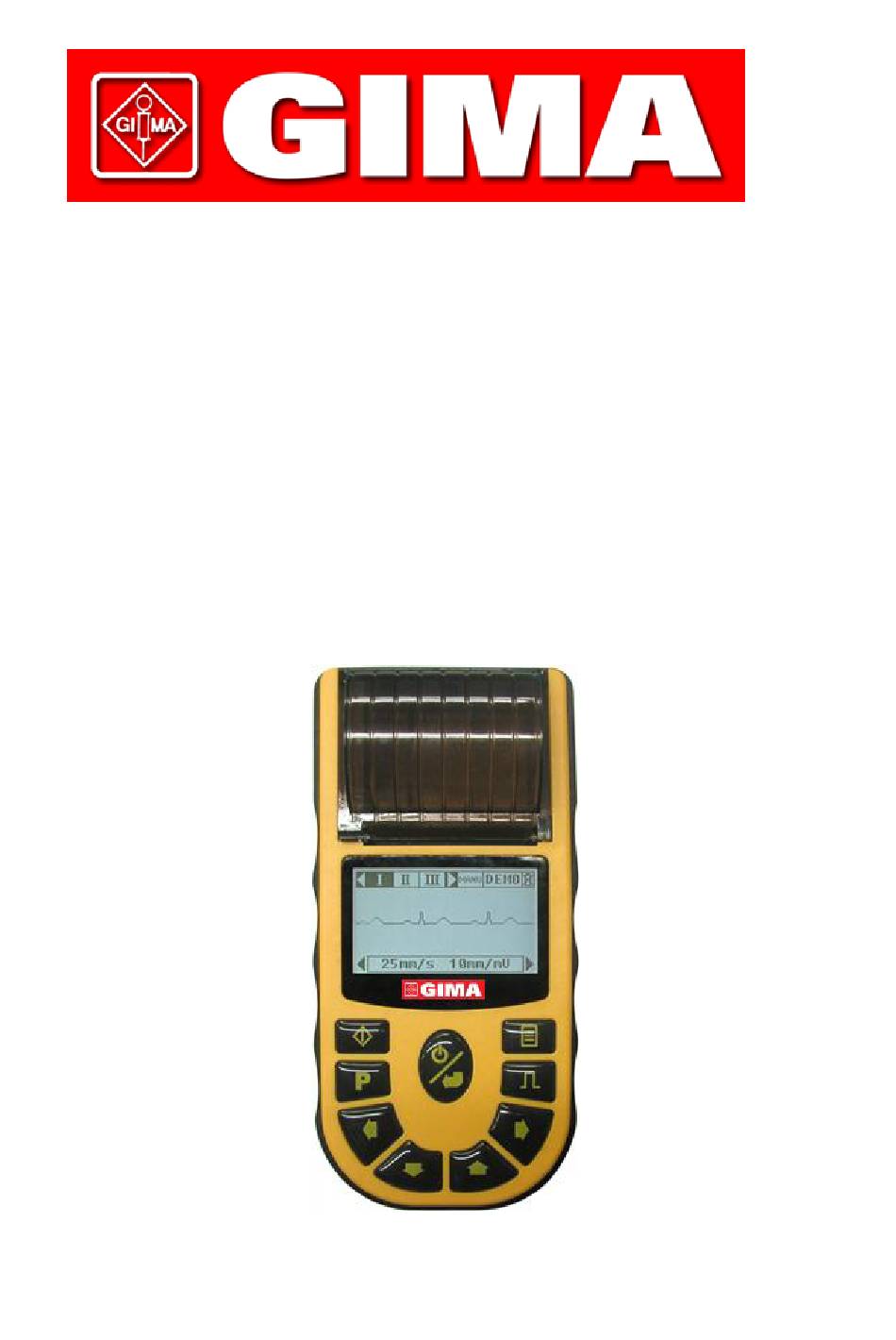

- Page 1 Code 33257 CARDIOPOCKET ECG USER MANUAL...
- Page 2 This Manual is written and compiled in accordance with the council directive 93/42/EEC for medical devices and harmonized standards. The Manual is written for the current CMS80 Electrocardiograph. In case of modifications and software upgrades, the information contained in this document is subject to change without notice.
-
Page 3: Table Of Contents
Contents 1 Safety ............................... １ 2 Overview ............................２ 3 Principle and Caution ........................３ 4 Technical specifications ......................... ４ 5 Accessories ............................４ 6 Installation ............................５ 7 Operating Guide ..........................８ 8 The notice of the battery operating ..................１２ 9 Repairing and Maintenance ...................... -
Page 4: Safety
1 Safety 1.1 Instructions for safe operations Check the main unit and all accessories periodically to make sure that there is no visible damage that may affect patient’s safety and monitoring performance about cables and transducers. It is recommended that the device should be inspected once a week at least. When there is obvious damage, stop using the monitor. -
Page 5: Overview
CMS80 ECG successfully after their deep research and reduplicate tests. This equipment adopts the thermal recording mode (the key point of thermal recording technique is the core component---thermal recording probe. -
Page 6: Principle And Caution
Please don’t use with other electronic stimulating equipment, if it has to, it needs conduction of professors. (2) If other machine used connecting with CMS80, the machines have to fit in with the standard of — ３ —... -
Page 7: Technical Specifications
IEC60601, because the sum total of leakage is able to hurt patients, so the monitor of leakage current is responsible by the inserting side. 4 Technical specifications (1) Display Format: LCD Display; Battery Voltage Indication: three segments display. (2) Power Requirements: POWER ADAPTOR ：... -
Page 8: Installation
6 Installation 6.1 Sketch on each side and accessory Front view — ５ —... - Page 9 6.2 Electrode Placement Advice: Set the chest electrode first, then the limb electrode. 6.2.1 Chest electrode: V1: Fourth inter-costal space at right border of sternum. V2: Fourth inter-costal space at left border of sternum. V3: Midway between V2 and V4. V4: Fifth inter-costal space at left mid-clavicular line.
- Page 10 Attention: The ECG medical gel coating should be separated, and the touching chest electrode may result in short circuit. 6.2.2 Limb electrode Place the electrode on the hand and leg, clean the positions around to which limb electrodes are to be attached with alcohol, then lay some ECG medical gel on the cleaned skin.
-
Page 11: Operating Guide
6.3 Paper loading: （1） The instrument uses 57mm single track wrap-round recording paper. （2） Open the paper cabinet cover, take out the paper axis, and put it into the recording paper according to the illustration, then clip them in the relevant position in paper fixer. （3）... - Page 12 (1) Patient cabling indicator column: Press the button to choose the patient cabling indictor column, the guide arrow in the column just turning (for example: ), then press the button to choose the corresponding patient cable, the instrument switches to the corresponding patient cable inspection. The relevant patient cable No.
- Page 13 When the leads state is "DROP", leads shown on the screen have been off .Please reconnect them . (4) Printing: Under this conditions, press to startup the printer’s printing-system information setting and the ECG waveform; press again to close down the printer. ATTENTION: When there is no paper in the paper cabinet, the instrument will indicate you to install the paper when you press the or the...
- Page 14 Press the again to renew the operation. 7.3 Shortcut setup menu: Shortcut Set Sensitivity 10mm/mV Switch Mode MANU Filter Speed 25mm/s English Interface (1) Short menu: Press to enter this interface. Press to choose the relevant items and the item just turning, then press button to set the information, and then press to return.
-
Page 15: The Notice Of The Battery Operating
just turning, then press button to set the information, and then press to return. (4) Contents explanation: Backlight: 0-99 seconds, the time of turning on the backlight, and the backlight normally off when it sets 0 second. Contrast: 00-20, set the corresponding number according to different types of instrument. Language: English, Chinese, totally two types of language interface. -
Page 16: Repairing And Maintenance
! Warning Please don’t connect the anode and cathode with lead of battery directly, it will cause danger. Please don’t put the battery on fire. It may cause explosion. Please don’t disassemble the battery privately. The battery should be taken gently, please don’t strike it with other article. 9 Repairing and Maintenance ！Attention：... -
Page 17: Troubleshooting
9.2 cleaning Use fine-hair cloth moistened in mild soap liquid or cleaning agent containing 70% ethanol to clean the equipment. 9.3 Sterilization To avoid extended damage to the equipment, sterilization is only recommended when stipulated as necessary in the Hospital Maintenance Schedule. Sterilization facilities should be cleaned first. Recommended sterilization material: ... - Page 18 10.3 EMG interference (1) A comfortable patient room. (2) Soothe the patient from irritation or excitement. 10.4 Baseline drift (1)Make sure the steady installation of the electrodes. (2) Verify the electrode attachment and patient cable wire performance. (3) Check the cleaning of electrode and patient skin. Daub enough ECG medical gel on the electrodes and patients’...
- Page 19 1·Improvement environment 2·If iron and steel bed ，Need 1·AC interference is big The baseline change 2·The patient excitement， EMG interference possess the burr 3·the power source line and joint line is big of the ECG machine is non- parallel or too near 1·Electrode electric conductivity is not good 1·The alcohol of use is asked for...
-
Page 20: Key Of Symbols
11 Key of Symbols Symbol Description CF applied part，Have except for shakes the protection。 Warning – See User Manual Direction Key: Up. Direction Key: Down. Direction Key: Left Direction Key: Right. Function key：power supply/acknowledgement/shortcut menu Function Key: Pause/On Function Key: System Menu. Function Key: Print. - Page 21 The warranty is valid for 12 months from the date of supply of GIMA. During the period of validity of the warranty, GIMA will repair and/or replace free of charge all the defected parts due to production reasons. Labor costs and personnel traveling expenses and packaging not included.
