13.5 Print Setting

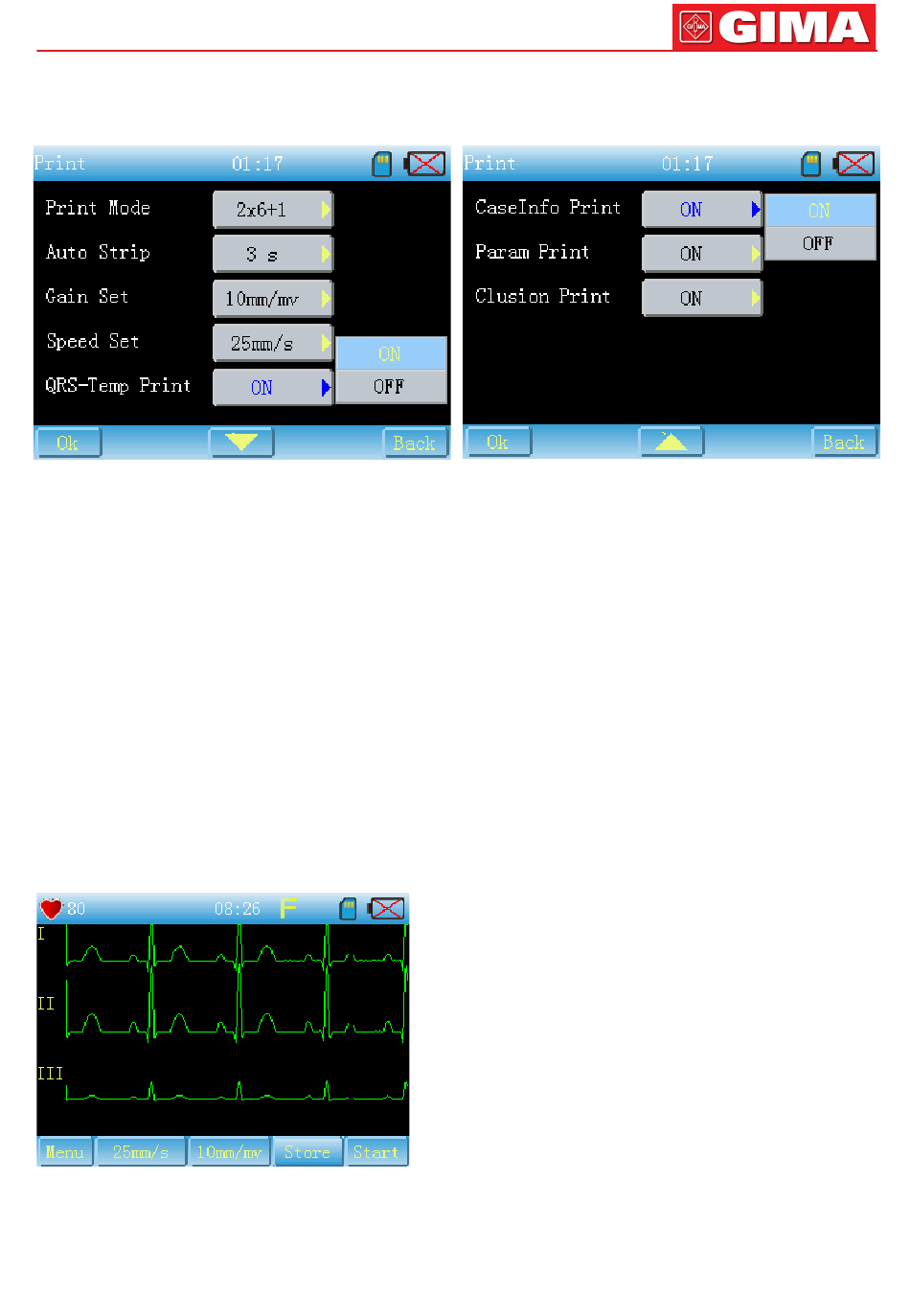

The interface is shown as Fig.13-5-1 and 13-5-2.
Fig. 13-5-1
Function introduction
Print setting, prepared for print, includes print mode, auto strip, gain set, speed set,
report print set (QRS-temp, case information, parameters, conclusion)
Operating instructions
1 Print mode
1x12, 1x12+1, 2x6, 2x6+1, 3x4, manual, store modes including.
The operating instruction of each mode is shown as following:
1x12+1, 2x6+1: rhythm lead print, rhythm lead can be set in analysis setting.
1x12, 2x6, 3x4: automatical print
Manual: in manual mode you can print waveform according to your need without
save.
Store: in this mode case can be saved but can't be printed. The interface is shown s
Fig.13-5-3
ENGLISH
Fig. 13-5-2
Fig. 13-5-3
