4.15 Digital signal processing, to obtain the ECG of higher quality by AC, DFT and EMG
filter.
4.16 Auto-measurement, auto-analyse and auto-diagnosis of regular ECG parameter,
reduce doctor's burden and improve working efficiency.
4.17 The figure of whole device is elegant, gliding, smart and portable, the weight of
device is less than 1kg.
4.18 Classification according to the defense degree of deleterious fluid: IPX0.
4.19 Classification according to the safe degree of the device used under the condition
with flammable anaesthesia gas mixed with air (or oxygen, nitrous oxide): unsuit-
ed to use.
4.20 Working mode classification: continuous working device.
Chapter 5
PANEL SKETCH MAP

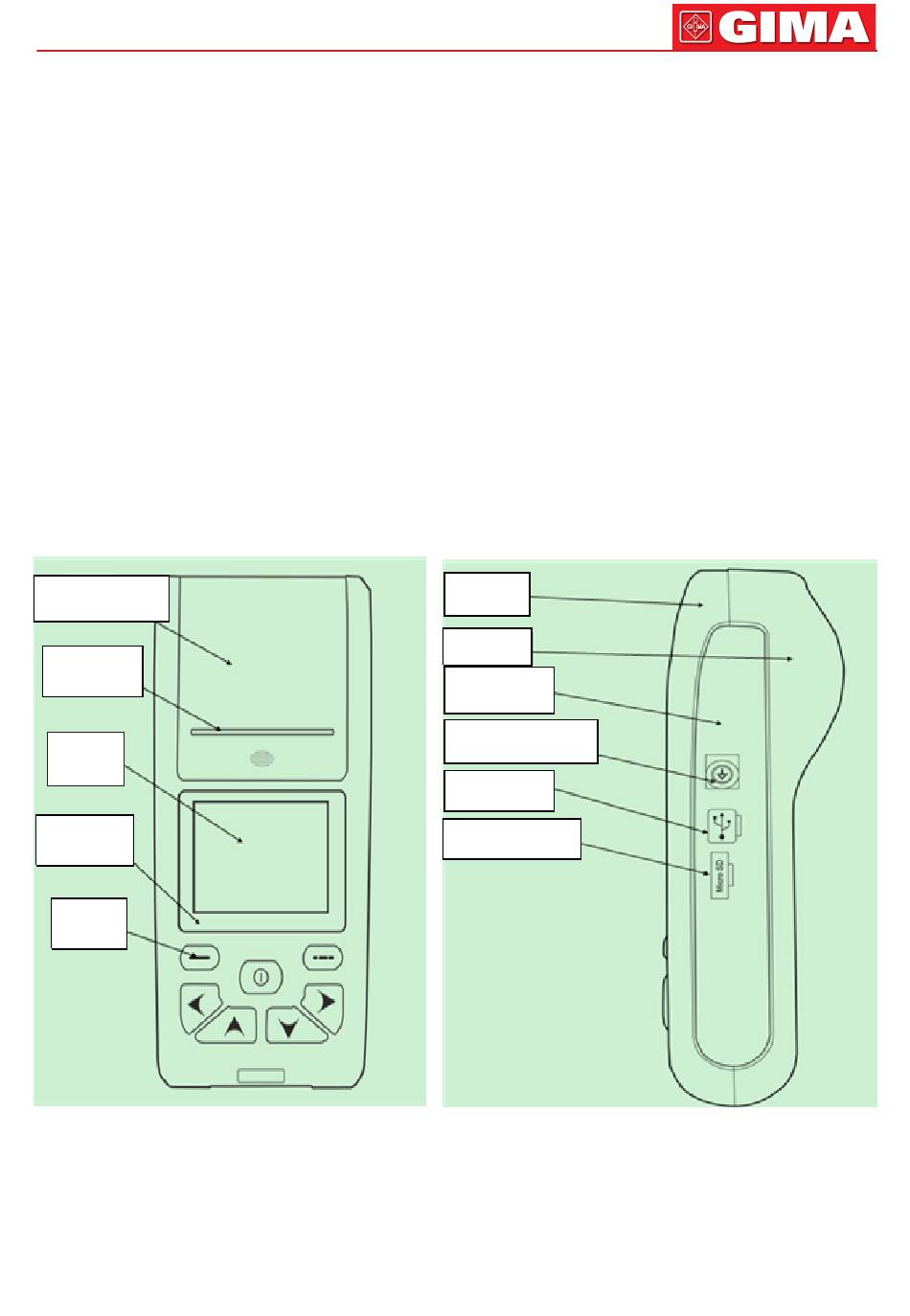

5.1 Each panel view and its components
Paper carriage
cover
Peper-out
port
Screen
Touch
board
Key-
press
Front view
ENGLISH
Cover
Bottom
Side baffle
Grounding post
USB port
SD connector
Side view
