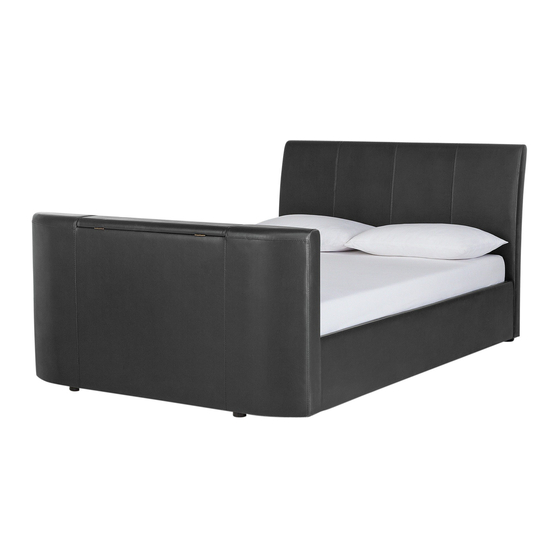

Lamberto Ottoman TV Bed
Assembly Instructions - Please keep for future reference
Dimensions (4-6)
Length - 227 cm
Width - 146 cm
Height - 103 cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call one of the Customer Helplines:
0
3
4
5
6
4
0
0
800 (For order problems,incorrect product or missing/damaged parts).
01626 879 158 (Only for problems with TV Installation, Electrical System or TV Lift not working).
496/8870
Issue 1 - 11/10/15

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lamberto Ottoman TV Bed and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Lamberto Ottoman TV Bed

  • Page 1 Lamberto Ottoman TV Bed Assembly Instructions - Please keep for future reference 496/8870 Dimensions (4-6) Length - 227 cm Width - 146 cm Height - 103 cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call one of the Customer Helplines: 800 (For order problems,incorrect product or missing/damaged parts).
  • Page 2 Safety and Care Advice Assemble the item as close We do not Check you have all the recommend the components and tools listed on to its final position (in the same pages 2 and 3. room) as possible. use of power drill/drivers for Remove all fittings from the Assemble on a soft level...
  • Page 3 0345 6400 800 Footboard (4-6 -1460 × 770mm) Headboard (4-6 -1460 × 1030mm) Side rails x2 (4-6 - 1930 × 305 x 35mm) Angle Brackets x4 Fabric Hand Strap Fabric base cover (4-6 -1420 × 1960mm) Ottoman Frame (4-6 -1900 × 1370mm) ‘U’...
  • Page 4 Components - Fittings 0345 6400 800 Allen Screw (M8x30mm) Allen Screw (M8x45mm) Spring Washer (for M8 screw) Flat Washer (for M8 screw) Allen Key (for M8 screws) Nut (M8) Flange Lock-Nut Mattress Stopper Spanner For holding nuts (F&H) Screw (4x50mm) Cable Clip Cable Tie Mains Power Lead (3 metre)

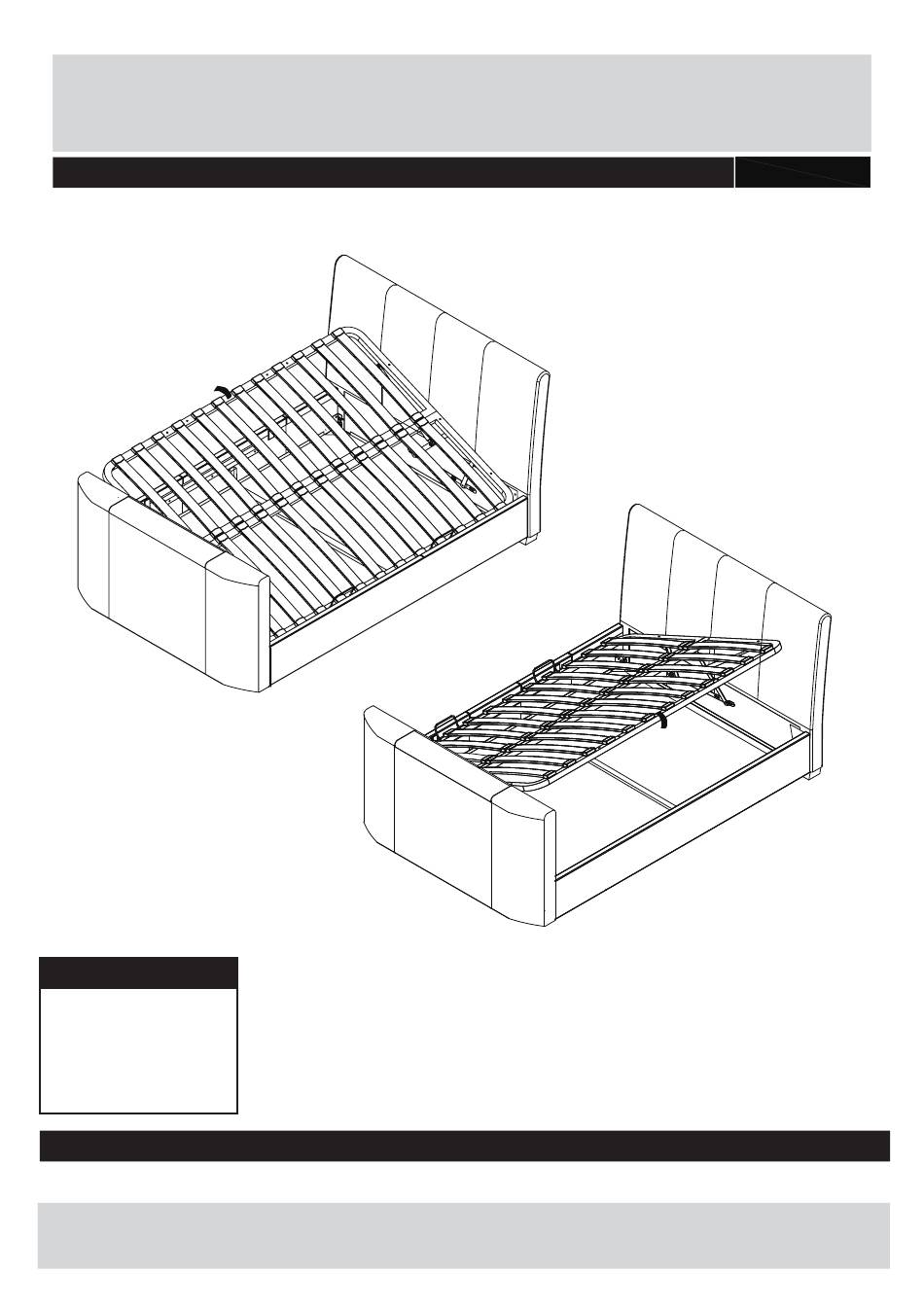

  • Page 5 Assembly Instructions Opening from left side At this stage you can choose to have the ottoman frame lifting from either side as shown. Attaching Hinge IMPORTANT Mechanism Use blue colour fixing For Left Opening holes for left side opening. To lift from the left side, assemble hinge mechanisms in the...
  • Page 6 Assembly Instructions Opening from right side Attaching Hinge Mechanism For Right Right Opening To lift from the right side, IMPORTANT assemble hinge Use red colour fixing holes mechanisms in the for right side opening. location shown. Note: Use the holes color coded red.
  • Page 7 Assembly Instructions Loosely insert screws with spring washers 10mm and flat washers into each side of headboard and footboard Note: Do not tighten fully Leave 10mm protruding as in the diagram. b: Hang the side rail brackets onto screws behind the flat washers.
  • Page 8 Assembly Instructions Assembling Bedstead Make sure the frame is straight and square. Fit angle brackets into each corner, using fixings Note: Do not fully tighten at this stage. b: Fit the 'U' shaped cross to centre of side rails using screws Note: The fixing hole locations are marked...
  • Page 9 Assembly Instructions Fitting Base Cover With help, carefully turn the frame on its side and attach fabric base cover to the bottom of the side rails, headboard and footboard with the velcro tape. Make sure fabric is fixed evenly all round. ! Warning: The frame is heavy.
  • Page 10 Assembly Instructions Prepare To Install TV Before fitting the television to the TV lift please check below: Maximum dimensions of TV that can be used in this bed: Width = 80 cm Depth 7 cm Height = 44 cm Maximum weight of TV that can be used in this bed = 6.5 Kg To Raise The...
  • Page 11 Assembly Instructions Fitting TV with Vesa mounting holes at 100mm 200mm 100x100, 200x100 or 200x200mm For these mounting hole positions, use the TV mounting bracket. You may need to try one or two different fixing positions to get the TV aligned in the best position.
  • Page 12 Assembly Instructions Fitting TV with Vesa mounting holes at 75mm 75mm 75x75mm For these mounting hole positions - remove bracket (x) & fit TV directly to column bracket (y) Make sure TV is never Max 2 cm more than 2cm above top of palm pressing handle or the lid cannot close properly.
  • Page 13 Assembly Instructions TV Levelling Adjustment TV bracket is levelled during manufacture - if you need to level it again, follow this method. UNLOCK SCREWS ADJUST SCREW WHEN TV IS LEVEL - LOCK SCREWS...
  • Page 14 Assembly Instructions Fitting Cables HDMI Lead (Not supplied) Aerial Lead (Not supplied) CABLES ROUTED INSIDE THE FOOTBOARD TV Power Cable (Supplied with TV) HDMI Aerial Lead Lead a: Place the cable manager clip over TV Power Cable the cable, as close to the TV as possible.
  • Page 15 Assembly Instructions Connect Power Lead Connect the power lead plug into the socket located at the bottom of the footboard then connect to your wall socket. Note: The plug is earthed and the wall socket must be earthed too. The mains power socket must be easy to reach if you need to disconnect the power for any reason.
  • Page 16 Assembly Instructions Fitting Ottoman Frame Slat Frame Support Bar a: Keeping your hands clear of the folding mechanism, carefully raise hinge mechanisms the upright position. b: With help, carefully lift ottoman frame into position. Note: Make sure the holes for mattress stoppers and the fabric hand strap are Mattress Stopper Holes on correct side as shown.
  • Page 17 Assembly Instructions Fitting Ottoman Frame a: With help, carefully lower the frame down. Make sure there is an even gap all round of about 10mm, as in the sketch. Hold frame then fully tighten all fixings using spanner and Allen key With help, raise the frame to the upright position as shown.
  • Page 18 Assembly Instructions Fitting Ottoman Frame Locate mattress stoppers into the holes in ottoman frame Note: Place mattress on slats then slowly push down the metal frame ensuring the edges are aligned with the side rails. Depending on the weight of the mattress, the speed of the lift will vary so be careful until you get used to the speed.
