Avebury 3ft Bed
Assembly Instructions
Dimensions
Width - 100,5cm
Depth - 203cm
Height - 110cm
– Please read these instructions fully before starting assembly
Important
If you need help or have damaged or missing parts, call the
- Please keep for future reference
Customer Helpline: 03456 400 800
355/2108
346/2724
Issue 1 - 07/11/14
Advertisement
Table of Contents
Related Manuals for Argos Avebury 3ft Bed 355/2108
Summary of Contents for Argos Avebury 3ft Bed 355/2108

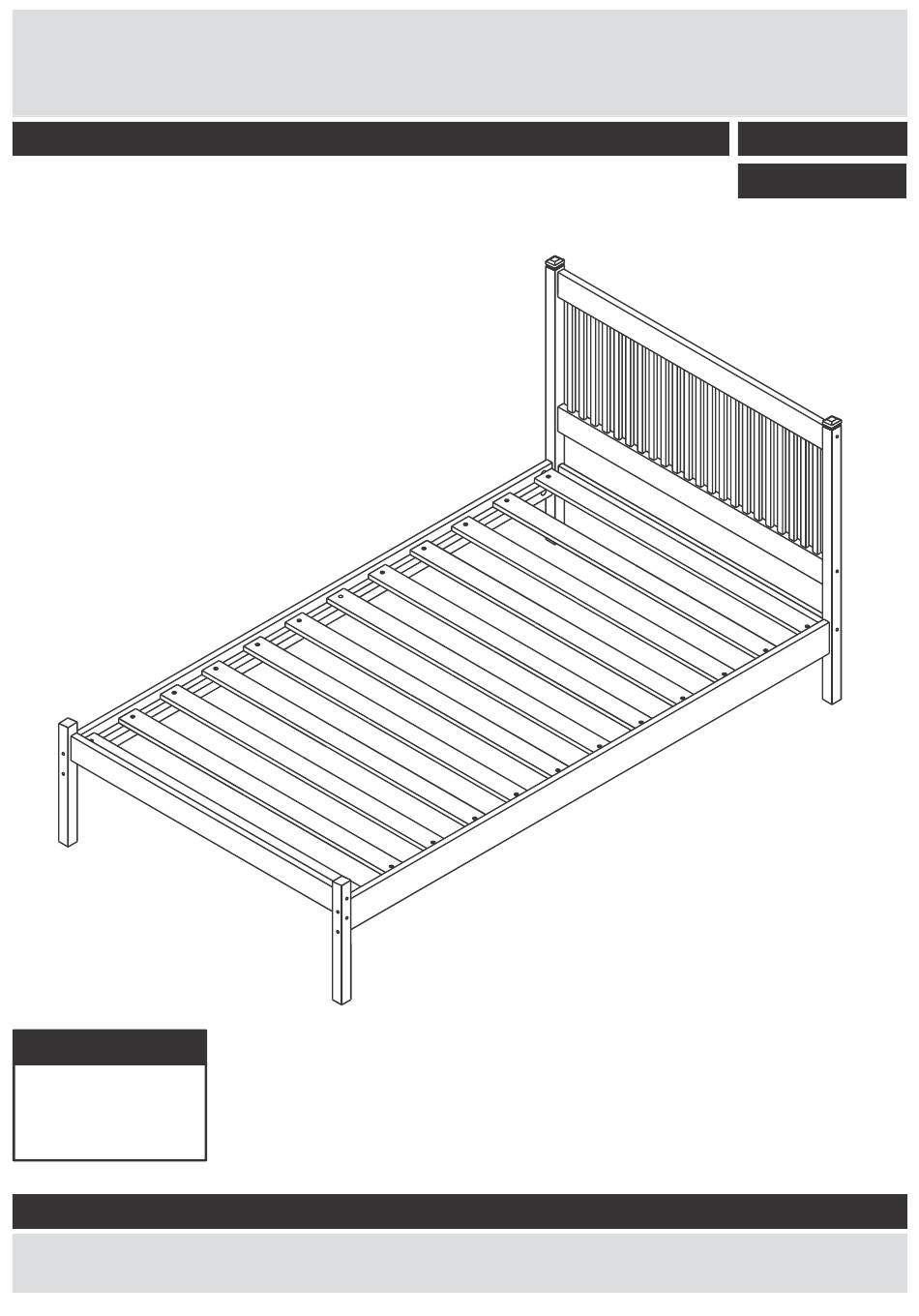

- Page 1 Avebury 3ft Bed 355/2108 - Please keep for future reference Assembly Instructions 346/2724 Dimensions Width - 100,5cm Depth - 203cm Height - 110cm – Please read these instructions fully before starting assembly Important If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800 Issue 1 - 07/11/14...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly . Check you have all the Assemble on a soft level We do not components and tools listed on surface to avoid damaging the recommend the unit or your floor.
- Page 3 Components - Panels Please check you have all the panels listed below 05 Footboard Rail (87,5 x 11,5cm) 01 Large Foot (110 x 6,5cm) 06 Side rails x 2 (190 x 11,5cm) 02 Small Foot (45 x 6,5cm) 07 Slats x 12 (91,5 x 6,9cm) 03 Headboard Rail (87,5 x 9cm)
- Page 4 If you have damaged or missing components, Components - Fittings call the Customer Helpline: 03456 400 800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 Assembly Instructions Step 1 Fitting dowels Insert dowels into the indicated parts.
- Page 6 Assembly Instructions Step 2 Fixing headboard: Fix large feet headboard panel headboard rail using bolts and allen key shown. Step 3 Fixing footboard: Fix small feet and small feet to the footboard rail using bolts and allen as shown.
- Page 7 Assembly Instructions Step 4 Assembling side rails: Attach side rails to the headboard. Insert half moon nut into side rails as shown. Then fix them to the headboard using bolts and allen key Caution: Assembling of Step 4 and Step 5 will be easier with 2 people.
- Page 8 Assembly Instructions Step 6 Fixing slats: Centralize slats in bed frame prior to fixing. Fix slats using screws shown. Fix slats in one side first, then fix them in the other side by pushing the rail against the slats if necessary.
