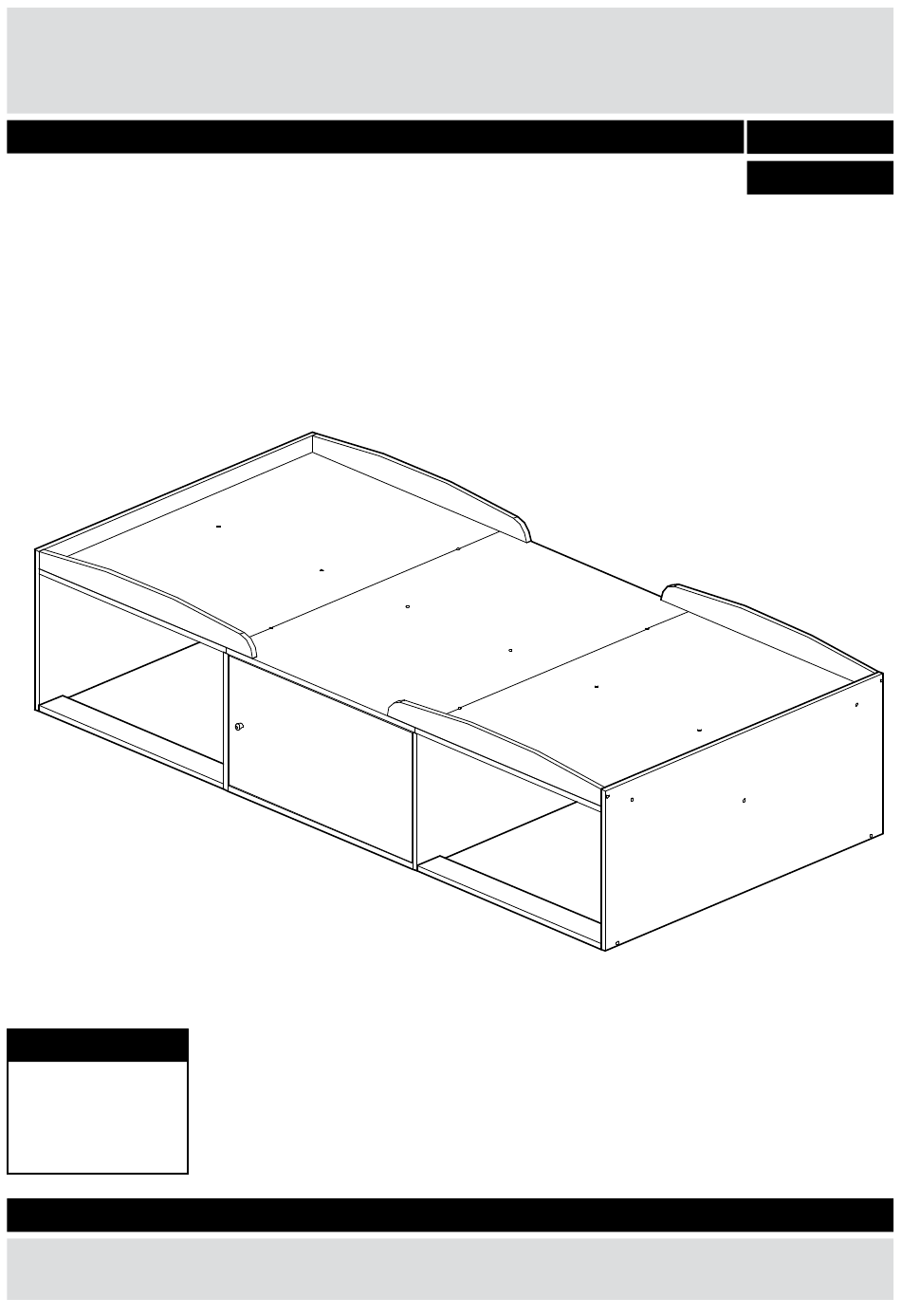

Wow Leo - Cabin Bed
Assembly Instructions
Dimensions
Width - 195cm
Depth - 95cm
Height - 45cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
- Please keep for future reference
167/9605
183/6929
Issue 1 - 9/30/13
Advertisement
Related Manuals for Argos Wow Leo 167/9605
Summary of Contents for Argos Wow Leo 167/9605
- Page 1 Wow Leo - Cabin Bed Assembly Instructions 167/9605 - Please keep for future reference 183/6929 Dimensions Width - 195cm Depth - 95cm Height - 45cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 9/30/13...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on • We do not components and tools listed on the product, this could cause recommend the pages 2 and 3.
- Page 3 Components - Panels If you have damaged or missing components, 08456 400800 call the Customer Helpline: Please check you have all the panels listed below Front/back bed support x 4 (73 x 7 cm) Right side panel (95 x 42.5 cm) Middle bed board (95 x 64.5 cm) Left side panel...
-
Page 4: Tools Required
Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. 60mm wood screw x 14 50mm fixing screw x 28 30mm wooden dowel x 20 Locking nut x 6... - Page 5 Assembly Instructions Step 1 Assemble right module Two people are needed here. Insert the 30mm wooden Clockwise dowels to the right Clockwise side panel and to the right shelf partition Position the right central support and the right crossbars and fix them to the right side panel through 60mm...
- Page 6 Assembly Instructions Step 3 Attaching panels Two people are needed here. Insert the 30mm wooden dowels and the screw-in dowels the left shelf partition and to the right chelf partition . Use a phillips screwdriver for the screw-in dowels .Position the middle central support the middle crossbars Insert the locking nuts...
- Page 7 Assembly Instructions Step 4 - continued Position the middle board and screw Clockwise it to the middle central support through 50mm fixing screw Use a phillips screwdriver for the 50mm fixing screw Note: Use the panel with the thicker edge band in the middle of the bed with the thicker edge facing the front.
- Page 8 Assembly Instructions Step 6 Attaching panels First screw the front and the back bed supports to the right side panel and to the left side panel through 60mm wood screw . After that screw the left and the right bed boards the left side panel to the right side panel through 60mm wood...
- Page 9 Assembly Instructions Step 8 Attaching door Insert the hinges and screw them to the door through 16mm wood screw . Use the pilot holes. Position the handle and fix it to the door through 22mm bolt and a 9mm washer Position the mounting plates onto the right...
- Page 10 Assembly Instructions Step 9 - continued To move the door in or out: loosen screw shown and move the door to suit. Re-tighten screw. To move the door left or right: loosen or tighten the screw shown and move the door to suit. Step 10 Attaching stopper Insert the stopper...
