Assa Abloy EMTEK A Manual page 5

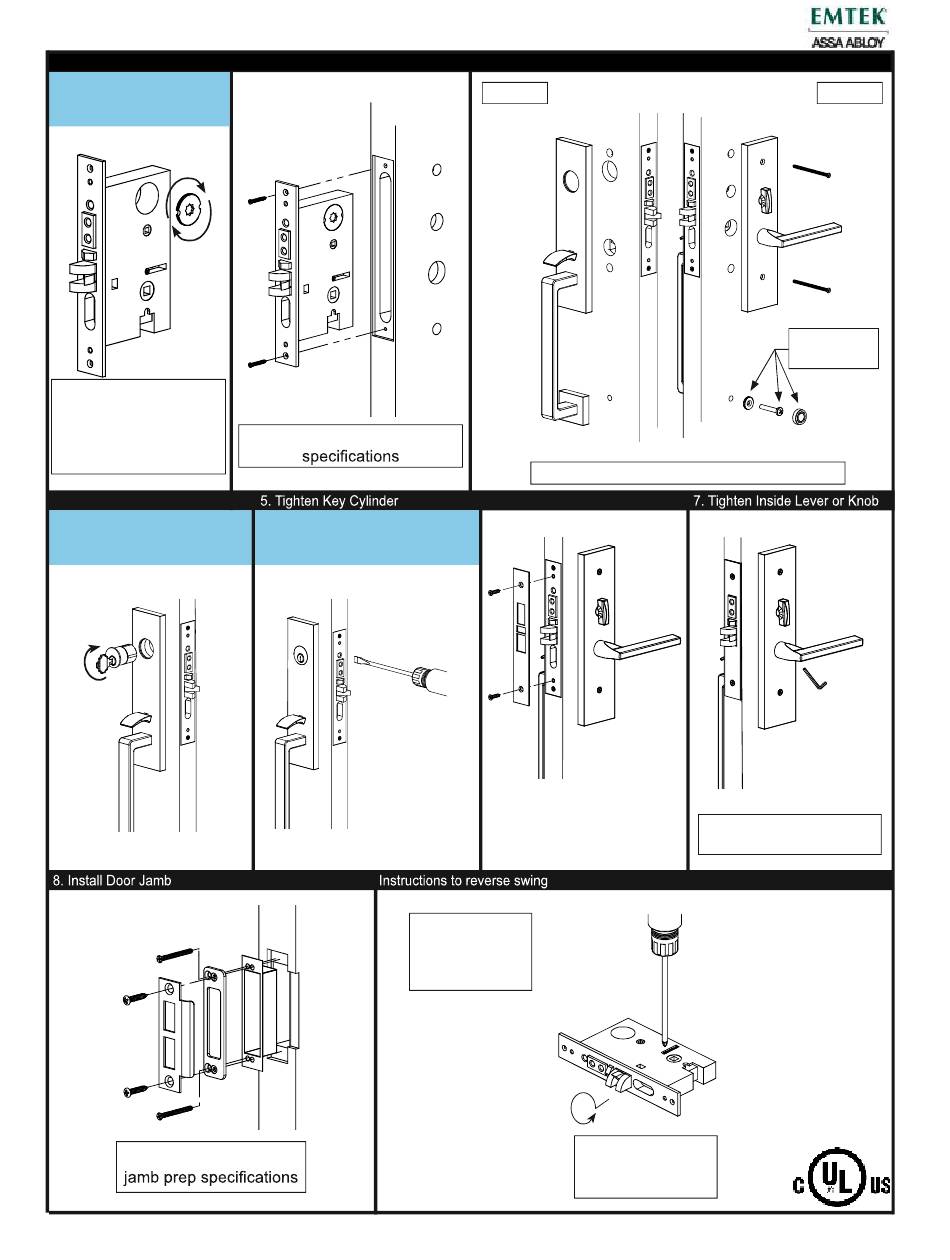

Installation Guide - F13 Mortise Lock
1. Install Cylinder Plug
Install cylinder plug by
threading it clockwise
onto lock body
Note: Notch on cylinder
plug must be in the 9
o' clock position when
fully screwed onto lock
body.
4. Install Key Cylinder
Install key 3/4 of the way into
the key cylinder and thread
it clockwise onto trim plate.
See template for door
2. Install Mortise Lock
See template for door prep
After key cylinder is installed,
secure cylinder by tightening
screw
1. Remove dowel
3. Mount Inside and Outside Trim to Door
Outside
Plates and grip vary depending on style.
6. Install Trim Plate
screw. (Replace
after reversing
swing)
2. Pull out and rotate
Latch bolt to reverse
Tighten Lever with 3/32
Hex wrench (provided).
its direction.
IN4-MORTISEINSTF13
Inside
Assemble to
bottom tube
REV 15A
